2021 HAAS TRT-160 5-Axis Trunnion Table
Sold
2021 HAAS TRT-160 5-Axis Trunnion Table
Description

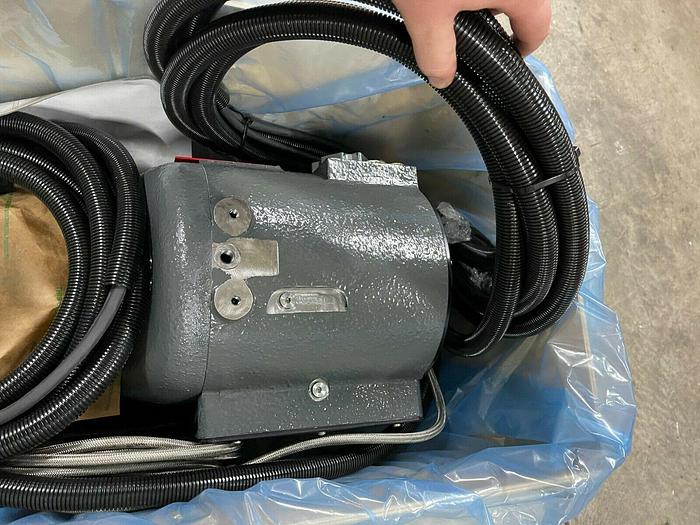

Brand New 2021 TRT-160 5-Axis Trunnion Table

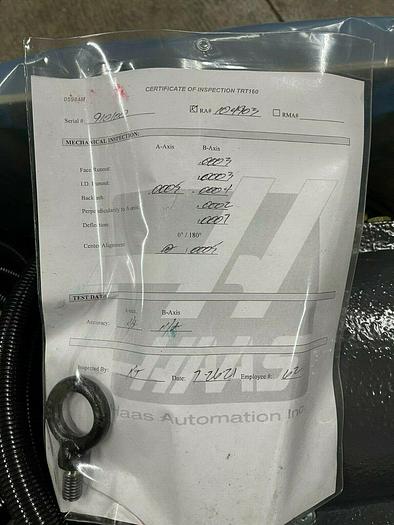

Serial number: 910100 dated 7/26/21
Table Size:
Table Diameter: 6.3" / 160 mm
Max Weight on Platter 150 lb
Part Swing Max: 10.5"
SPINDLE - A (TILT)
Max Speed: 104 °/sec
Max Torque: 210 ft-lbf
Runout Max: 0.013 mm
Backlash: 30 arc-sec
Center Height: 6.9"
SPINDLE - B (ROTARY)
Max Speed: 104 °/sec
Max Torque: 112 ft-lbf
Runout Max: 0.0005 in
Backlash: 30 arc-sec
Center Height: 6.9
INDEXING - A (TILT)
Max Rotation/Step: ± 120 °
Resolution: 0.001 °
Accuracy (±): ± 25 arc-sec
Repeatability: 10 arc-sec
INDEXING - B (ROTARY)
Max Rotation/Step(with rotary control) 999.999 °
Resolution: 0.001 °
Accuracy (±): ± 15 arc-sec
Repeatability: 10 arc-sec

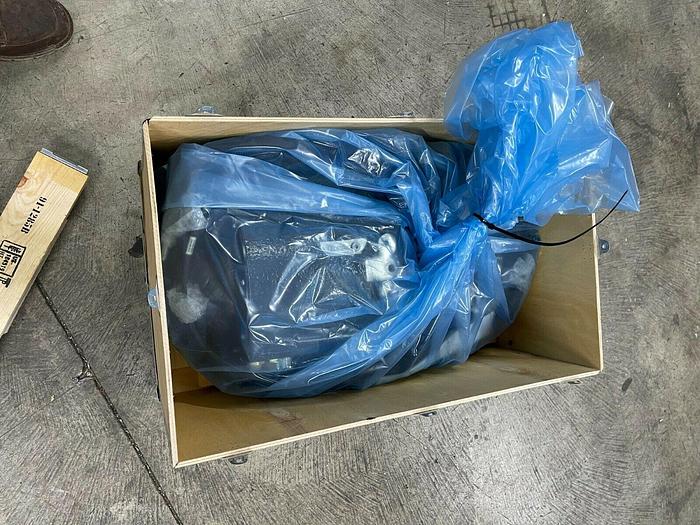

DIMENSIONS - SHIPPING: 28" x 17" x 19"
Weight: 302 lb
Specifications
| Manufacturer | HAAS |
| Model | TRT-160 5-Axis Trunnion Table |
| Year | 2021 |
| Condition | New |
| Serial Number | 910100 |
| Platter Diameter | 6.3" / 160mm |
| Specifications | Table Size: Table Diameter: 6.3" / 160 mm Max Weight on Platter 150 lb Part Swing Max: 10.5" SPINDLE - A (TILT) Max Speed: 104 °/sec Max Torque: 210 ft-lbf Runout Max: 0.013 mm Backlash: 30 arc-sec Center Height: 6.9" SPINDLE - B (ROTARY) Max Speed: 104 °/sec Max Torque: 112 ft-lbf Runout Max: 0.0005 in Backlash: 30 arc-sec Center Height: 6.9 INDEXING - A (TILT) Max Rotation/Step: ± 120 Resolution: 0.001 ° Accuracy (±): ± 25 arc-sec Repeatability: 10 arc-sec INDEXING - B (ROTARY) Max Rotation/Step(with rotary control) 999.999 ° Resolution: 0.001 ° Accuracy (±): ± 15 arc-sec Repeatability: 10 arc-sec DIMENSIONS - SHIPPING: 28" x 17" x 19" Weight: 302 lb |
| Part Swing Max | 10.5" |
| Max Speed | 104 °/sec |
| Center Height | 6.9" |
| Max Rotation/Step | ± 120 ° |
