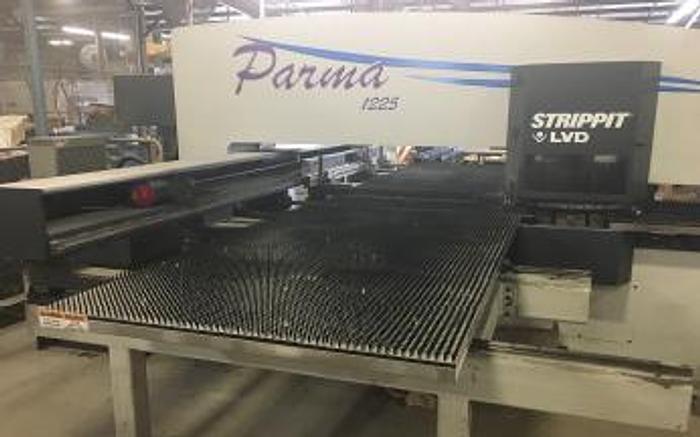

2006 LVD Strippit Parma P1225 CNC Turret Punching System
Sold
2006 LVD Strippit Parma P1225 CNC Turret Punching System
Description

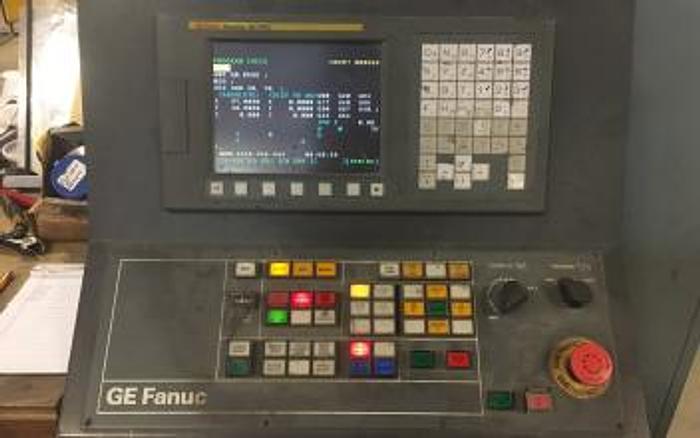

49.21”x 98.4” X 20 Ton CNC Turret Punching System with Fanuc Series
Oi-PC CNC Controller, 21 Station Thick Style Turret with 3 AI (Auto-Index) Stations,
Brush Type Table and All tooling included.
Specifications
| Manufacturer | LVD Strippit |
| Model | Parma P1225 CNC Turret Punching System |
| Year | 2006 |
| Condition | Used |
| Max. Punching Capacity | 20 Metric Ton |
| Max. Material Thickness | 0.250” |
| Nominal Workpiece Size | (Y,X) 49.21”x 98.4” |
| Table Type | Brush table |
| Table Capacity | 160 lbs. |
| Clamping Style | Floating Clamps |
| Number of Clamps | 2 Manual Lock |
| Maximum Clamp Spread | 74.80” |
| Feed Clearance Under Ram | 0.984” |
| Turret Configuration | 21 stations, Thick Style |
| Turret Layout | 8 ‘A’ - 0.5”, 8 ‘B’ - 1.25”, 3 ‘C’ - 2.0”, 2 ‘D’ - 3.5” |
| Auto-Index Stations | 3 ‘C’ - 2.0” |
| Axis Traverse Speed | Up to 3385 IPM |
| combined Axis Travis Speed | (86 m/min.) combined |
| Maximum Hit Rate at 2 mm | Up to 650 HPM |
| Equipped With | Fanuc Series Oi-PC CNC Controller, 21 Station Thick Style Turret with 3 AI (Auto-Index) Stations, Replaceable Punch Bore Liners, Brush Type Table and All tooling |
