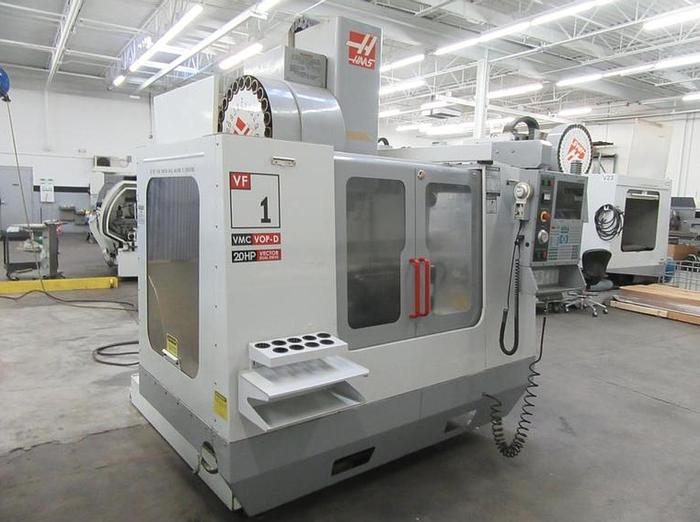

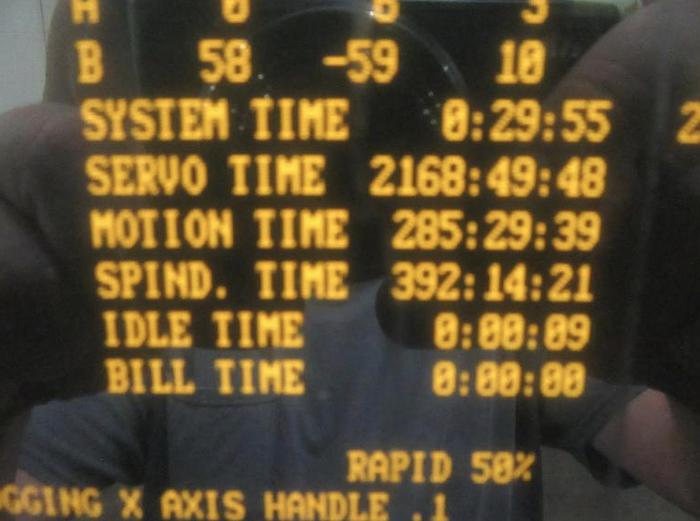

2002 HAAS VF-1 CNC 5-Axis Vertical Machining Center w Haas TRT-160 2- Axis Programmable Rotary Table ***ONLY 391 Spindle Hours!***
Sold
2002 HAAS VF-1 CNC 5-Axis Vertical Machining Center w Haas TRT-160 2- Axis Programmable Rotary Table ***ONLY 391 Spindle Hours!***
Description

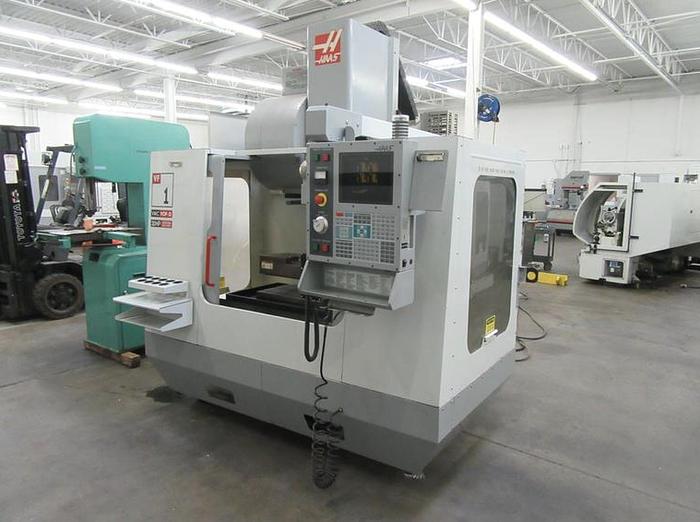

Haas VF-1 CNC 5-Axis Vertical Machining Center w Haas TRT-160 2- Axis Programmable
Rotary Table - ONLY 391 Spindle Hours!
Equipped With:

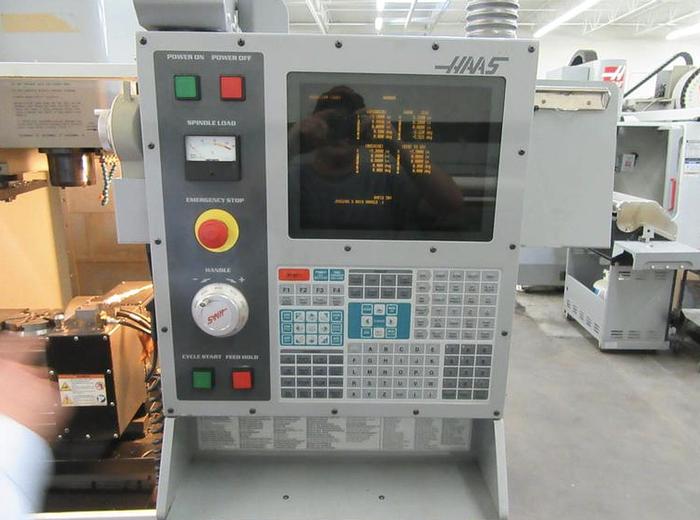

Haas 32 Bit CNC Control, 4th and 5th Axis Programmable CNC Controls (Brushless Drive Style), 24

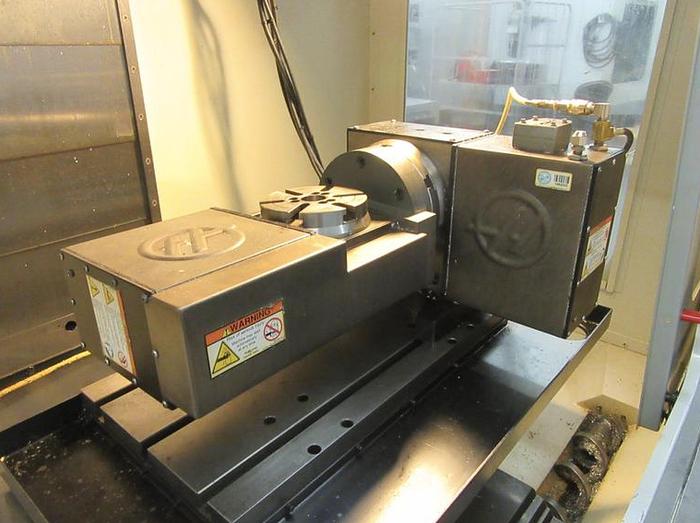

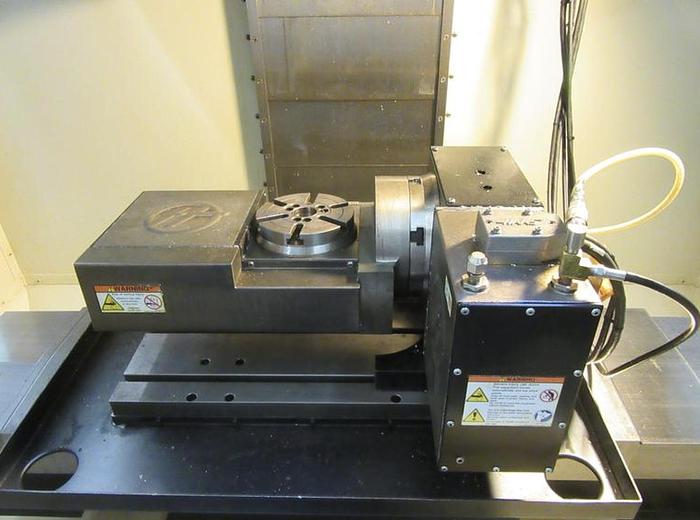

Station Twin-Arm Automatic Tool Changer, 7,500 Max Spindle RPM, Cat 40 Spindle Taper, Haas TRT-160
Tilting 2-Axis Programmable Rotary Table (Brushless Sigma 1 Drive), Chip Auger, Floppy Disk Drive,

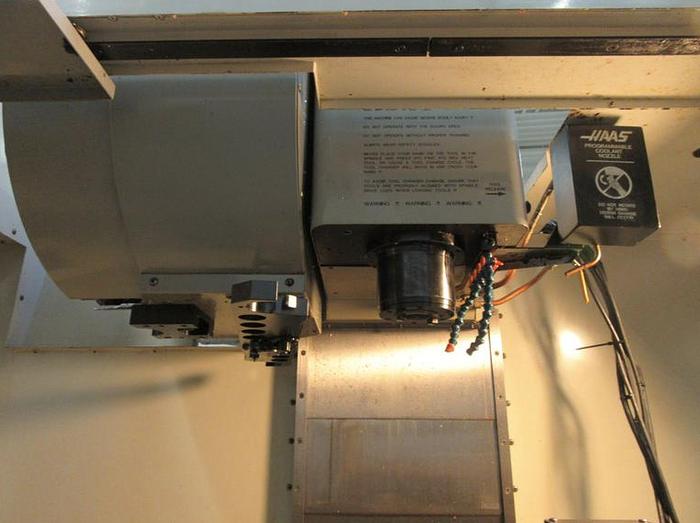

RS232 Port, Programmable Coolant Nozzle, Remote Jog Handwheel, Standard Coolant System, 1MB
Expanded memory, Coordinate Rotation, and Scaling, Rigid Tapping, Spindle Orientation, Manuals.
NOTE: 5th Axis Drive and TRT-160 Rotary Table were Installed New in 2012
Specifications
| Manufacturer | HAAS |
| Model | VF-1 CNC 5-Axis Vertical Machining Center w Haas TRT-160 2- Axis Programmable Rotary Table ***ONLY 391 Spindle Hours!*** |
| Year | 2002 |
| Condition | Used |
| Control | Haas 32 Bit CNC |
| Machine Travels (X/Y/Z) | 20" x 16" x 20" |

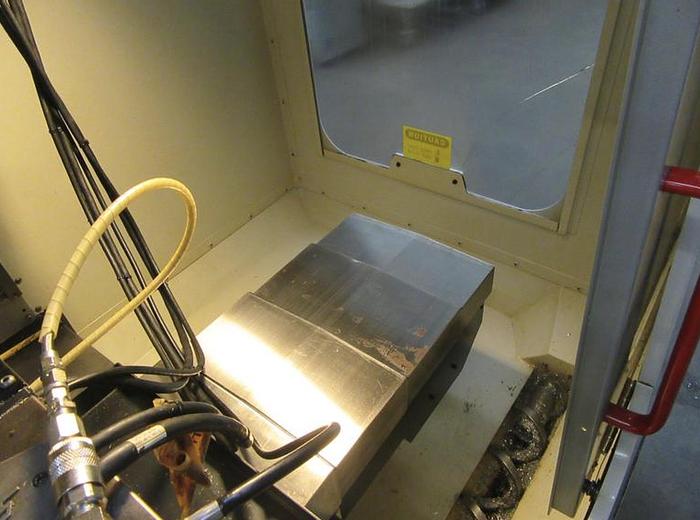

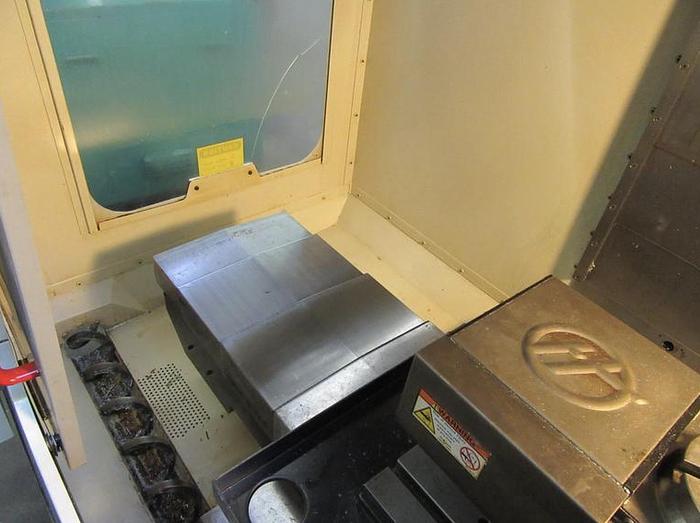

| Table Size | 26" x 14" |
| Transmission | Direct Belt Drive |
| Spindle Taper | Cat 40 |
| Spindle Speeds | 0 -7,500 RPM |
| Rapid Traverse Rate (X/Y/Z) | 710 IPM |
| Table Capacity | 3,000 Lbs. |

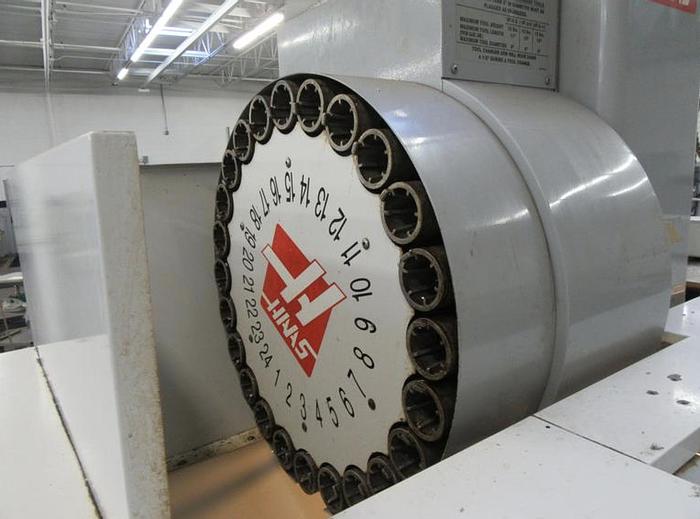

| Tool Changer Style | Side-Mount Twin-Arm |
| Maximum Cutting Feed Rate | 500 IPM |
| Tool Changer Capacity | 24 Stations |
| Tool Change Time | 2.8 Seconds Tool to Tool |
| Max Tool weight | 12 lbs |
| Spindle Drive | 20 HP Vector Spindle Drive |
| Spindle To Table Distance | 4" - 24" |
| Equipped With | Haas 32 Bit CNC Control, 4th and 5th Axis Programmable CNC Contros (Brushless Drive Style), 24 Station Twin-Arm Automatic Tool Changer, 7,500 Max Spindle RPM, Cat 40 Spindle Taper, Haas TRT-160 Tilting 2-Axis Programmable Rotary Table (Brushless Sigma 1 Drive), Chip Auger, Floppy Disk Drive, RS232 Port, Programmable Coolant Nozzle, Remote Jog Handwheel, Standard Coolant System, 1MB Expanded memory, Coordinate Rotation and Scaling, Rigid Tapping, Spindle Orientation, Manuals. |
| dimensions | 100.00"L x 92.80"W x 104.50"H |
| Weight | 7100.00 lbs. |
