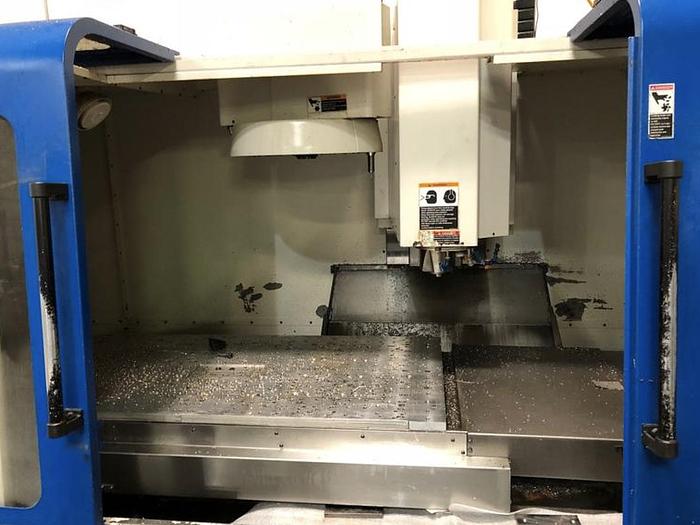

2005 FADAL VMC-8030HT CNC Vertical Machining Center with Fanuc 18i-MB5 CNC Control
Sold
2005 FADAL VMC-8030HT CNC Vertical Machining Center with Fanuc 18i-MB5 CNC Control
Description
Fadal VMC-8030HT CNC Vertical Machining Center with Fanuc 18i-MB5 CNC Control
Specifications
| Manufacturer | FADAL |
| Model | VMC-8030HT CNC Vertical Machining Center with Fanuc 18i-MB5 CNC Control |
| Year | 2005 |
| Condition | Used |

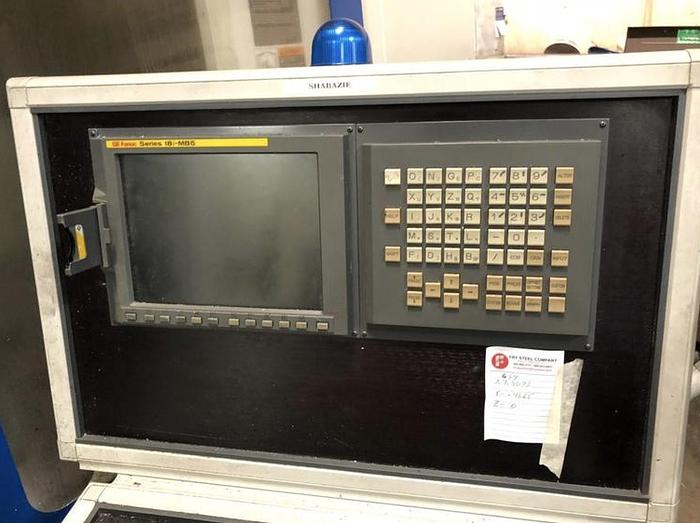

| Control | Fanuc 18i-MB5 |
| Table Size | 82.5" x 30" |
| Machine Travels (X/Y/Z) | 80" x 30" x 28" |
| Table Capacity | 3,750 Lbs. |
| Spindle Taper | Cat 40 |
| Spindle Speeds | 75-2,500 and 2,501 - 10,000 RPM |
| Transmission | High-Torque Spindle 2 Ranges |
| Rapid Traverse Rate (X/Y/Z) | 400 IPM |
| Maximum Cutting Feed Rate | .01" - 250 IPM |
| Tool Changer Style | Carousel |
| Tool Changer Capacity | 20+1 Stations |
| Max Tool Length | 15" |
| Max Tool weight | 15 lbs. |
| Spindle Drive | 22.5 HP |
| Spindle To Table Distance | 5" - 35.5" |
| Spindle Center to Column Distance | 30" |
| Dimensions | 240.00"L x 120.00"W x 129.00"H |
| Weight | 18000.00 lbs. |
