2000 DAEWOO PUMA 300B
Sold
2000 DAEWOO PUMA 300B
Description

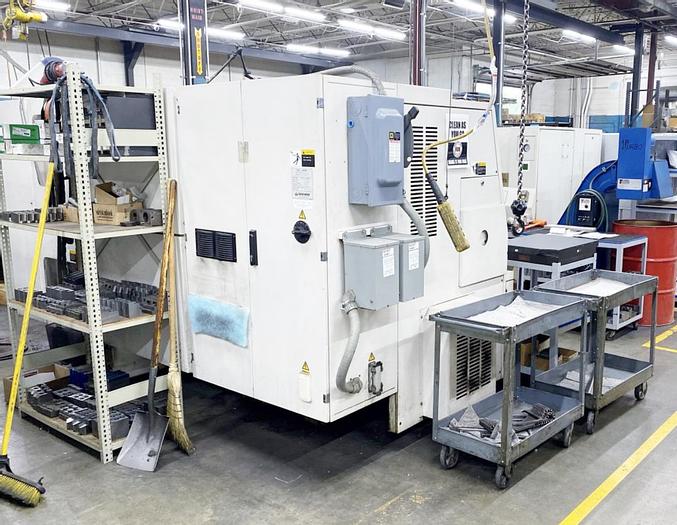

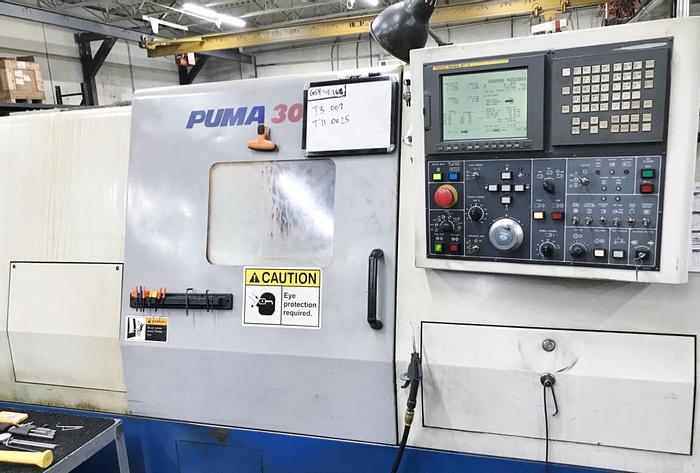

Fanuc 21i-T control, 12" chuck, 3" bar capacity, tailstock, chip conveyor. This 2000 Daewoo Puma 300B cnc lathe is in plant, under power and available immediately.
Equipped With:

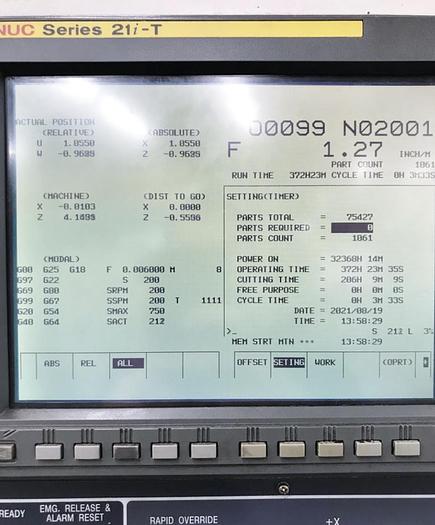

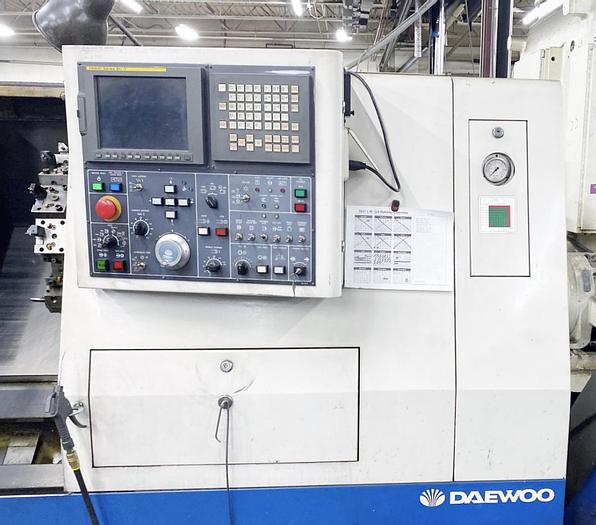

FANUC 21i-T CONTROL

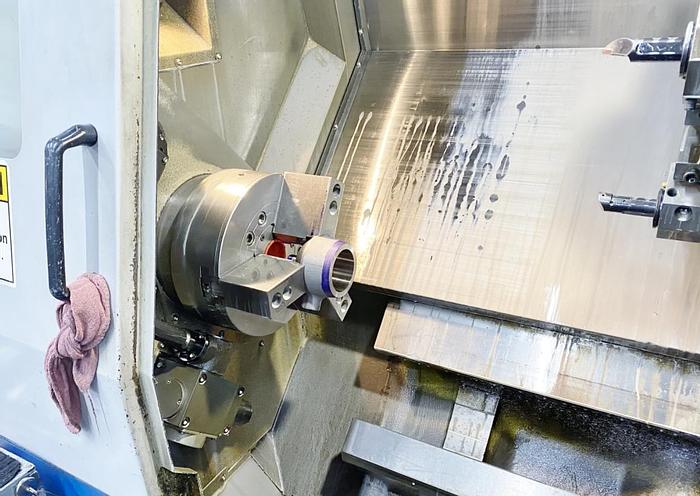

12”, 3-JAW KITAGAWA HYDRAULIC CHUCK
TAILSTOCK
TOOL PRESETTER
CHIP CONVEYOR
** MACHINE CUT PRIMARILY COPPER, NICKEL, STEEL & STAINLESS
** IN PLANT, UNDER POWER, AVAILABLE FOR IMMEDIATE INSPECTION & PURCHASE
Specifications
| Manufacturer | DAEWOO |
| Model | PUMA 300B |
| Year | 2000 |
| Condition | Used |
| MAX SWING | 23" |
| MAX CUTTING DIAMETER | 15.7" |
| MAX CUTTING LENGTH | 25.5" |
| X-AXIS TRAVEL | 11.1" |
| Z-AXIS TRAVEL | 26.8" |
| CHUCK SIZE | 12" |
| BAR CAPACITY | 3" |
| SPINDLE BORE | 3.5" |
| SPINDLE NOSE | A2-8 |
| SPINDLE MOTOR | 30 hp |
| SPINDLE SPEED | 3,500 RPM |

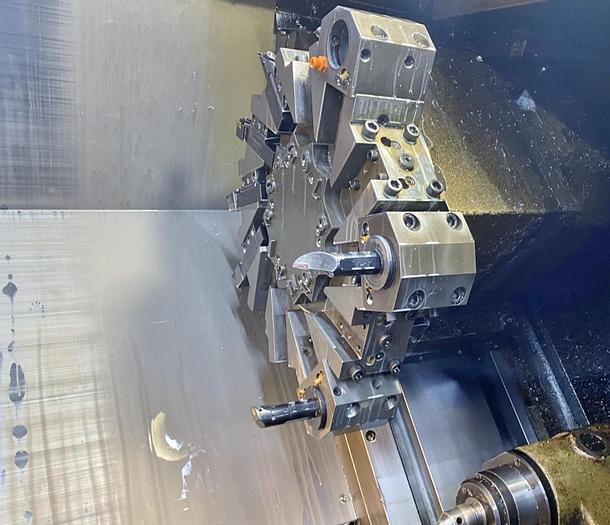

| TURRET POSITIONS | 12 |
| Equipped With | FANUC 21i-T CONTROL, 12”, 3-JAW KITAGAWA HYDRAULIC CHUCK, TAILSTOCK, TOOL PRESETTER, CHIP CONVEYOR, ** MACHINE CUT PRIMARILY COPPER, NICKEL, STEEL & STAINLESS ** IN PLANT, UNDER POWER, AVAILABLE FOR IMMEDIATE INSPECTION & PURCHASE |
