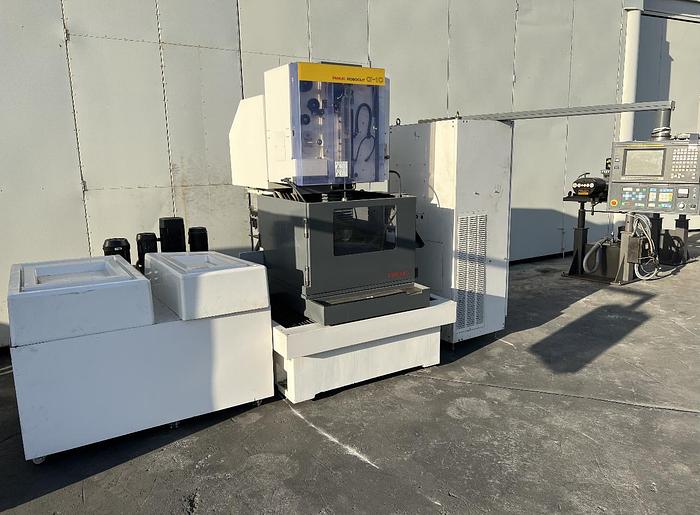

1998 FANUC Robocut Alpha OC CNC Wire EDM

Sold

1998 FANUC Robocut Alpha OC CNC Wire EDM

Description

Great Condition

12.6"X Travel

8.7"Y Travel

26" x 17" x 7.1" (Max Work Piece Dimensions Submersible)

550 pounds Max Work Piece Weight Submersible

U & V Axis Travels +/- 2.364"

35.4 ipm Table Feed Rate

Wire Dia .004" to .012"

Wire Feed Rate 0-590 ipm

Wire Tension 200-2,500 grams

Max Taper Angle +/- 30°

Positioning Accuracy +/- .0001"

Fanuc 16-W Control with Conversational Programing

Automatic Wire Threading

Submerged Cutting

Automatic Water Level Control

Dielectric Tank

Ionizer Tank

Filters

Hand Held Remote

Chiller

Spent Wire Bin




Specifications

ManufacturerFANUC
ModelRobocut Alpha OC CNC Wire EDM
Year1998
ConditionUsed
