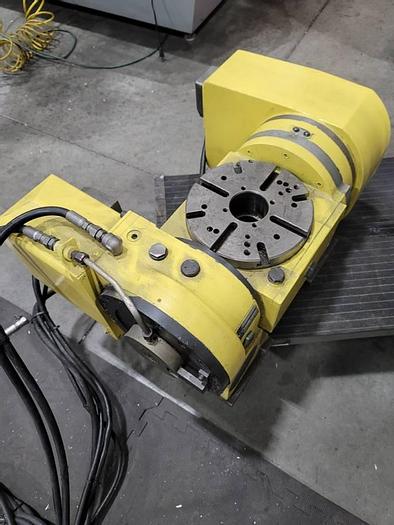

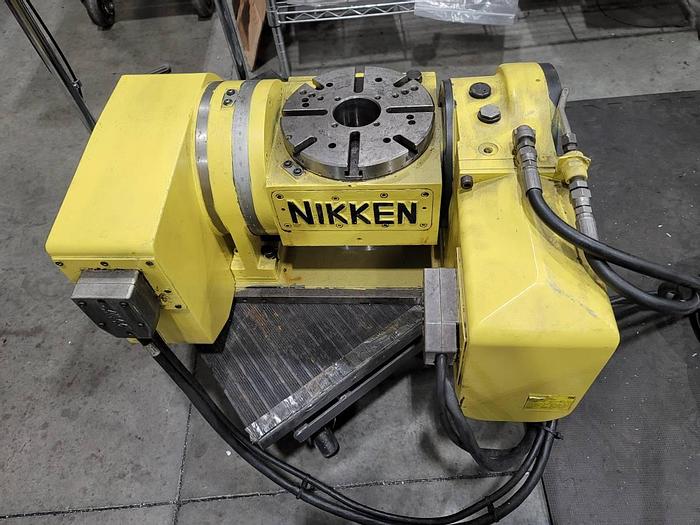

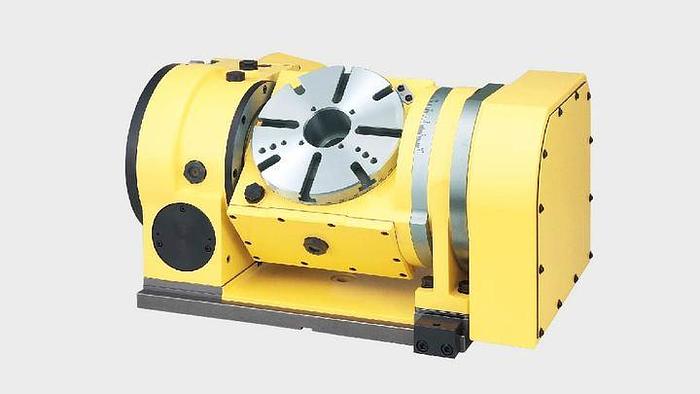

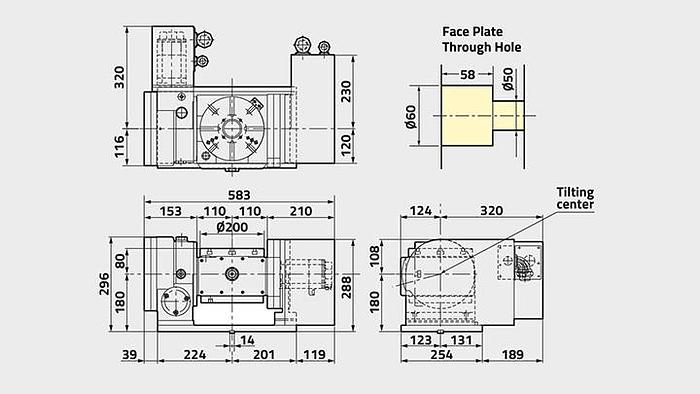

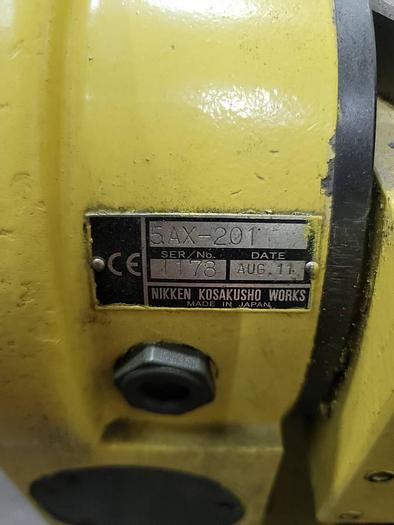

2010 Nikken 5AX-201 Trunnion Table

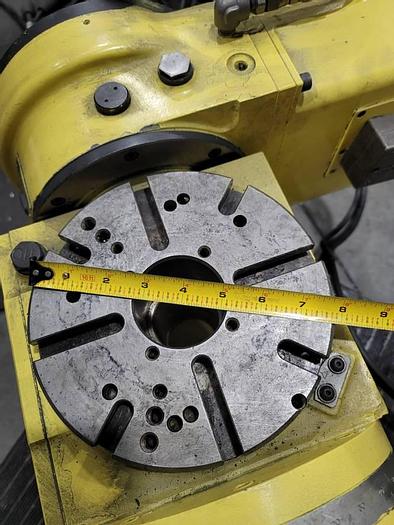

Face Plate Diameter[Ømm] 200

Table Range/Type COMPACT

Diameter of Spindle Hole [Ømm H7] 60

Number of Spindles x Pitch [mm] 1

Centre Height (90°) [mm] 180

Table Height in Horizontal Position (0°) [mm] 260

Width of T Slot [mm] 12

AXIS Rotary Tilting (0°-105°)

Clamping System AIR/HYD

Clamping Torque [Nm] 303/588

Table Inertia at Motor Shaft [Kg m² x 10³] 0.11

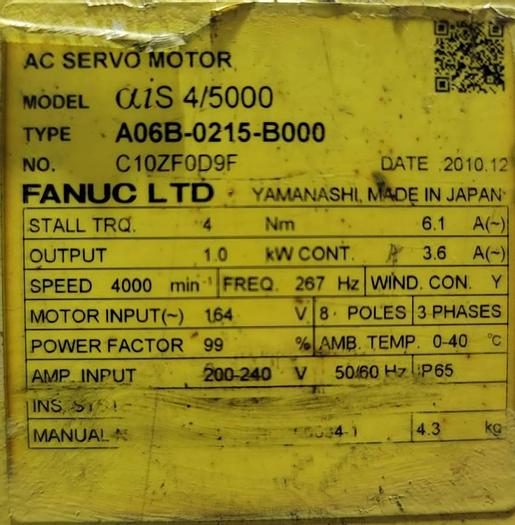

Servo Motor [min¹] αiF2·2000

Min. Increment [Degrees] 0.001

Rotation Speed [min¹] 22.2

Total Reduction Ratio 1/90

Indexing Accuracy [sec] 20

Net Weight [Kg] 160

Max. Work Load on Table 0° to 30° [Kg]60

Max. Work Load on Table 30° to 90° [Kg]40

Max. Thrust Load at Table Centre - Tilting Angle = 0°[N] 9800

Max. Thrust Load 'F' @ 'Lmm' from Table Centre - Tilting Angle = 0° [N] F4900 @ L=100

Strength of Worm Wheel Without Brake (Against Dynamic Cutting Thrust) - Tilting Angle = 90° [FxL Nm] 382

Max. Work Inertia [Kg m²] 0.5

Driving Torque [Nm] 72
