1995 FANUC Robocut Alpha OC CNC Wire EDM

Great Condition

12.6"X Travel

8.7"Y Travel

26" x 17" x 7.1" (Max Work Piece Dimensions Submersible)

550 pounds Max Work Piece Weight Submersible

U & V Axis Travels +/- 2.364"

35.4 ipm Table Feed Rate

Wire Dia .004" to .012"

Wire Feed Rate 0-590 ipm

Wire Tension 200-2,500 grams

Max Taper Angle +/- 30°

Positioning Accuracy +/- .0001"

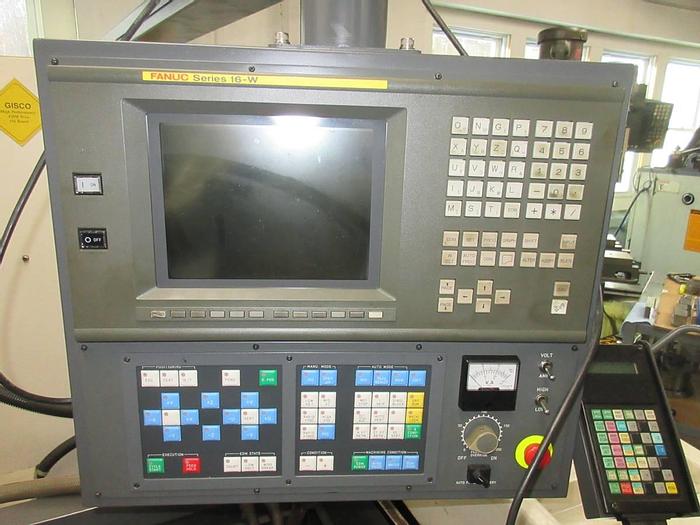

Fanuc 16-W Control with Conversational Programing

Automatic Wire Threading

Submerged Cutting

Automatic Water Level Control

Dielectric Tank

Ionizer Tank

Filters

Hand Held Remote

Chiller

Spent Wire Bin
