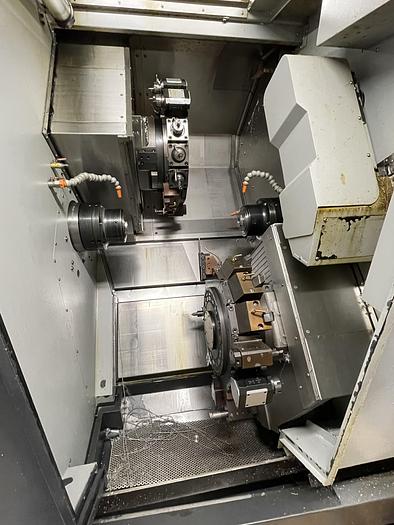

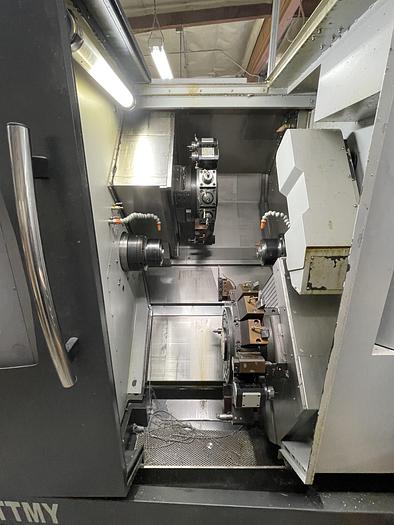

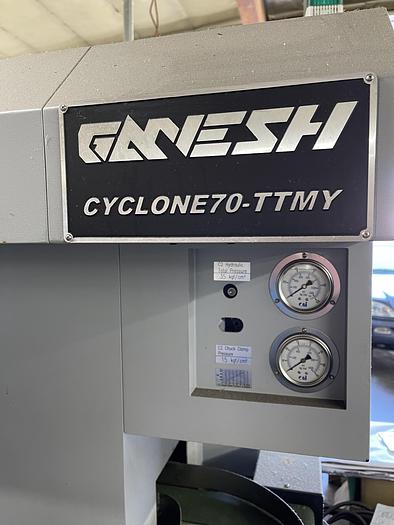

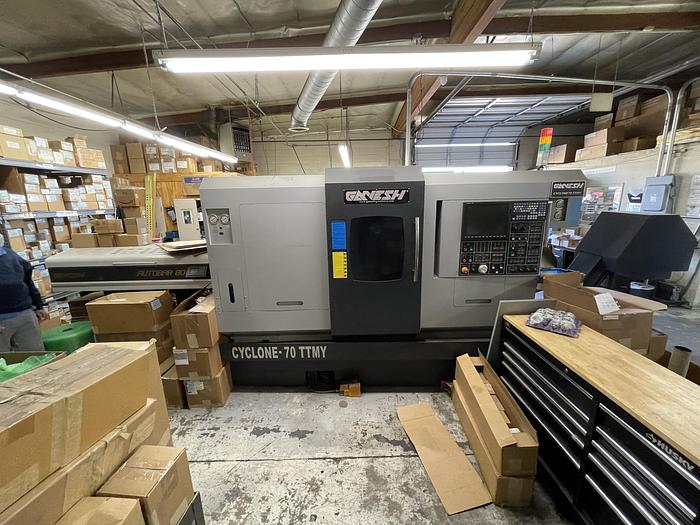

2014 GANESH CYCLONE 70-TTMY CNC Twin Turret Twin Spindle Live Tooling

Sold

2014 GANESH CYCLONE 70-TTMY CNC Twin Turret Twin Spindle Live Tooling

Description

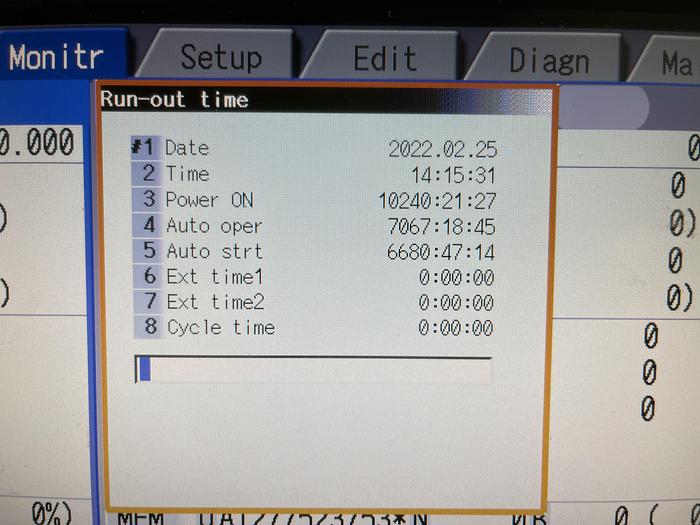

Excellent Condition Low Hours

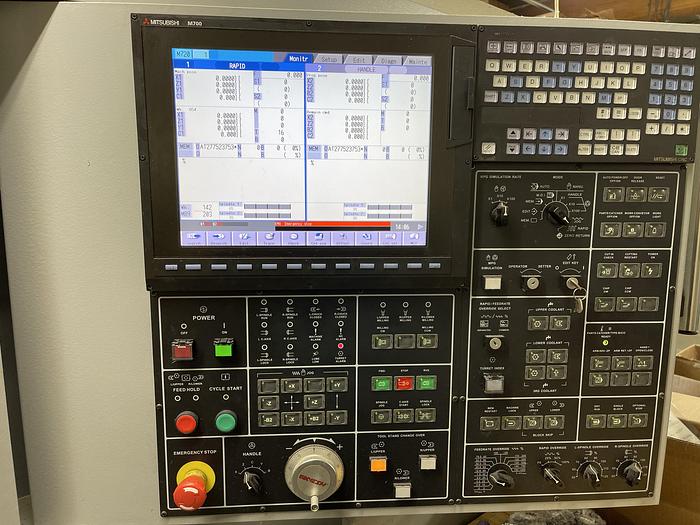

MITSUBISHI M 700 CONTROL

MAX TURNING DIAMETER.......... 7.48"

MAX TURNING LENGTH............ 15.75"

DISTANCE BETWEEN CENTERS...... 36.22"

X1-AXIS TRAVEL................ 5.9"

X2-AXIS TRAVEL................ 9.05"

Z1-AXIS TRAVEL................ 17.32"

Z2-AXIS TRAVEL................ 17.32"

Y-AXIS TRAVEL................. 3.93"

B-AXIS (SUB SPINDLE) TRAVEL... 25.59"

C-AXIS INDEXING............... FULL C-AXIS (MAIN & SUB)


MAIN SPINDLE:

BAR CAPACITY.................. 2.75"

SPINDLE BORE.................. 3.3"

SPINDLE SPEED................. 4,000 RPM

SPINDLE MOTOR................. 20 HP

SPINDLE NOSE.................. A2-8

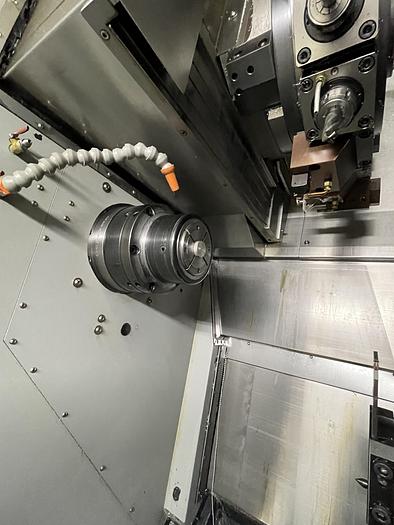

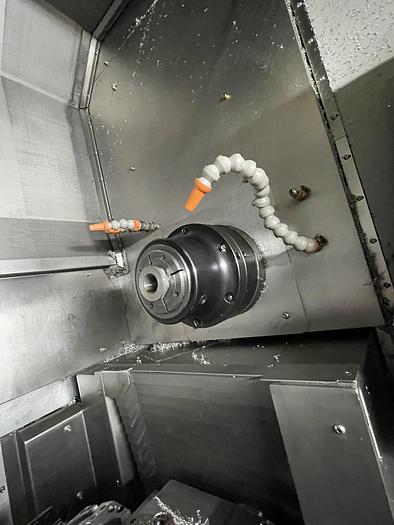

SUB SPINDLE:

SPINDLE BORE.................. 2.2"

SPINDLE SPEED................. 4,000 RPM

SPINDLE MOTOR................. 10 HP

SPINDLE NOSE.................. A2-5


LIVE TOOLING SPEED............ 6,000 RPM

LIVE TOOLING MOTOR............ 7 HP

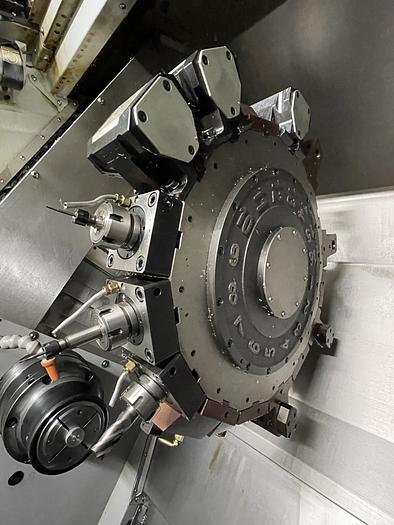

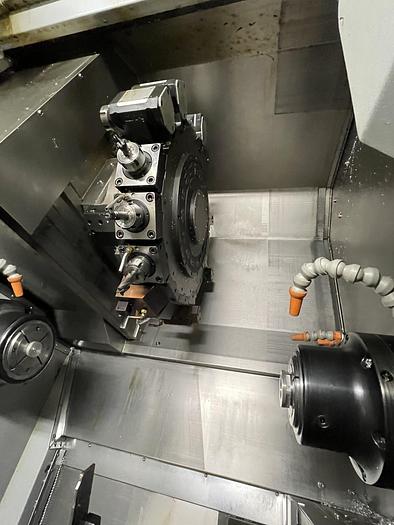

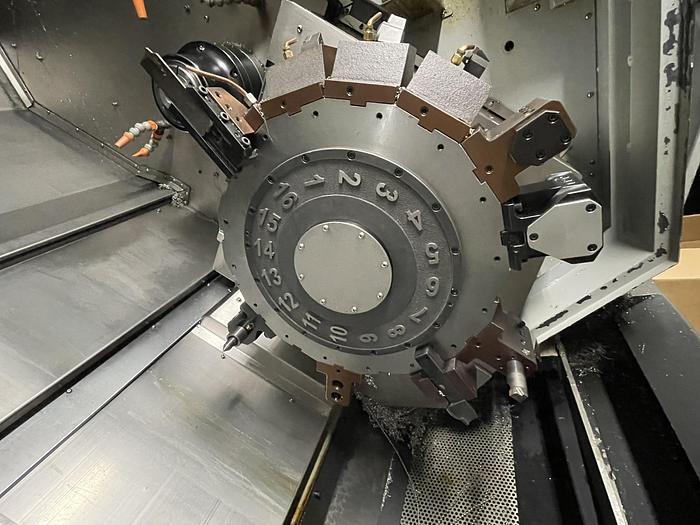

TOOL POSITIONS................ 32 (16 each Turret)

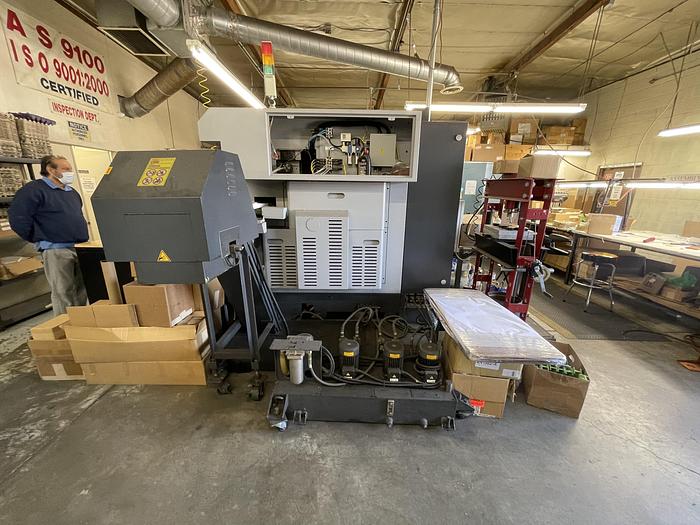

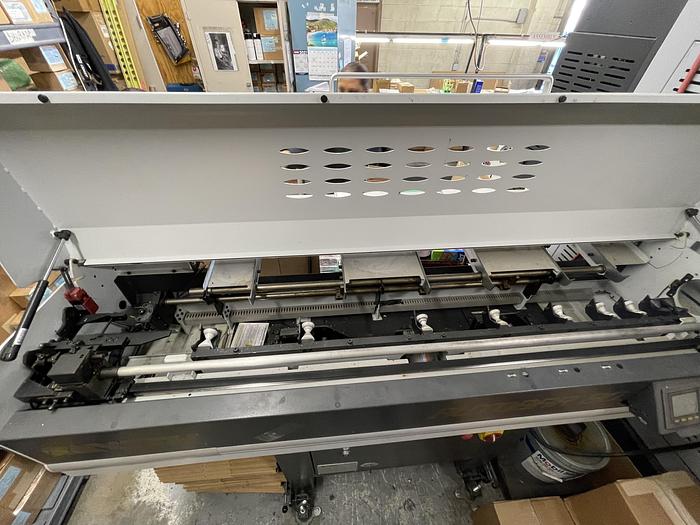

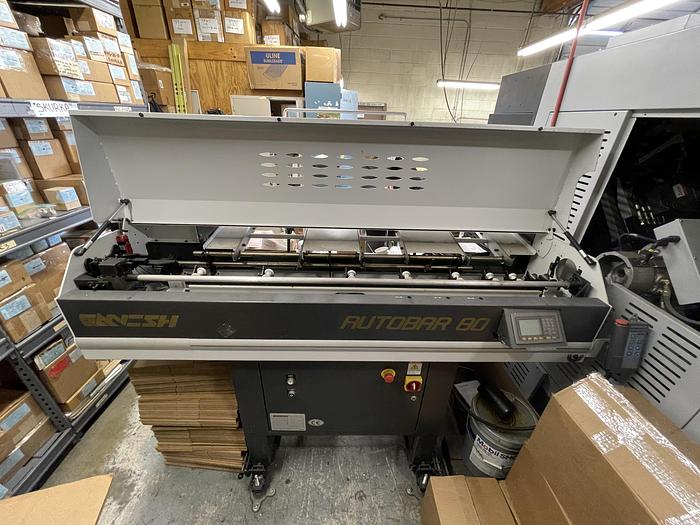

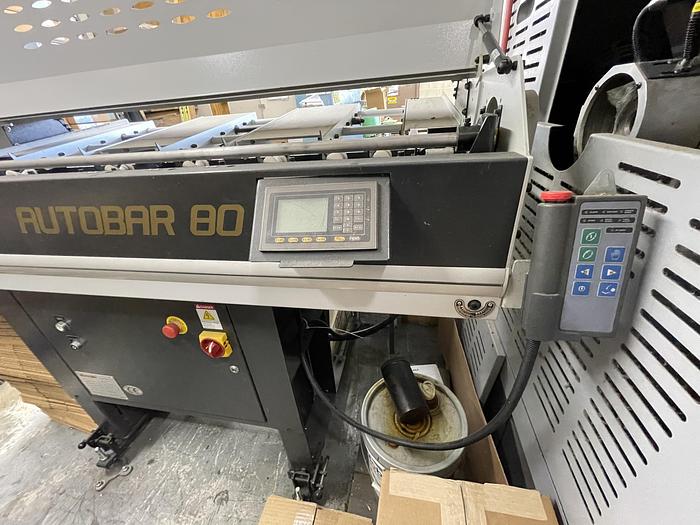

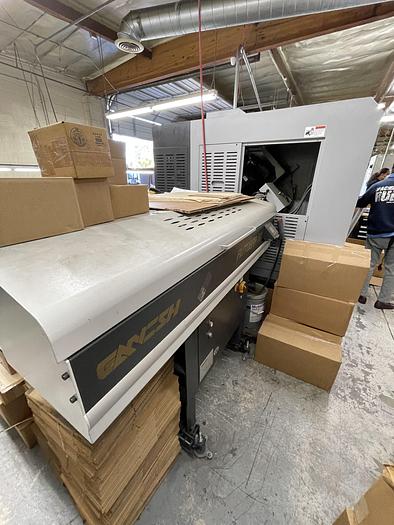

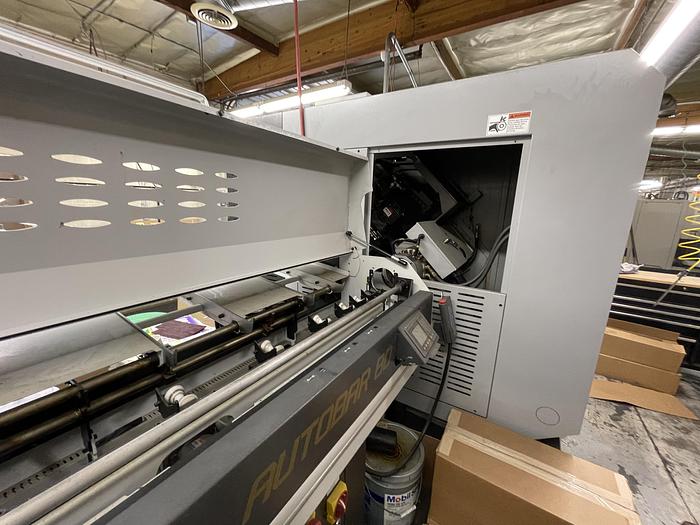

EDGE TECHNOLOGIES REBEL 80 MAGAZINE BARFEEDER (5')

HIGH PRESSURE COOLANT

CHIP CONVEYOR


Specifications

ManufacturerGANESH
ModelCYCLONE 70-TTMY CNC Twin Turret Twin Spindle Live Tooling
Year2014
ConditionUsed
