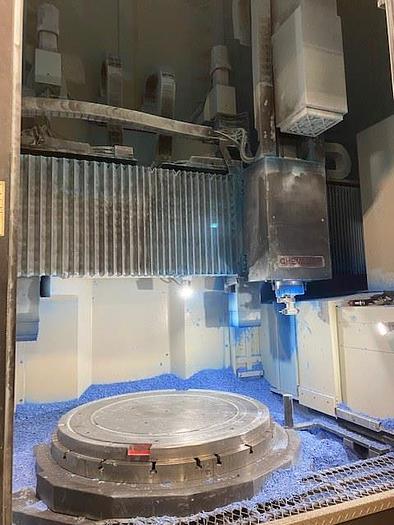

2015 CHEVALIER FLV-1600 VTC+C CNC VERTICAL BORING MILL

Excellent Condition

8,000 RPM Rotary Spindle Speed

ISO 50 Taper CT Spindle Nose

48 Station Automatic Tool Changer

33 + 45.2" X - Axis

35.4" Z - Axis

31.5" W - Axis

123 - 250 RPM High Table Speed

 30 - 125 RPM Low Table Speed

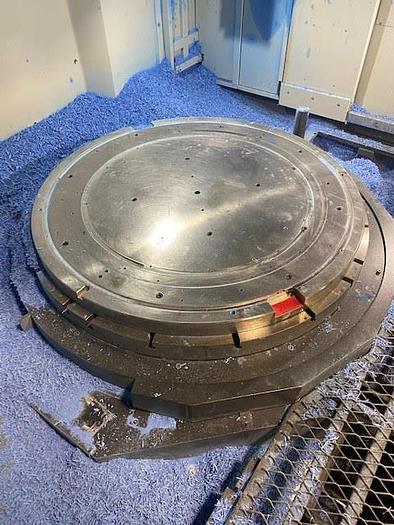

63" Table Diameter

78.7" Swing Diameter

22,000 LBS. Maximum Workpiece Weight

78.7" Maximum Cutting Diameter

53.1" Turning Height

3 Steps W - Axis Positions

472, 393 IPM Rapid Traverse X, Z

.001 C - Axis Indexing

9.4" X 9.4" Ram Size

63" 4-Jaw Chuck

AutoDoors

Helical and Circular Interpolation

Through Spindle Coolant Ready

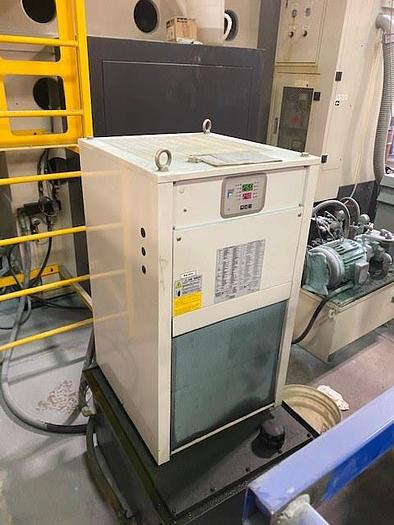

Spindle Chiller

Reinshaw Wireless Part Probe and Tool Setter

Airconditioned Cabinet

Hazardous Material Protection Enhanced Way Covers, Prox Switch, and Ballscrews

Rear Flush System

Rotary Scale System, Position Accuracy of 15 Arc Seconds

128 Tool Offsets

6 Sets of Work Coordinates

Auto Power Off

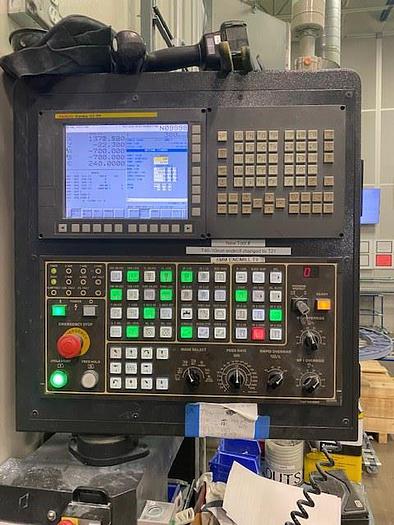

Fanuc OI-TD Control

.001 C - Axis Table Indexing

Chip Conveyor
