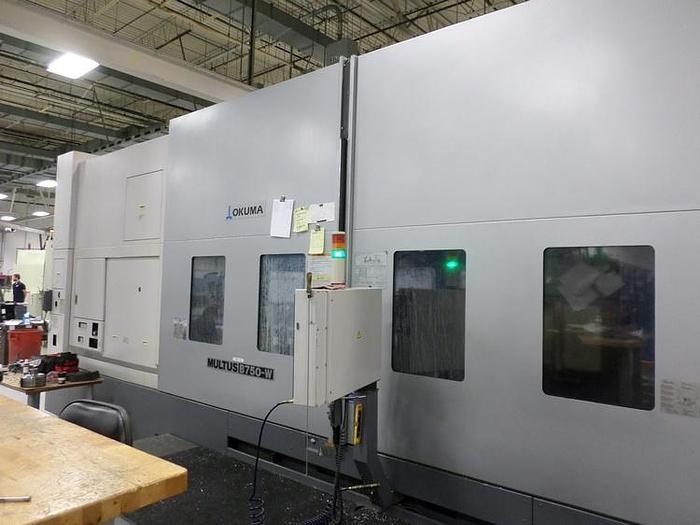

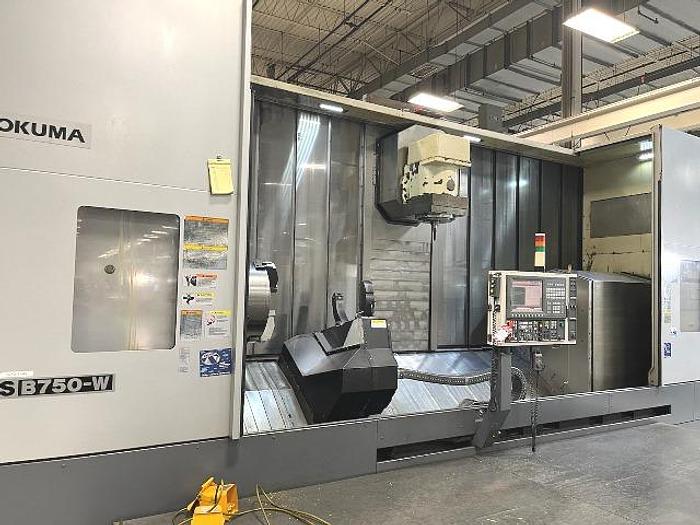

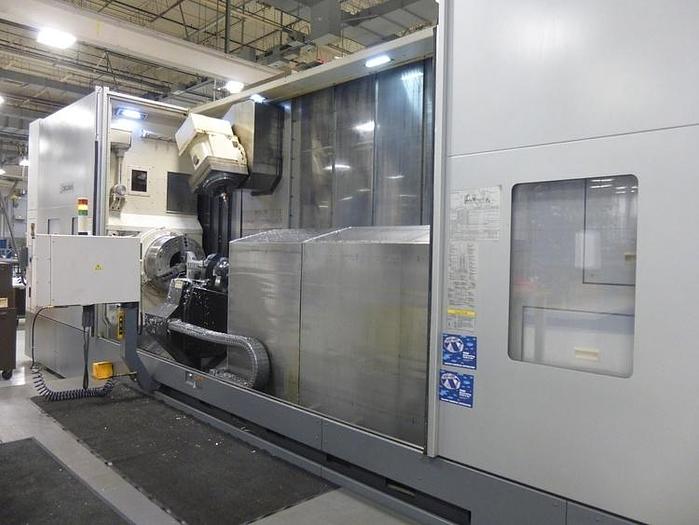

2010 OKUMA Multus B750 - W / 4000 8-Axis CNC Mill Turn

2010 OKUMA Multus B750 - W / 4000 8-Axis CNC Mill Turn

orCall 213-393-6196


Excellent Condition

24" Chuck Main and Sub Spindle

5,000 RPM Milling Spindle Speed

Capto C8 Spindle Taper

2000 RPM Spindle Speed

80 Station Automatic Tool Changer

Tailstock Adapter for SubSpindle

Hydraulic Steady Rest

Chip Conveyor

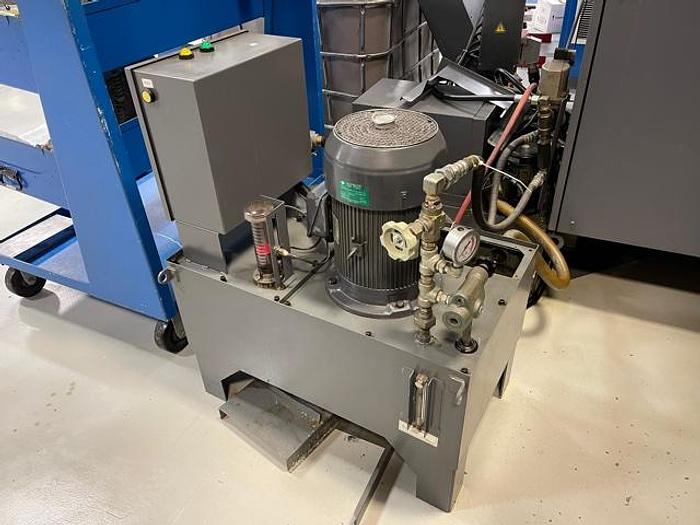

Okuma 1000 PSI High Pressure Coolant

Y-Axis Gauging

Y-Axis Off Center Cut Function

50" Long Boring Bar Change Over System

Auto Gauging System Renishaw RMP60

Super Big Bore A2-20 Nose

Auto Door

Turret Air Blow

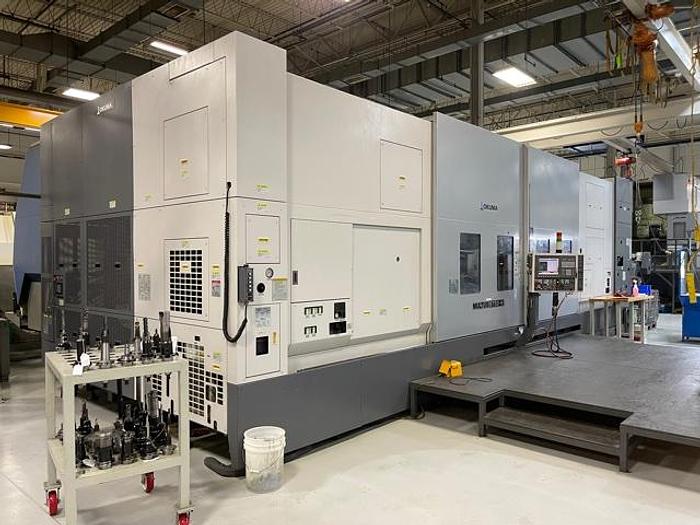

Operator Platform

-30 to 210 Degrees B-Axis Travel

360 Degree C-Axis travel

.001 Degrees C-Axis Index (L & R)

178.9" Distance Between Spindles

171.18” Between TailStock and Spindle Nose

41.34” Swing Over Bed

41.34” Max Turning Diameter

41.34" Max Swing Over Saddle

5.31" / 11.81" Max Tool Diameter:

23.6" Max Tool Length

66 lbs. Max Tool Weight

41.34" Max Turning Diameter

50 / 40 HP Milling Spindle Motor

372 ft. lbs. Milling Spindle Torque

1575 IPM Rapid Traverse Rates

50 / 40 HP AC Spindle Motor

A2-20 Spindle Nose

W-Axis: 133.66"

X-Axis: 42.52" 1,574.80 IPM Rapid Traverse Rate

Y-Axis: + / - 12.99" , 1,574.80 IPM Rapid Traverse Rate

Z-Axis: 165.94" 1,181.10 IPM Rapid Traverse Rate

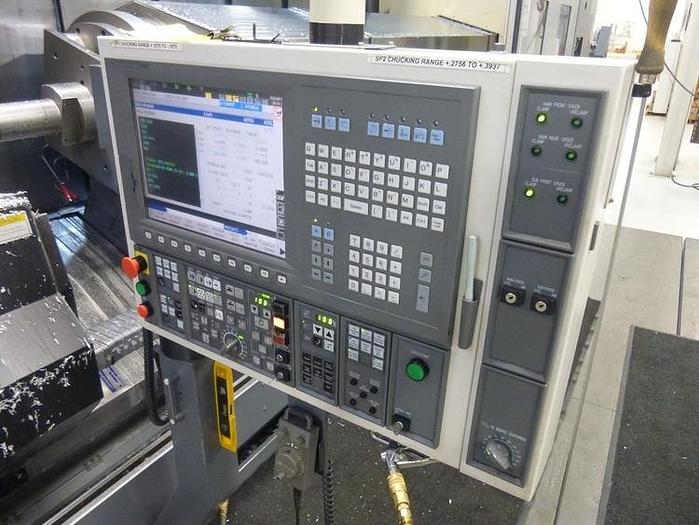

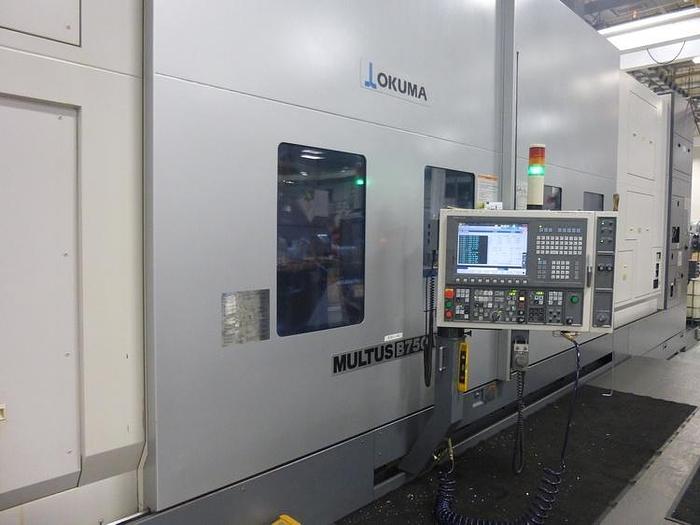

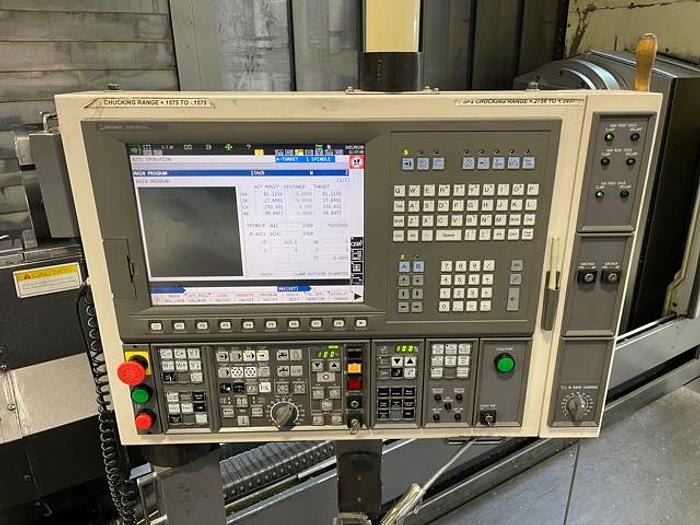

OSP-P200L CNC Control

15" Color TFT

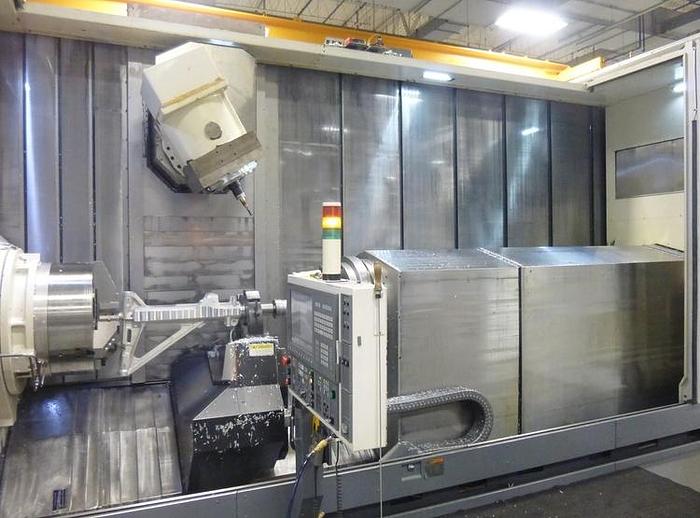

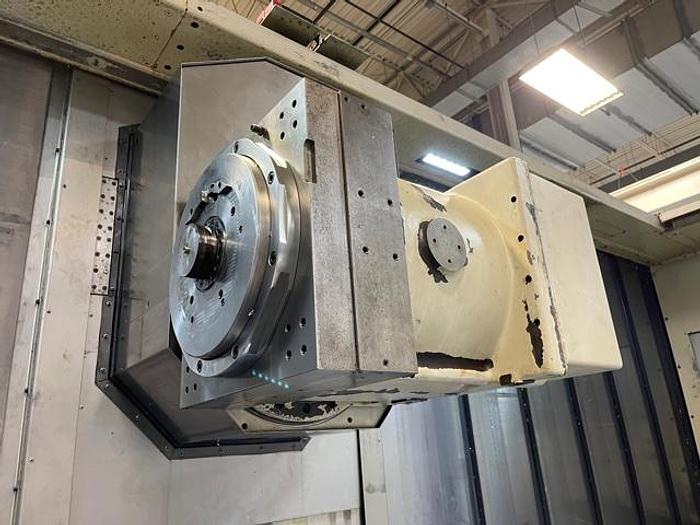

B-Axis Upper Tool Spindle Full 5-Axis Contouring

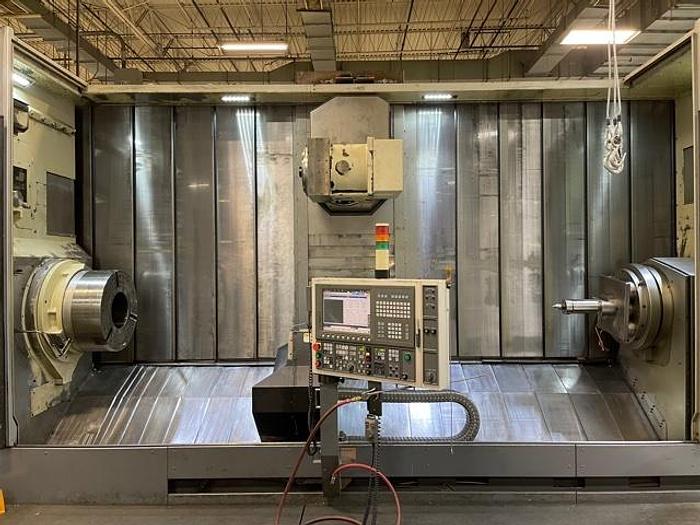

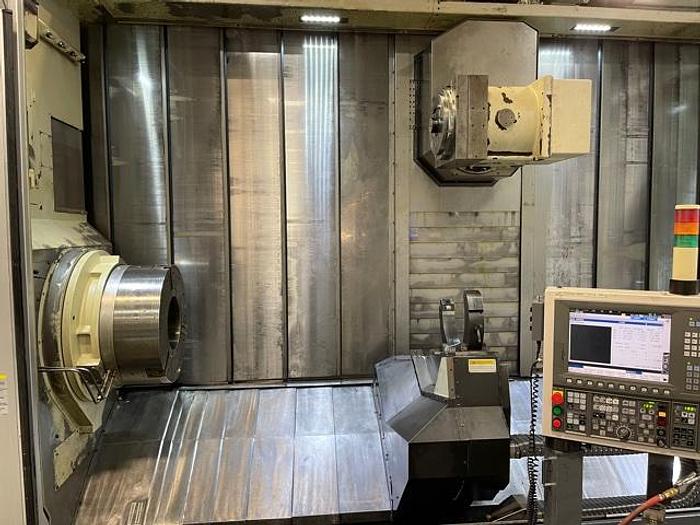

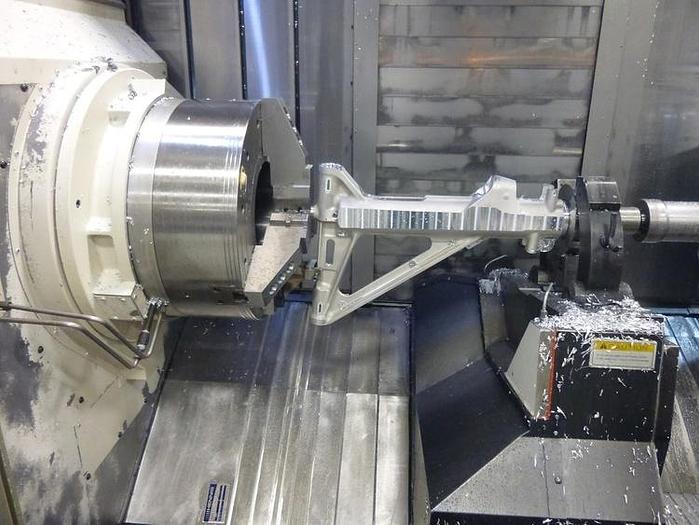

Twin Opposed Spindles

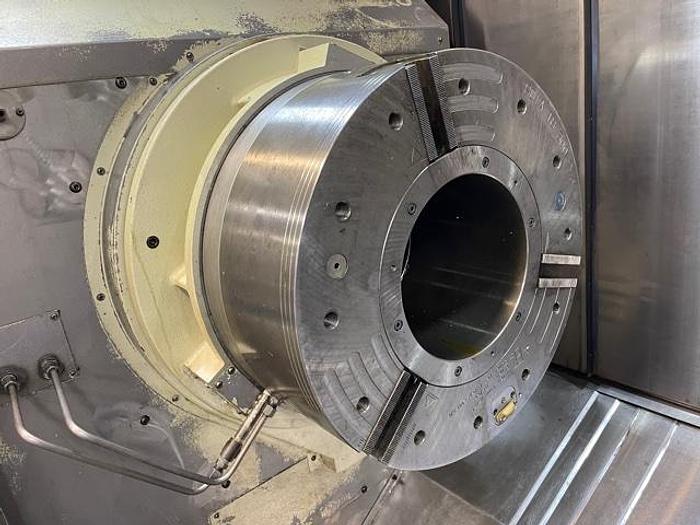

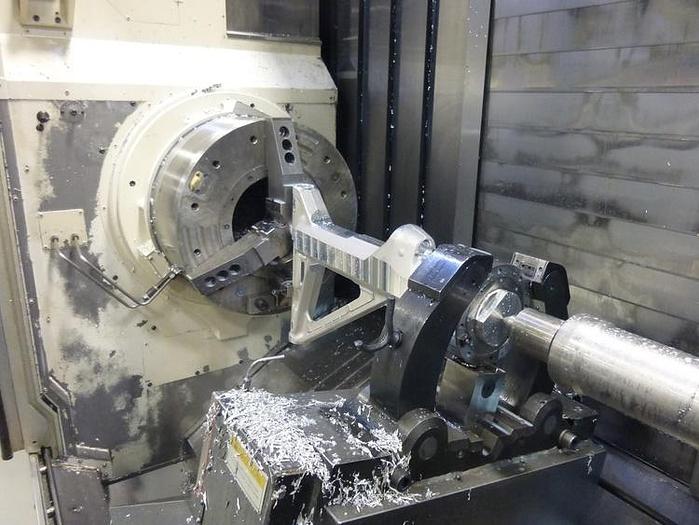

Schunk Rota TB 600-275 LH Self-Contained Pneumatic 3-Jaw Chuck

24" Hydraulic Chuck (Right Spindle)

80 Tool Magazine (Capto C8)

Through Spindle Coolant (MP Systems 1000 psi)

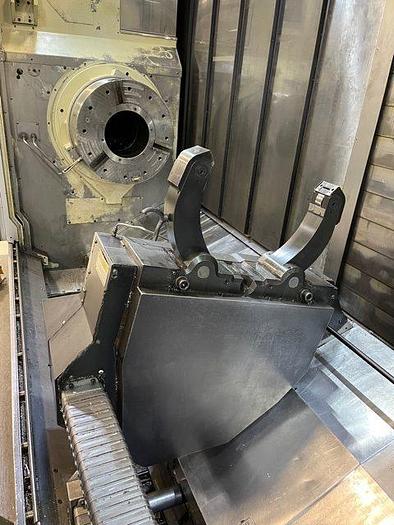

SWM Autoblock Programmable Hydraulic Steady Rest

Enomoto Chip Conveyor (Side Exit)

(3) Long Boring Bar Attachment

Actual Long Boring Bar with Replaceable Capto C8 Heads

Multi-Tap Transformer

Three Color Tower Light

Spindle Chiller Unit

Remote Jog Handle

Hi-G Control

500 Sets of Tool Offsets

Tape Data In/Out

Plane Conversion

Profile Generation

B-Axis Interpolation

Rigid Tapping

Helical Cutting

Slant Cutting

Home Position

Spindle Fluctuate

NC Torque Limiter

GM Code Macros

Center Computation

Touch Setter

Touch Sensor

Y-Axis Gauging

Optical Sensor

Pitch Error Compensation

Tool Life Management

Tool Wear Compensation

Inch/Metric Switchable

Cycle Time Calculation

Cycle Time Renew

Tool Center Control

Super Nurbs

Super Hi-NC

Thermal Compensation L2

Servo Link NC

Lap 4

Nose Radius 2B

User Task 2

Expanded Auto Chamfering

Collision Avoidance System

Programming Help

3D Animation

NC Work Counter

NC Work Monitor

Cycle Time Check

Load Monitor

Mac Man

DNC-T1 & T-3

Spindle Orientation

M-Axis Orient

Custom API

Machining Mode

Axis Active Stop

Override Special

Load Monitor

B-Axis .001 Degrees

B-Axis Interpolation

Auto Door


ModelMultus B750 - W / 4000 8-Axis CNC Mill Turn
