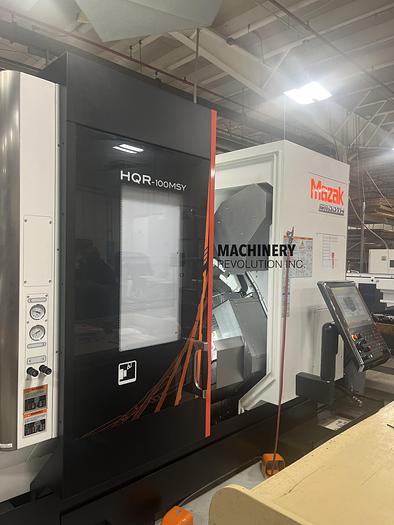

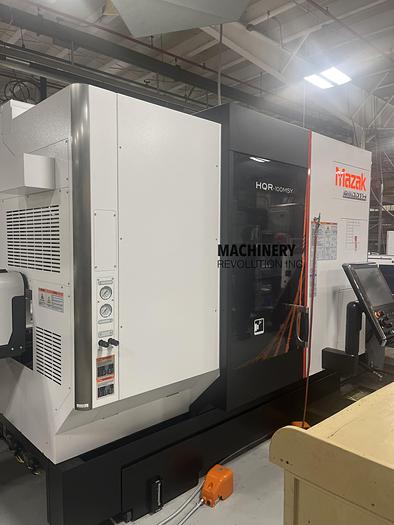

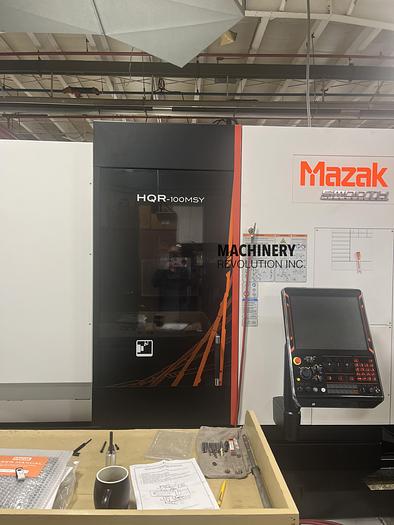

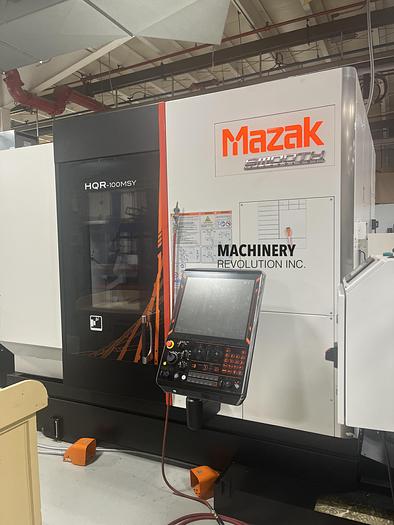

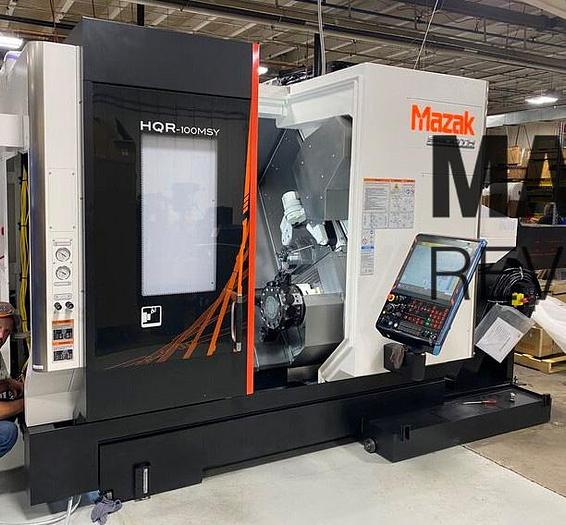

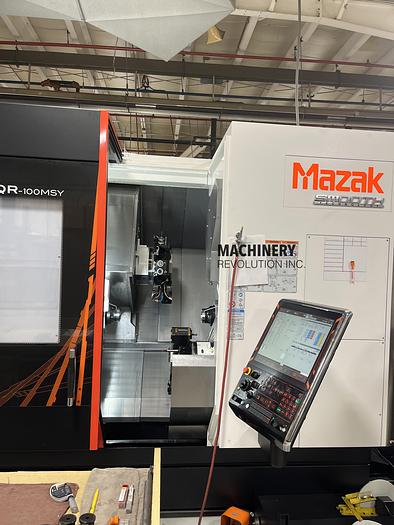

2022 Mazak HQR-100MSY Twin Turret / Twin Spindle / Live Tooling / Bar Feeder CNC Lathe ***156 Hours***
2022 Mazak HQR-100MSY Twin Turret / Twin Spindle / Live Tooling / Bar Feeder CNC Lathe ***156 Hours***
Description

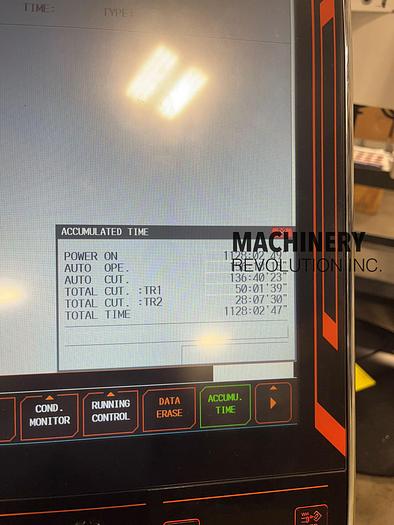

Excellent Condition *** 156 Operating Hours***
Mazatrol Smooth G Control
6,000 RPM 1st and 2nd Spindle Speed

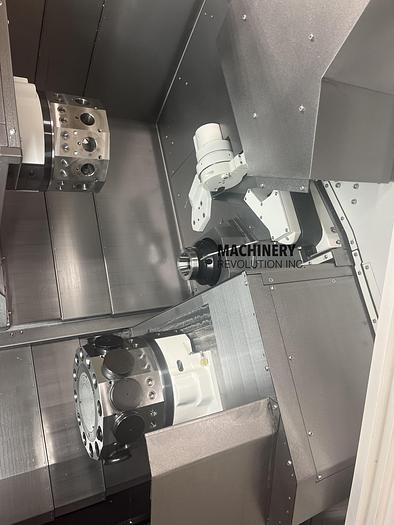

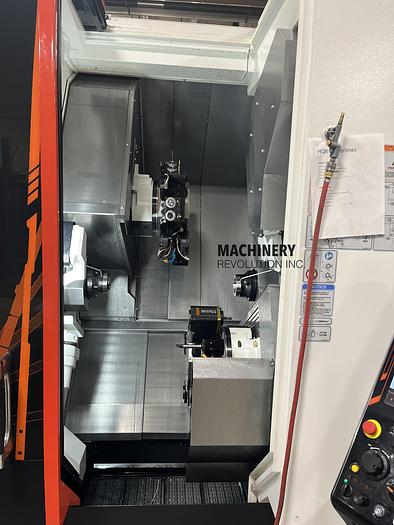

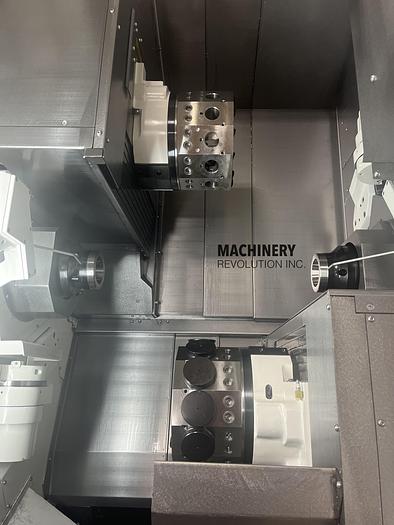

12 Station Turret VDI Upper and Lower Turret
12.60" Capacity Maximum Swing
11.625" Maximum Machining Diameter
24.375" Maximum Machining Length
6.87" X-Axis Travel
4.00" Y-Axis Travel UPPER/LOWER TURRET
20.37" Z-Axis Travel
10,000 RPM ROTARY-TOOL SPINDLE SPEED
C1-AXIS POSITIONING 0.0001 DEG CONTOURING
6" Chuck Package both Spindles w/ closed cylinder main and sub spindle
SPINDLE BORE DIA 2.4"
Chuck Air Blast
19" Color LCD Screen
EIA / ISO Package
(B) CYLINDRICAL (G07) & POLAR COORDINATE (G12)(EIA)
DIRECT ENTRY OF DRAWINGS DIMENSIONS
MILLING-SPINDLE SYNCHRONOUS TAPPING
ROLLER GUIDES
SMOOTH STANDARD SOFTWARE FOR LATHE(MILL)
INCH/METRIC CONVERSION
SD MEMORY I/F(1-PORT) + USB
I/F(1-PORT) / LAN PORT / USB I/F (1-PORT)
BACKGROUND TOOL PATH CHECK
SAFETY SHIELD (MANUAL OPERATION)
SMOOTH RESTART FUNCTION
ABSOLUTE POSITIONING SYSTEM
STANDARD TOOLING PACKAGE (QUICK CHANGE)
LINE FILTER (REQUIRED FOR MILLING HOLDERS WITH THRU-COOLANT)

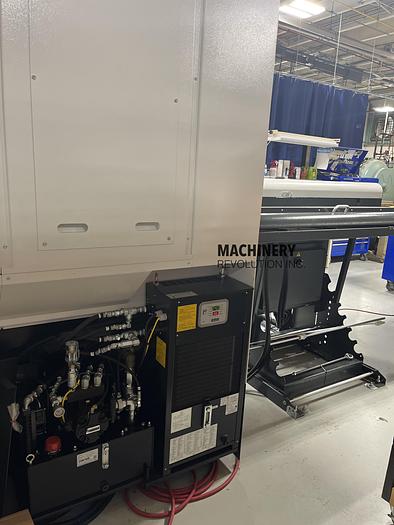

COMPLETE COOLANT SYSTEM HI-PRESSURE COOLANT 213PSI W/TEMPERATURE CONTROL
FULL COVERAGE CHIP AND COOLANT GUARD
SPINDLE MOTOR 15HP
WORK LIGHT
AUTO POWER ON/OFF + WARM-UP
OPERATOR DOOR INTERLOCK WITH LOCK-SWITCH
TOOL EYE (AUTOMATIC,1ST/2ND SPINDLES)
AUTO CHUCK JAWS OPEN/CLOSE (1&2 SPINDLE)
CHUCK OPEN/CLOSE CONFIRMATION (1ST & 2ND SPINDLE)
HYDRAULIC PRESSURE INTERLOCK
Equipped With:

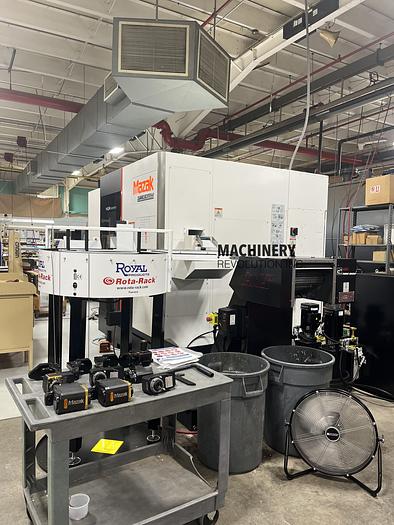

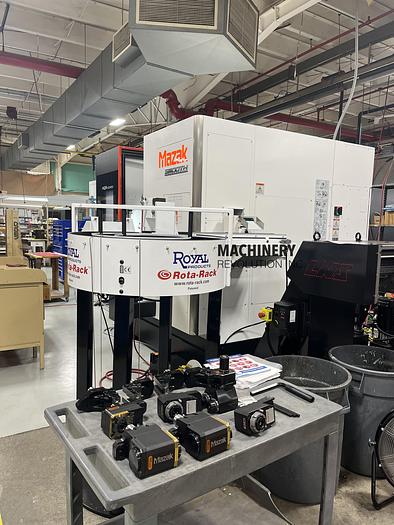

Royal Roto Rack Automatic Parts Accumulator

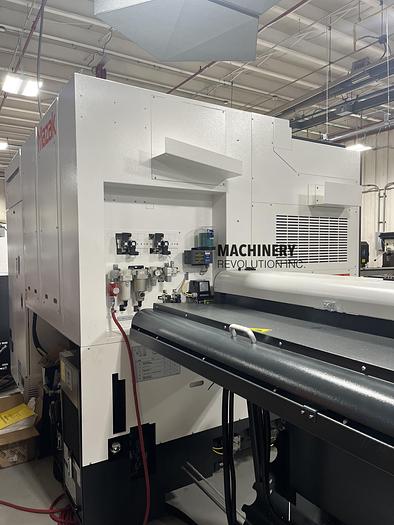

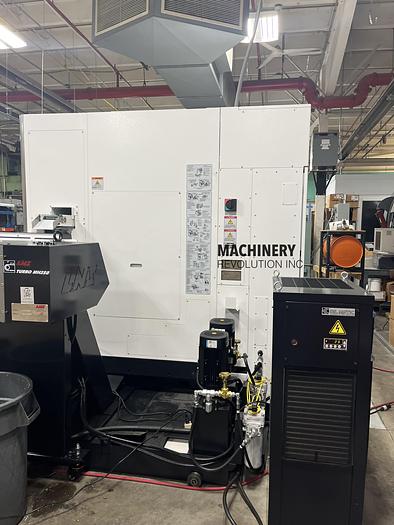

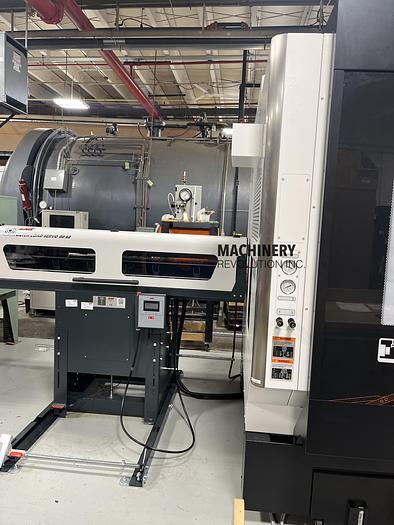

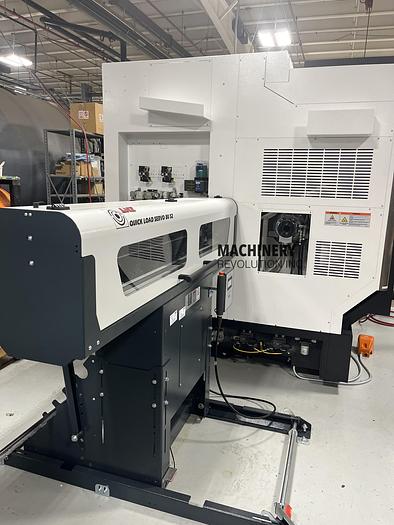

LNS Quick Load Servo 80 S2 Bar Feeder
SPINDLE LINERS
KITAGAWA 3 JAW CHUCK

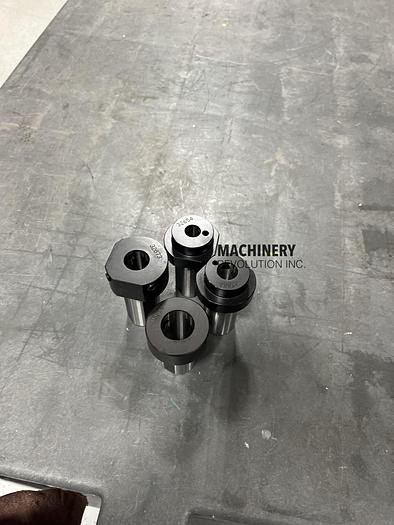

ROYAL QG 52 COLLET
Chip Conveyor

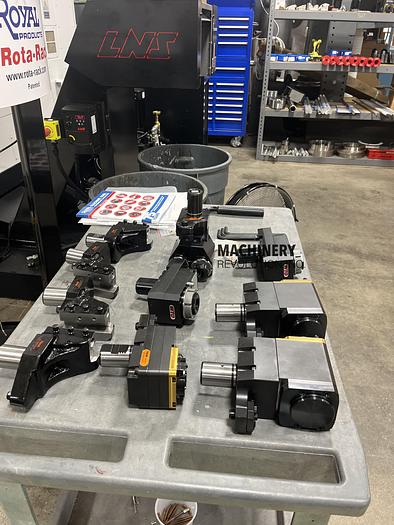

*** Tooling Package included with this machine (36 Tool Holders) ***

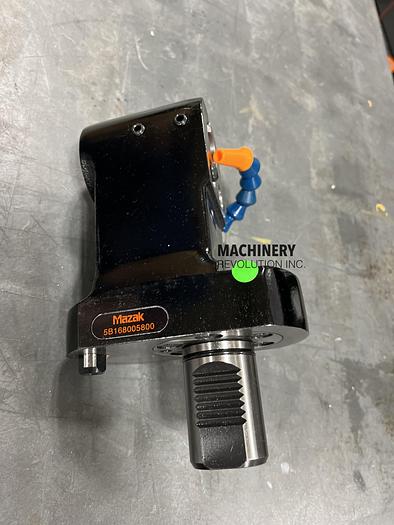

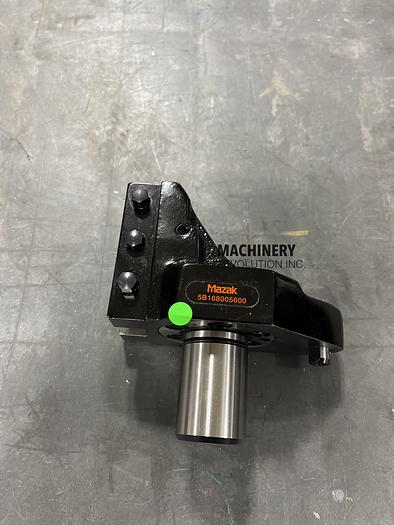

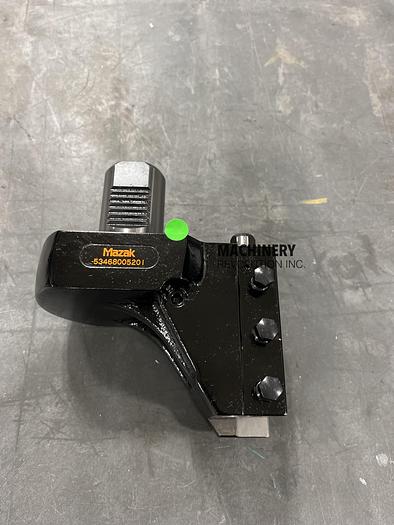

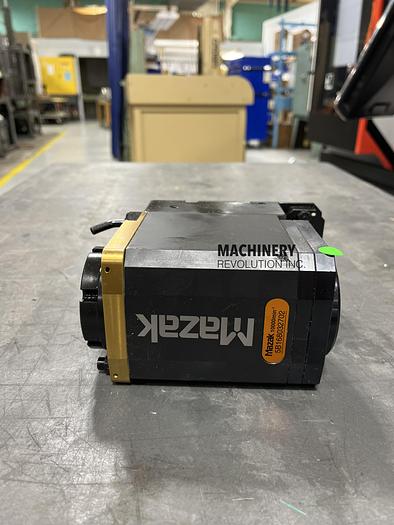

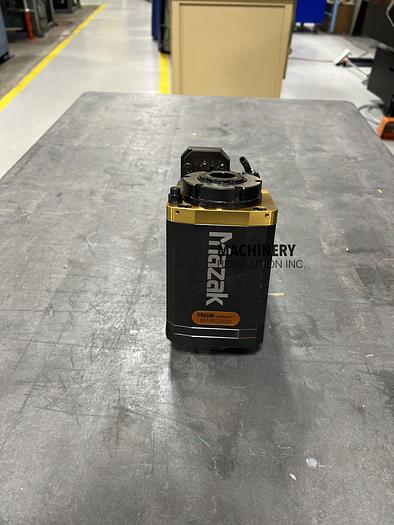

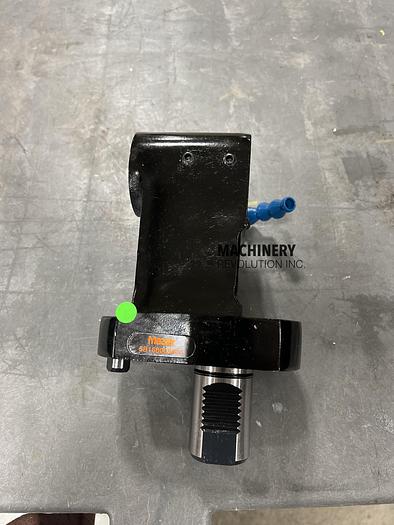

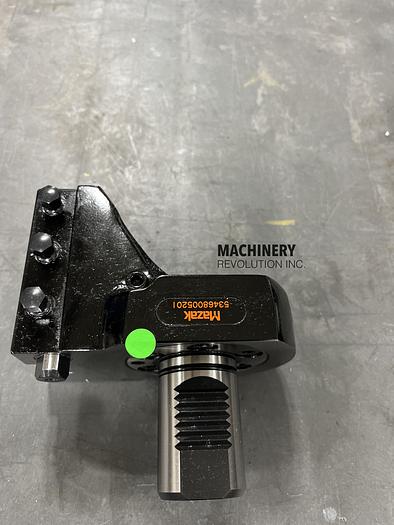

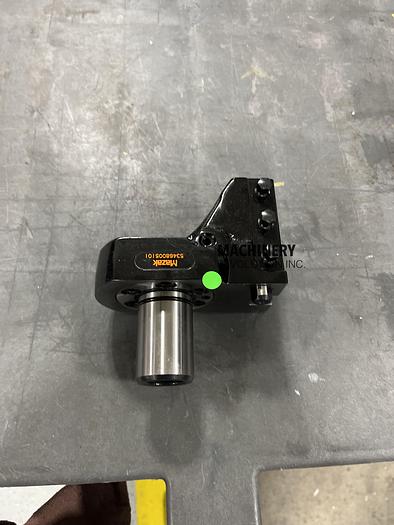

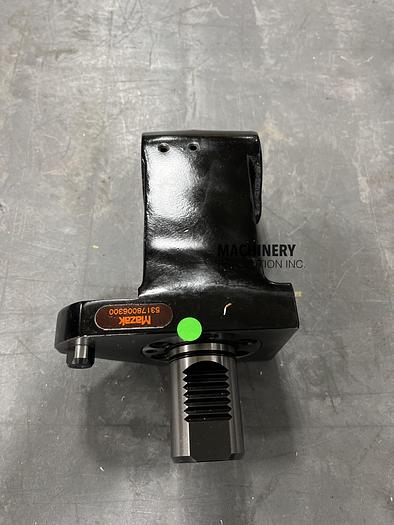

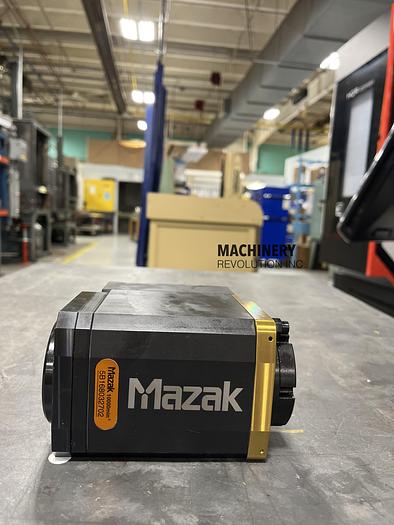

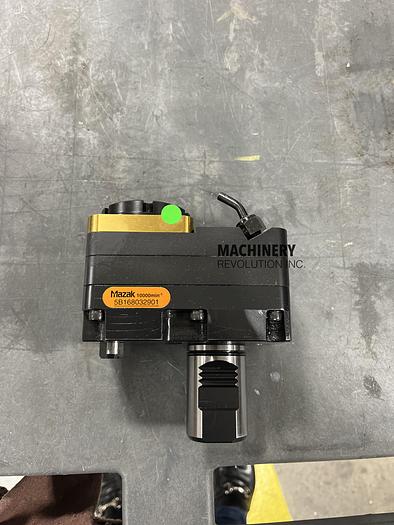

MAZAK HOLDERS

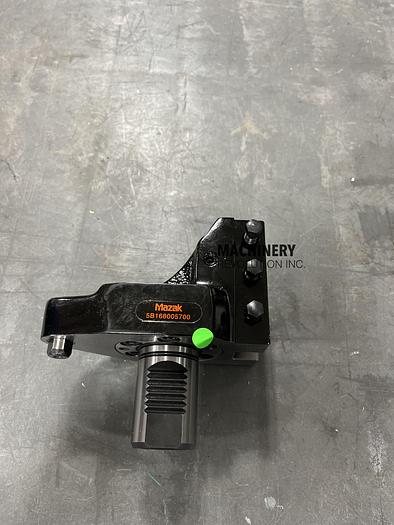

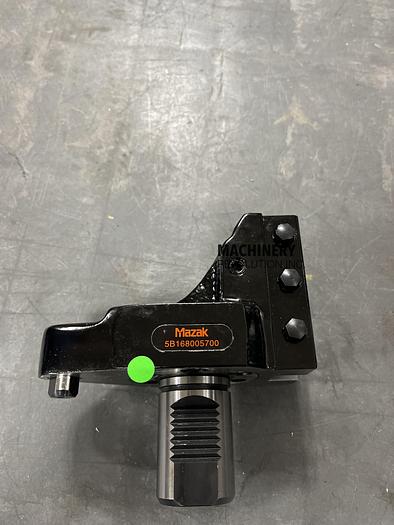

5B168005700
5B168005700

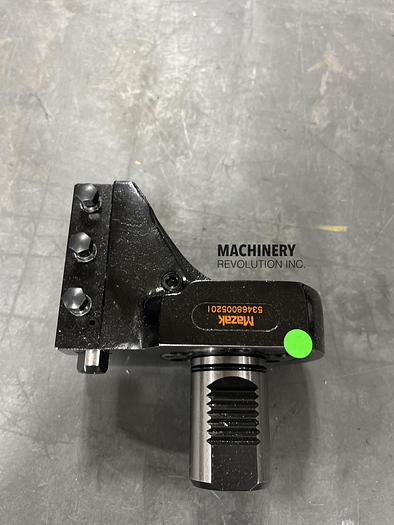

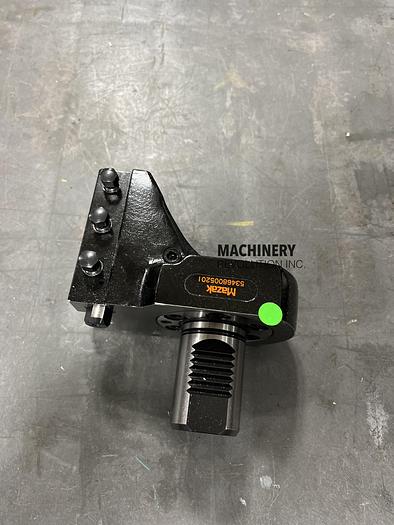

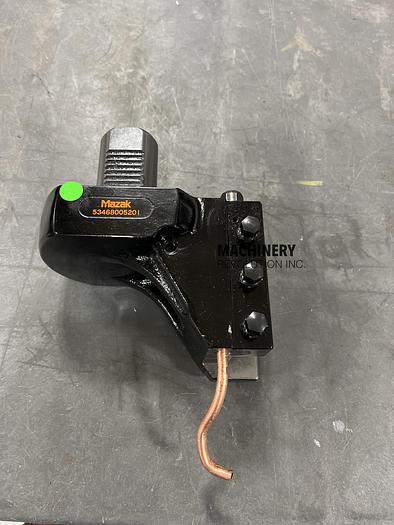

53468005201
53468005201
53468005201

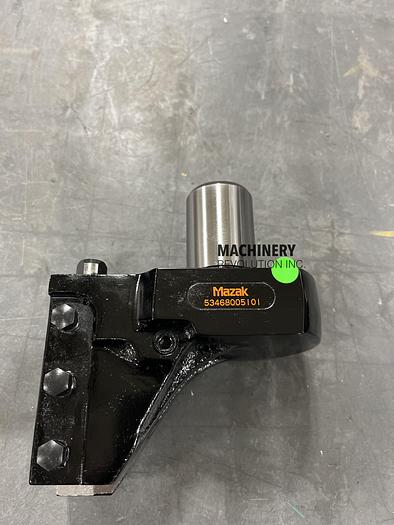

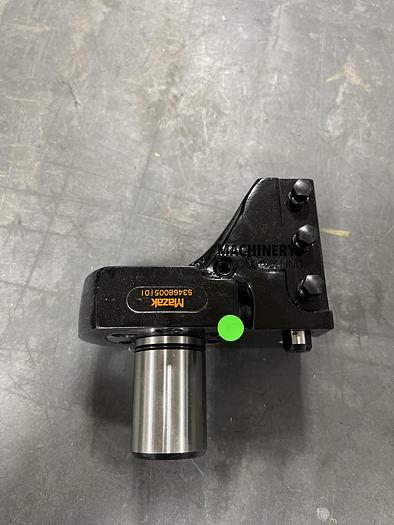

53468005101

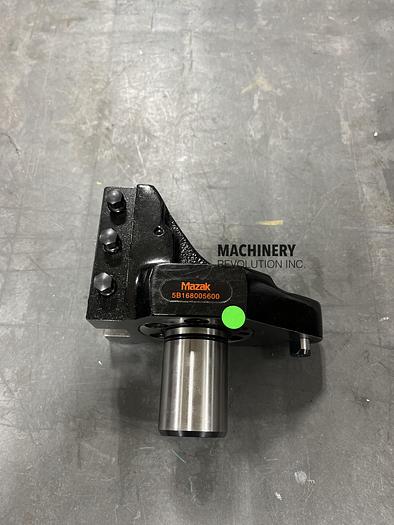

5B168005600
5B168005600
53468005101
53468005201
53178006300

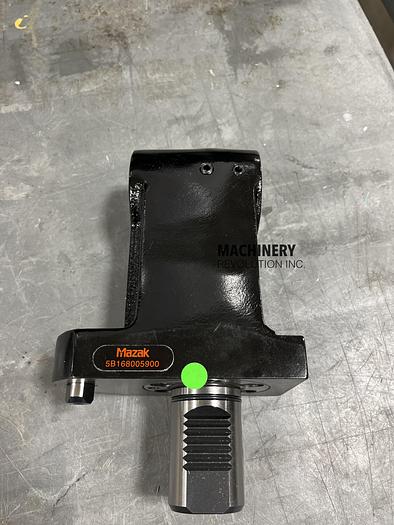

5B168005900
5B168005800

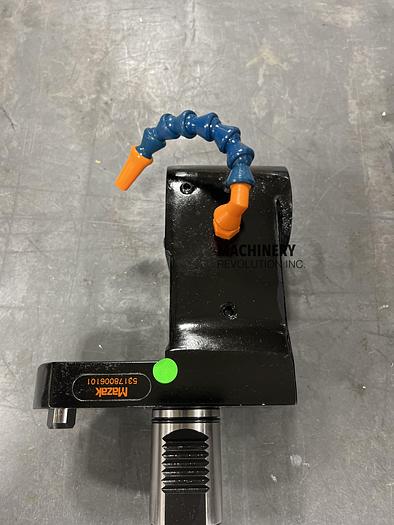

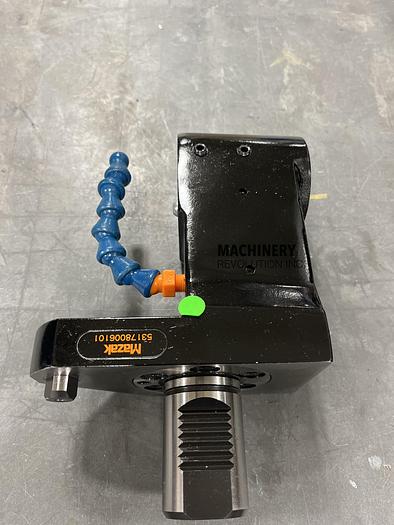

53178006101
53178006101
5B168005800

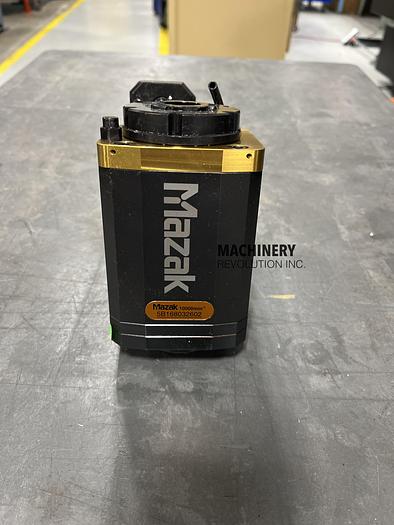

5B168032702
5B168032602

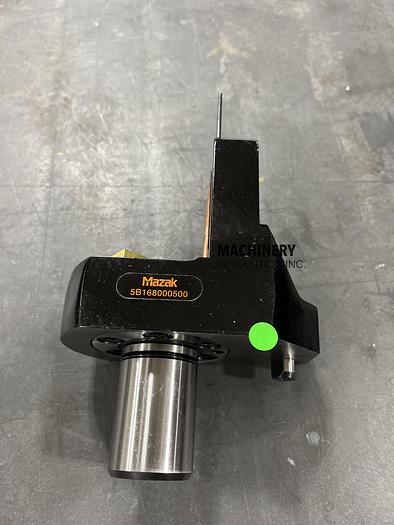

5B168000500
5B168032602
5B168032702

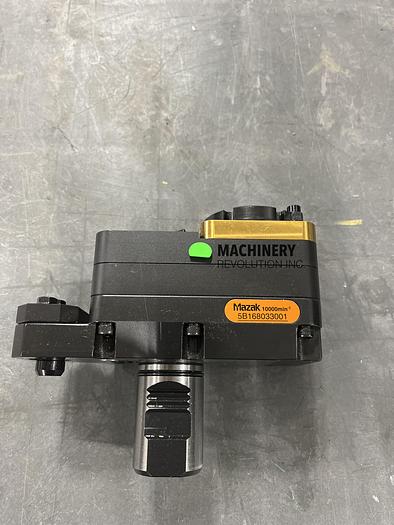

5B168033001
5B168032901

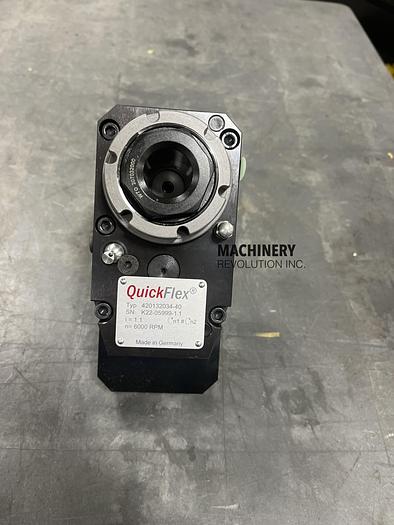

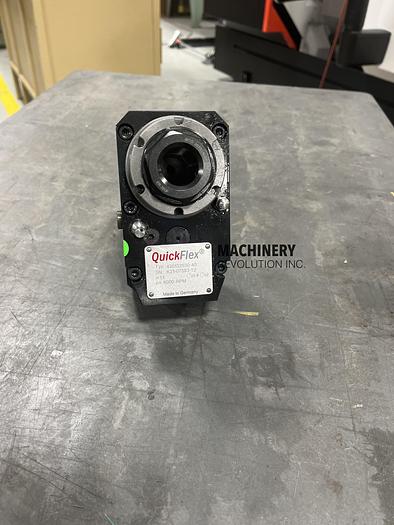

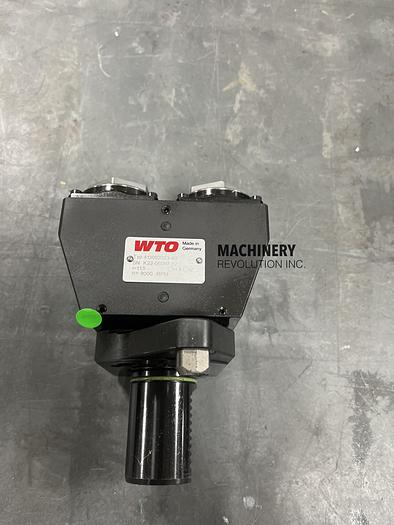

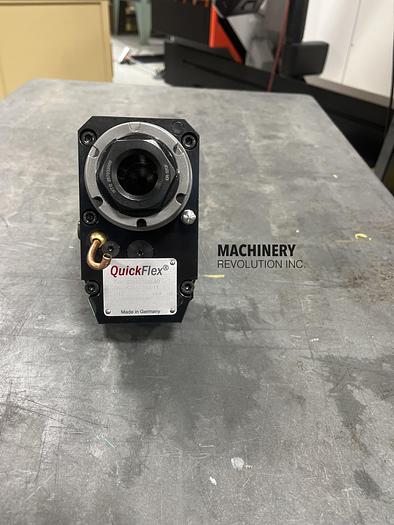

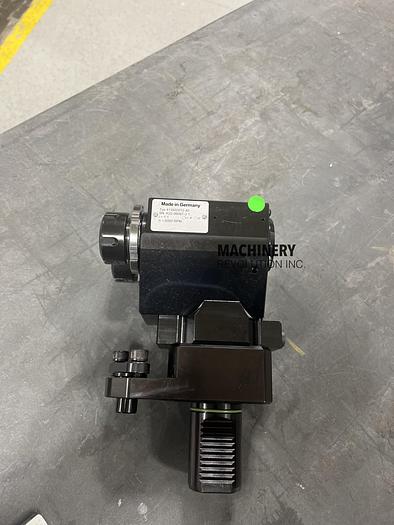

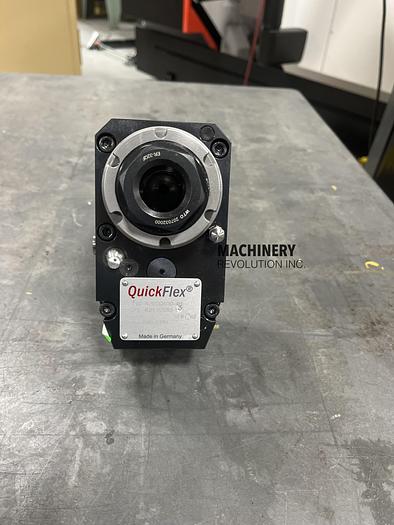

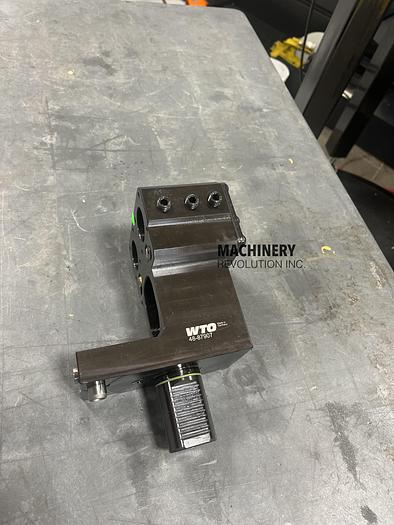

WTO HOLDERS

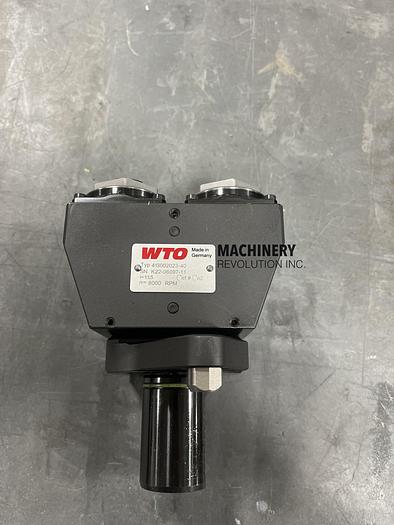

413002023-40
413002023-40
413502012-40

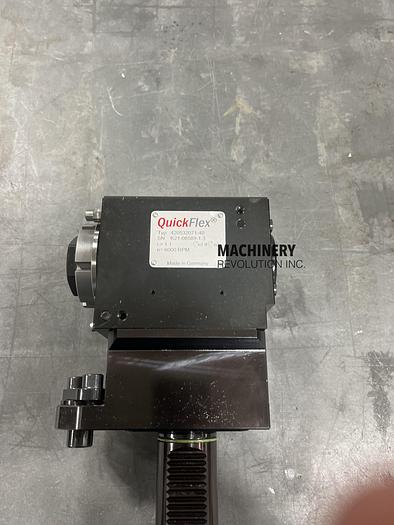

420532071-40

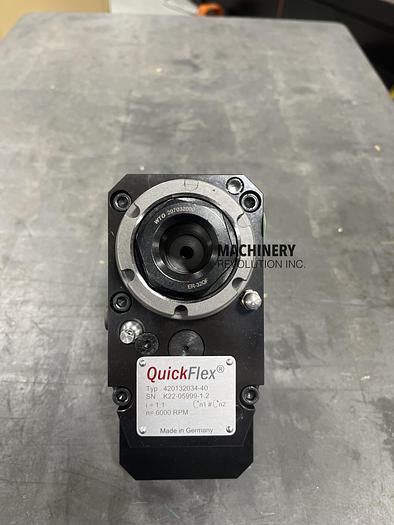

420132034-40
420132034-40
42013203-40
420132030-40
420132030-40

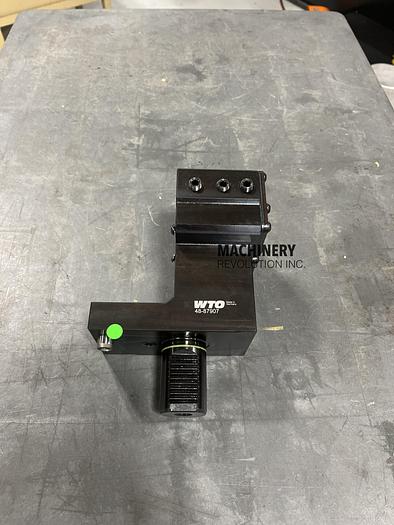

48-87907
48-87907

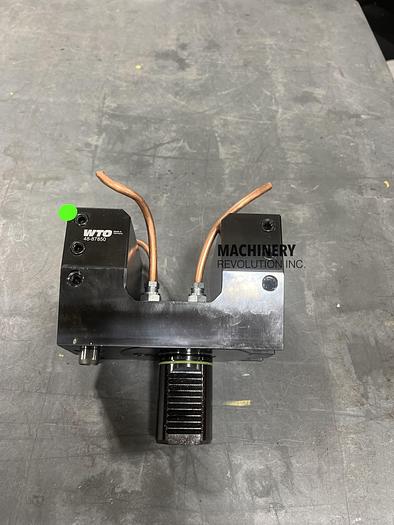

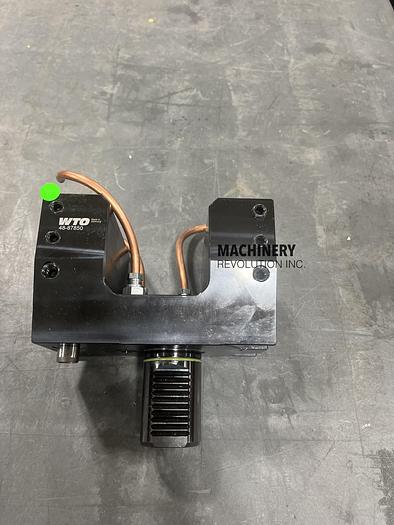

48-87850
48-87850
Specifications
| Manufacturer | Mazak |
| Model | HQR-100MSY Twin Turret / Twin Spindle / Live Tooling / Bar Feeder CNC Lathe ***156 Hours*** |
| Year | 2022 |
| Condition | Used |
