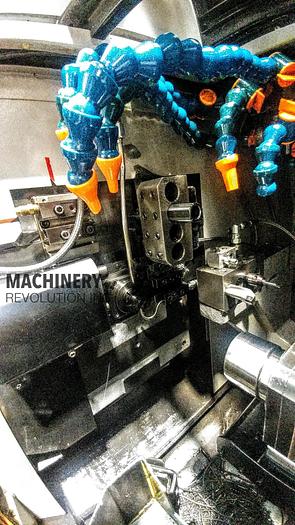

2011 Tsugami BE20-V 5-Axis Swiss CNC Lathe with Bar Feeder

Excellent Condition

10,000 RPM

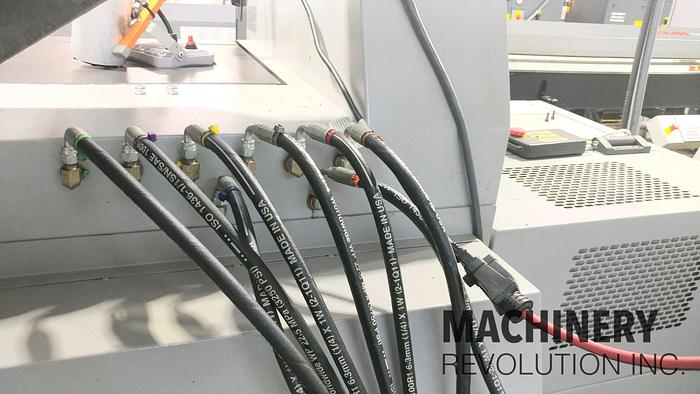

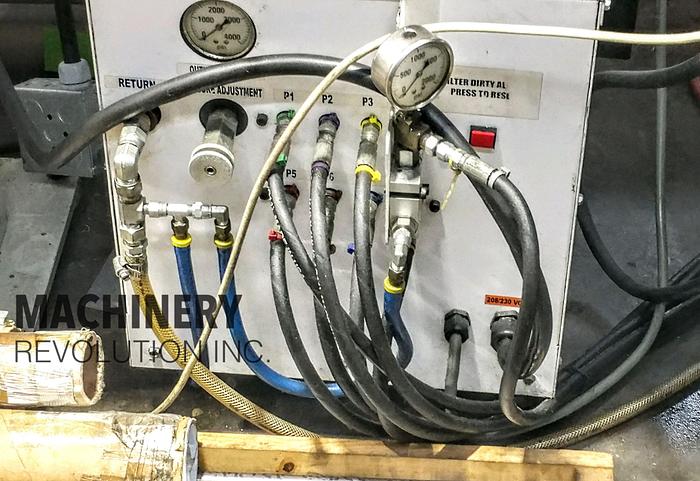

2,000 PSI Through Spindle Coolant

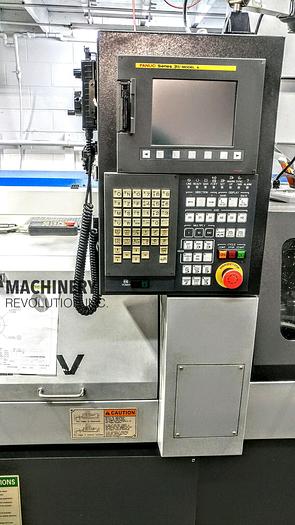

Fanuc 31i Control

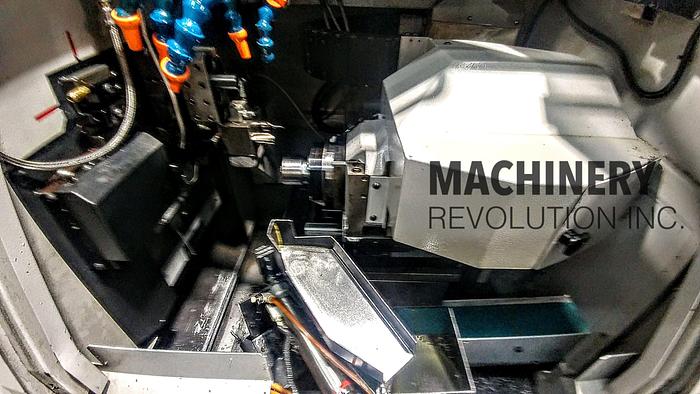

Y-Axis Milling & Turning with Cross Tool Spindle

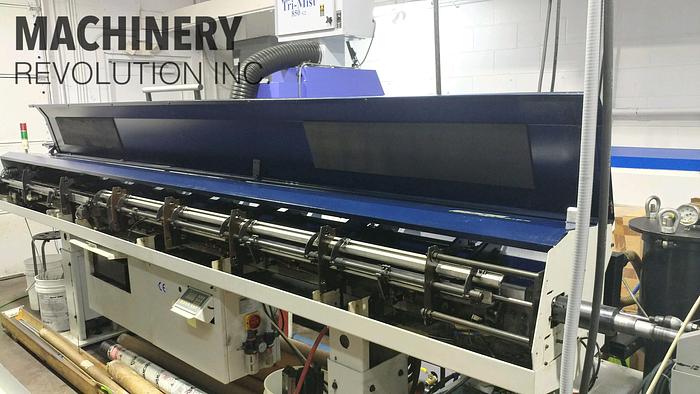

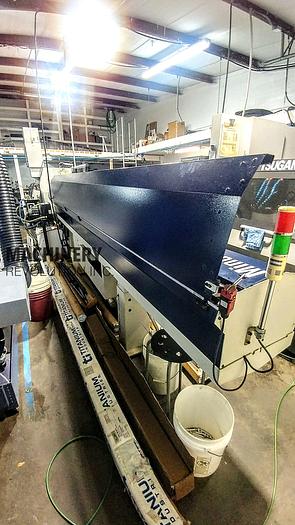

Patriot 320 Barfeeder

3 mm – 20mm Bar Capacity

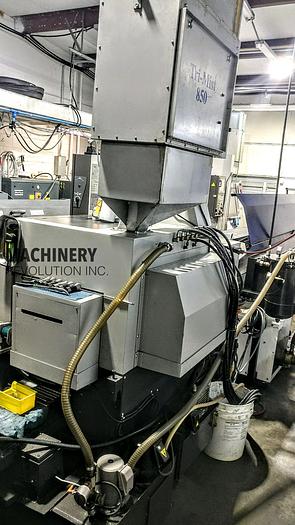

Tri-Mist 850 Mist Collector

Parts Catcher & Conveyor

Swiss Sync Device

Fire Suppression System

6.69″ (170mm) Machining Stroke with Rotary Guide Bushings

5 Axis

1 to 6,000 mm/min Feed Rate

5 OD Tools

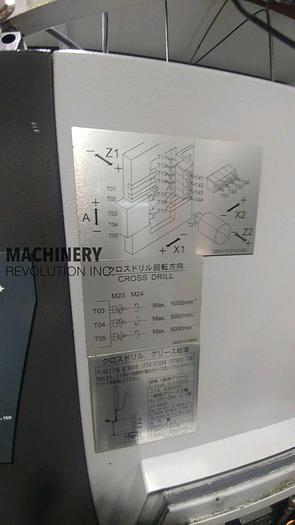

3 Cross Rotary Tools

4 Rotary Front Fixed Tools

8 Cross Rotary Back Fixed Tools

0.47″ (12mm) x 0.47″ (12mm) x 3.35″ (85mm) Tool Size

210 mm / 170mm w/Rotary Guide Bushing Max workpiece length

45mm / Non-Guide Bushing Max workpiece length

7mm Max main spindle drilling

M6 x 1 Max main spindle tapping

20mm Max back spindle gripping

7mm Max back spindle drilling

M6 x 1 Max back spindle tapping

6mm Max rotary tool drilling

M5 x 0.8 Max rotary tool tapping

12 x 12 x 85mm Tool size
