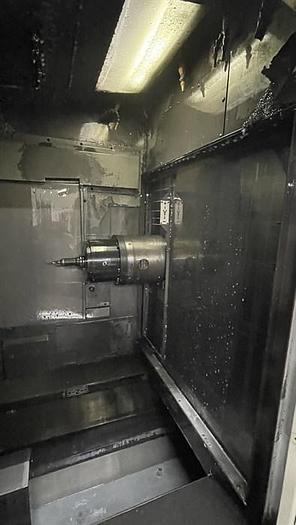

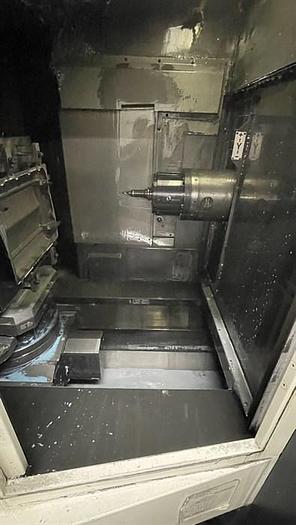

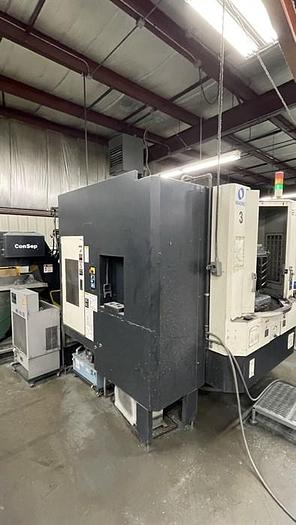

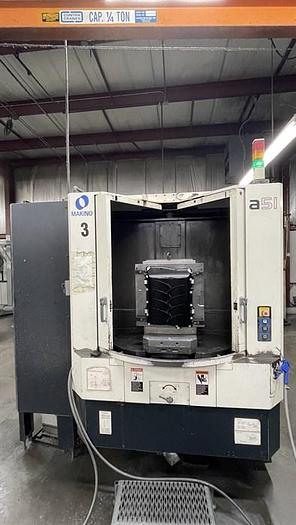

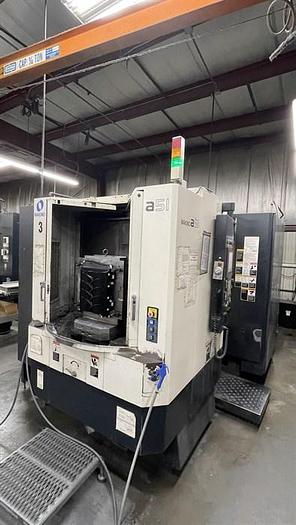

2008 MAKINO A51 CNC 4-Axis Horizontal Machining Center

Spindle Speed 14,000 RPM

Spindle Taper Cat-40

Pallet Size 15.7" x 15.7"

X - Axis Travel 22"

Y - Axis Travel 22"

Z - Axis Travel 23.6"

B - Axis Travel .0001 N/C CONTOURING

 Number Of Pallets 2

Pallet Weight Capacity 880

Pallet Surface to Spindle Center 3.1" ~ 25.2"

Pallet Center To Spindle Gage Line 2.8" ~ 26.4"

Workpiece Dimensions 24.8" Dia. x 35.4" Ht.

Rapid Traverse Rates X, Y, Z 2360 IPM

Cutting Feed Rate 1772 IPM

Main Motor 33.5 HP

Automatic Tool Changer 60

Tool Diameter 3.76", 6.7"

Tool Length 16.9"

Tool Weight 26.4" LBS.

Tool Change Time .9 SEC.

Machine Weight 19,620

Equipped with:

1 MEG OF MEMORY

12.1 COLOR LCD / 320 METERS

200 PROGRAMS

200 TOOL OFFSETS

2-PALLET CHANGER

ALL AVAILABLE MANUALS

BALL SCREW CORE COOLING

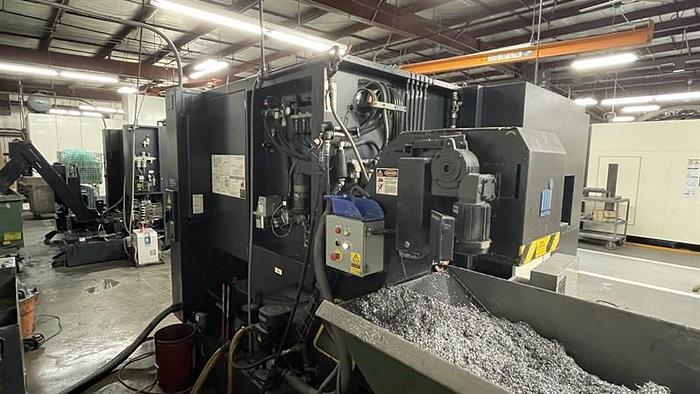

CHIP REMOVAL SYSTEM

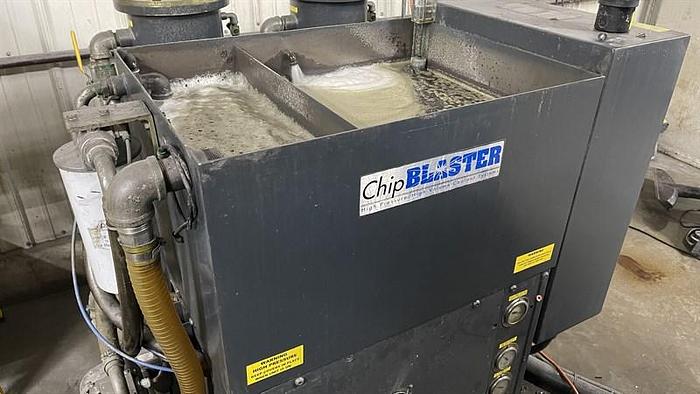

COOLANT THRU SPINDLE

CUSTOM MACRO 100 VARIABLES

DATA CENTER 4MB

EXTERNAL SETTING ORIENTATION

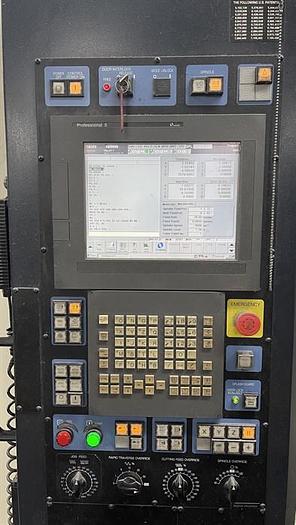

FANUC 31I CNC CONTROL WITH PRO 5

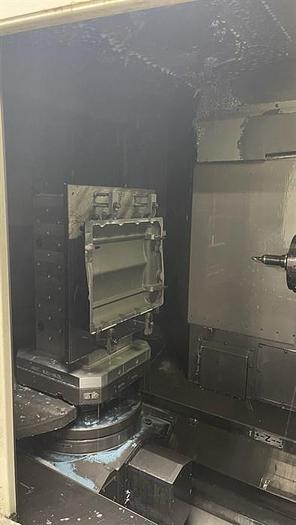

FULL 4TH AXIS N/C ROTARY TABLE

GI.4

HELICAL INTERPOLATION

MIST COLLECT SYSTEM

PCMCIA MEMORY CARD SLOT

PORTABLE HANDHELD MPG

TOOL OFFSET MEMORY C
