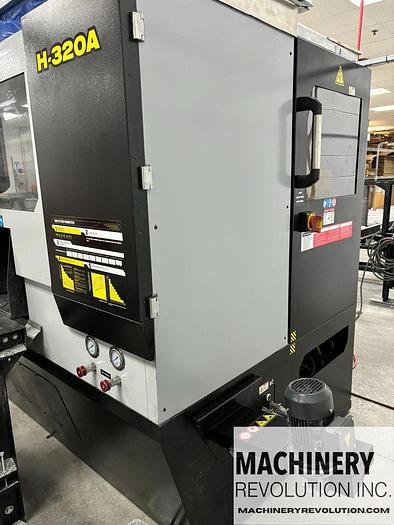

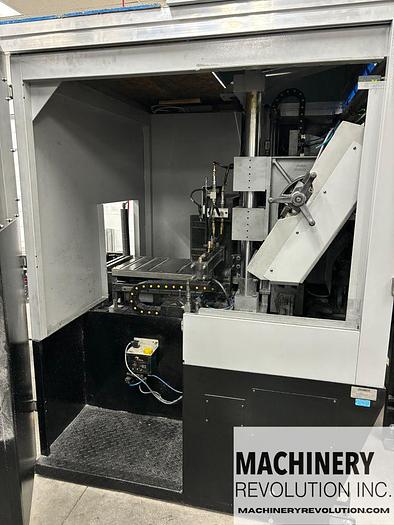

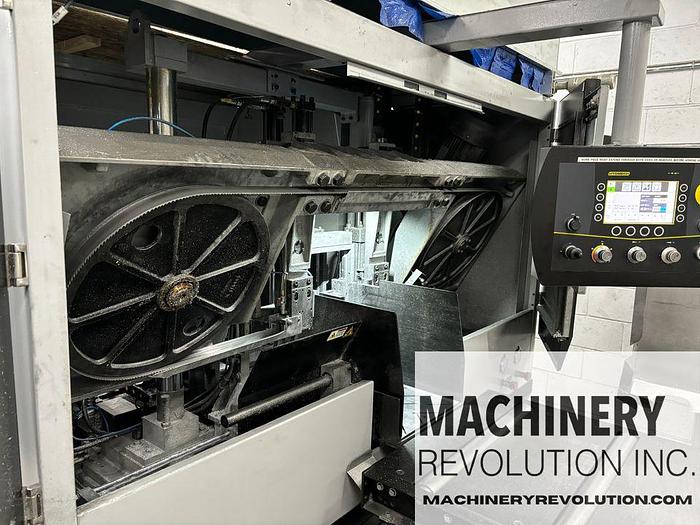

2020 Hydmech H 320 A Horizontal Band Saw 12.5" x 12.5" Capacity
![Used 2020 Hydmech H 320 A Horizontal Band Saw 12.5" x 12.5" Capacity](https://i.machineryhost.com/894db62f7b7a6ed2f2a277dae56a017c/97a9f164f91b62b3856c29403381918b/large-used-2020-hydmech-h-320-a-horizontal-band-saw-12-5-x-12-5-capacity.jpg)
2020 Hydmech H 320 A Horizontal Band Saw 12.5" x 12.5" Capacity
Description
12.5"H x 12.5"W Rectangular or Round Capacity At 90º
1-1/4" x 14' 9" Blade Size
6HP VFDBlade Drive
Automatic Operation
49-380 SFM Blade Speed
0-23" Automatic Multi-Indexing
1.8" W/O Bundling, 10" With Bundling Remnant Length
53 Gallon Coolant Tank Capacity
34" Table Height
STANDARD FEATURES
Heavy duty cast iron saw head
Spilt front vise
Fabricated shuttle features automatic multi-indexing up to 23” in a single stroke. Powered by ball screw and stepper motor.
On-demand hydraulics save energy
Steel guide arms mounted on linear rails. Auto adjustable guide arm for proper spacing.
6 HP VFD. True direct blade drive – no belts/pulleys
Full capacity, full stroking hydraulic vises
Hydraulic positive down feed
Blade chamber separates material from cut part
Cast iron band wheels
Automatic PLC, touch screen control programmable up to 100 jobs with 20 in queue.
Replaceable blade brush
Robust steel base
Automatic chip removal auger
Easy access electrical panel and hydraulics
Blade deviation monitor
Designed for safety with saw-in-a-box style
Out of stock switch
Mechanical band tensioning with digital readout
Replaceable carbide guide inserts
Safety door interlocks RFID technology
Flood coolant with wash down hose
Laser light
LED work light
106" x 71" x 80" Dimensions
4,400 Lbs Weight
240 or 480V Machine Voltage
Specifications
Manufacturer | Hydmech |
Model | H 320 A Horizontal Band Saw 12.5" x 12.5" Capacity |
Year | 2020 |
Condition | Used |
