2018 DMG MORI CTX 1250 TC BETA CNC Mill Turn 6-Axis with 48ATC / Thermal Compensation / Linear Drive / CAPTO C6

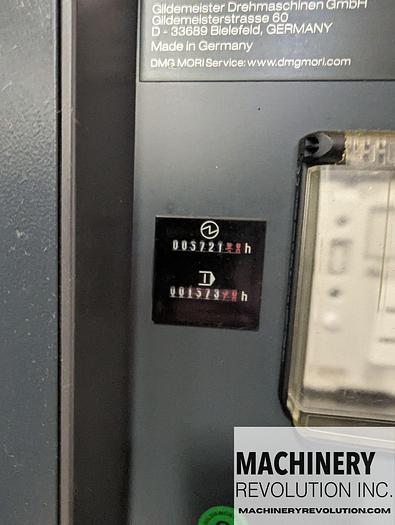

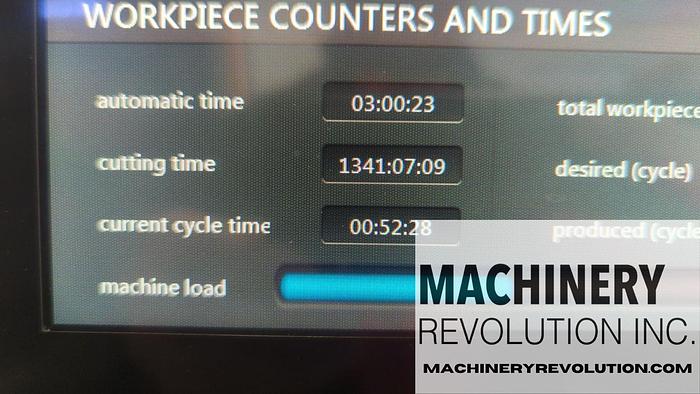

Excellent Condition Low Hours

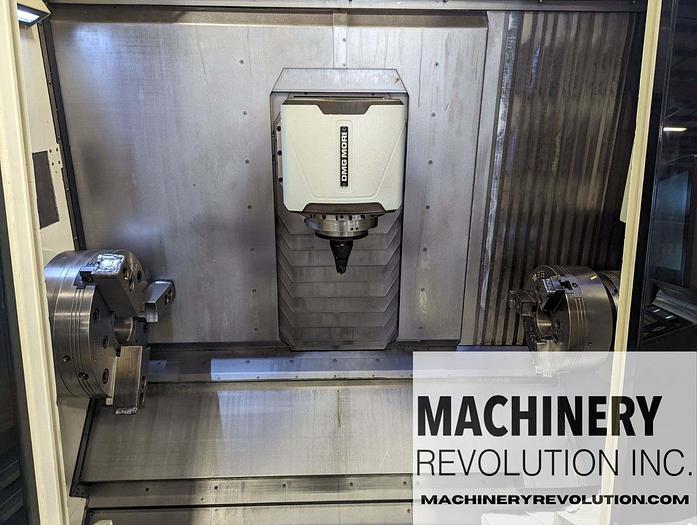

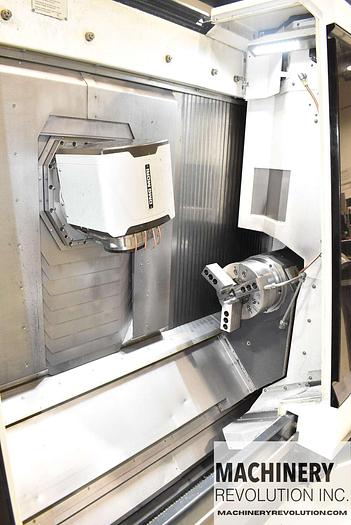

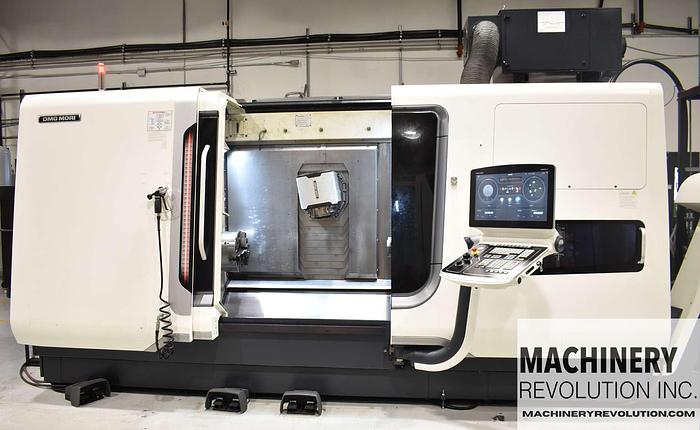

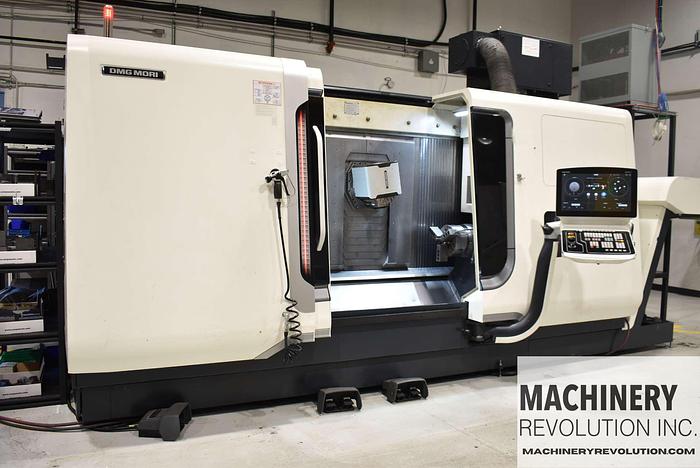

DMG Mori 6-Axis Mill Turn Center

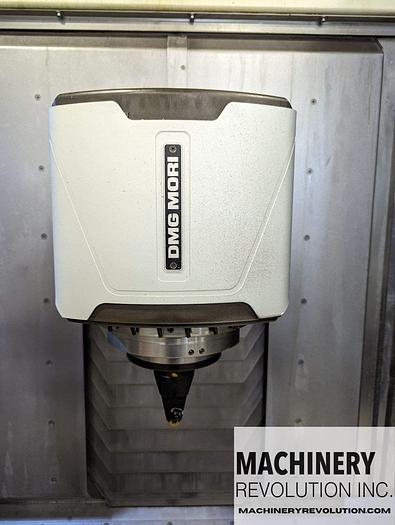

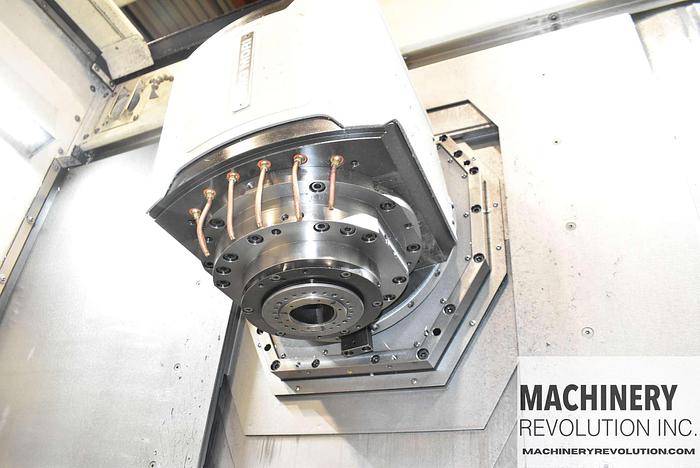

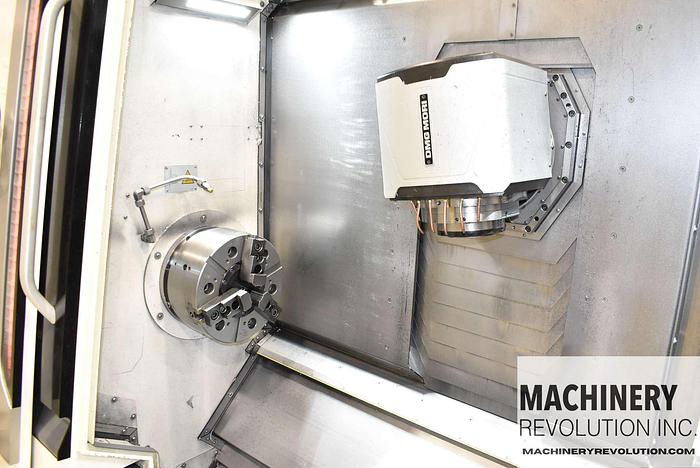

Capto-C6 Indexing Spindle with 12,000 RPM

48 Station Automatic Tool Changer

29.5 // 88.5 hp. // ft. / lbs. Drive power / Torque (40% DC)

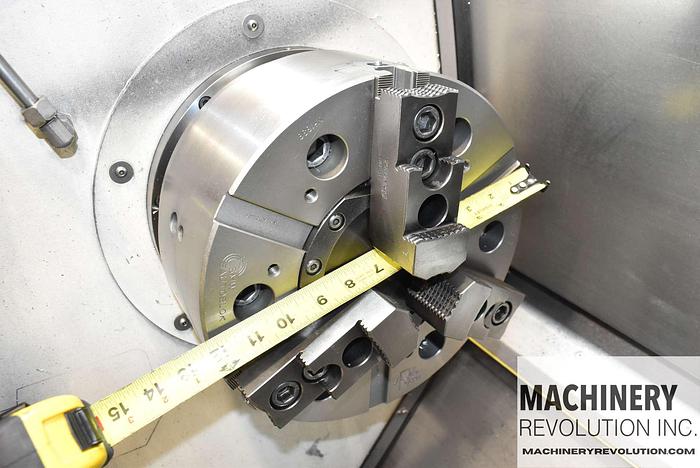

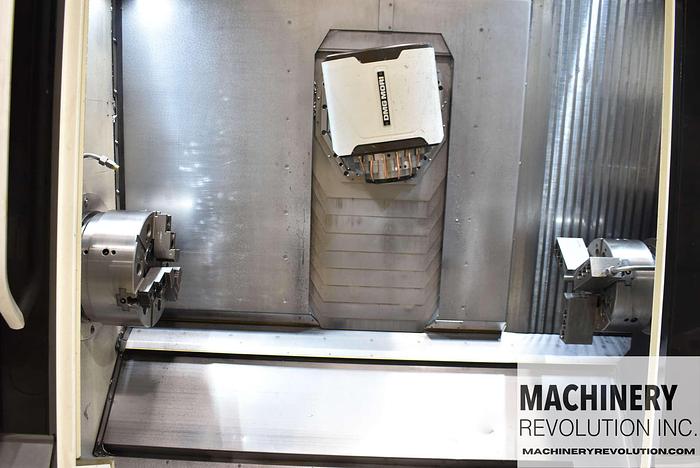

12" Main Spindle 5,000RPM ISM 76 with C-axis (0.001°)2.6" Draw tube inner diameter

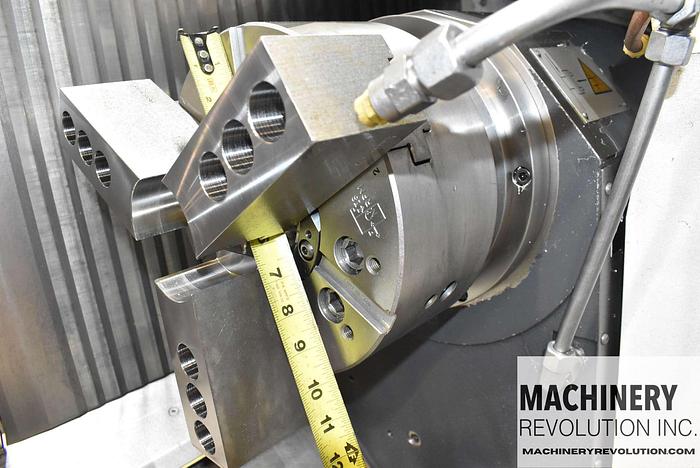

10"Counter Spindle 6,000RPM ISM 52 with C-axis (0.001°) 2.0" Draw tube inner diameter

19.7" Swing diameter, max. / Cutting diameter, max

47.2" Workpiece length, max. (tailstock / counter spindle)

57.9" Distance (main spindle – counter spindle) / without chuck

±120 B-axis Swivel Range

70RPM B-axis Rapid Traverse

19.3 [+18.9 / – 0.4] / ± 4.9 / 51.2 Travel (X / Y / Z)

47.2" Hydraulic Tailstock Travel

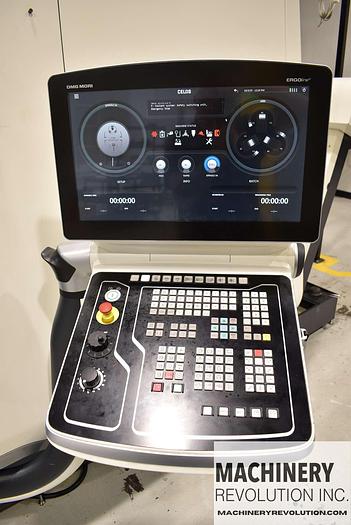

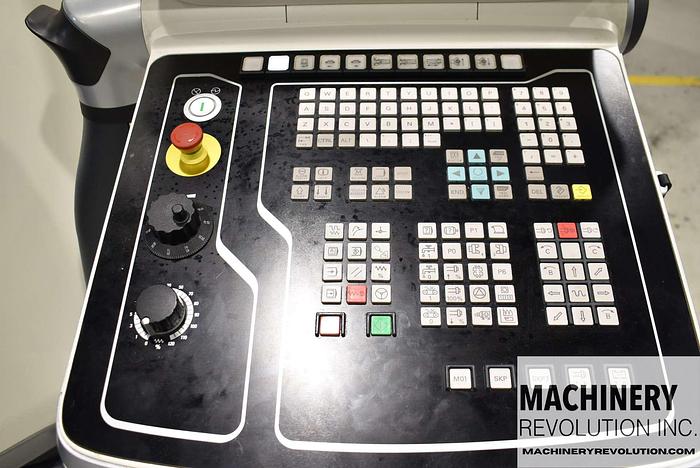

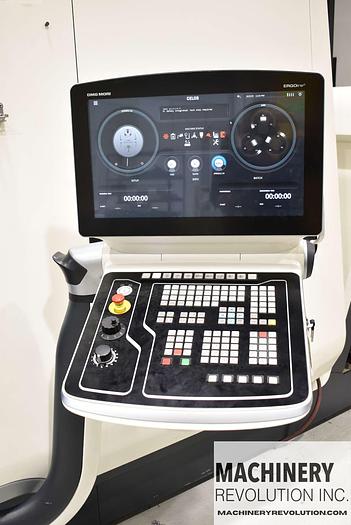

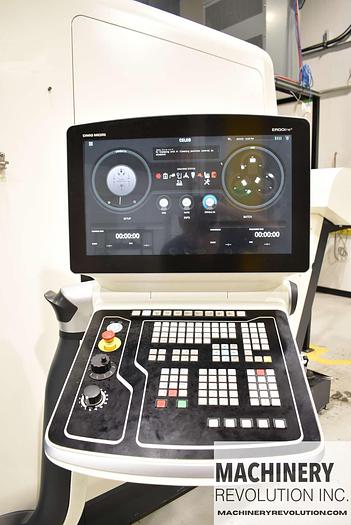

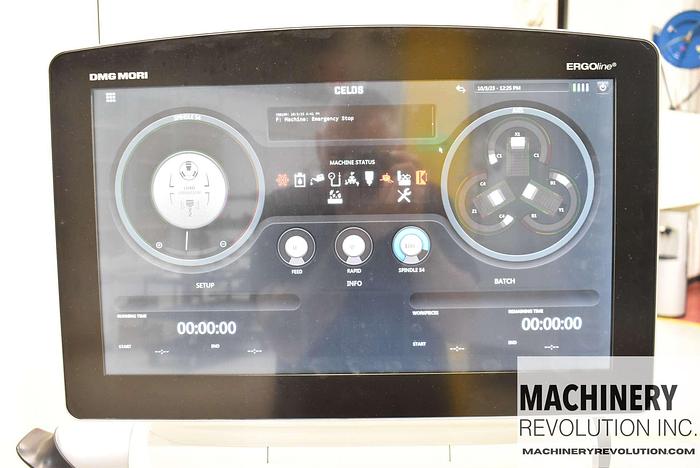

CELOS® from DMG MORI on a SIEMENS 840D solutionline control with the ShopTurn 3G: ERGOline panel

Tool measuring device

Drill break detection (mechanical)

In-process workpiece measuring (via sensor)

Bar machining / automation

Bar machining package (with pickup), hydraulic hollow clamping device,

4-color signal light and bar feed / bar loading magazine interface

Bar loading magazine for max. 3.9 – 10.5 ft. bar length

Tailstock function (counter spindle) Steady rest slide (automated positioning)

Steady rest clamping range: 0.3 – 4.0 in. Steady rest clamping range: 0.8 – 6.5 in.

Steady rest quick change system

Chip conveyor

Coolant pump (enhanced): 174.0 psi., 6.1 gal. / min

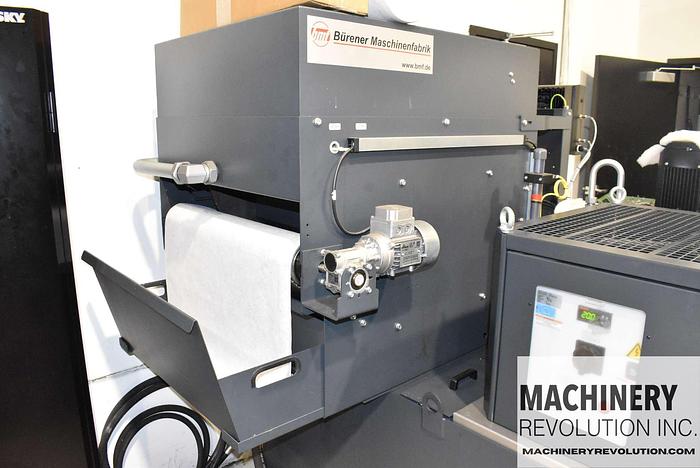

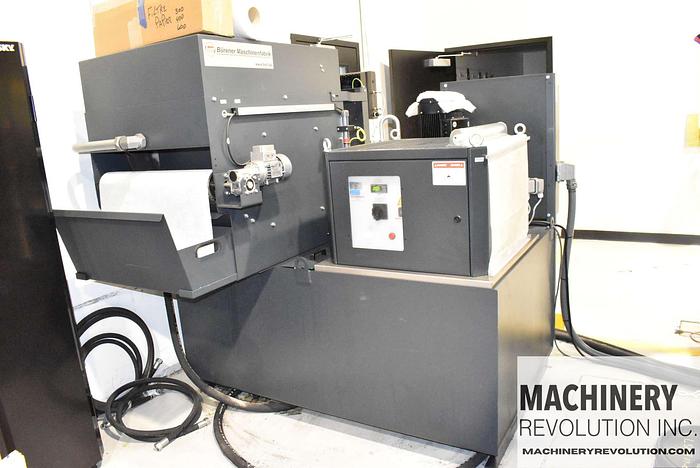

116.0 / 290.1 psi. internal coolant supply (with 158.5 gal. & 0.002 in. paper band filter

DMG MORI Technology Cycle: Simultaneous 5-axis production

DMG MORI Technology Cycle: Tooth gear milling via hobbing

DMG MORI Technology Cycle: Eccentric turning & milling

DMG MORI Technology Cycle: Multi-threads

DMG MORI Technology Cycle: Easy Tool Monitoring

DMG MORI Technology Cycle: Speed adjustments

DMG MORI Technology Cycle: Tool sorting

DMG MORI Technology Cycle: Program status control

DMG MORI Technology Cycle: Counter spindle center

Tool Monitor (sister tool management system)

Programming & sub-programming (incl. graphical interface)
