2007 Mori Seiki NT 4200 DCG / 1000S 9-Axis CNC MillTurn with New Spindle

2007 Mori Seiki NT 4200 DCG / 1000S 9-Axis CNC MillTurn with New Spindle

orCall 213-393-6196


Excellent Condition New Milling Spindle

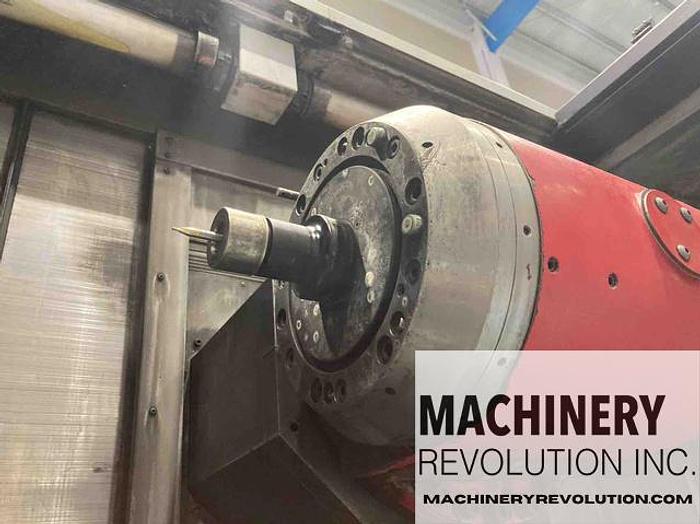

12,000 RPM Indexing Milling Head

Simultaneous 5-axis machining

CAPTO-C6 / 40 Taper Spindle Head

40+1 Servo driven Automatic Tool Changer with 1.8 sec tool to tool time

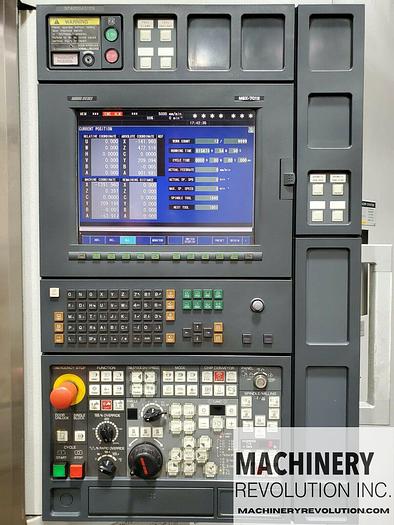

MSX-701III (FANUC) CNC Control

5,000 RPM Main and Sub Spindle

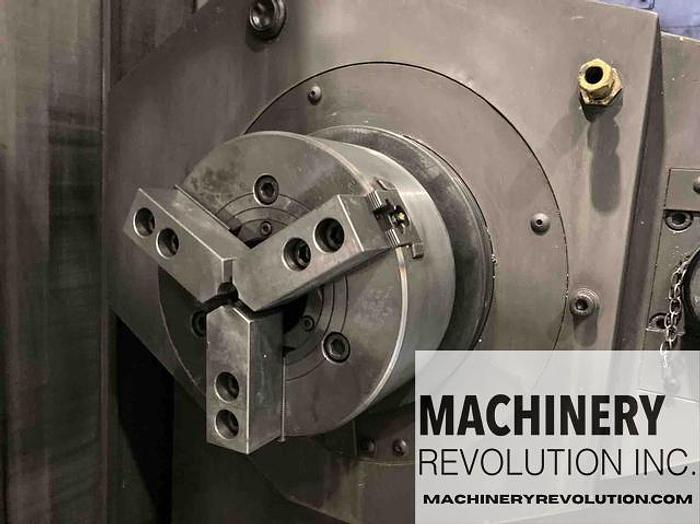

Schunk 8″ Big Bore Chuck on Main Spindle

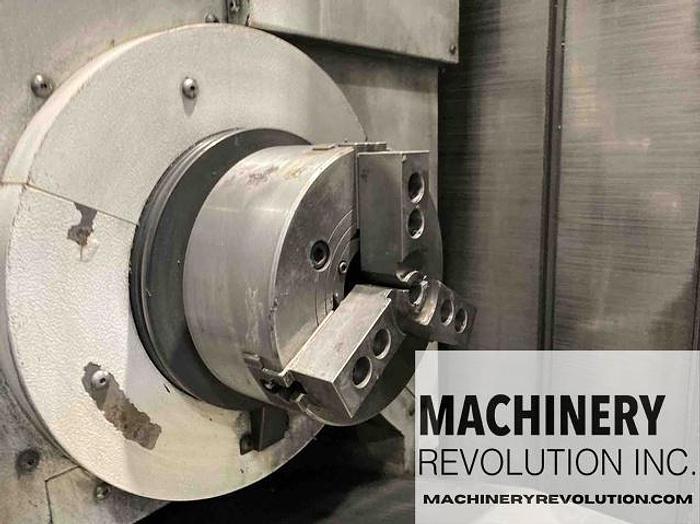

Schunk 8″ Chuck on Sub Spindle

Servo Controlled Full C-Axis on Both Spindles

12 Station lower turret with Live tool capability

Y Axis Capability

PCMCIA Card Slot

Tool monitoring system – Wear and Breakage Detection

Automated Parts Unloading system

Rigid Tapping on Both Spindles

Foot Operated Control for Chuck

High Pressure Coolant System

Chip Conveyor

Inbuilt Transformer

Chiller Unit

Max Turning Diameter : 25.9″

Max Swing : 28.7″

Max Swing with Y Axis : 19.70″

Max Swing over Cross Slide : 23.6″

Max Turning Length: 42.5″

Max Bar Capacity Main Spindle : 2.625″

Max Bar Capacity Sub Spindle : 2.55″

Max Weight on Main & Sub Spindle : 1322 lbs

Max Distance Between Main & Sub Spindle: 52.50″

X Axis Travel : 29.5″

Z Axis Travel : 44.1″

Y Axis Travel: 8.3″

W Axis Travel: 41.34″ ( Sub Spindle )

C Axis: 360° (0.001°) Both Spindle

B Axis Travel: +/-120°

X Axis: 1417 IPM Rapid Traverse

Z Axis: 1417 IPM Rapid Traverse

Y Axis: 1351 IPM Rapid Traverse

B Axis: 1181 IPM

Main Spindle Bore: 2.99″

Sub Spindle Bore: 2.99″

Main Spindle Nose: A2-6

Sub Spindle Nose: A2-6

Main Spindle Speed: 35-5000 RPM

Sub Spindle Speed: 35-5000 RPM

Main Spindle Power: 22 kw

Sub Spindle Power: 22 kw

Milling Head: Single Station Pendulum Head with 40 ATC

Tool Type: CAPTO-C6, 40 Taper

Spindle Speed: 15-12000 RPM

Spindle Motor: 18.5 kw

Index Time: 0.5 Sec

(22kw) 30 HP high-torque integral spindle motors

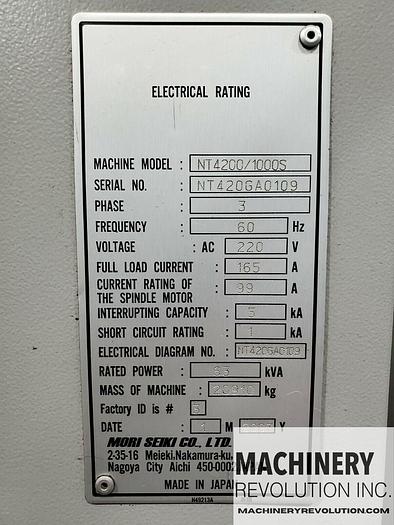

Power: 87 kva, 220v / 3-Phase

Air Required: 71 PSI Overall

Dimensions: 192″ x 99″ x 110″

High Overall Dimensions: 210″ x 99″ x 115″ High with Chip Conveyor

Weight: 46,500 lbs


ManufacturerMori Seiki
ModelNT 4200 DCG / 1000S 9-Axis CNC MillTurn with New Spindle
