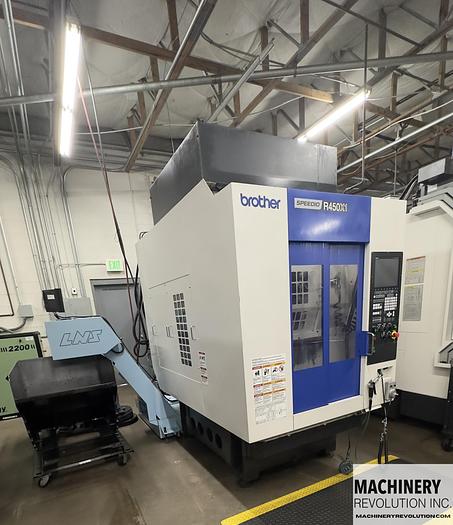

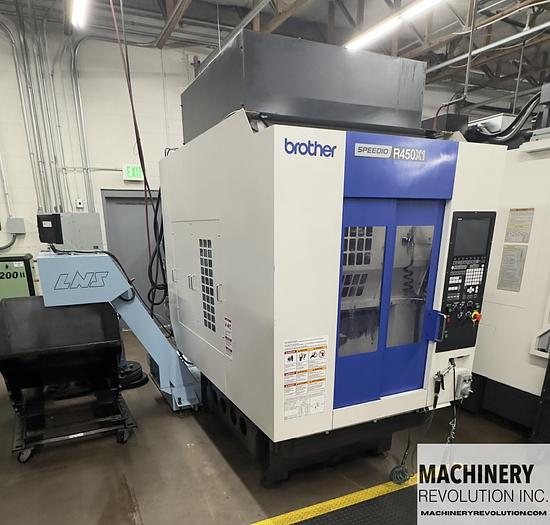

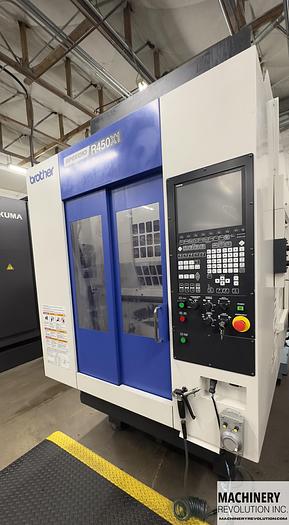

2015 Brother Speedio R 450 X1 4-Axis Vertical Machining Center with Pallet Changer / TSC / Probing / Rotary Table
2015 Brother Speedio R 450 X1 4-Axis Vertical Machining Center with Pallet Changer / TSC / Probing / Rotary Table
Description
Excellent Condition 4,100 Hours
16,000RPM
BT30 Dual Contact Spindle Taper
22 Tool High-Speed ATC

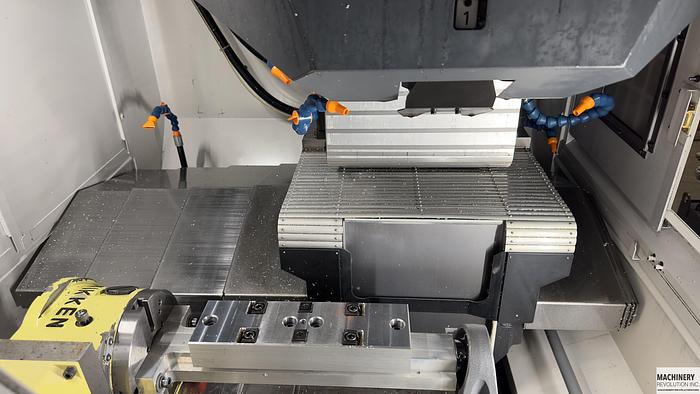

Nikken 4th-Axis Rotary Table CNCZ-180LSABR2
435 PSI High Pressure Coolant Pump
Through Spindle Coolant
Lubrication System
Chip Shower System Manual Pulse Generator
Work Light Kit (2-Lights)
Spindle Override Expanded Memory (500MB)
Shower Gun
Renishaw OMP40 Spindle Probe
Metrol tool setter and tool breakage detection (2 ea. 1 per pallet)
Big Plus Coolant Spindle With Tool Wash
17.7” X-Axis Travel
12.6" Y-Axis Travel
12" Z-Axis Travel
7.9” – 19.9” Spindle Nose to Table
23.6” x 11.8” Table Size
441 lbs. Maximum Weight on Table
.8 sec / 1.6 sec Change Time (Tool to Tool / Chip to Chip) Feed Rate
1,969 IPM Rapid Traverse Rate X,Y,Z
1,181 IPM Cutting Feed Rate
9.8/6.5 HP Main Spindle Motor - IPM Motor Type Spindle Taper Air Blast and Back Washing System Automatic Grease

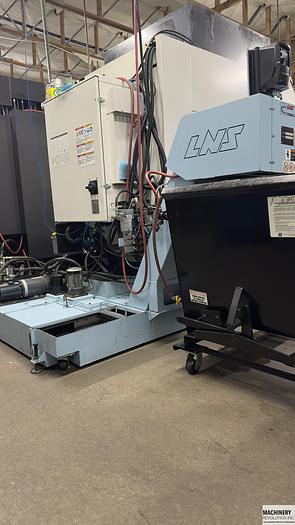

TURBO Side Discharge MH250 Conveyor with Tank & Interface
Specifications
| Manufacturer | Brother |
| Model | Speedio R 450 X1 4-Axis Vertical Machining Center with Pallet Changer / TSC / Probing / Rotary Table |
| Year | 2015 |
| Condition | Used |
