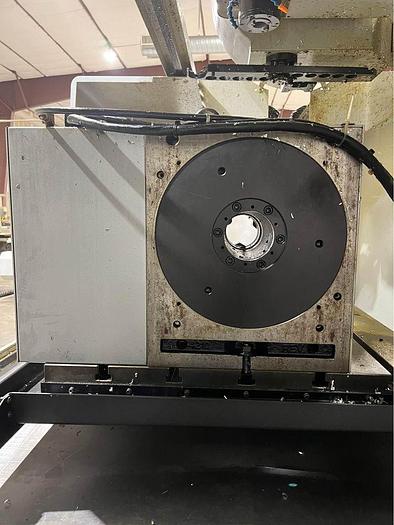

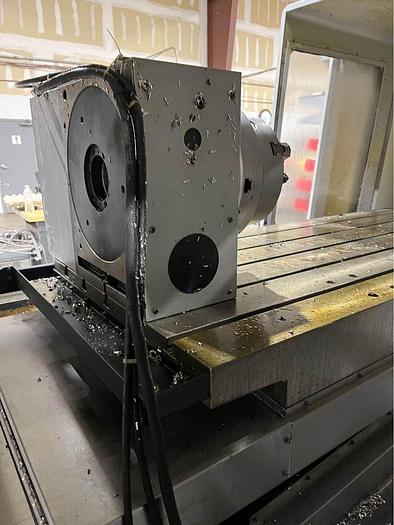

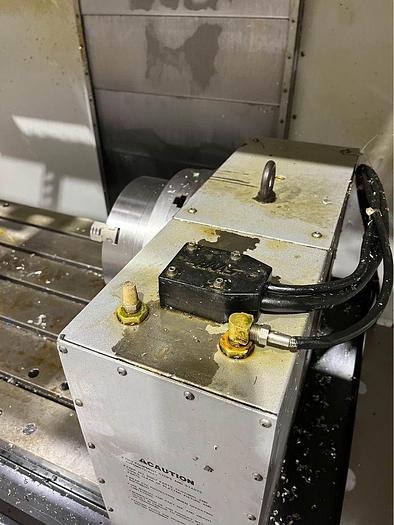

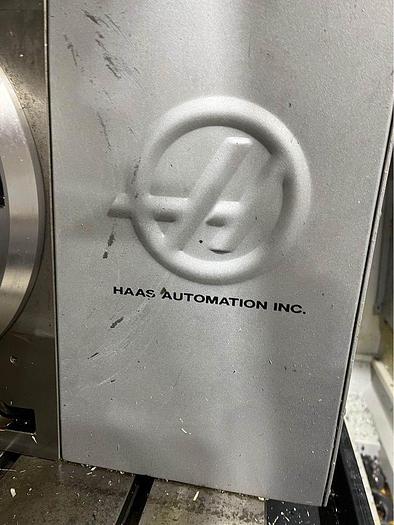

2008 HAAS HRT-310 4th Axis Rotary Table

2008 HAAS HRT 310 4th Axis CNC Rotary Table

PLATTER S.A.E METRIC

Platter Diameter 12.20 in 310 mm

Max Weight on Platter (w/support) 435 lb 197.3 kg

Max Weight on Platter (unsupported) 218 lb 98.7 kg

Number of Std T-Slots 6 @ 60° 6 @ 60°

SPINDLE S.A.E METRIC

Max Speed 75 °/sec 75 °/sec

Max Torque 300 ft-lbf 407 Nm

Runout Max 0.0010 in 0.025 mm

Center Height 9.000 in 228.60 mm
