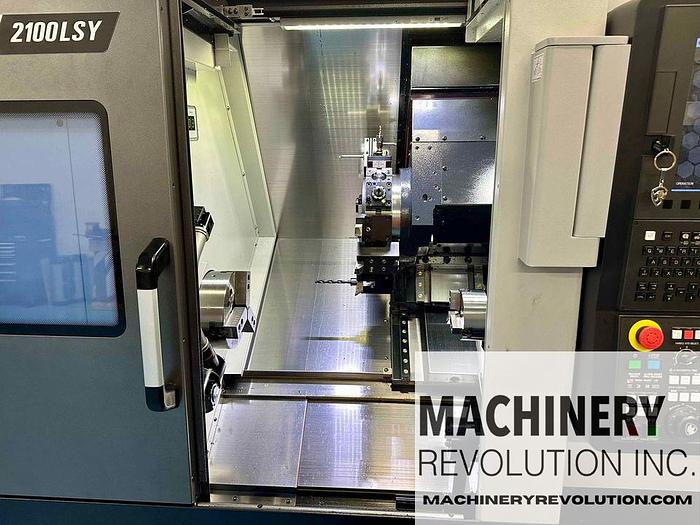

2023 DOOSAN Lynx 2100 LSYB CNC Lathe Turning Center with Livetooling / C-Axis / SubSpindle / Y-Axis / BarFeeder

Excellent Condition 1,045Hours

4,500 RPM Main Spindle

6,000 RPM Sub Spindle

6,000 RPM Live Tool Holders

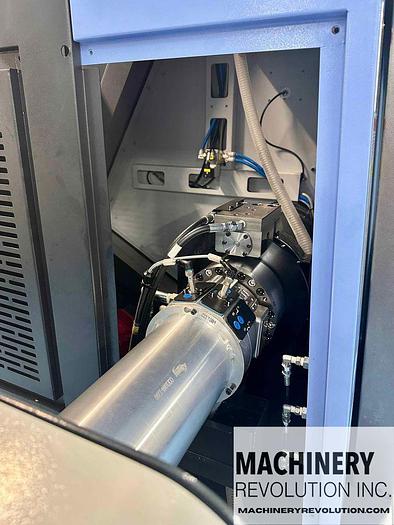

LNS Alpha SL 65s 5' BarFeeder

Samchully Chucks on Main and Sub

8" Main Chuck

5" Sub Chuck

2" Bar Capacity

12 Station Turret

Y axis

SubSpindle

Through Spindle Coolant Main and Sub Spindle

Programmable Part catcher and Part Conveyor

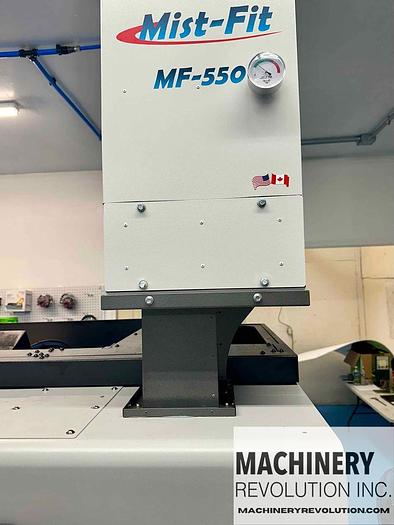

Mist Fit MF-550 Mist Collector

Automatic Tool setter

Sub spindle part ejector with coolant flush

65 psi multi-stage coolant pumps

Separate coolant tank with way lube oil skimmer

Automated metered lubrication system with oil skimmer

12 Station Turret / 24 Position Indexing

1,417 ipm Z axis rapid traverse

Full contouring C-Axis on main and sub spindle

Rigid Tapping

FANUC 0i-T control

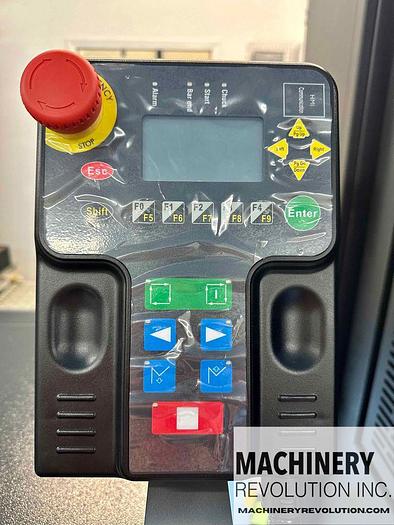

Remote Jog Handle

23.6" Swing over bed

15.7" Swing over carriage

11.8" Maximum turning diameter

20.0" Maximum turning length

30.4" Distance between main and sub spindle nose

8.07" X axis travel

±2.065” Y-axis travel

22.0" Z axis travel
