2018 HAAS TR 210 5-Axis Trunnion Table

2018 HAAS TR-210 5-Axis Trunnion Table

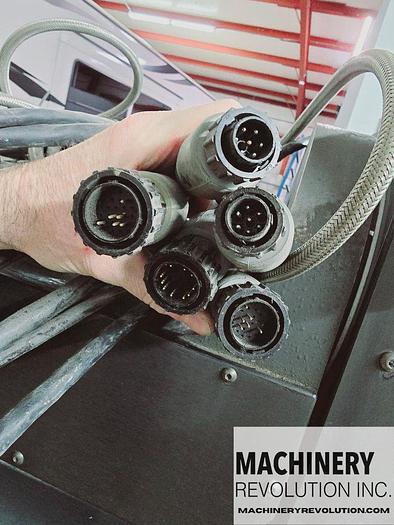

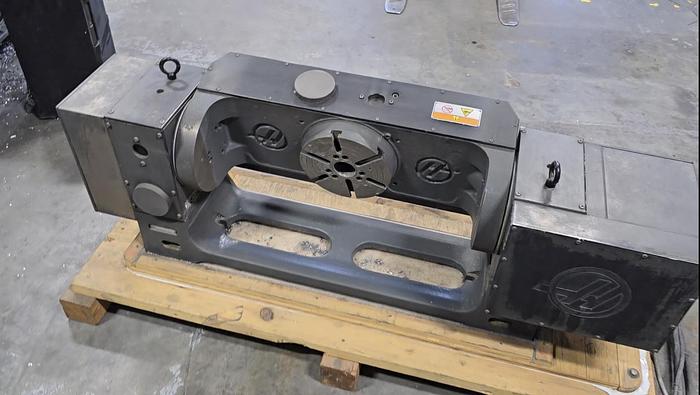

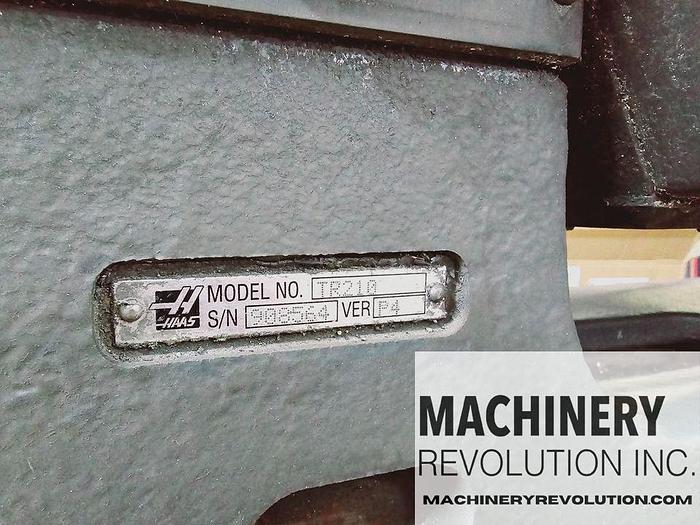

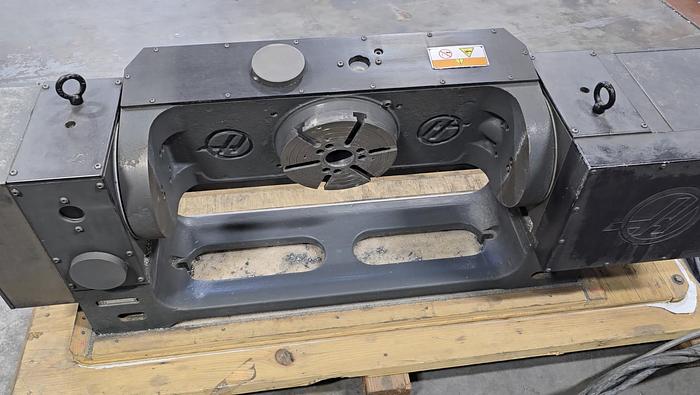

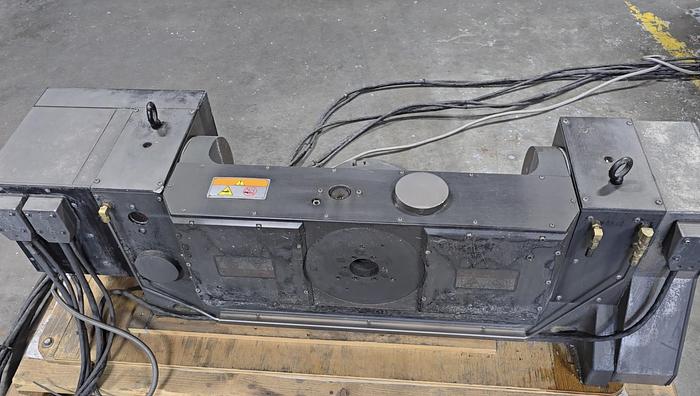

(Price Brand New from HAAS $48,795.00) On Pallet Ready To Ship

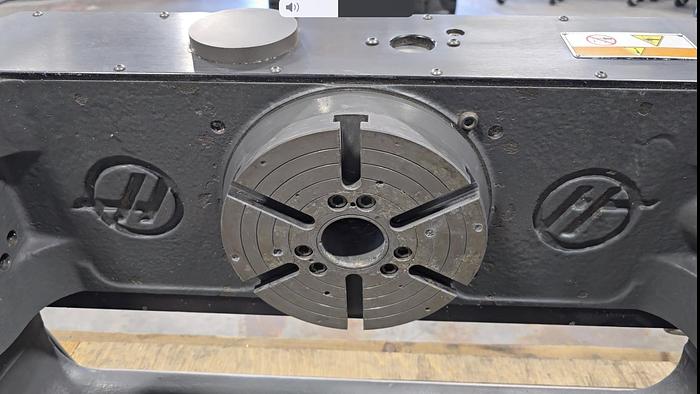

PLATTER            S.A.E     METRIC

Platter Diameter              8.30 in      210 mm

Max Weight on Platter   200 lb       91.0 kg

Part Swing Max 23.5 in 597 mm

Number of Std T-Slots    6 @ 60°

SPINDLE - A (TILT)

Max Speed         60 °/sec

Max Torque       300 ft-lbf   407 Nm

Backlash       30 arc-sec

Gear Ratio          90:1

Timing         2:1

Brake Torque @ 100 psi/6.9 bar 400 ft-lbf    542 Nm

SPINDLE - B (ROTARY)

Max Speed         60 °/sec

Max Torque       210 ft-lbf            285 Nm

Runout Max       0.0005 in            0.013 mm

Backlash      30 arc-sec

Gear Ratio          90:1

Timing  2:1

Brake Torque @ 100 psi/6.9 bar 200 ft-lbf     271 Nm

INDEXING - A (TILT)

Max Rotation/Step         ± 120 °

Resolution          0.001 °

Accuracy (±)      ± 15 arc-sec

Repeatability     10 arc-sec

INDEXING - B (ROTARY)

Max Rotation/Step (with rotary control) 999.999 °

Resolution          0.001 °

Repeatability     10 arc-sec

GENERAL

Operating Temp (max ambient) 100 °F  38 °C

AIR REQUIREMENTS

Air Pressure Max             150 psi 10.3 bar

Weight 810 lb
