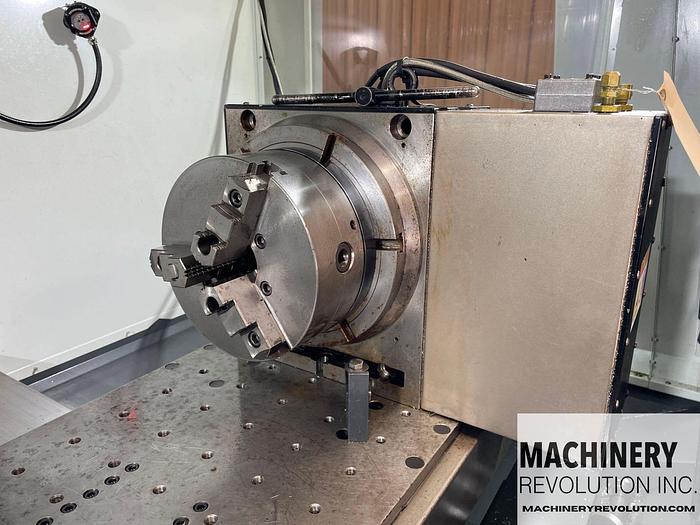

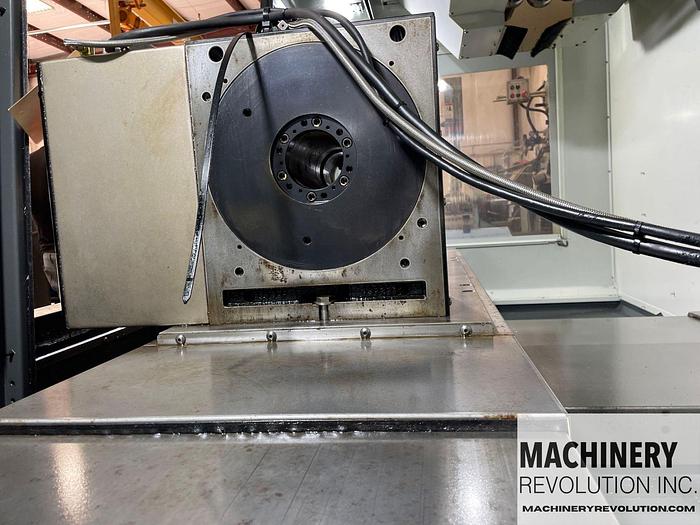

2019 HAAS HRT-310 4th Axis Rotary Table with 10" LMC 3-Jaw Chuck

Sold

2019 HAAS HRT-310 4th Axis Rotary Table with 10" LMC 3-Jaw Chuck

Description

Excellent Condition Low Hours

Serial Number: 319715

Version: P3

Includes 10" LMC 3-Jaw Chuck with Adapter


PLATTER S.A.E METRIC

Platter Diameter 12.20 in 310 mm

Max Weight on Platter (w/support) 435 lb 197.3 kg

Max Weight on Platter (unsupported) 218 lb 98.7 kg

Number of Std T-Slots 6 @ 60° 6 @ 60°

SPINDLE S.A.E METRIC

Max Speed 75 °/sec 75 °/sec

Max Torque 300 ft-lbf 407 Nm

Runout Max 0.0010 in 0.025 mm

Center Height 9.000 in 228.60 mm

Backlash 30 arc-sec 30 arc-sec

Brake Torque @ 100 psi/6.9 bar 500 ft-lbf 678 Nm

Gear Ratio 72:1 72:1

Timing 2:1 2:1

INDEXING S.A.E METRIC

Accuracy (±) ± 15 arc-sec ± 15 arc-sec

Repeatability 10 arc-sec 10 arc-sec

Resolution 0.001 ° 0.001 °

Worm Gear Dia 9.4 in 235 mm

Max Rotation/Step (with rotary control) 999.999 ° 999.999 °

GENERAL S.A.E METRIC

Power Requirement 115 VAC ±10% @ 15 A 115 VAC ±10% @ 15 A

Operating Temp (max ambient) 100 °F 38 °C

AIR REQUIREMENTS S.A.E METRIC

Air Pressure Max 150 psi 10.3 bar


Specifications

ManufacturerHAAS
ModelHRT-310 4th Axis Rotary Table with 10" LMC 3-Jaw Chuck
Year2019
ConditionUsed
