2018 FANUC M-710iC Plus Robotic Palletizing and Case Packing System

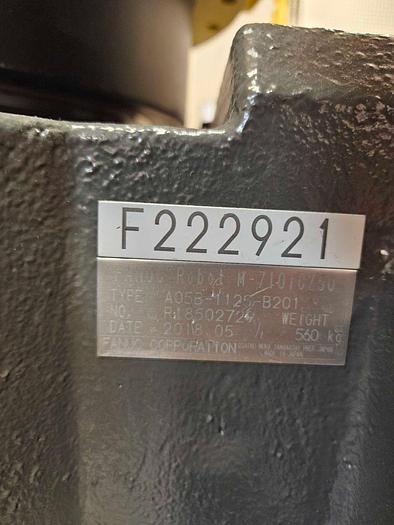

Fanuc M-710iC Plus

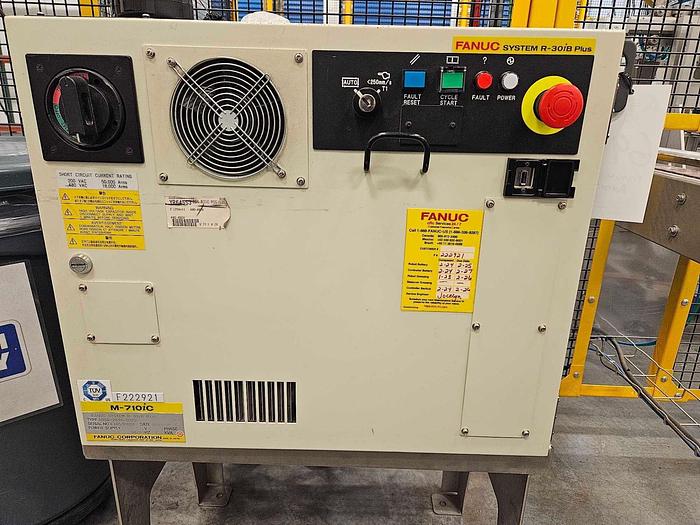

• Fanuc System R-30iB Plus
• Type: A05B-2610-B222
• Serial: E18530001
• Year: 2018
• Infeed conveyor 3 inch width x 150 Length
• Current blank case 21.75 w x 14 h
• Erected case dimensions 12.5 l x 9.5 w x 5 inch height
• Magazine 45 Length x 21.75 width
• Robot arm Suction cups: (6) 3.75 x 1.75, (5) 2 inch diameter
• Case taper roller Conveyor 86 Length x 4.75 width
• 2 inch tape head, top and bottom
• Roller Conveyor between case taper and pallet Conveyor: (1) 65 Length x 15 width and 105 Length x 15 width and 120 length x 15 width
• Pallet Conveyor: 174 Length x 50.5 width

Robot Work Cell enclosure:

• Wire mesh fence
• Safety interlocked access doors
• Guarding to comply with category 3 safety requirements
• Overall footprint 23.5 ft Length x 32 ft x 101 Height
