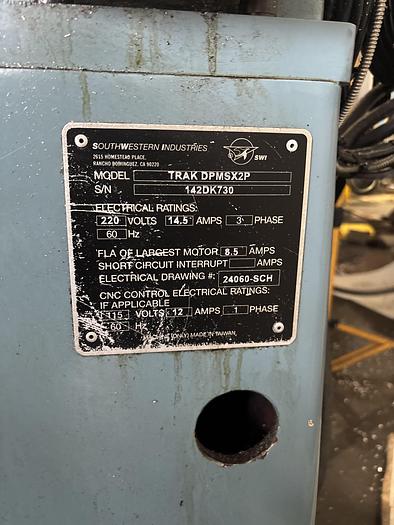

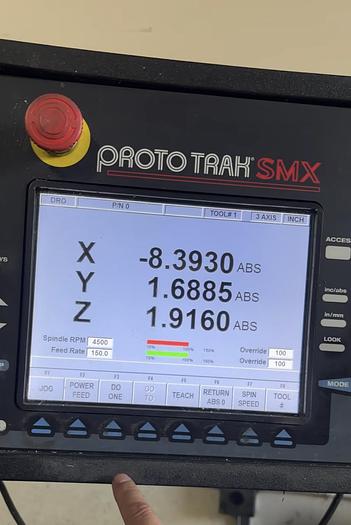

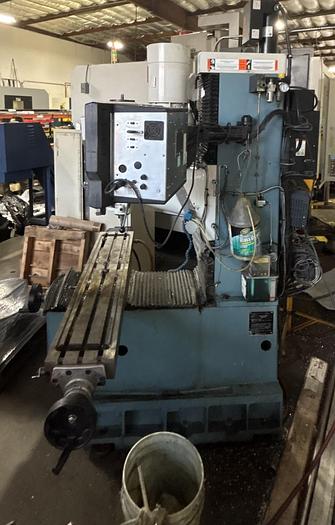

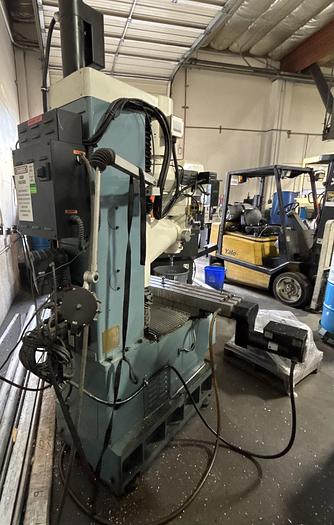

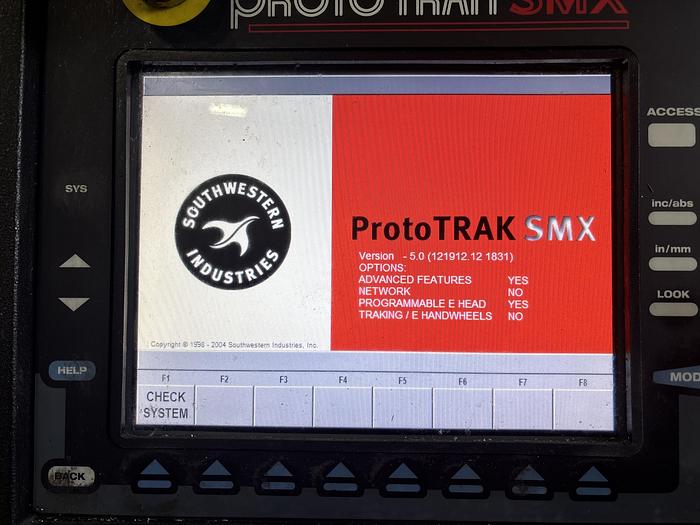

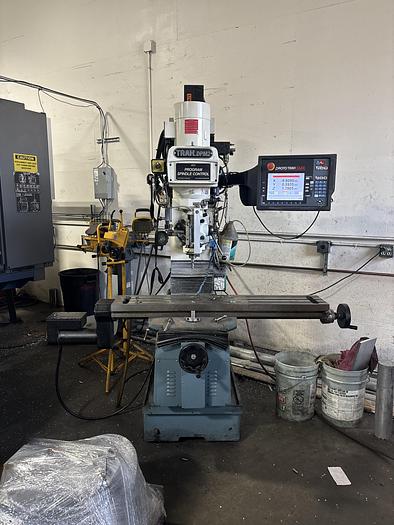

2014 SouthWestern Industries TRAK DPM SX2P CNC Bed Mill

5,000 RPM Spindle Speed

R8 Spindle Taper

49" x 9" Table Size

3 T-slots (width x pitch) – .63″ x 2.5″

32" X-Axis Travel

16" Y-Axis Travel

27" Z-Axis Travel

49" L x 9" W Table Size

+/- 90° Head Swivel

3 3/8 Quill Diameter with 5" Quill Travel

Spindle speed range RPM 40 - 600, 300 - 5000

Spindle center to column face – 18.5″

1,320-pound Table Capacity

3 HP Spindle Motor

10 Gallon Coolant Reservoir
