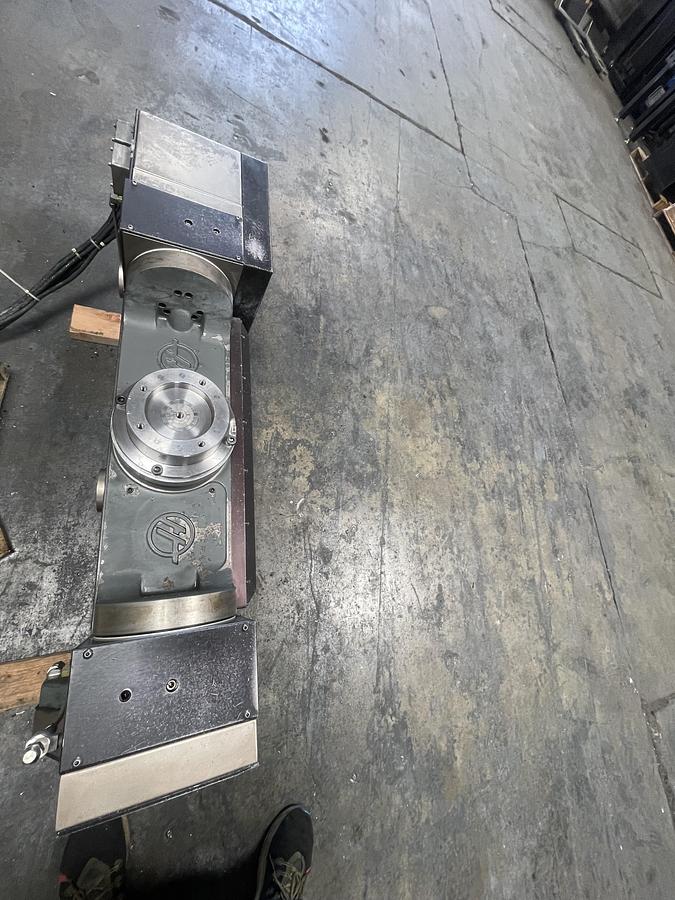

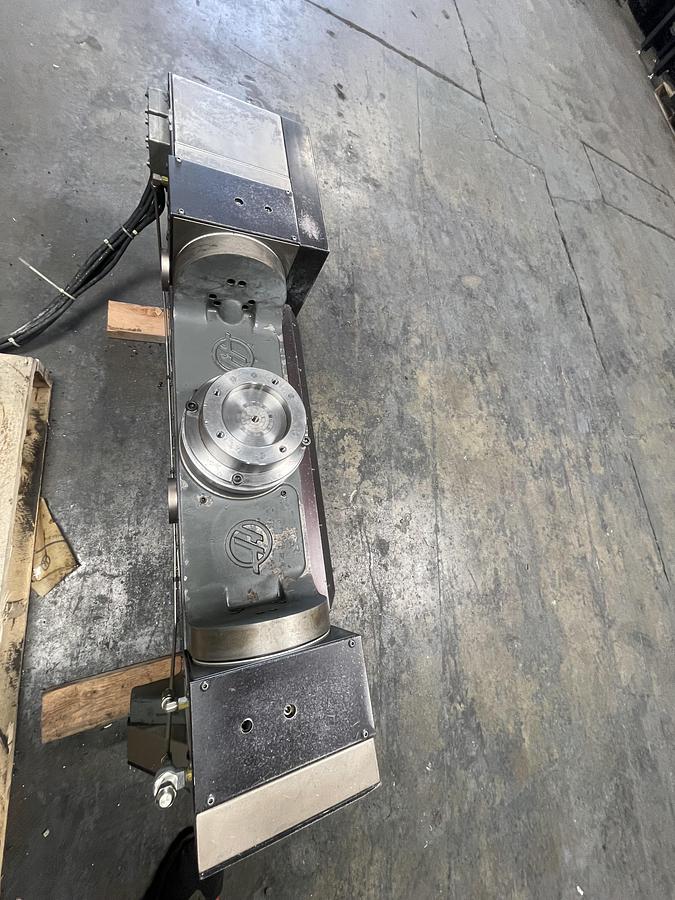

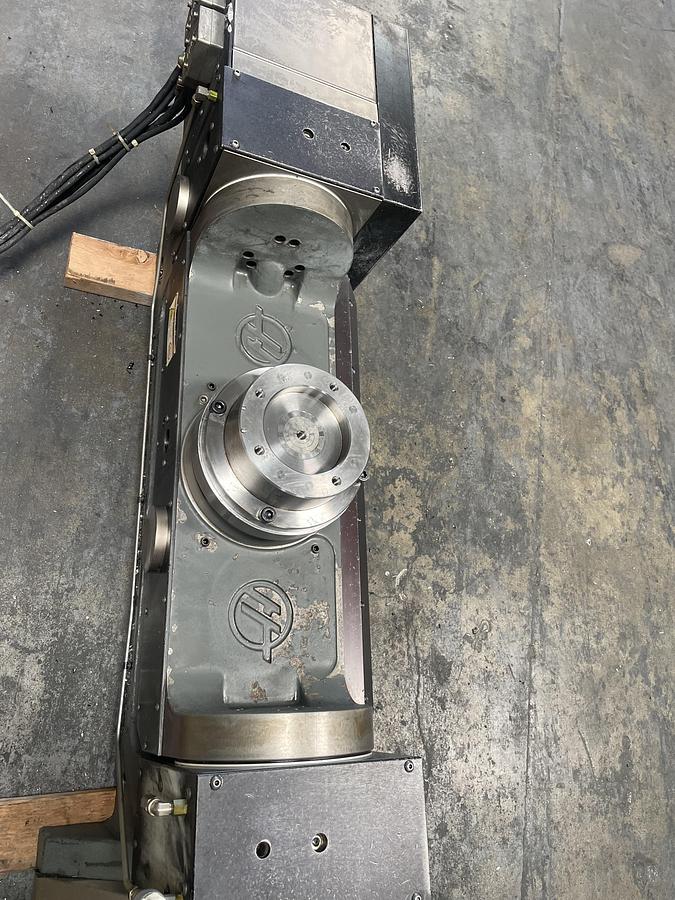

2011 HAAS TR-210 5-Axis Trunnion Table

2011 HAAS TR-210 5-Axis CNC Trunnion Table Excellent Condition

On Pallet ready to ship

PLATTER

Platter Diameter              8.30 in

Max Weight on Platter    200 lb

Part Swing Max 23.5 in

Number of Std T-Slots    6 @ 60°

SPINDLE - A (TILT)

Max Speed          60 °/sec

Max Torque        300 ft-lbf

Backlash               30 arc-sec

Gear Ratio           90:1

Timing   2:1

Brake Torque @ 100 psi/6.9 bar 400 ft-lbf

SPINDLE - B (ROTARY)

Max Speed         60 °/sec

Max Torque        210 ft-lbf

Runout Max        0.0005 in

Backlash               30 arc-sec

Gear Ratio           90:1

Timing   2:1

Brake Torque @ 100 psi/6.9 bar 200 ft-lbf

INDEXING - A (TILT)

Max Rotation/Step         ± 120 °

Resolution           0.001 °

Accuracy (±)       ± 15 arc-sec

Repeatability      10 arc-sec

INDEXING - B (ROTARY)

Max Rotation/Step (with rotary control) 999.999 °

Resolution           0.001 °

Repeatability      10 arc-sec

GENERAL

Operating Temp (max ambient) 100 °F

AIR REQUIREMENTS

Air Pressure Max              150 psi

Weight 810 lb
