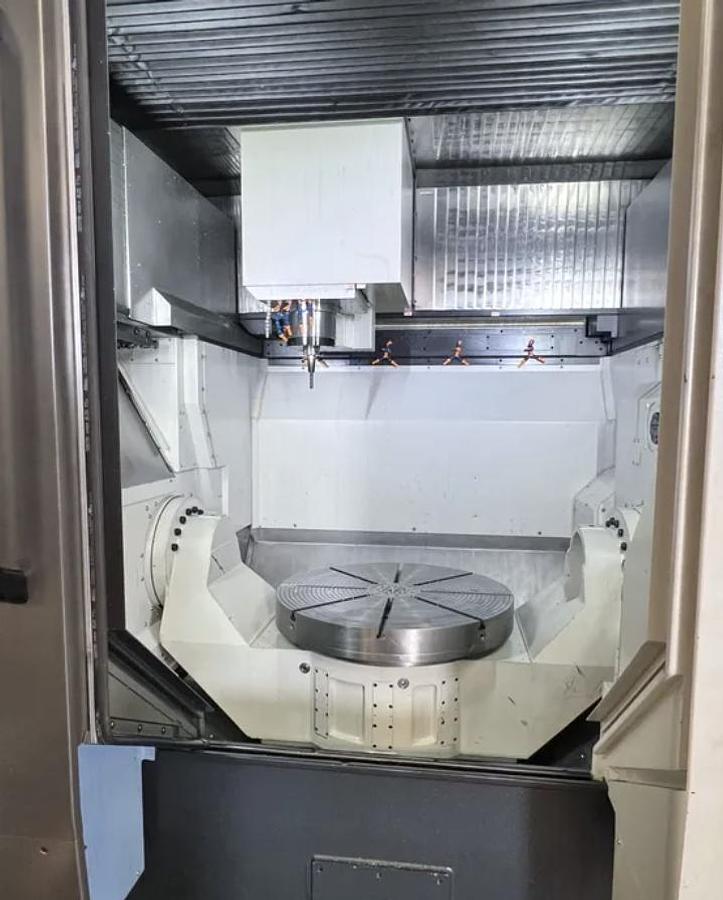

2020 DOOSAN DVF 8000T Vertical Machining Center ***LIKE NEW LOW HOURS***

31.5" TABLE SIZE

1,543 lb TABLE CAPACITY

39.37" X-AXIS TRAVEL

35.43" Y-AXIS TRAVEL

26.97" Z-AXIS TRAVEL

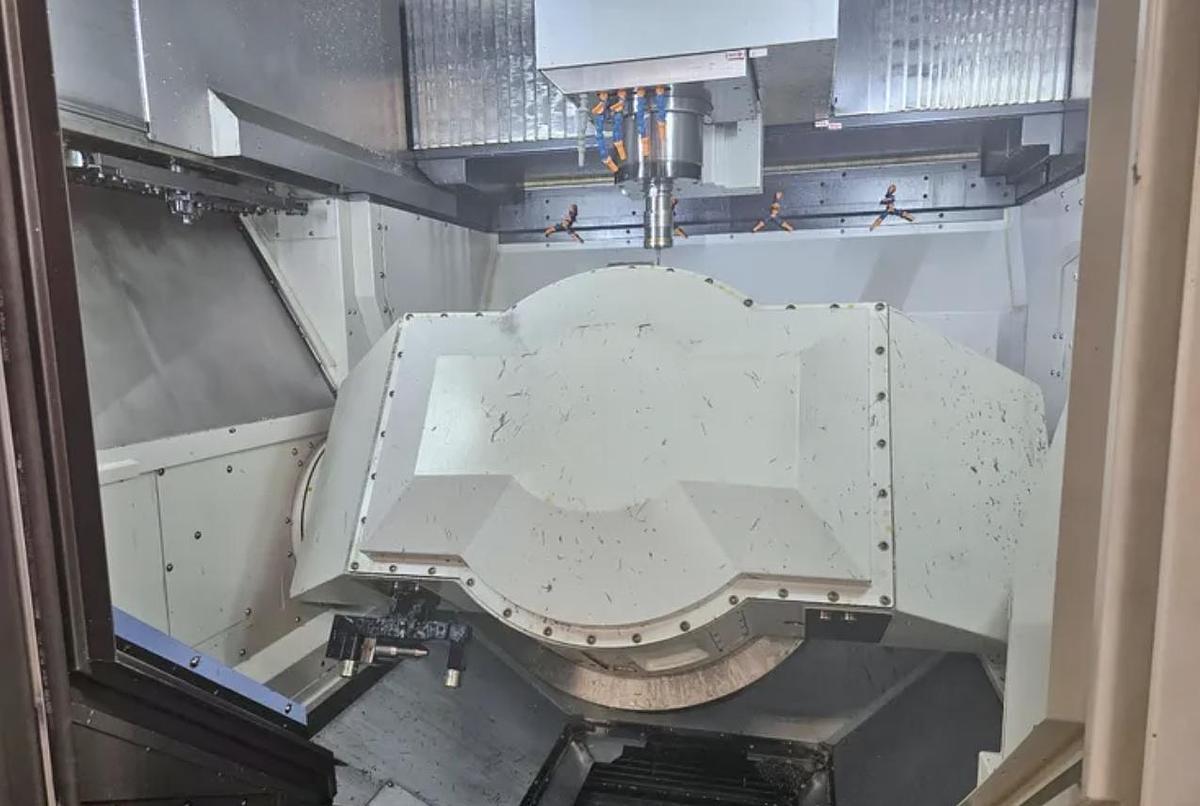

240 DEGREES (+/- 120 DEGREES) A-AXIS ROTATION

360 DEGREES C-AXIS ROTATION

18,000 RPM SPINDLE SPEED

30 hp SPINDLE MOTOR

HSK-T63 SPINDLE TAPER

120 TOOL CAPACITY (ATC)

1,772 in/min. MAX RAPIDS

885 ipm CUTTING FEEDRATE

56,000 lb APPROX MACHINE WEIGHT

303" x 150" x 150" APPROX MACHINE DIMENSIONS

ONLY 286 HOURS

MACHINE IS LIKE-NEW AND UNDER POWER

INSTALLED IN 2023 (BUILT 2020)

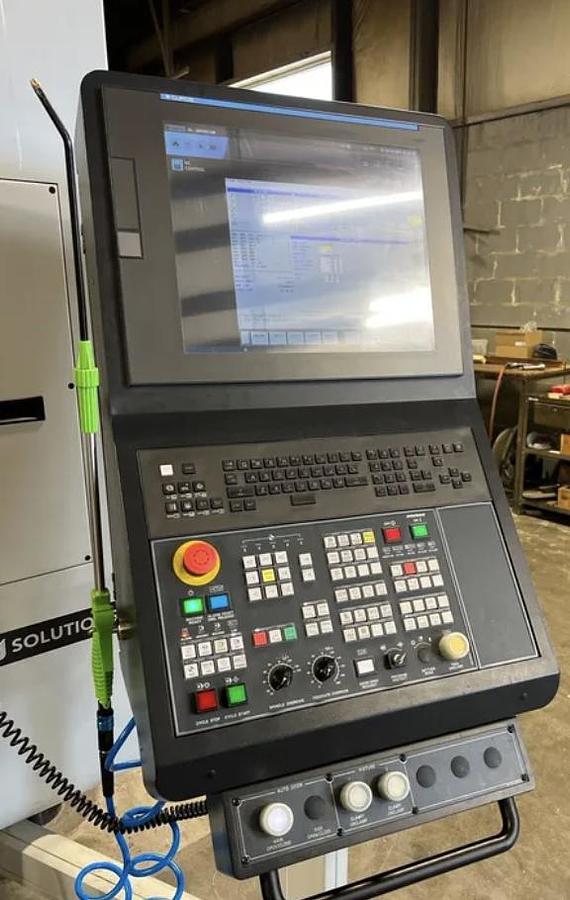

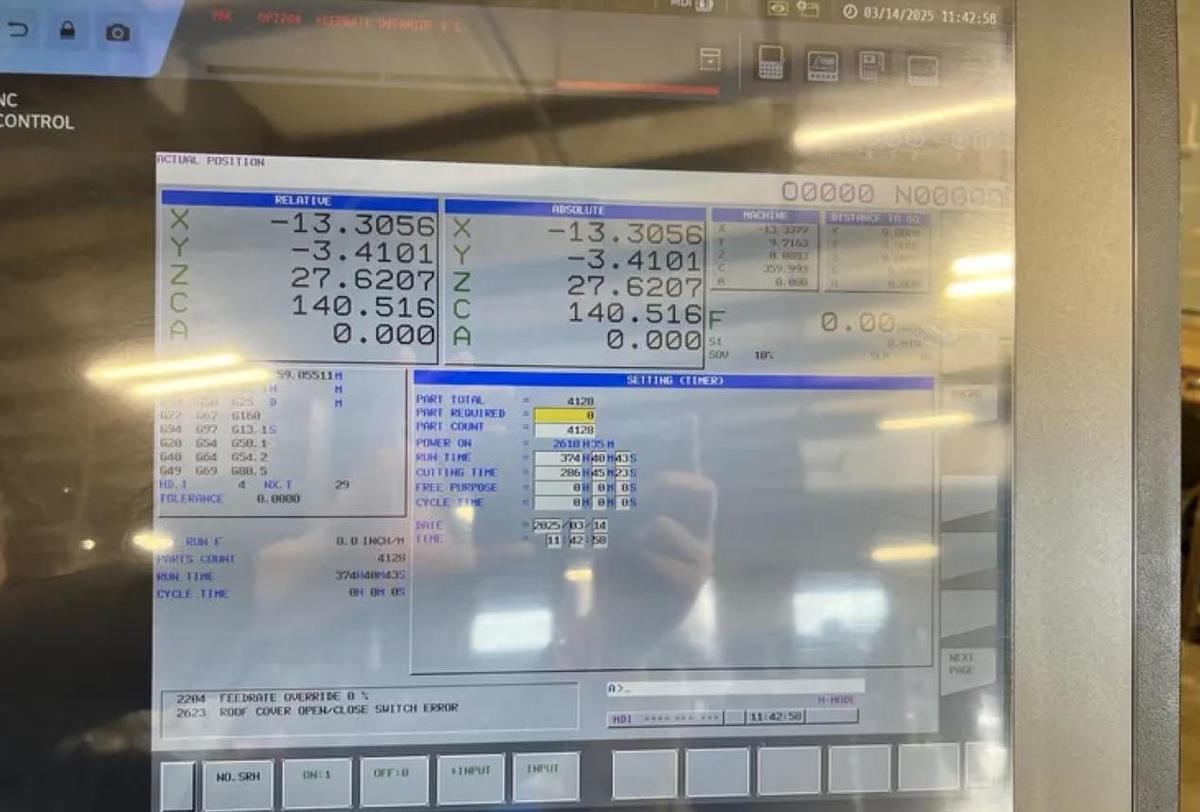

DOOSAN CUFOS CONTROL (FANUC)

SIMULTANEOUS 5-AXIS VERTICAL MACHINING CENTER WITH TURNING FUNCTION

18,000 RPM SPINDLE (HSK-T63)

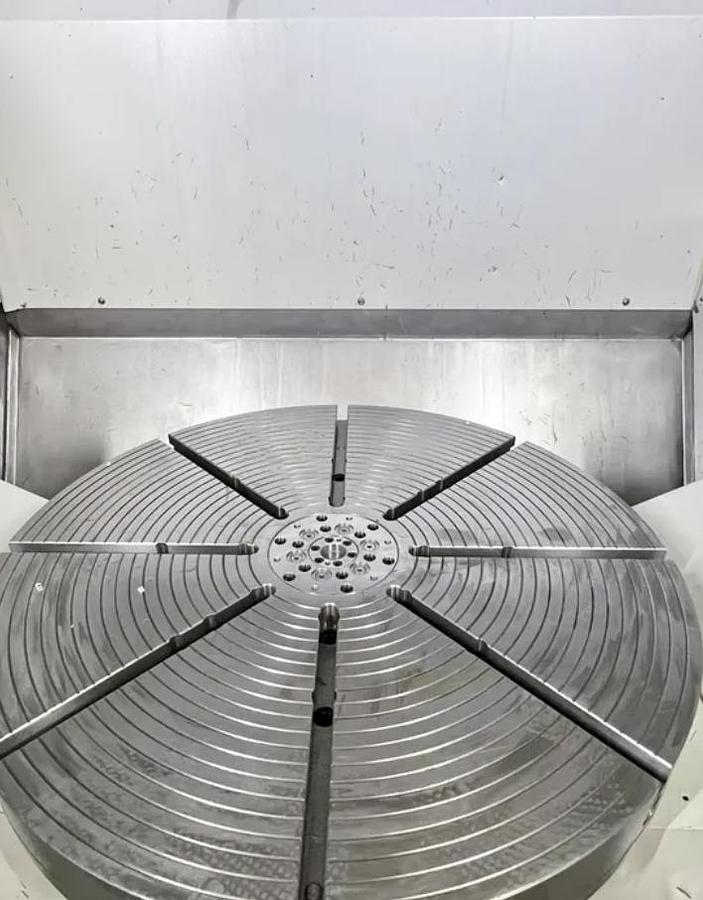

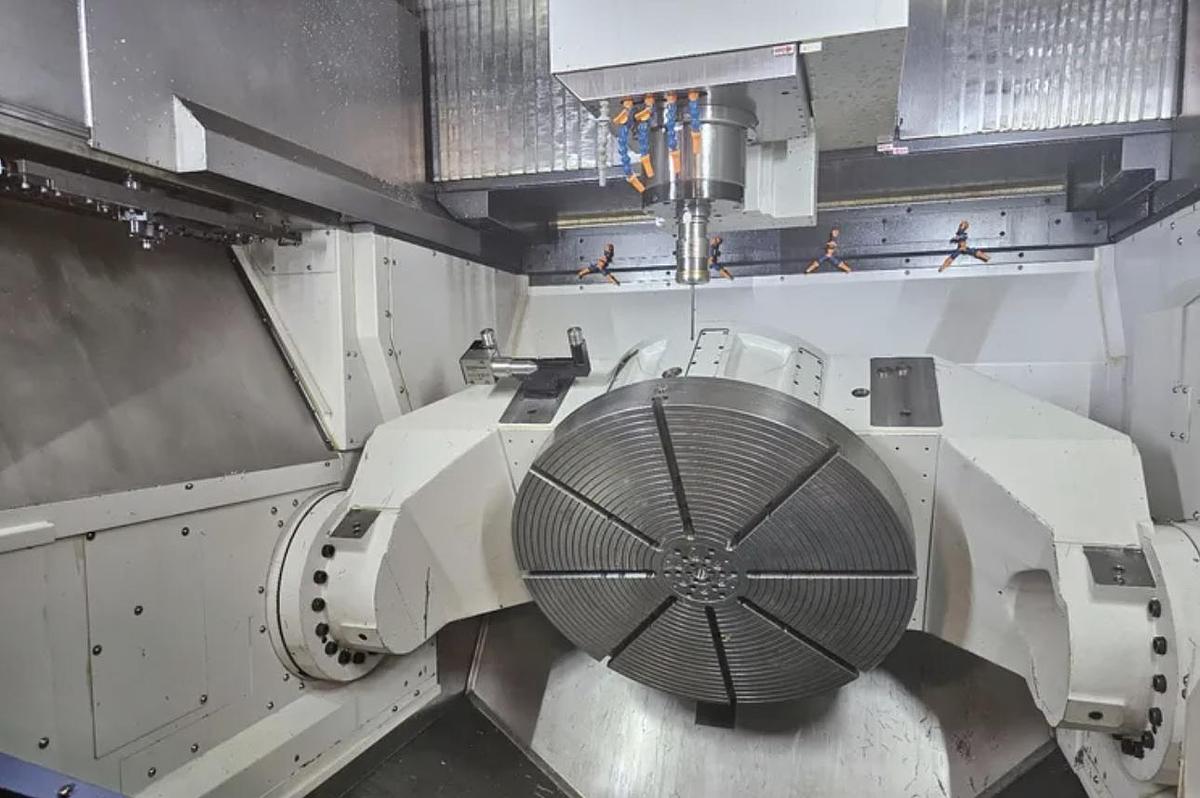

31.5” (800MM) ROTARY TABLE

600 RPM DIRECT DRIVE TURNING SPINDLE (C-AXIS)

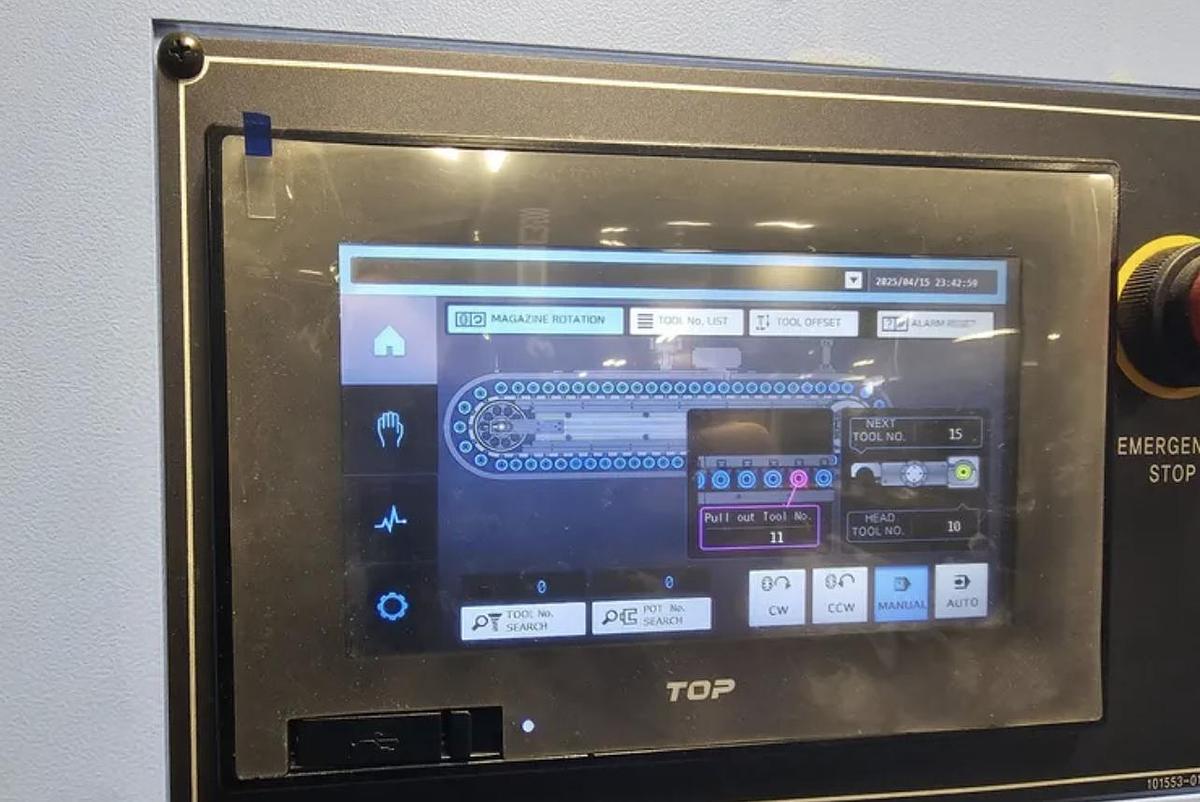

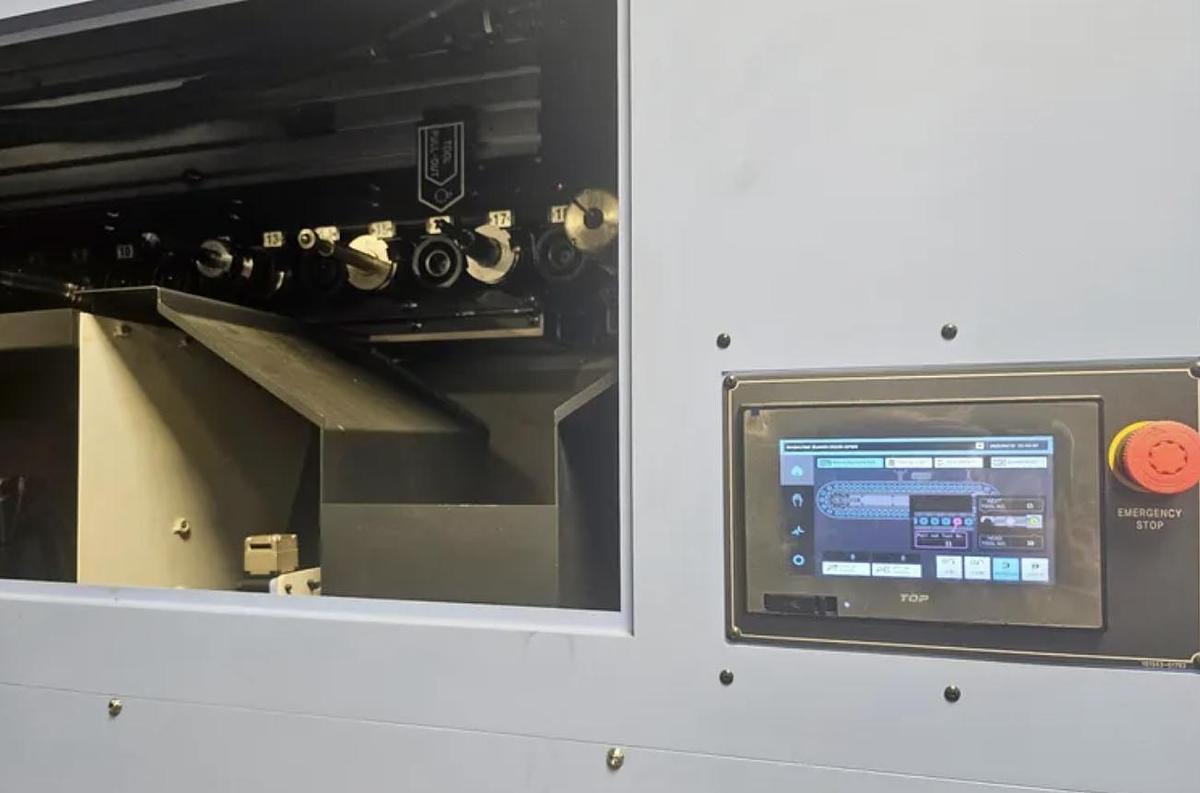

120 TOOL POSITIONS

RENISHAW PROBE-READY

THROUGH-SPINDLE COOLANT & AIR

CHIP CONVEYOR (REAR DISCHARGE)

SPINDLE CHILLER

COOLANT CHILLER

AICC II 600 BLOCK LOOK AHEAD

INTELLIGENT KINEMATIC COMPENSATION (IKC) SOFTWARE FOR FINE CALIBRATION OF ROTARY AXES

ABSOLUTE GLASS SCALES (X/Y/Z)

ABSOLUTE ROTARY ENCODERS (A & C AXES)

SPINDLE ORIENTATION

RIGID TAPPING

USB PORT
