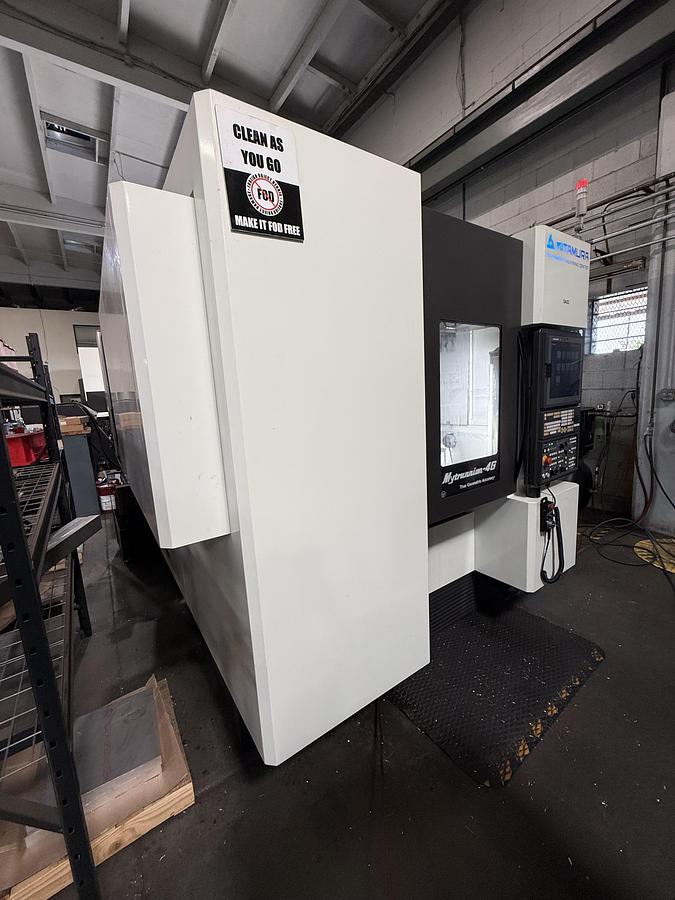

2023 KITAMURA Mytrunnion-4G 5-Axis Vertical Machining Center

Excellent Condition Low Hours

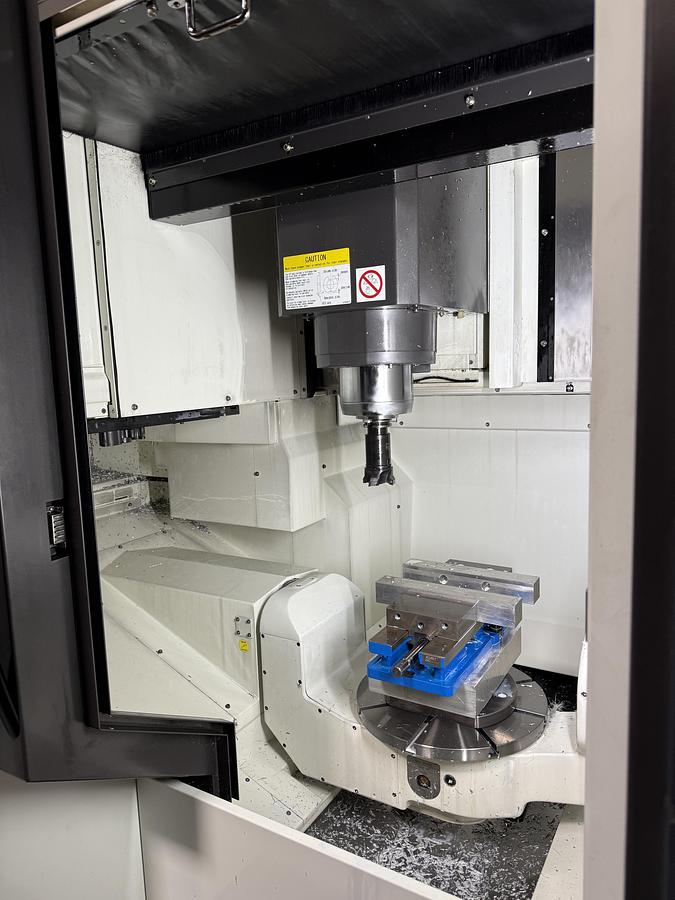

15,000 RPM Spindle

NST 40 Spindle Taper

15.7” Table Size

24” X-Axis Travel

24” Y-Axis Travel

19.7” Z-Axis Travel

150° A-Axis (-120 to +30°)

360° C-Axis

60 Station Automatic Tool Changer

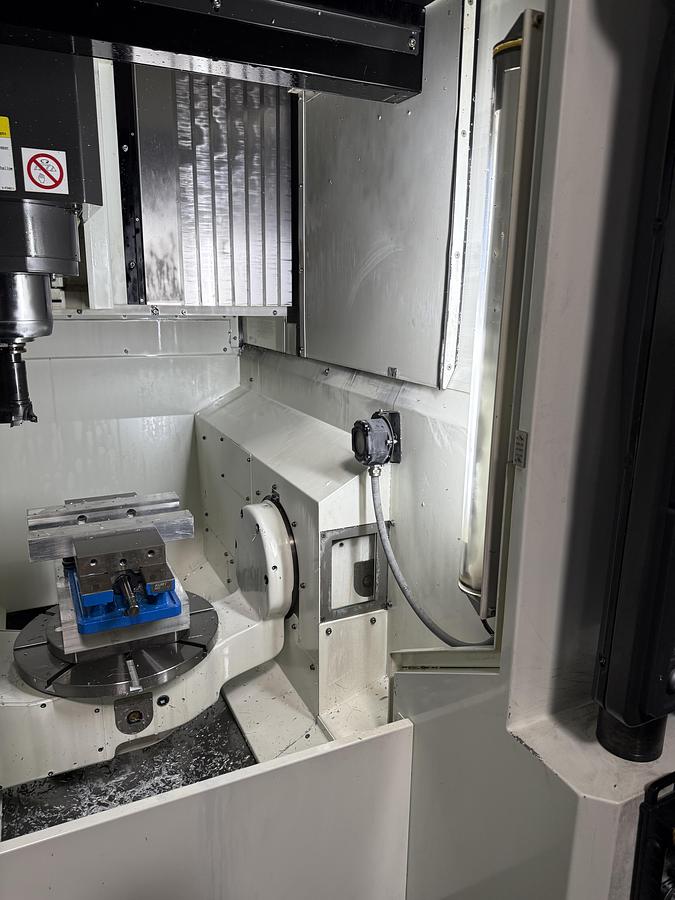

Renishaw OMP60 Spindle Probe and & OTS

Coolant Through Spindle 220psi

21.7” Diameter X 15.7” High Work Envelope

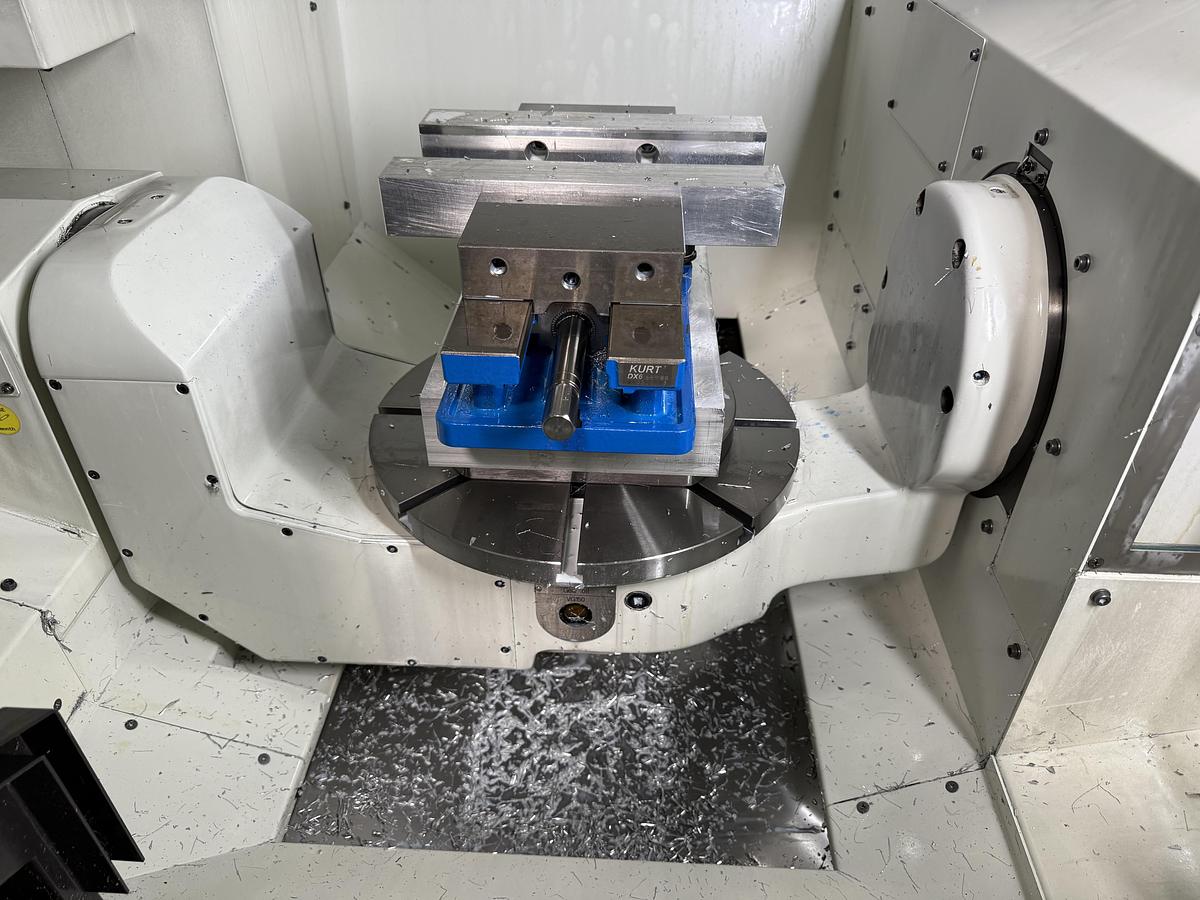

4th & 5th Axis Clamping Mechanism

Rigid Tapping

Spindle Taper Air Blow

4 Sets User M=Function

Manual Pulse Generator

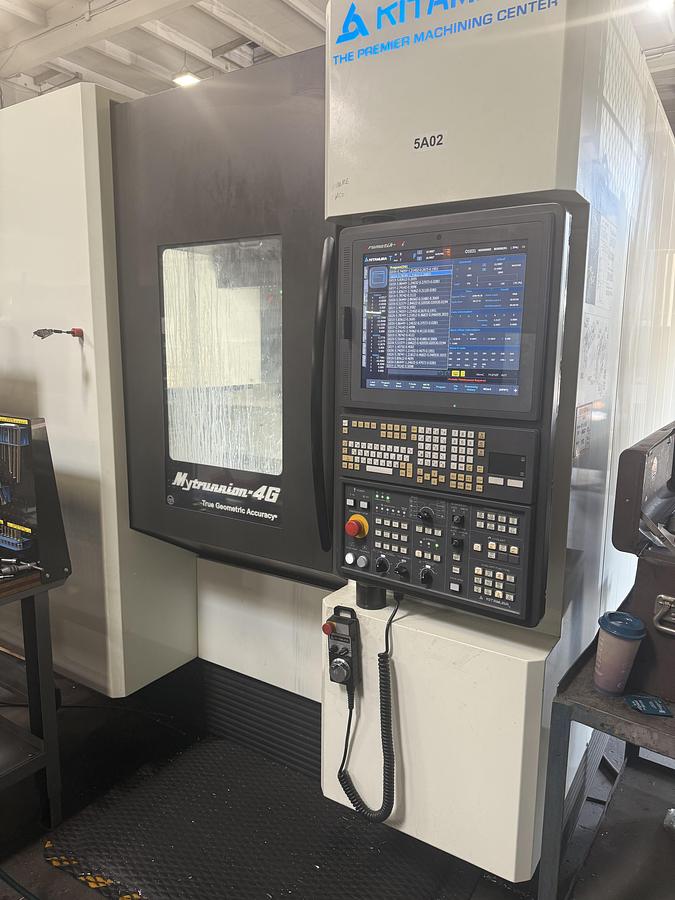

19" Color Toch Screen Display

Rapid Feed X,Y 1,969ipm, Z 984ipm

Rapid Feed (A, C) 50 min‾¹ (18,000 deg/min)

440 Pound Table Capacity

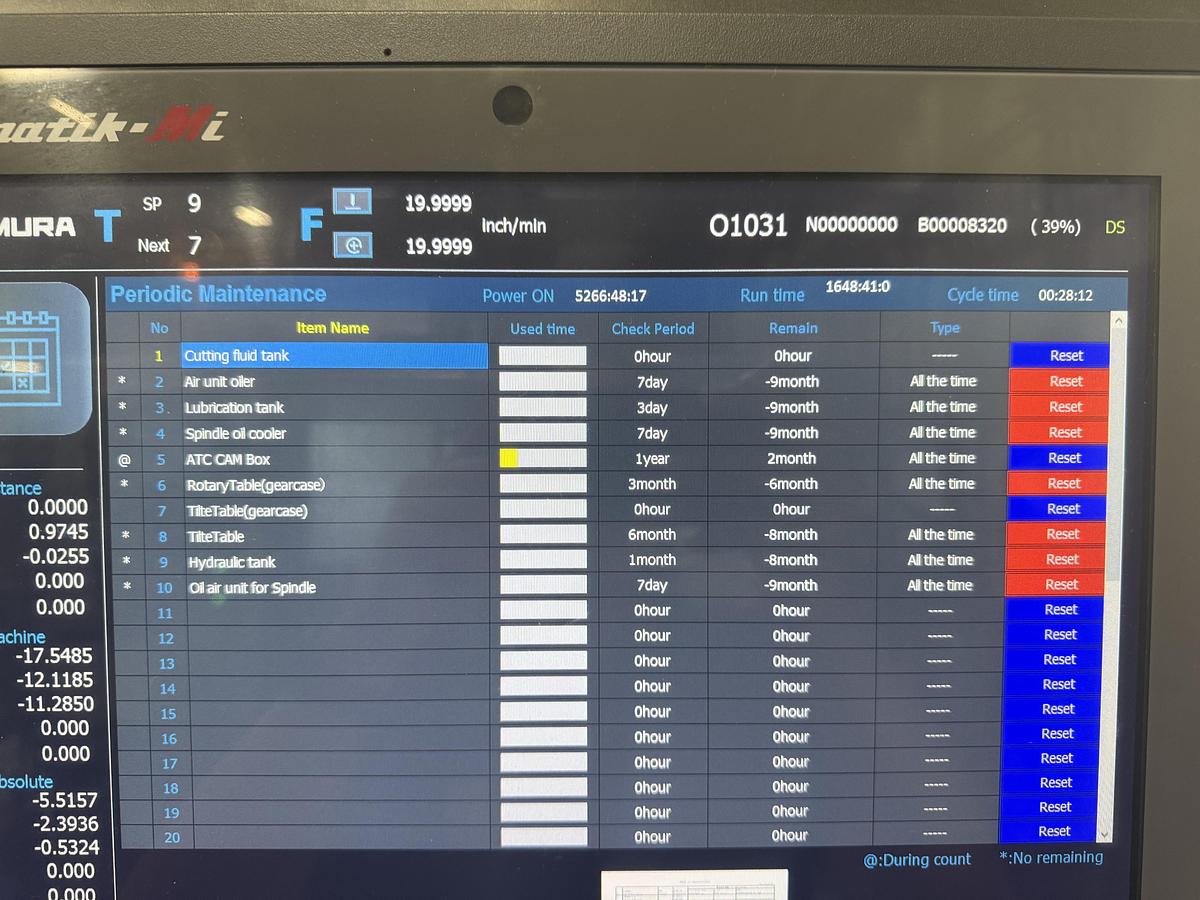

Arumatik-Mi CNC Intelligent Advanced Control System (IAC)

Ultra-high speed and high precision SSS (Super Smoot Surface) control with 8,190 block look ahead speeds

Ballscrew cooling system

4th & 5th Axis Scales

Positioning accuracy ±0.002mm (±0.000079”)

Full stroke, Repeatability ±0.001mm (±0.000039”)

15HP Direct Drive Dual Contact Spindle

113 Gallon Coolant Tank and Pump

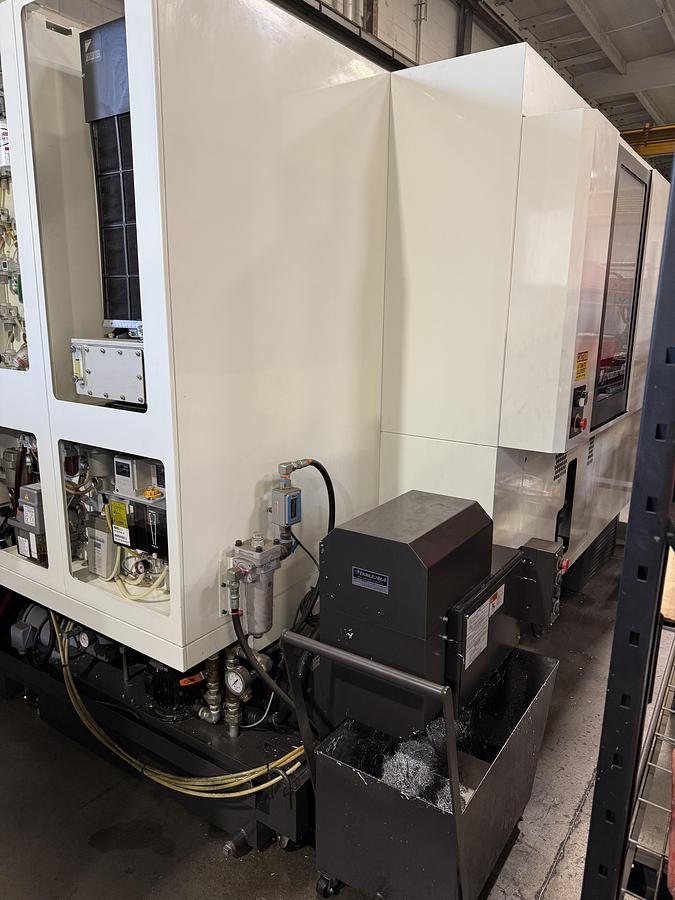

Chip Conveyor with Filter Kit

Grease Packed Double Roller Linear Guide Ways

Automatic Lubrication Pump

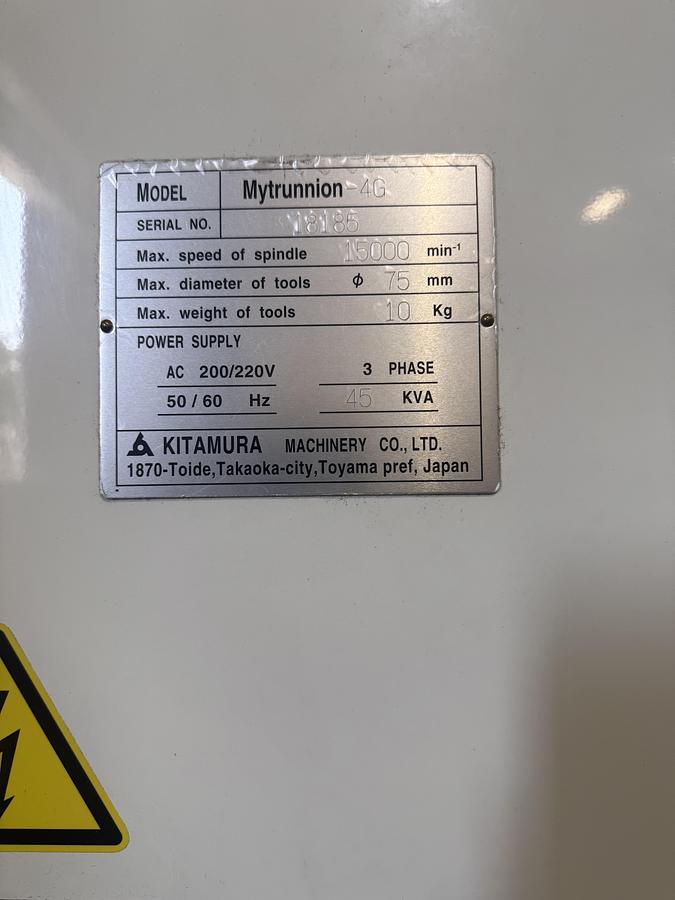

Power 45KVA, 200v AC, 3 Phase

All Available Manuals
