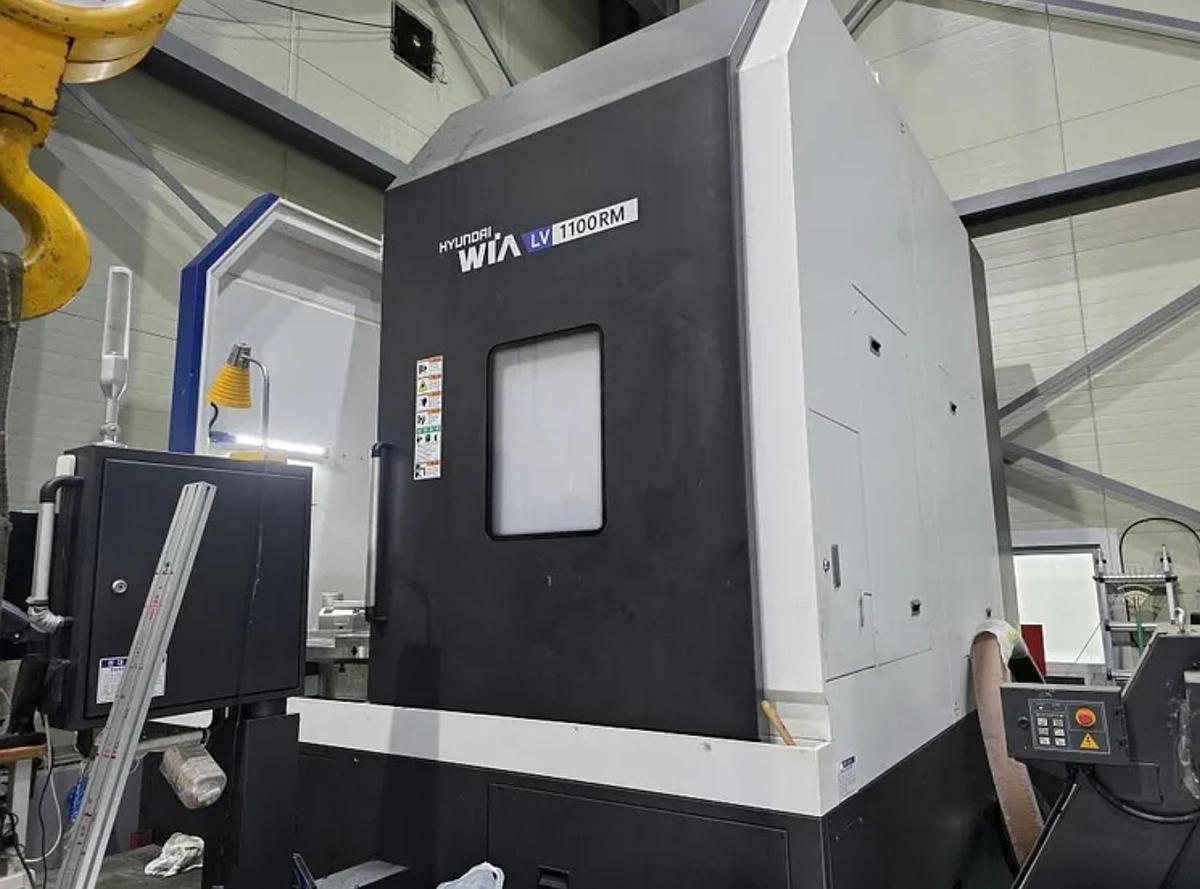

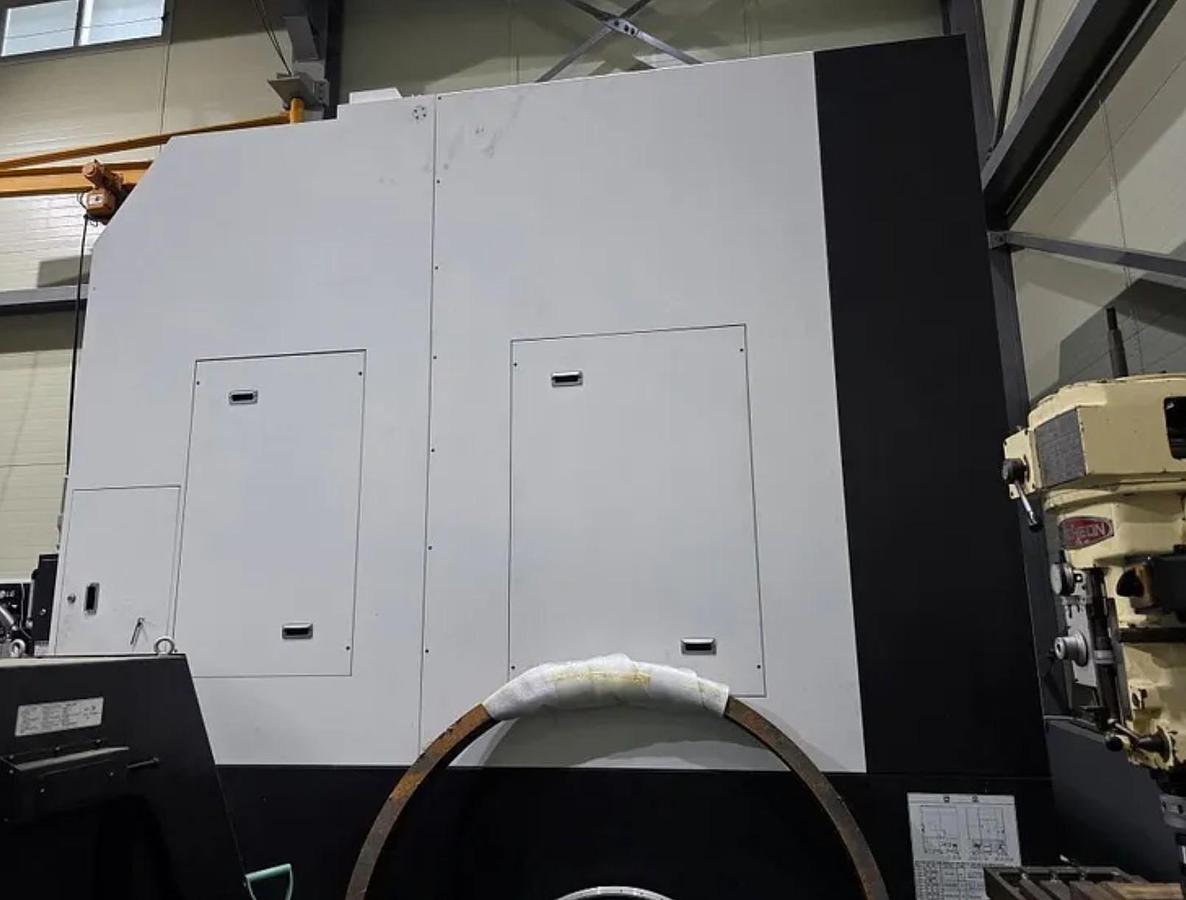

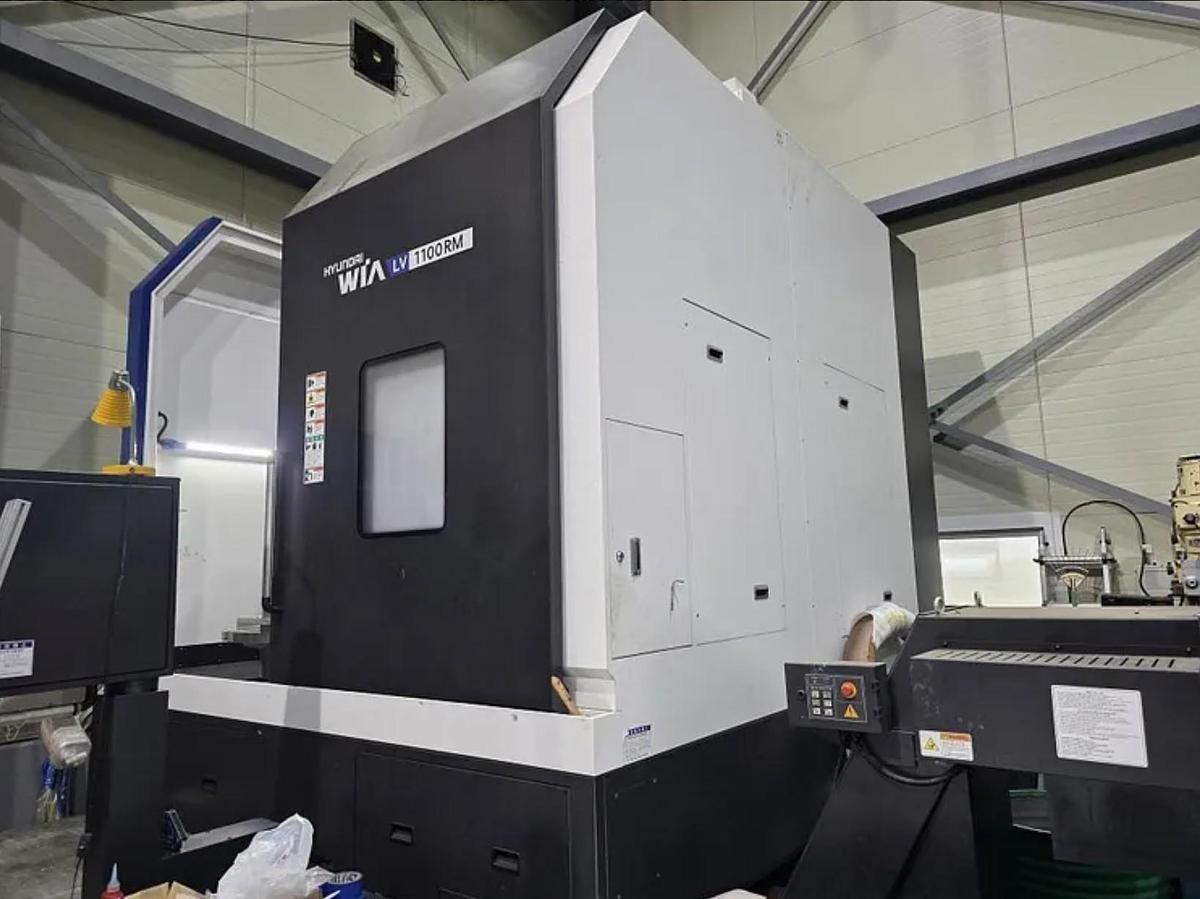

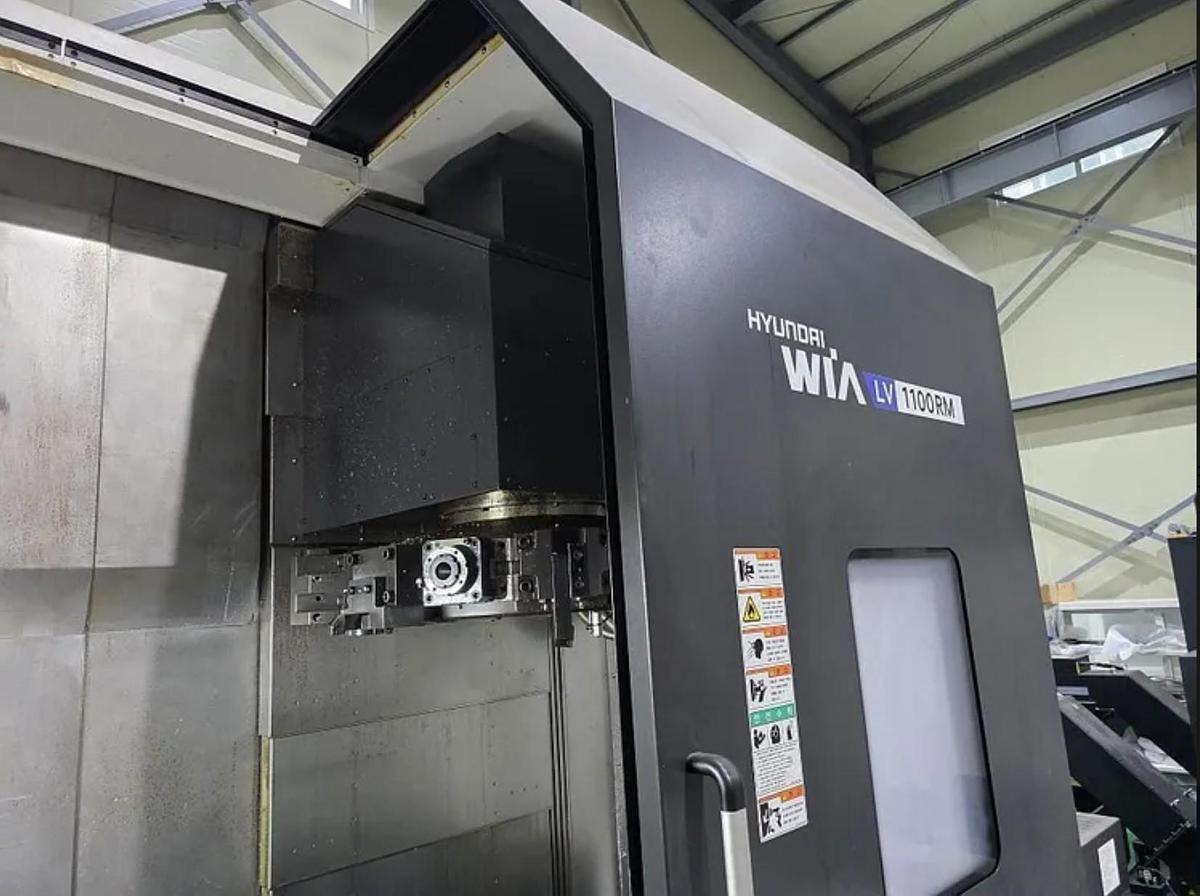

2020 HYUNDAI WIA 1100RM CNC VERTICAL BORING MILL WITH MILLING

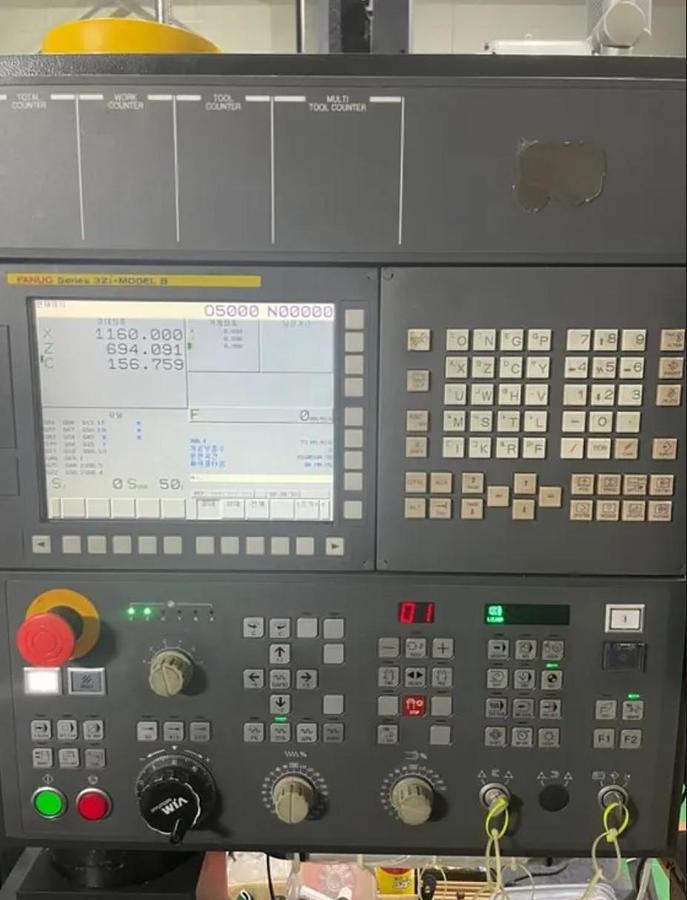

FANUC I PLUS CNC CONTROLLER

32" 3 JAW HYDRAULIC CHUCK

40" 4 JAW MANUAL CHUCK INCLUDED

REMOVABLE TOOL SETTER

(1) I.D. ROTARY MILL HEAD

(1) O.D. ROTARY MILL HEAD

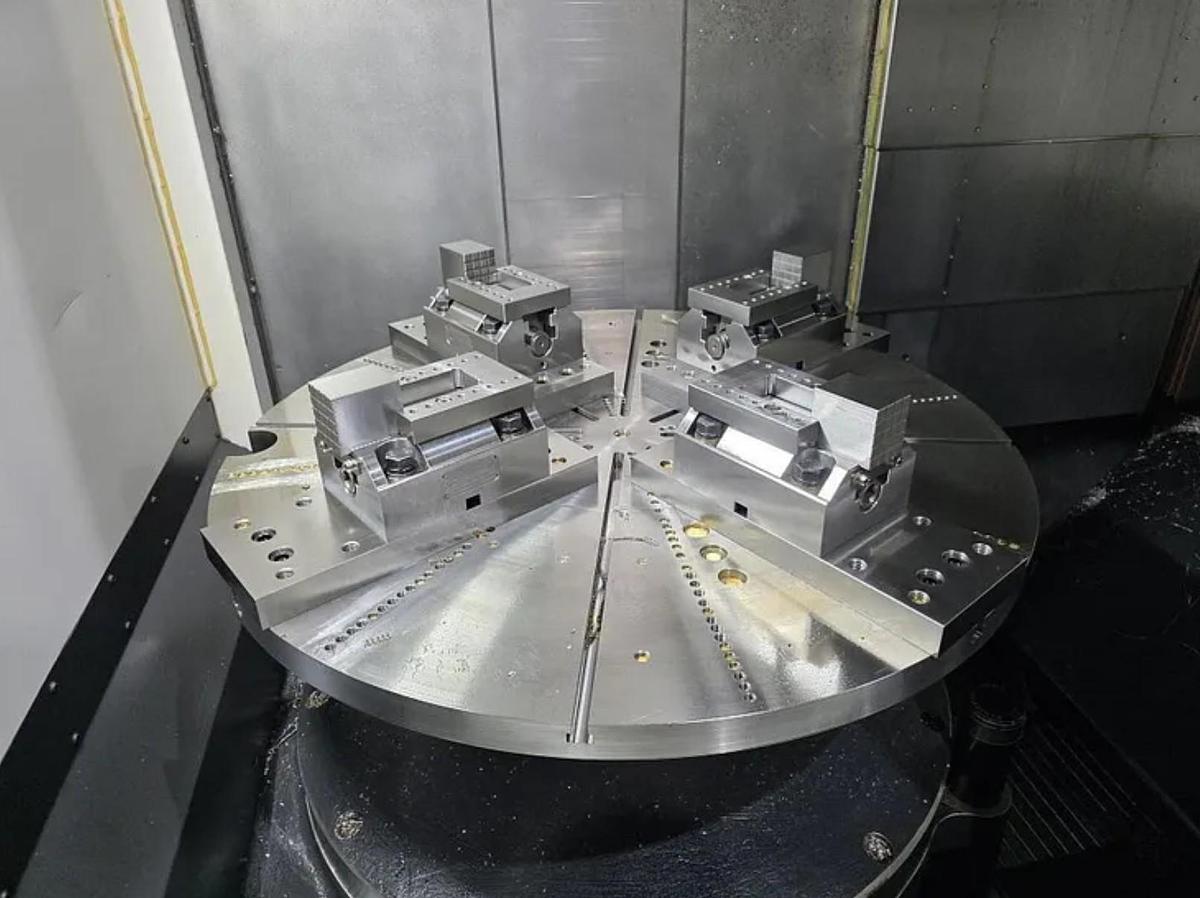

TABLE DIAMETER 32"

TABLE LOAD CAPACITY 4,400 lb

SWING DIAMETER 53.3"

TURNING HEIGHT 39.4"

TABLE SPEED 800 RPM

MAIN MOTOR 80 hp

NUMBER OF RANGES 2

X - AXIS TRAVEL 24.4"

Z - AXIS TRAVEL 39.4"

RAPID TRAVERSE RATE - X 945 ipm

RAPID TRAVERSE RATE - Z 945 in/min.

C - AXIS INDEXING .001

ROTARY SPINDLE SPEED 3,000 RPM

ROTARY SPINDLE HORSEPOWER 15 hp

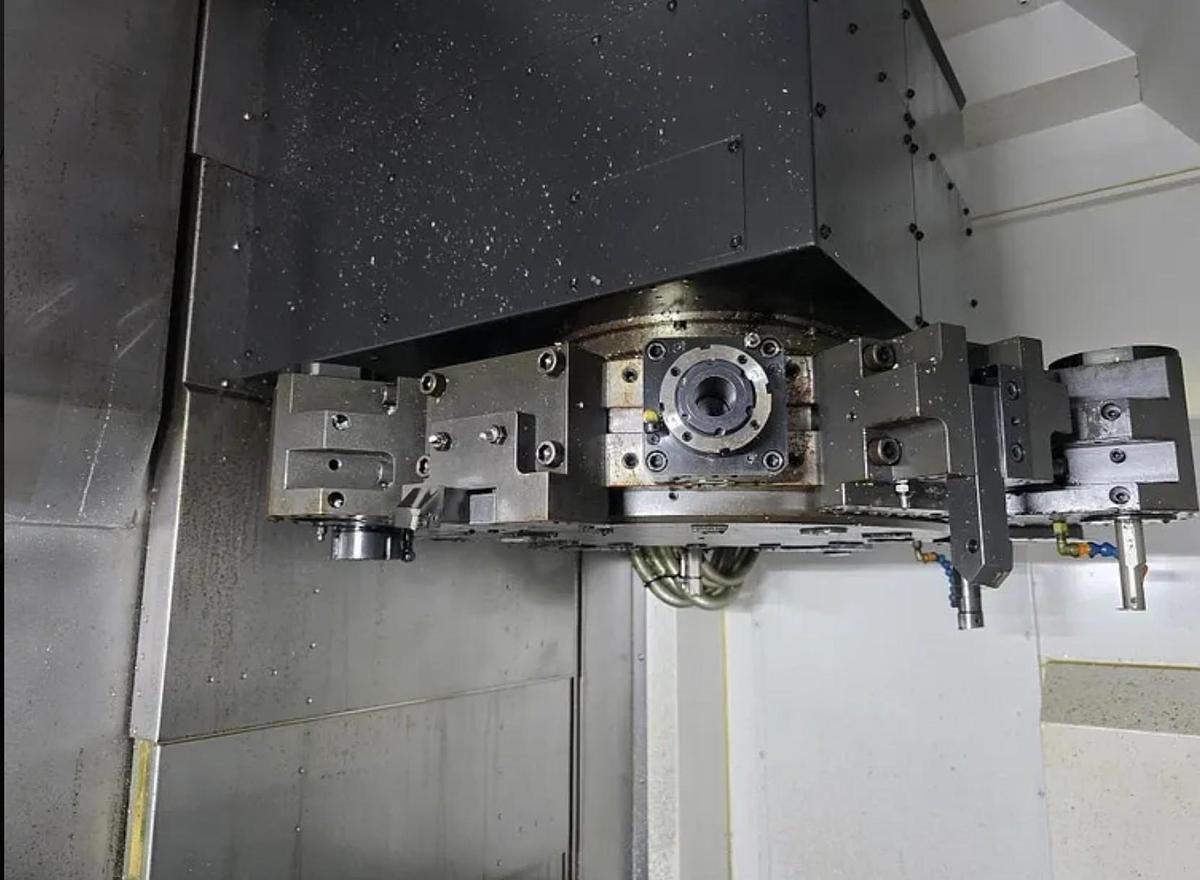

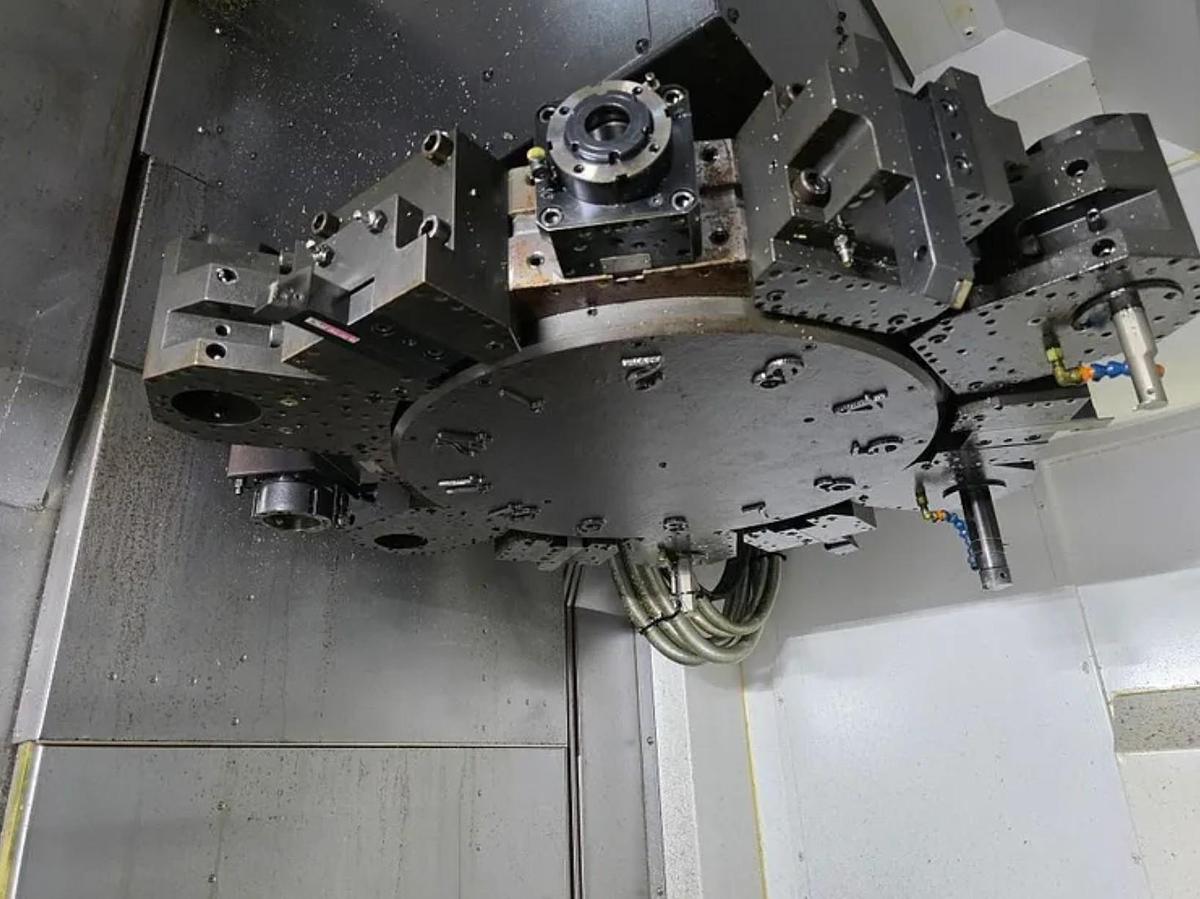

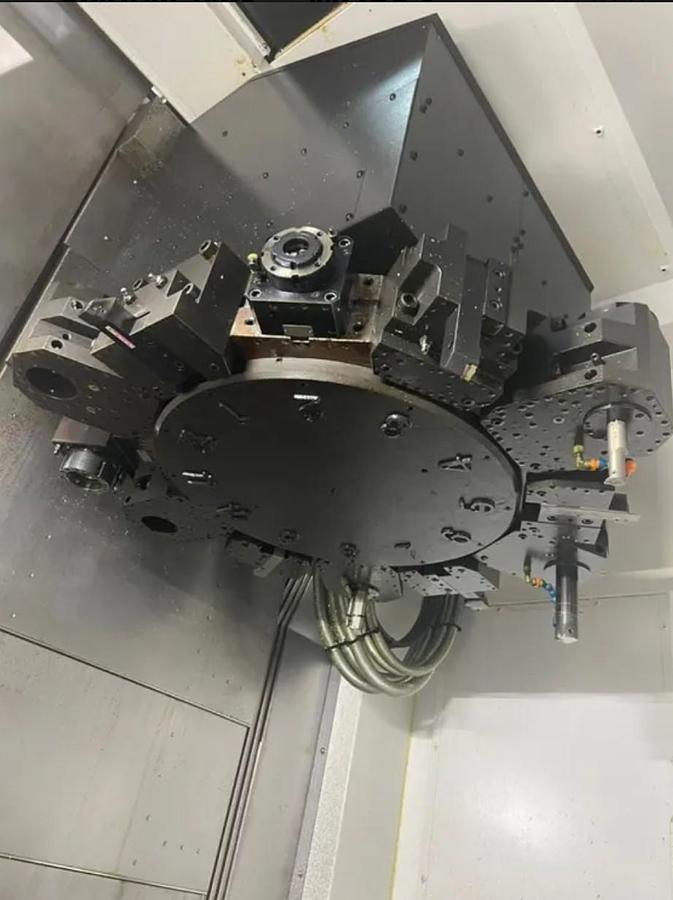

TURRET CONFIGURATION 12 station

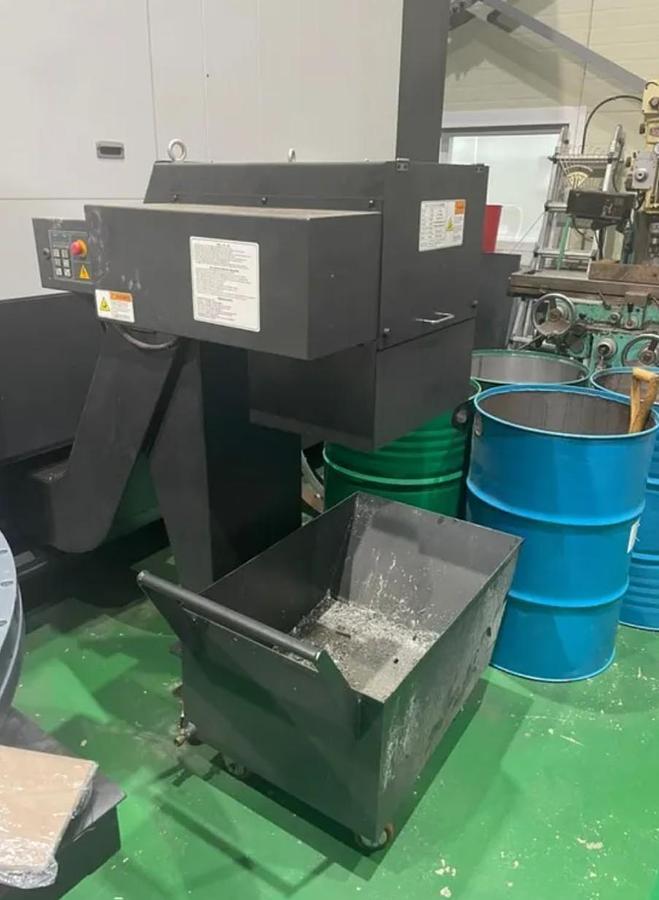

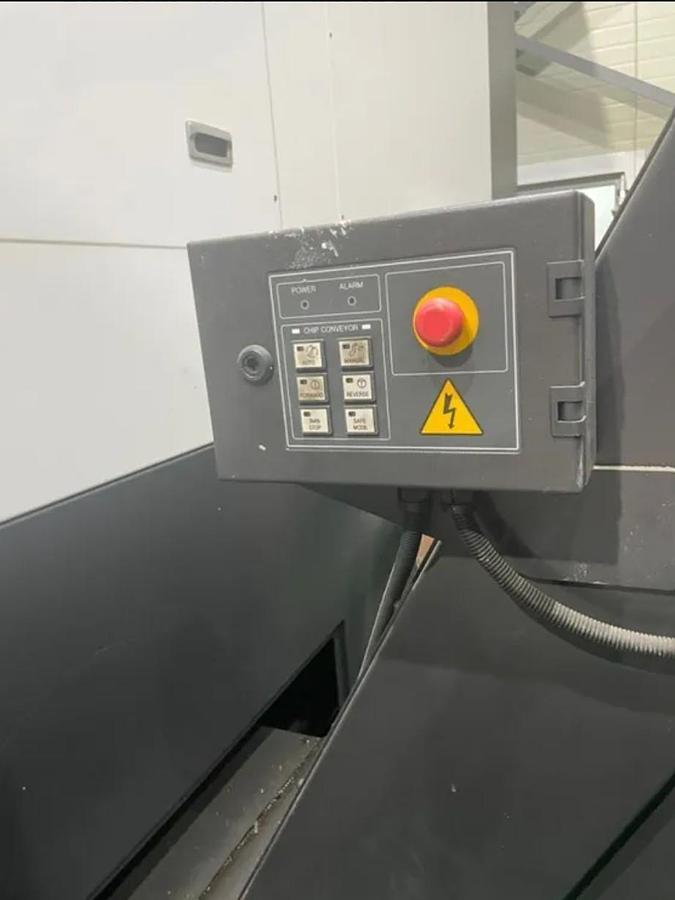

CHIP CONVEYOR SYSTEM

TELESCOPIC GUARDS & COOLANT SHEILDS

COOLANT SYSTEM

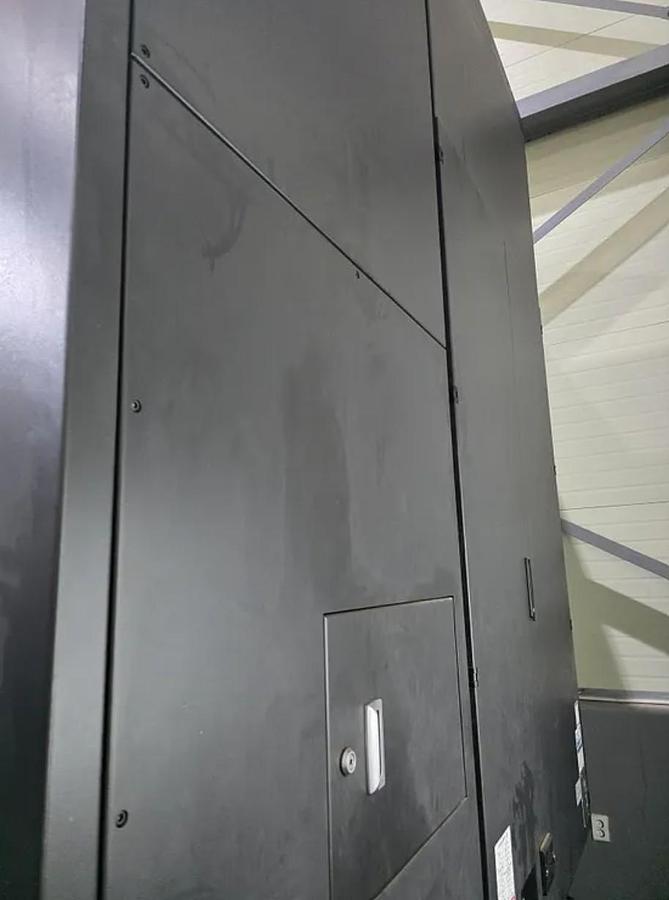

FULL ENCLOSURES

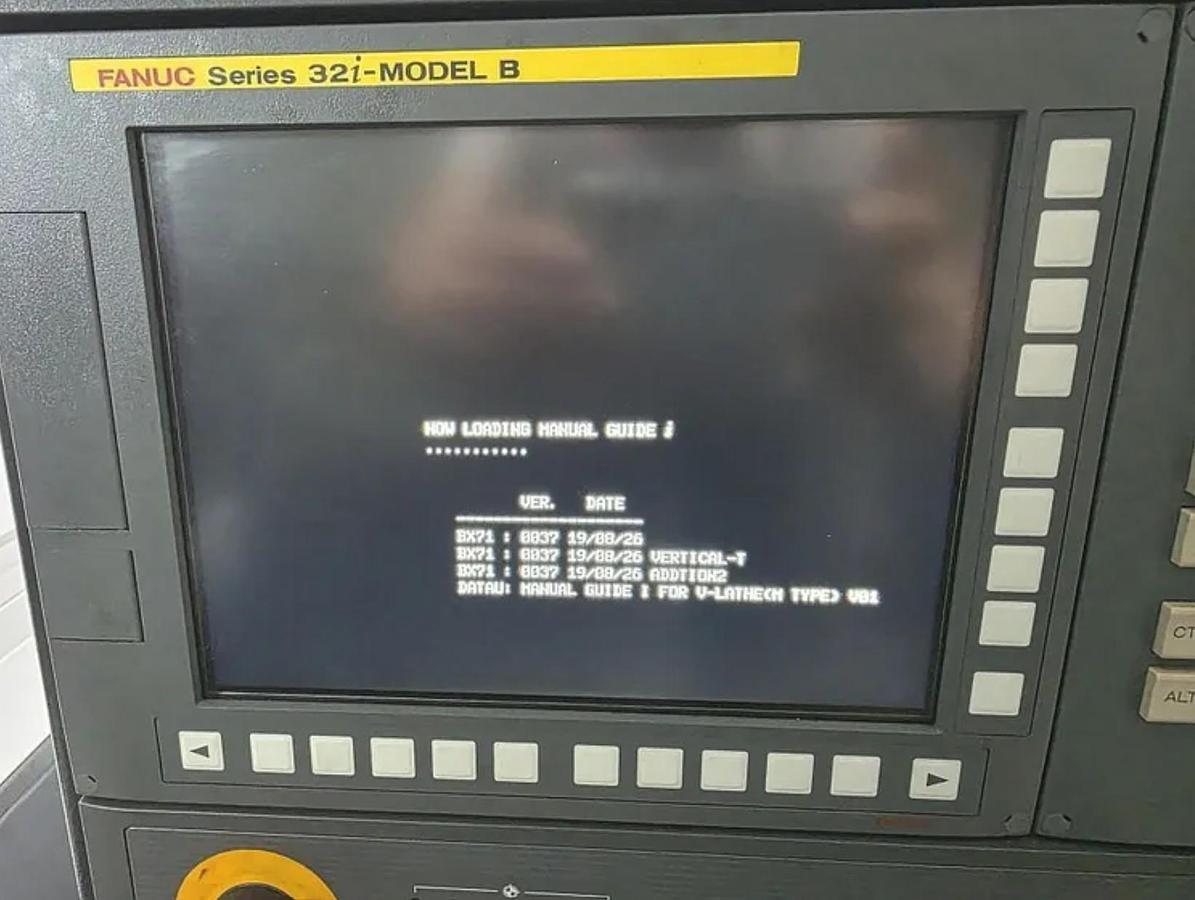

MANUAL GUIDE I

ALL AVAILABLE MANUALS

MACHINE WEIGHT 48,501 lb
