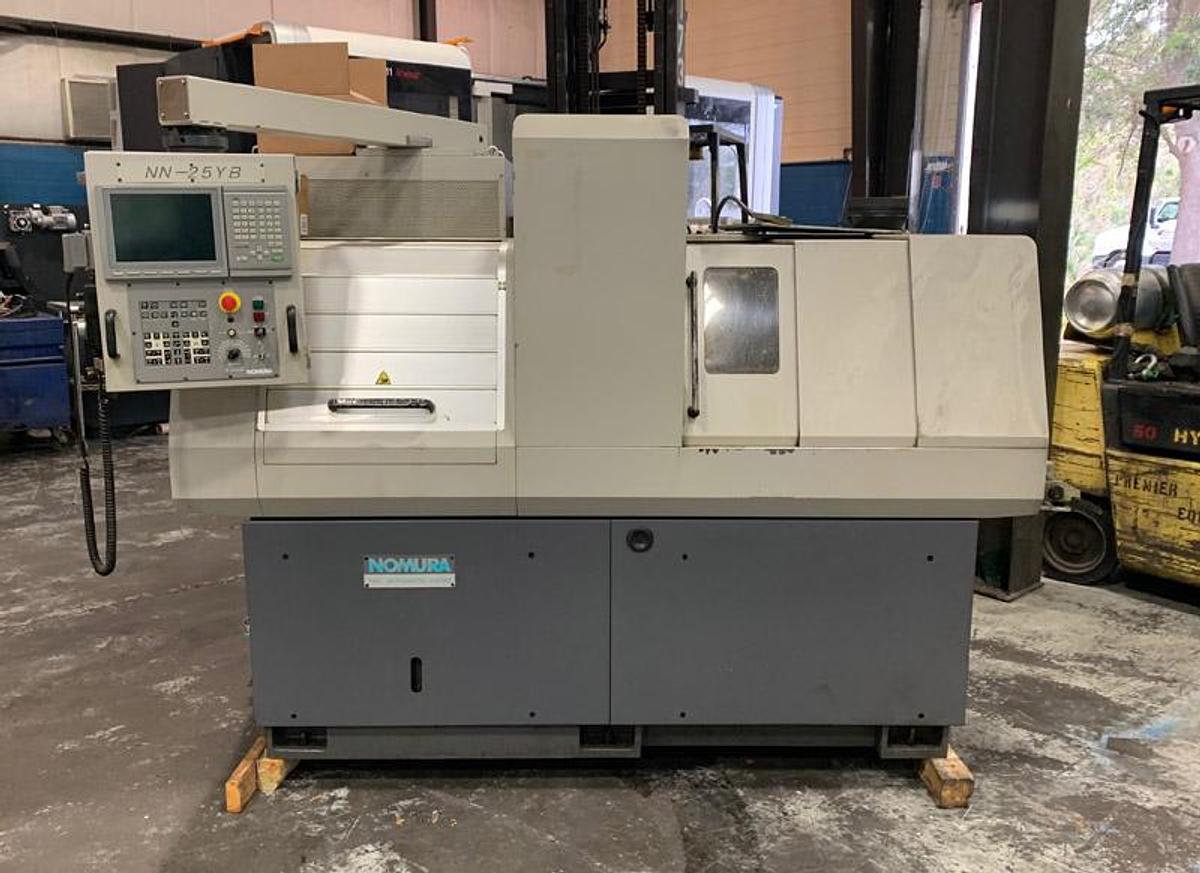

2013 Nomura NN-25YB CNC Swiss Lathe with Bar Feeder

Max. Machining diameter 25mm (0.98”)

Max Machining length

200mm (7.87”)

ID tool 10mm (Holder 23)

ID tool length 50mm (1.97”)

ID tap M10 × 1.5

Live tool 8mm (0.31”)

Live tap M8 × 1.25

Back

Parts unloading length  120mm (4.72”)

Parts pick-up length  93mm (3.66”)

ID tool 8mm (0.31”) ID

tool length 60mm (2.36”)

ID tap M8 × 1.25\

Live tool 60mm (2.36”)

Live tap M6

Number of Tools Main

OD tool 16mm (□0.63”) × 5

ID tool ER16 × 3 + ER20 × 1

Live tool 5 (ER20)

Live tap 1 (ER16)

Back OD tool 16mm (0.63”) × 2

ID tool 3 (ER16)

Live tool 2 (ER16)

Main Spindle Live tool spindle 6,000 RPM

Main spindle through-hole diameter 27mm (1.06”)

Main spindle indexing C-axis 0.001˚

Main spindle indexing angle 0.001˚

Main spindle 8,000 RPM

Live Tooling 6,000 RPM

Feed Rate 1Z

axis 15m / min. 1X axis  14m / min. 1Y

axis 20m / min. 2Z

axis 15m / min. 2X

axis 20m / min.  2Y

axis 20m / min.

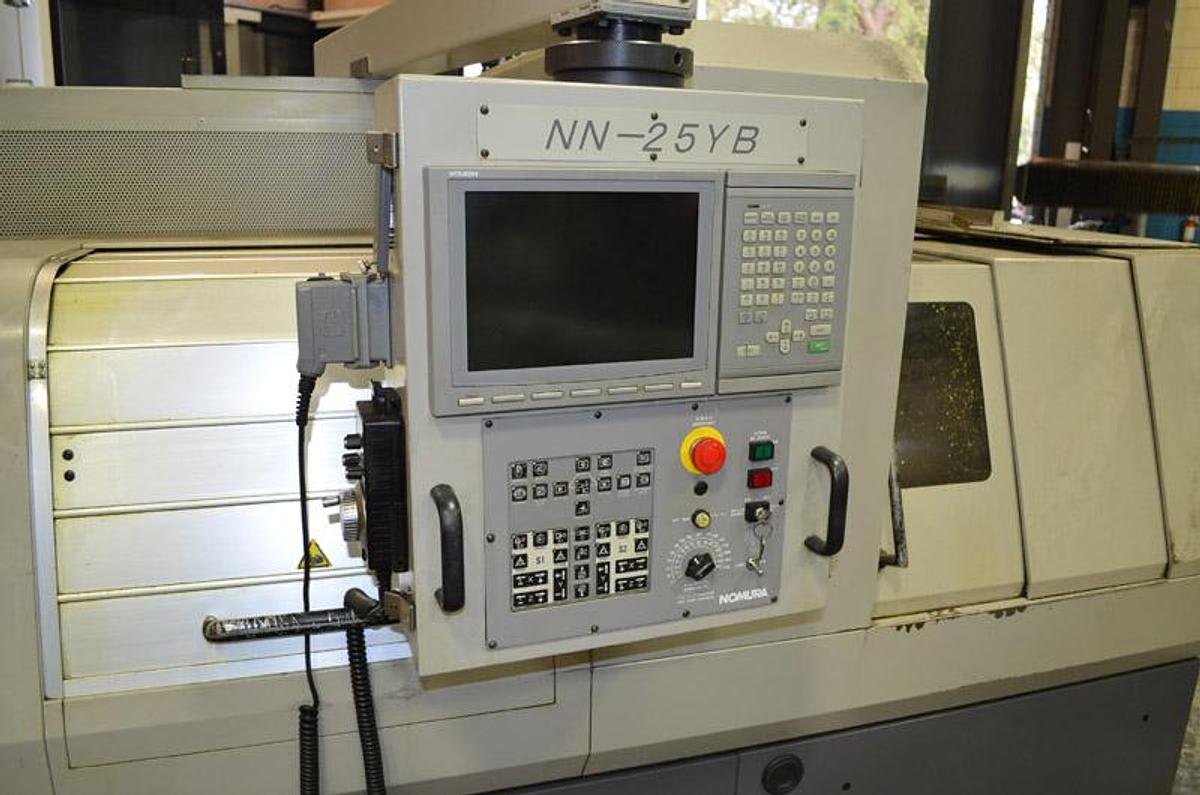

MITSUBISHI 65S Control display 10.4" color TFT LCD

Main spindle motor 2.2kW / 3.7kW built-in

Main spindle motor 1.5kW / 2.2kW built-in

Rotary tool axis motor 1.5kW

2 Rotary tool axis motor 1.5kW

Dimensions 89.76” × 49.49” × 71.85”

Weight 2950kg (6504lbs)

Floorspace 90” × 46”

Total power capacity 15KVA

Mitsubishi Meldas 65SL

ID Attachment

Live Tool Unit

Back Tool Unit A

Auto Lube

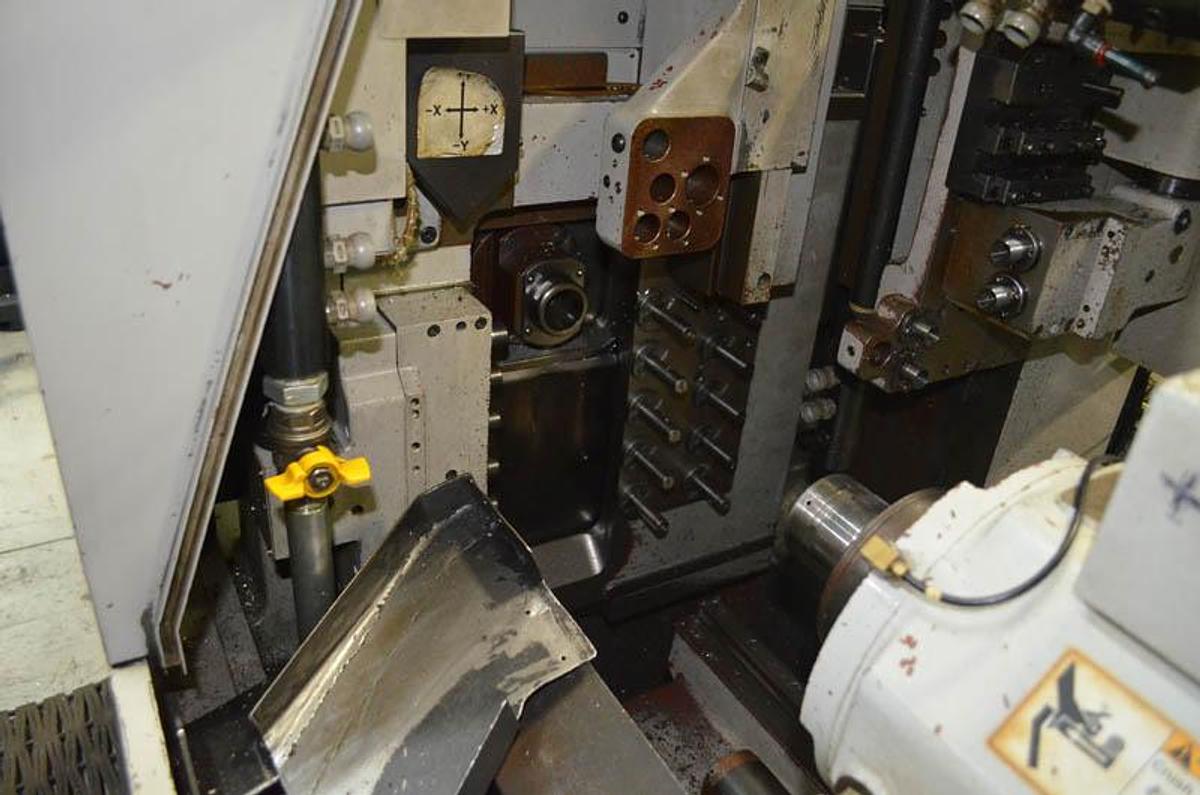

Parts Catcher & Part Exit Conveyor

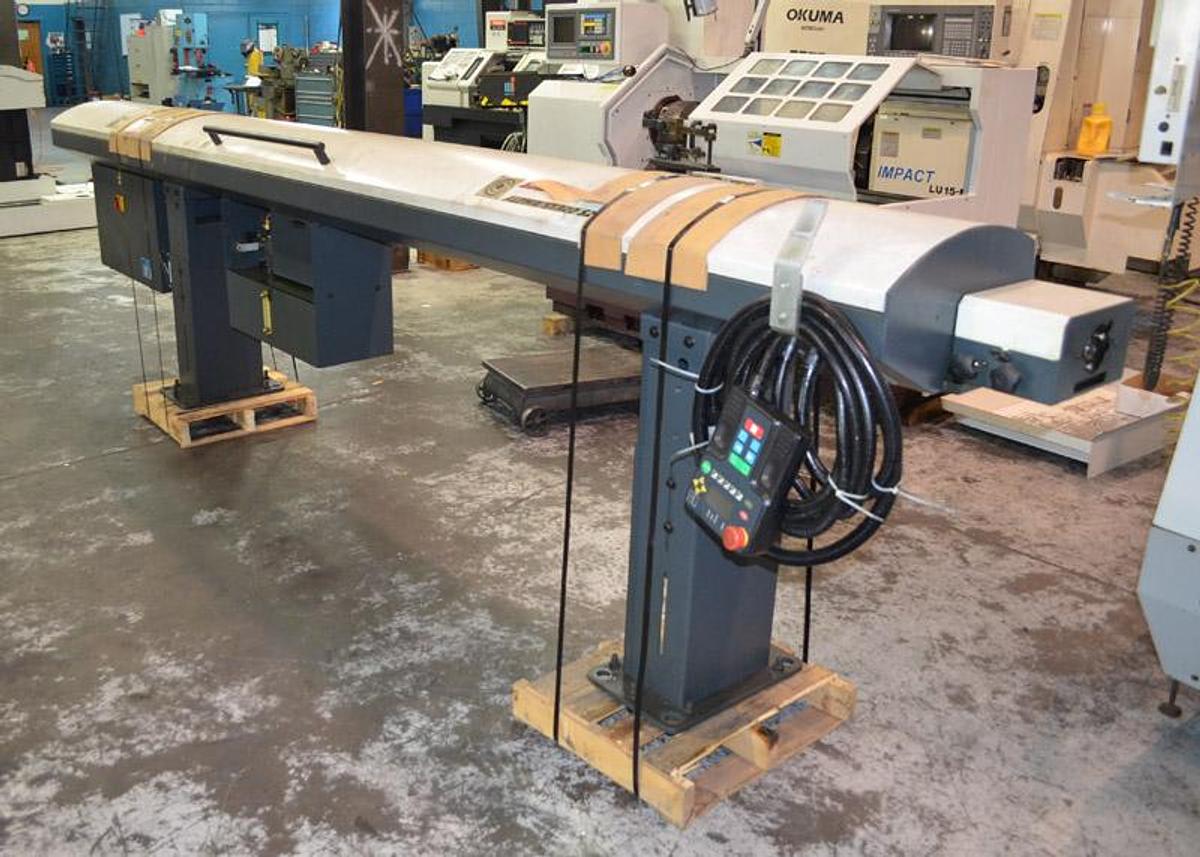

LNS Alpha ST320 S2 Barfeed
