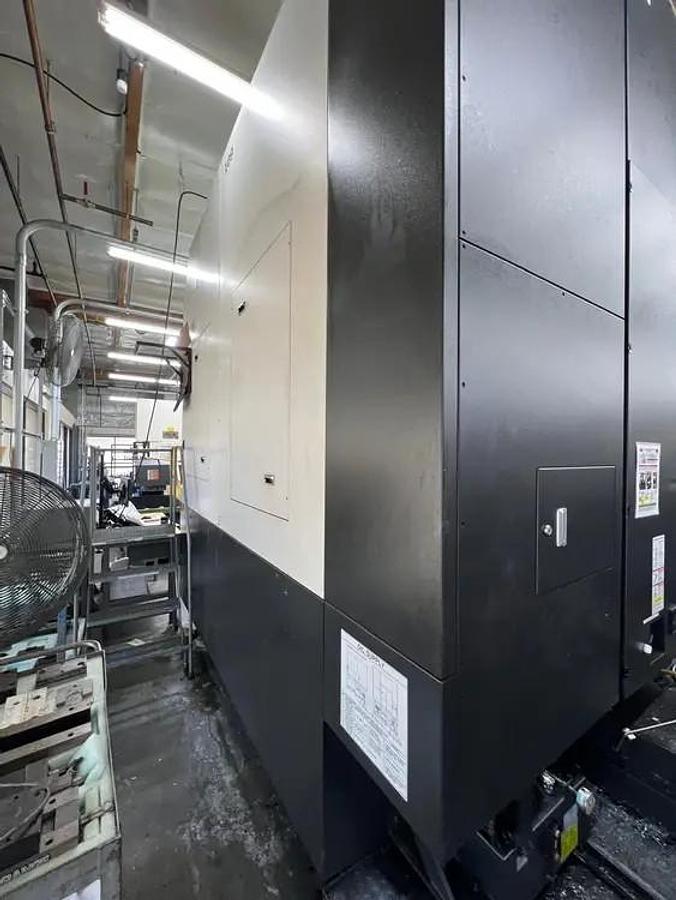

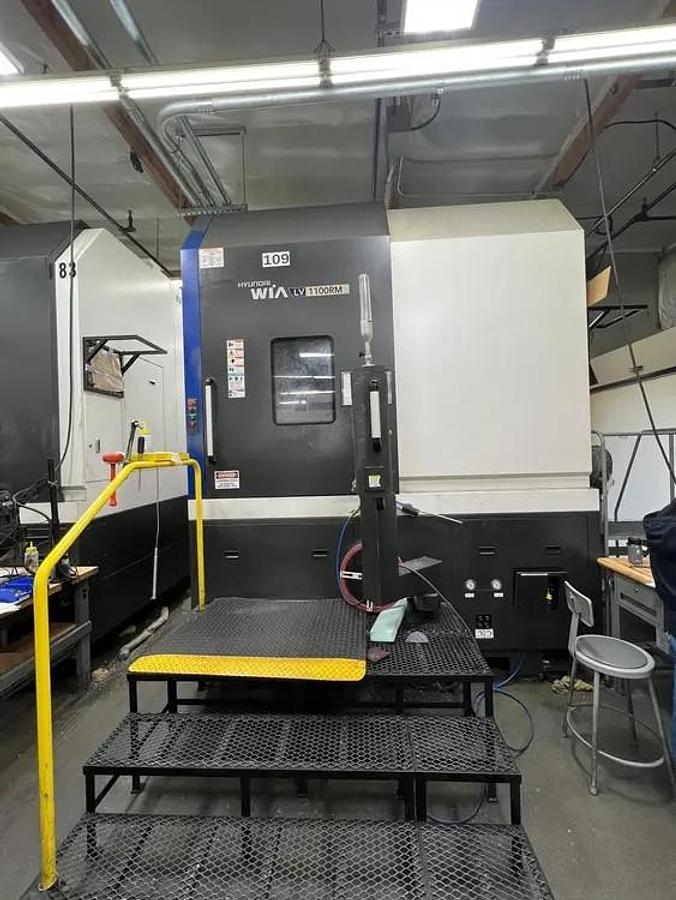

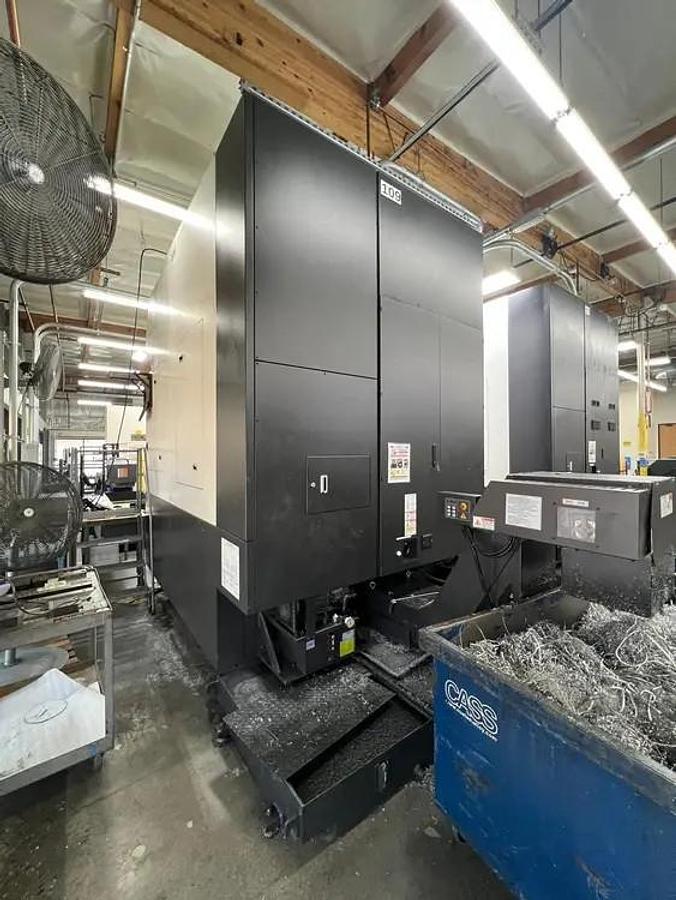

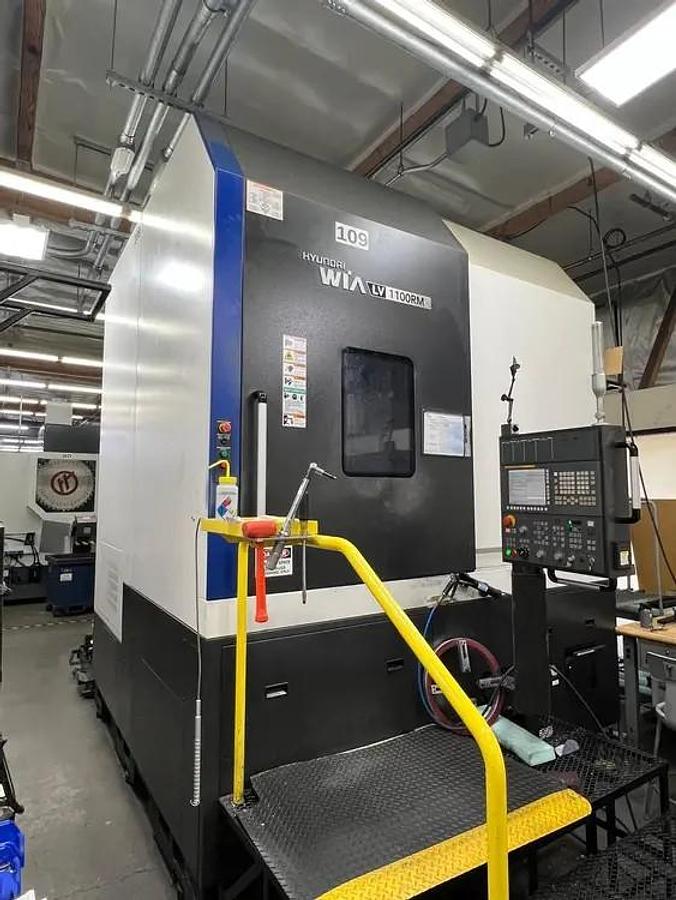

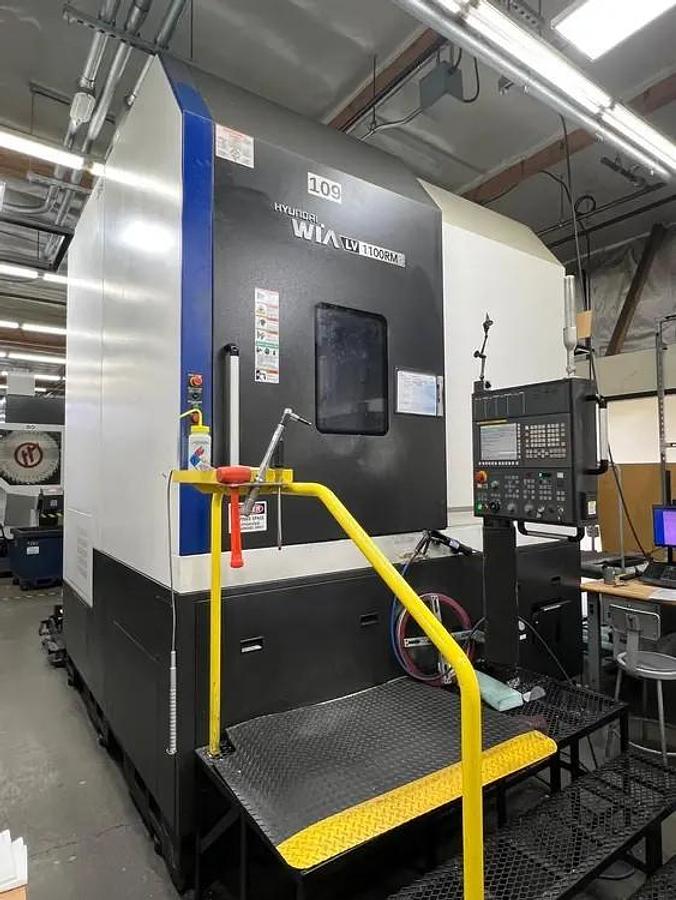

2018 HYUNDAI WIA 1100RM CNC VERTICAL BORING MILL WITH MILLING

FANUC I PLUS CNC CONTROLLER

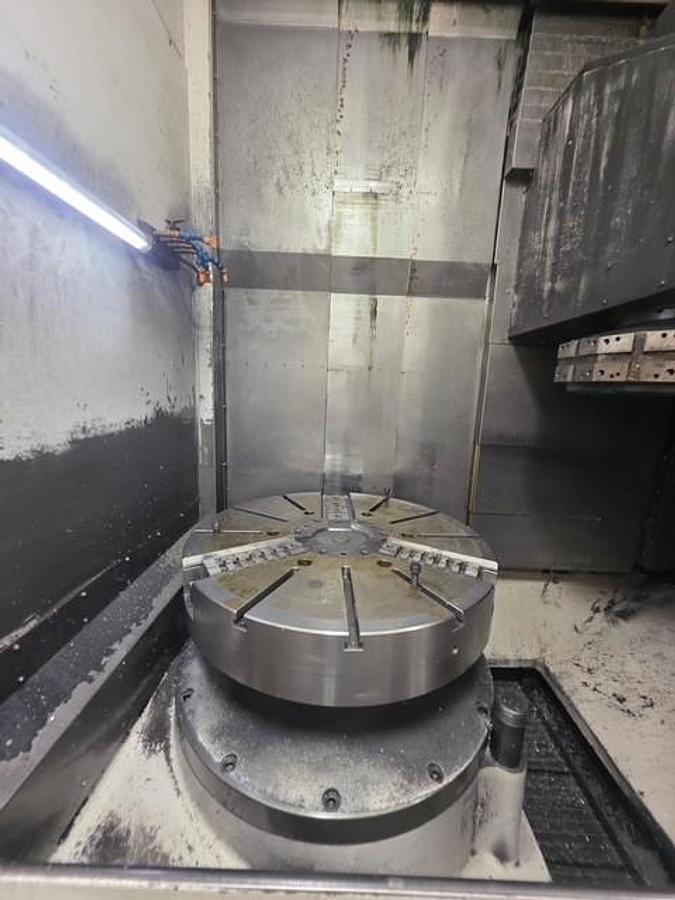

40" 3 JAW HYDRAULIC CHUCK

REMOVABLE TOOL SETTER

(1) I.D. ROTARY MILL HEAD

(1) O.D. ROTARY MILL HEAD

CHUCK DIAMETER 40"

TABLE LOAD CAPACITY 4,400 lbs

SWING DIAMETER 53.3"

MAX TURNING DIAMETER 49.2"

TURNING HEIGHT 39.4"

TABLE SPEED 600 RPM

MAIN MOTOR 80 hp

NUMBER OF RANGES 2

X - AXIS TRAVEL 24.4"

Z - AXIS TRAVEL 39.4"

RAPID TRAVERSE RATE - X 945 ipm

RAPID TRAVERSE RATE - Z 945 in/min.

C - AXIS INDEXING .001

ROTARY SPINDLE SPEED 3,000 RPM

ROTARY SPINDLE HORSEPOWER 15 hp

TURRET CONFIGURATION 12 station

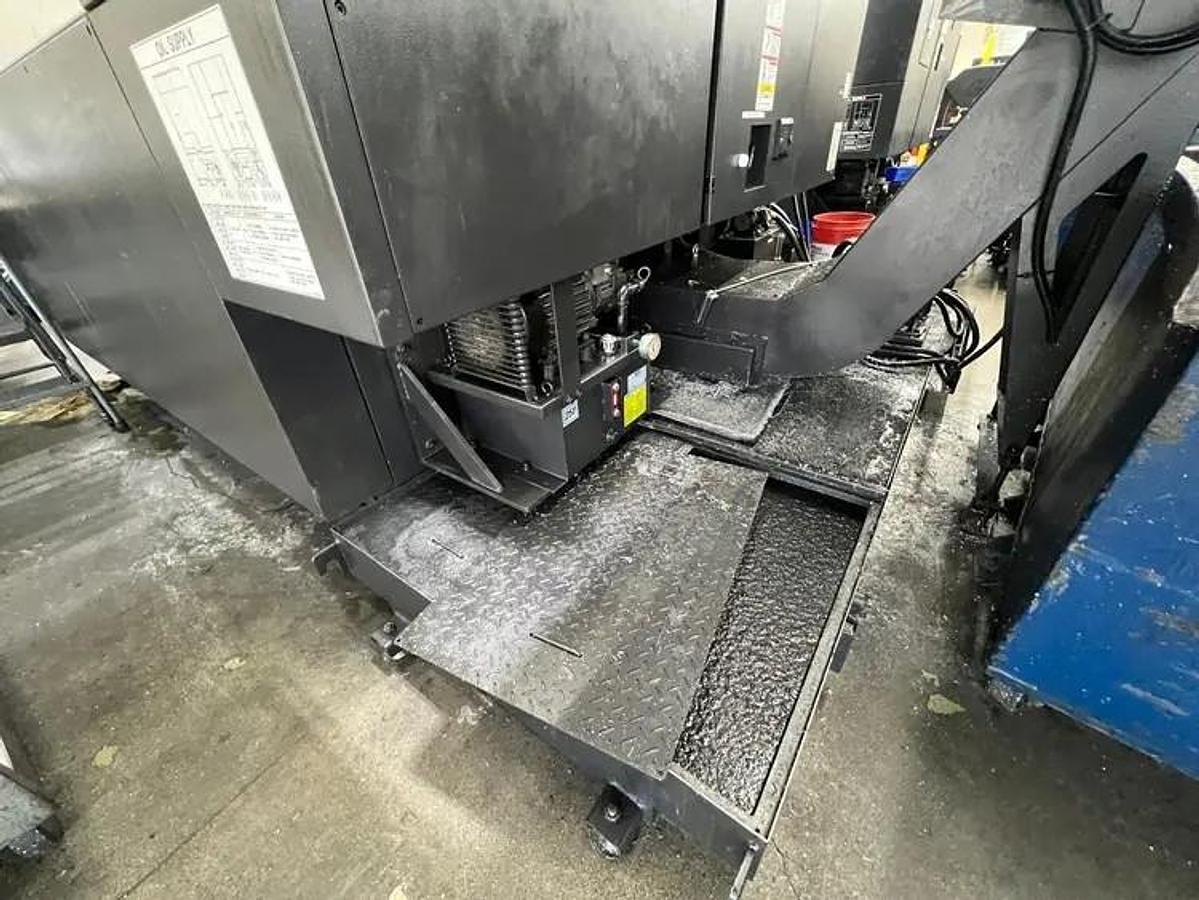

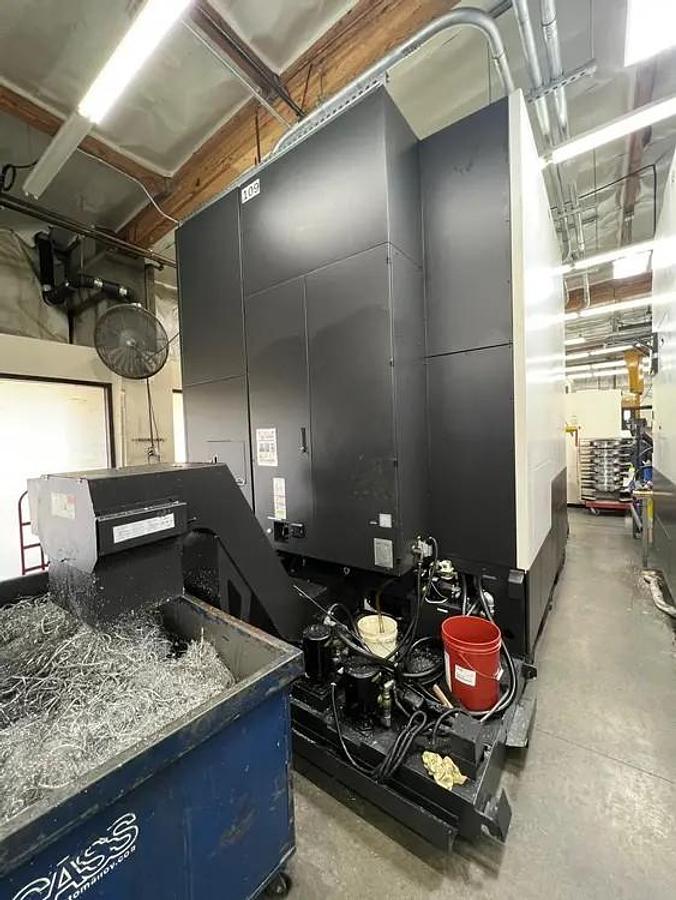

CHIP CONVEYOR SYSTEM

TELESCOPIC GUARDS & COOLANT SHEILDS

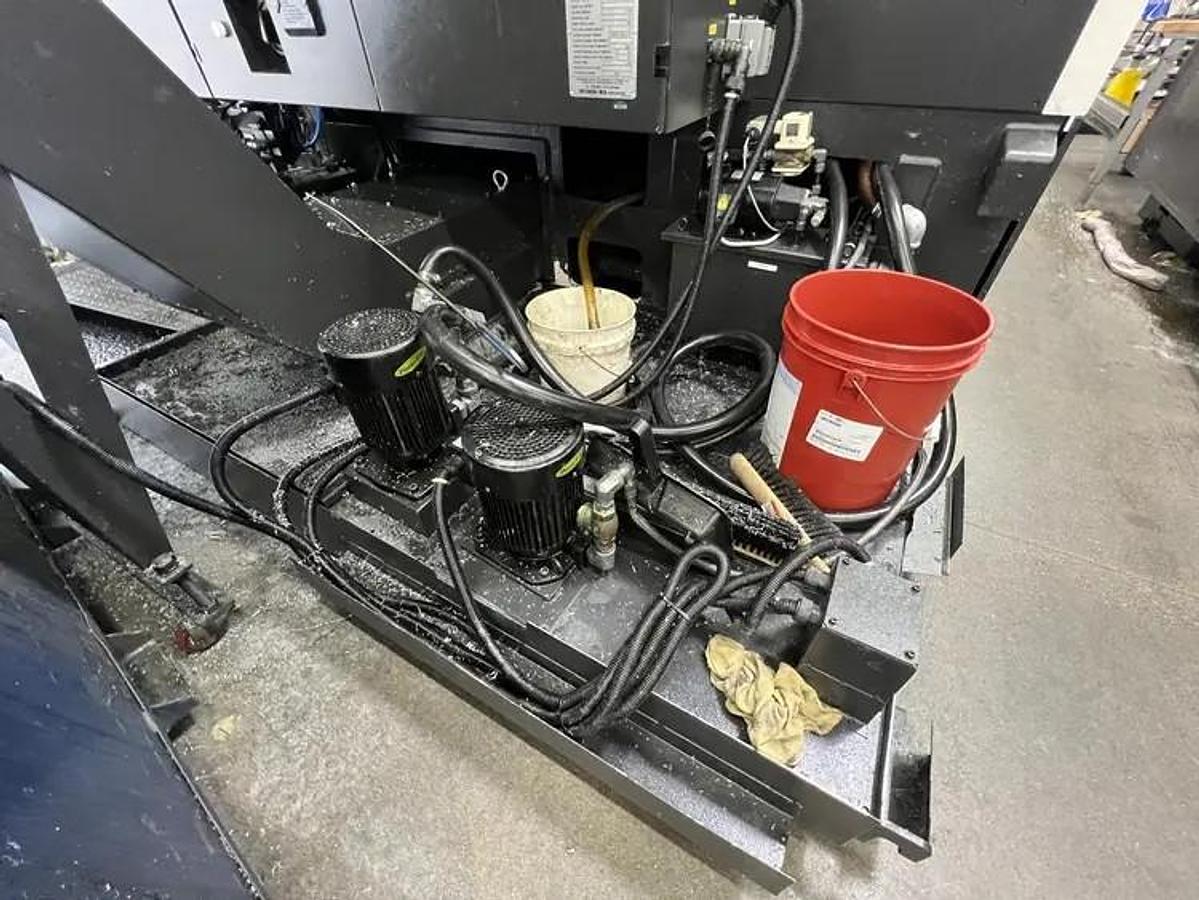

COOLANT SYSTEM

FULL ENCLOSURES

MANUAL GUIDE I

ALL AVAILABLE MANUALS

MACHINE WEIGHT 48,100 pounds
