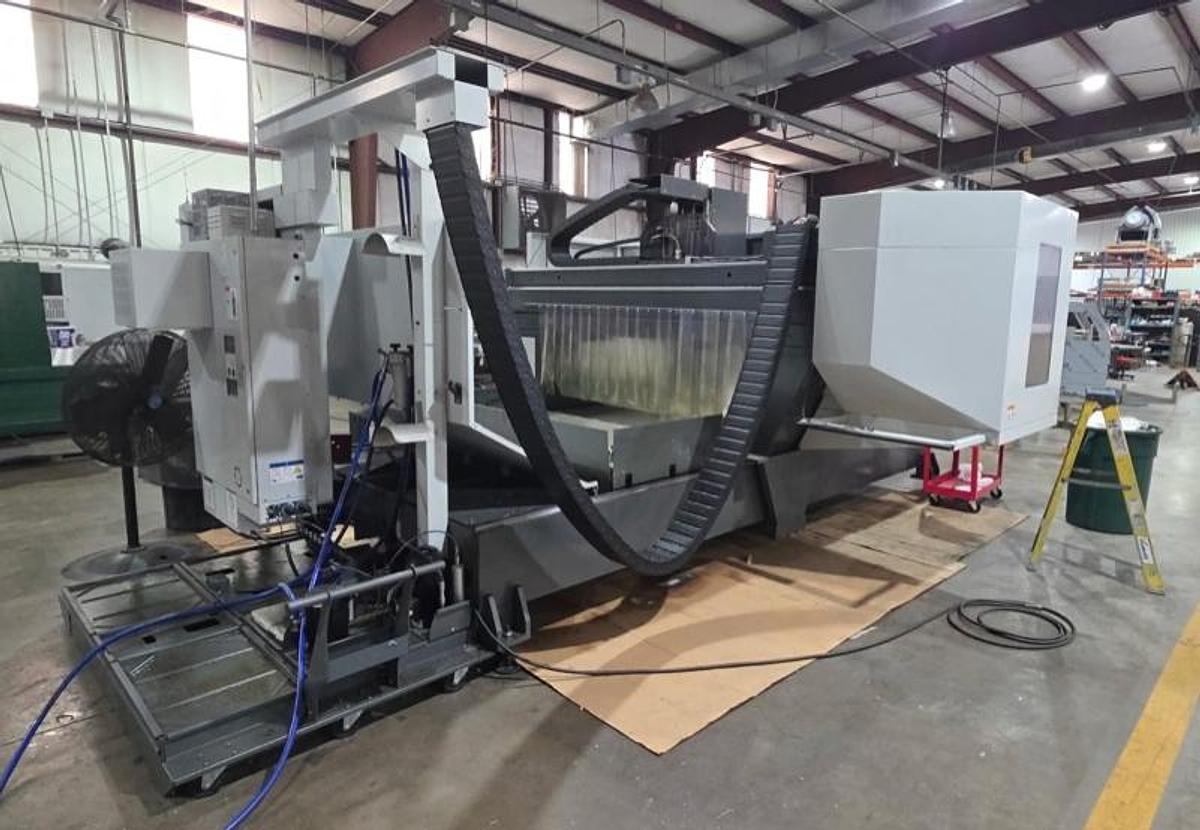

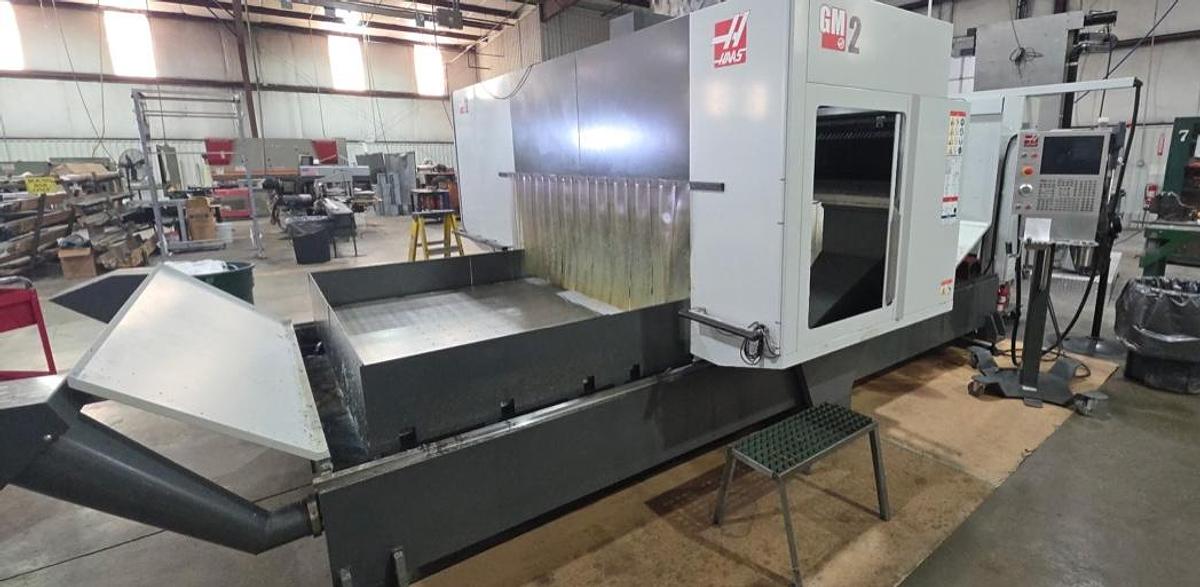

2023 HAAS GM-2 CNC Gantry Vertical Maching Center with 4th Axis ready / TSC / HSM
2023 HAAS GM-2 CNC Gantry Vertical Maching Center with 4th Axis ready / TSC / HSM
Description
Excellent Condition Low Hours
8,100 RPM 30HP
Cat-40 Spindle Taper
30+1 Side Mount Tool Changer
4th Axis Drive
300 PSI Through Spindle Coolant
Programmable Coolant
Through-Tool Air Blast
Renishaw Intuitive Probing
High Speed Machining
Second Home Position
Rigid Tapping
CNC Control Cabinet Cooler
75" (1905 mm) between columns for large parts
Travels S.A.E METRIC
X Axis 145.00 in 3683 mm
Y Axis 87.50 in 2223 mm
Z Axis 22.00 in 559 mm
Spindle Nose to Table (~ max) 26.0 in 660 mm
Spindle Nose to Table (~ min) 4.0 in 102 mm
Coolant System
Media Display M-Code
XL Remote Jog Handle
Haas File Transfer, Wifi Connection, Haas Connect, Ethernet
Surge Protection
1GB Standard Memory
Early Power Failure Detection
1" (25 mm) thick aluminum table
Aluminum Table
Low Voltage Transformer
Chip Tray Filter Kit
Probe Riser Block
95 Gallon Coolant Tank and Pump
Dual Chip Auger
Specifications
| Manufacturer | HAAS |
| Model | GM-2 CNC Gantry Vertical Maching Center with 4th Axis ready / TSC / HSM |
| Year | 2023 |
| Condition | Used |
| Stock Number | 1174782 |
