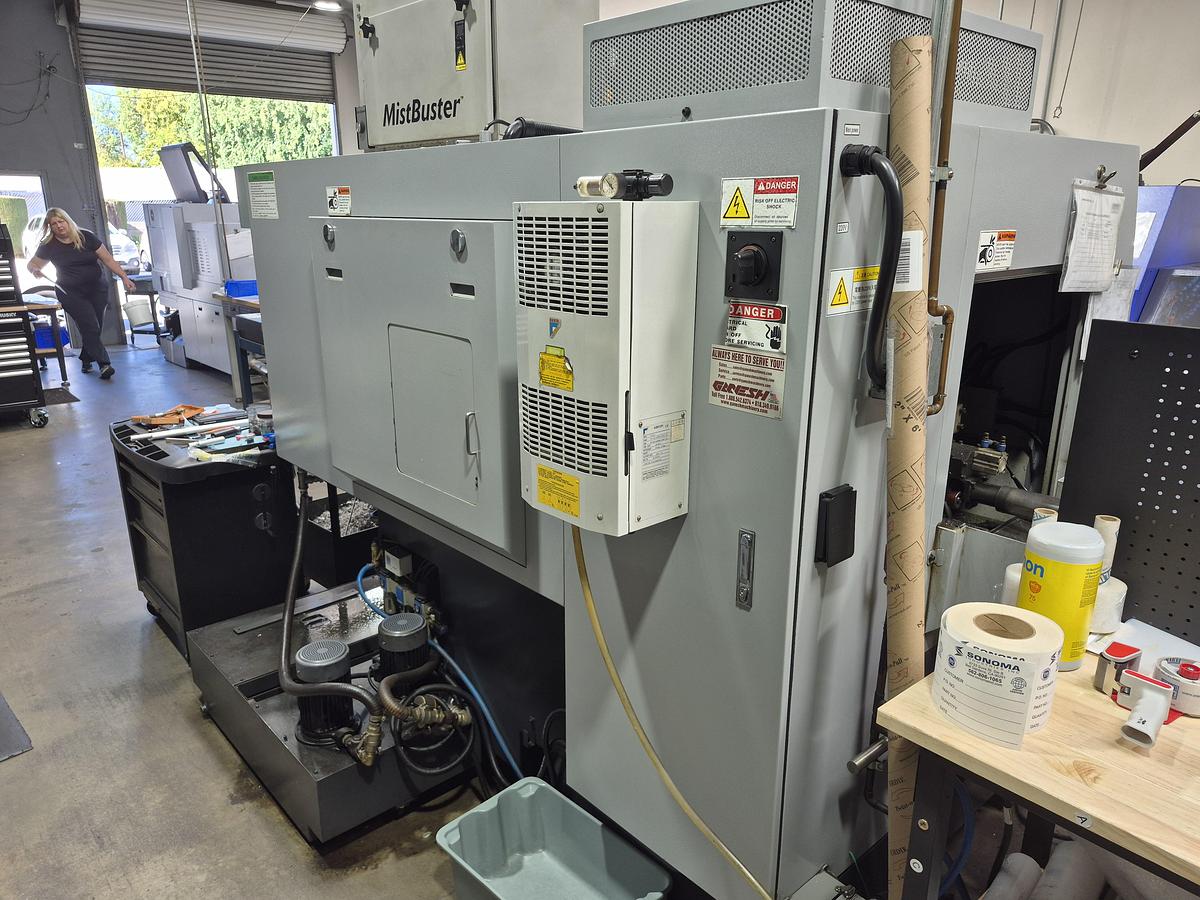

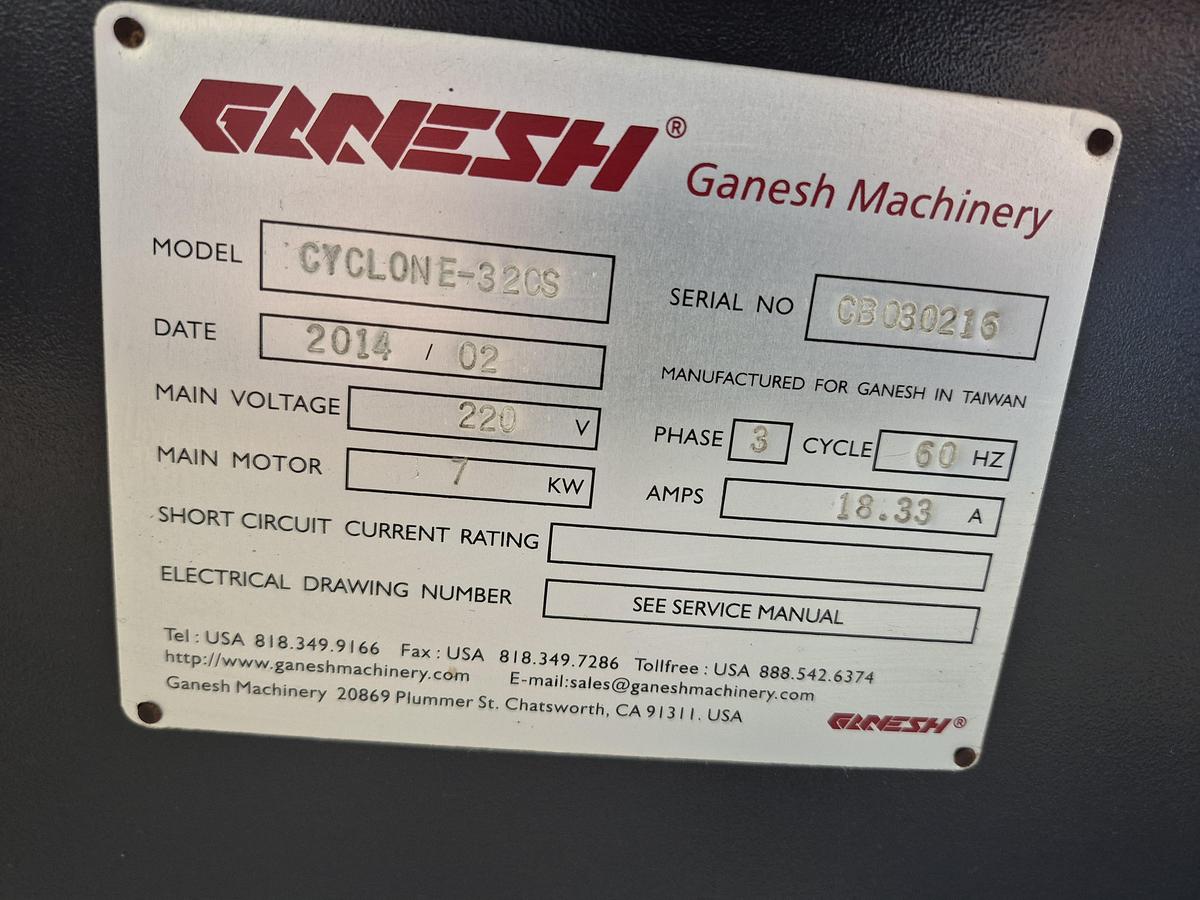

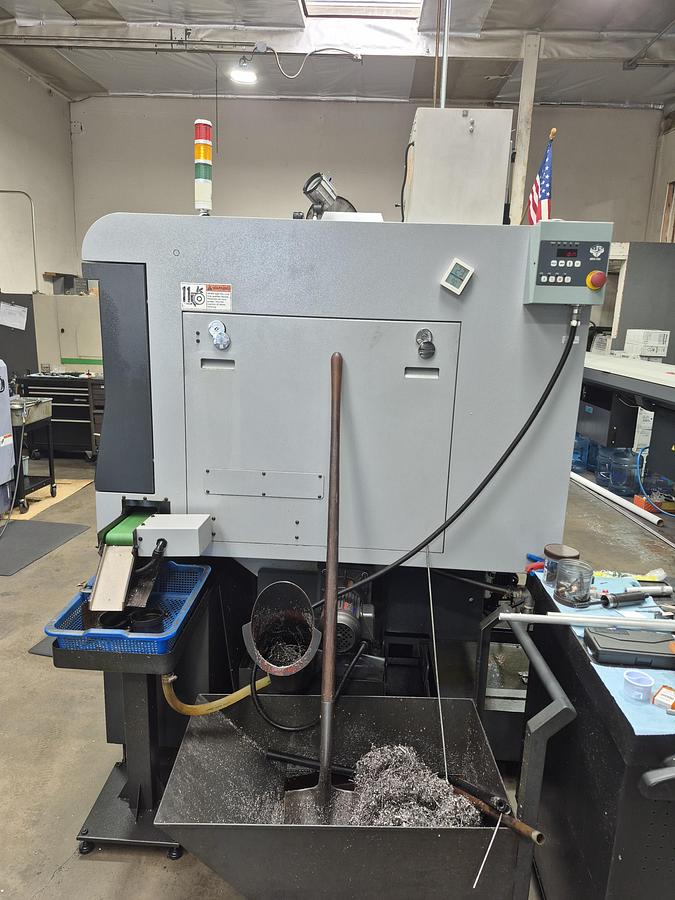

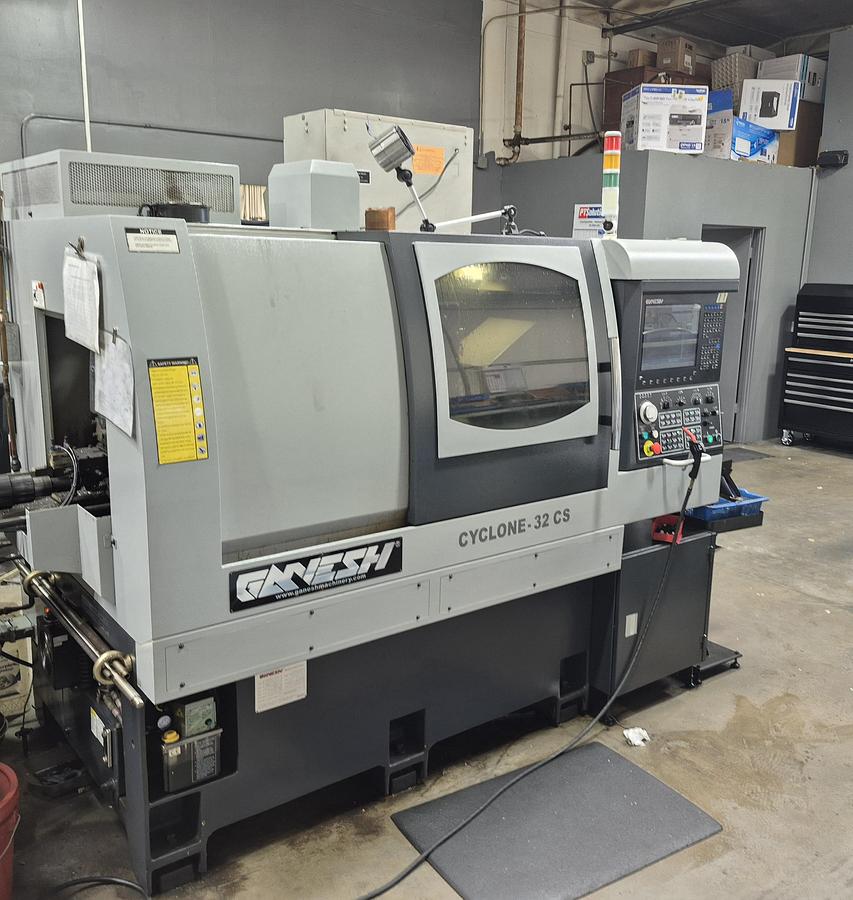

2014 Ganesh CYCLONE 32 CS 7-Axis Swiss Turning Center with Edge Patriot Bar Feeder

Excellent Condition

X-Axis Travel: 7.28"

Y-Axis Travel: 19.29"

Z-Axis Travel: 6.50"

Spindle Speed: 6000 RPM

Spindle Motor (HP): 10 HP

Max. Bar Diameter: 1.25"

Rapid Travel Speed: 1180 IPM

OD Turning Tool Positions: 6 OD Tools (1/2" Or 12mm)

ID Turning Tool Positions: 5 ID Tools

OD Turning Tool Size: 1/2" or 12mm

ID Turning Tool Bore Size: .99" or 25mm

Spindle Center Height: 38"

Sub Spindle

Motor: 5 HP

Max. Bar Diameter: 1.25"

Max. RPM: 6,000

X-Axis Stroke: 11.53"

Z-Axis Stroke: 11.61"

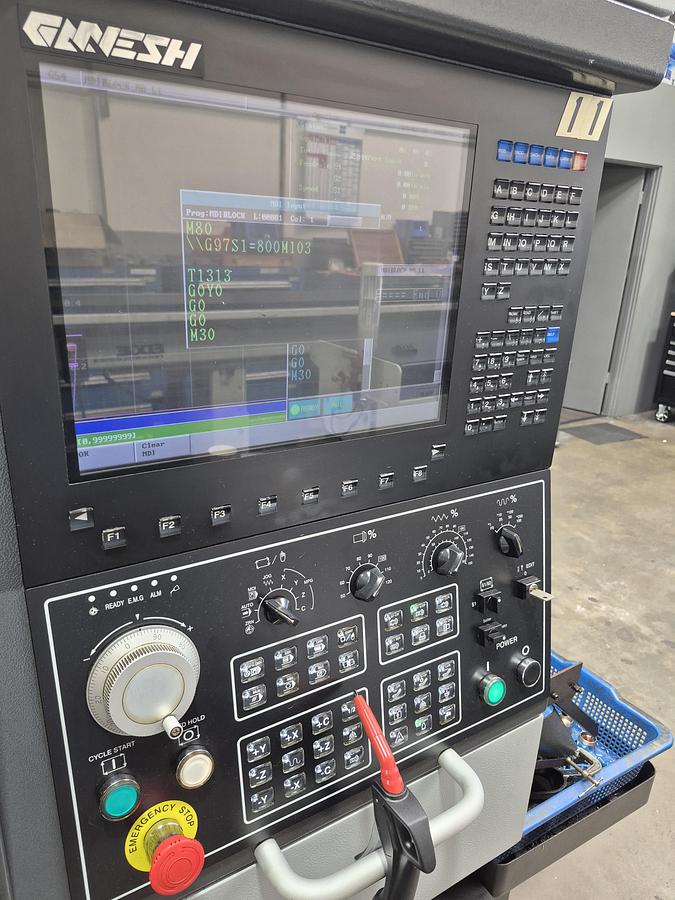

Controller: Ganesh PC

Min. Input Unit: 0.00005"

ID Turning Tool Bore Size: .99" Or 25mm

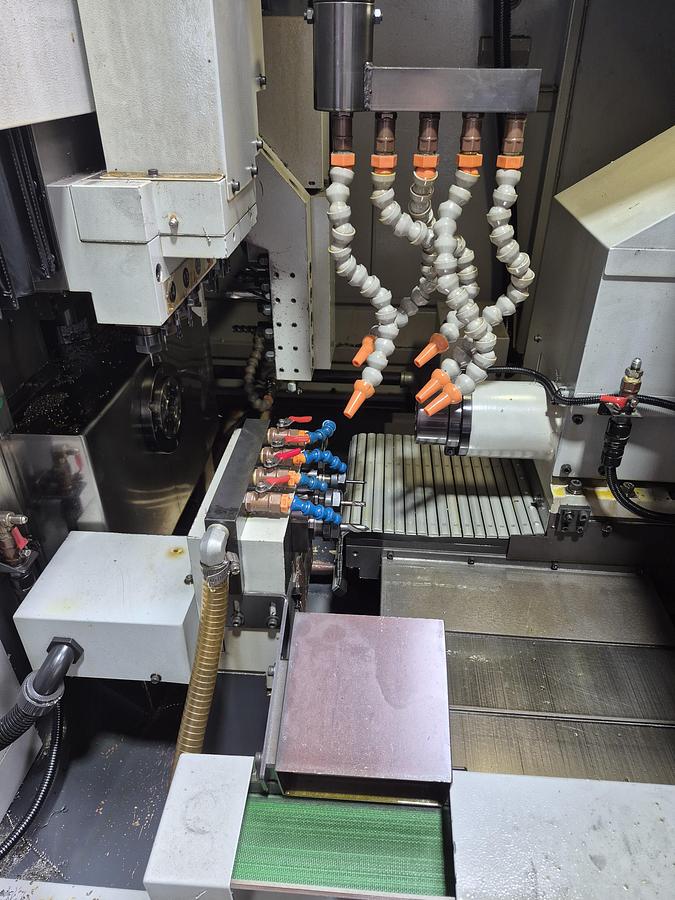

Cross Slide: 4 Cross Slide Live Tools

Front Slide: 3 Front Slide Live Tools

Live Tool Collet Size: ER-20 Collet, 1/2" Tool Shank

Coolant Pumps: Dual Pumps (3/4 HP & 1/4 HP)
