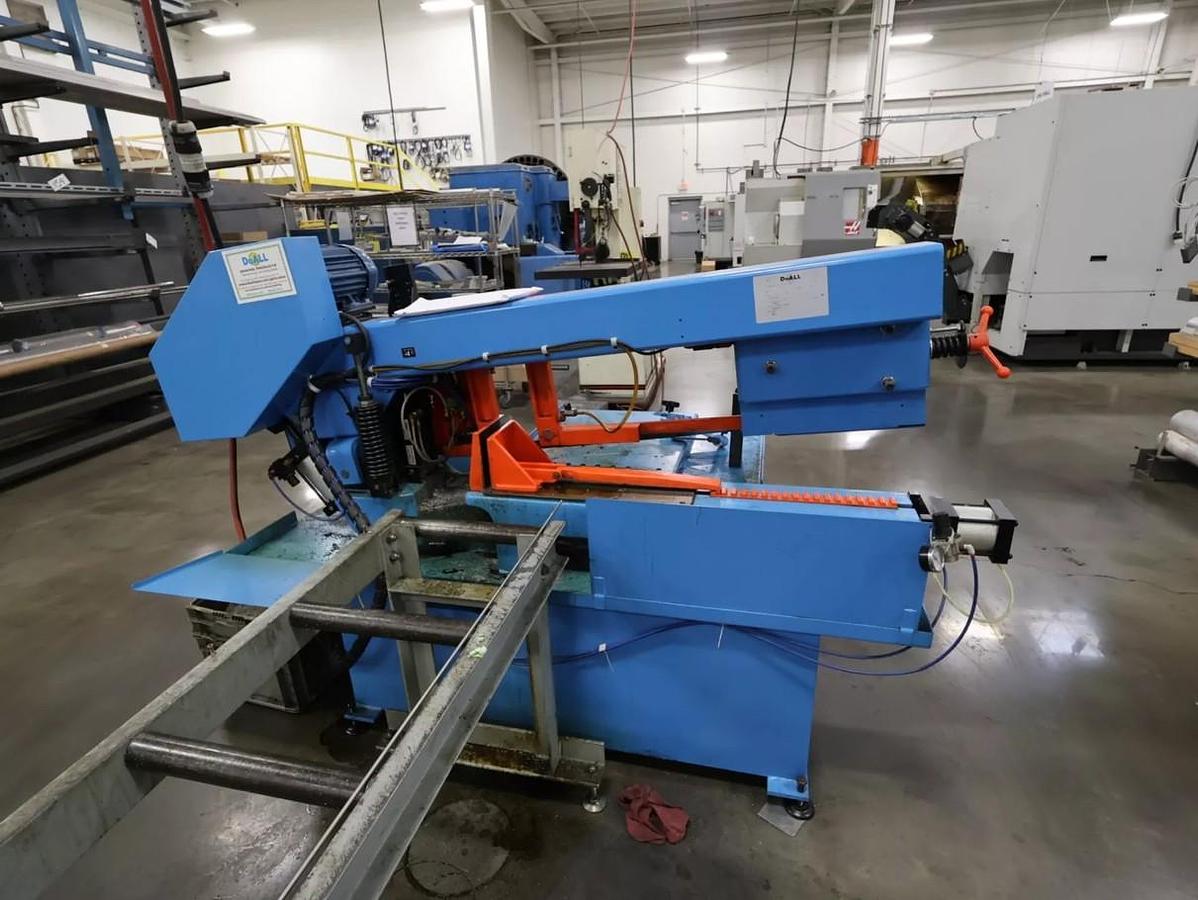

2014 DoALL 400S Horizontal Band Saw with 10' Conveyor

Excellent Condition

2HP Horizontal Bandsaw

10" x 16" Capacity

Capacity at 90° Rectangle: 10” x 16”

Capacity at 90° Round: 10-3/4”

Band Speed: Variable, 50-400 fpm

Material Pass Line Height: 29-1/8”

Band Width: 1” x 0.035”

Band Length: 158”

Band Speed: Variable, 50-400 fpm

Band Tension: Spring Loaded by Hand Wheel

Feed Control: Infinitely Variable, Hydraulic

Head: Counter-Balanced

Vise: Manual

Wheels: 14.5” (368mm) diameter, Cast Iron

Swivel head to 45 degrees.

Fine adjustment head feed control.

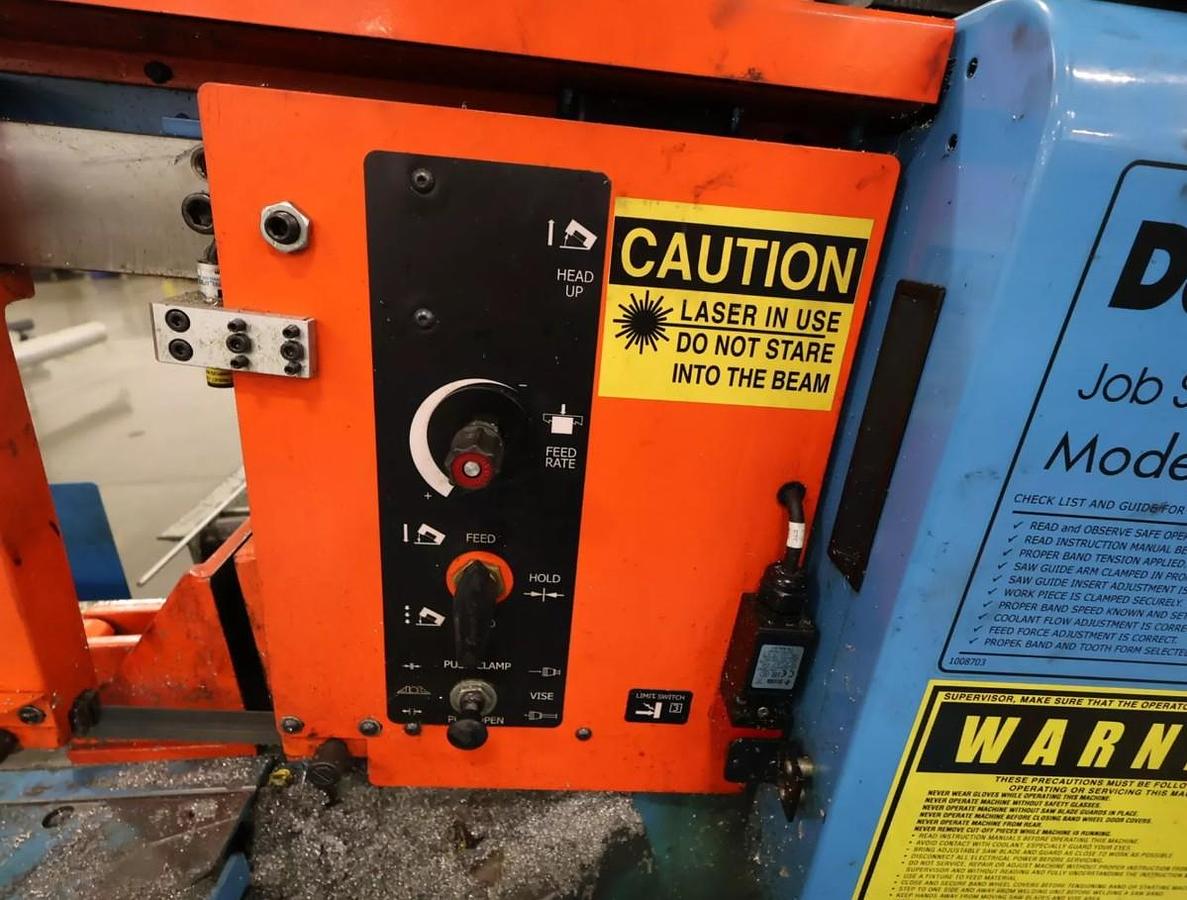

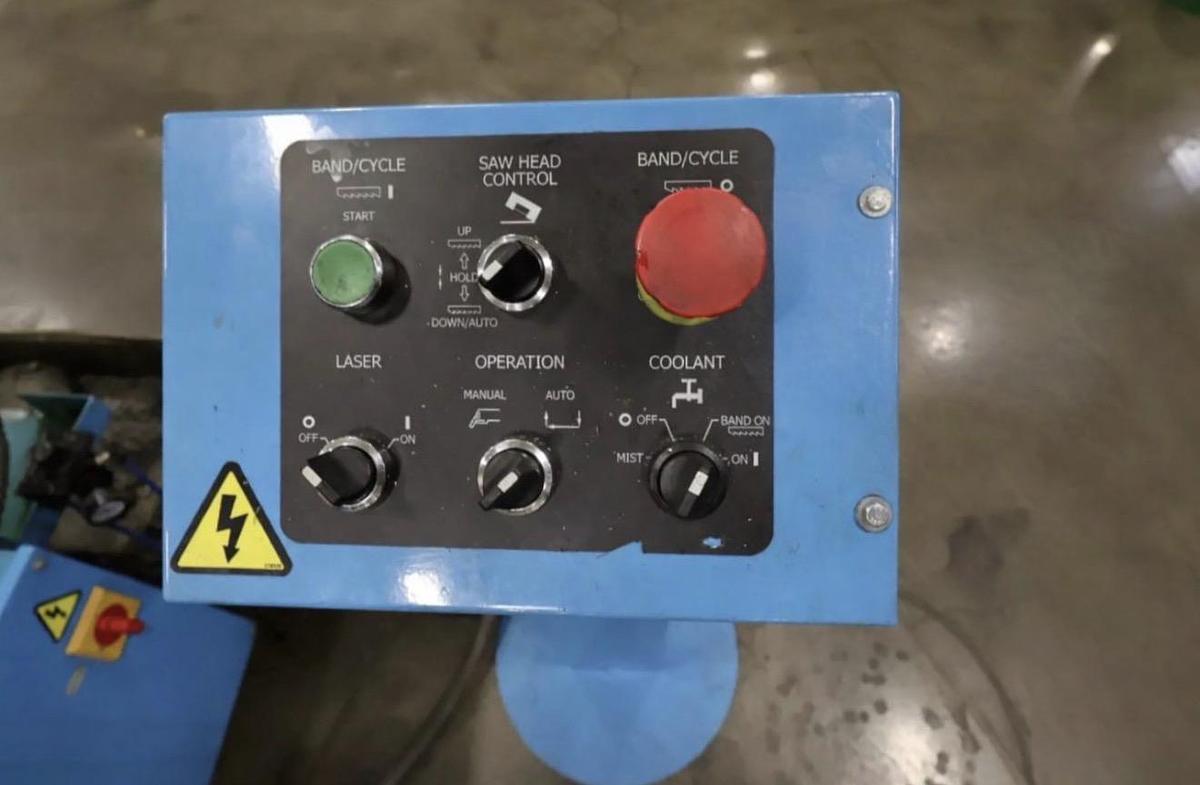

Fixed control console

Rapid head down approach.

Spring loaded, zero clearance, coolant through, carbide faced saw guide inserts.

Quick action rack and pawl vise system w/Acme Thread.

Gear driven band cleaning brushes.

Variable Frequency Drive

Heavy duty counterbalance spring.

Flange backing band wheels.

Manual band tension.

Recirculating coolant system.

Discharge Tray.

Replaceable steel wear plates on bed.

Saw blade guards.

Band door interlocks.

Table Capacity: 1800 lbs Floor Space Required: 87x 42 x 55” Weight: 1200 lbs

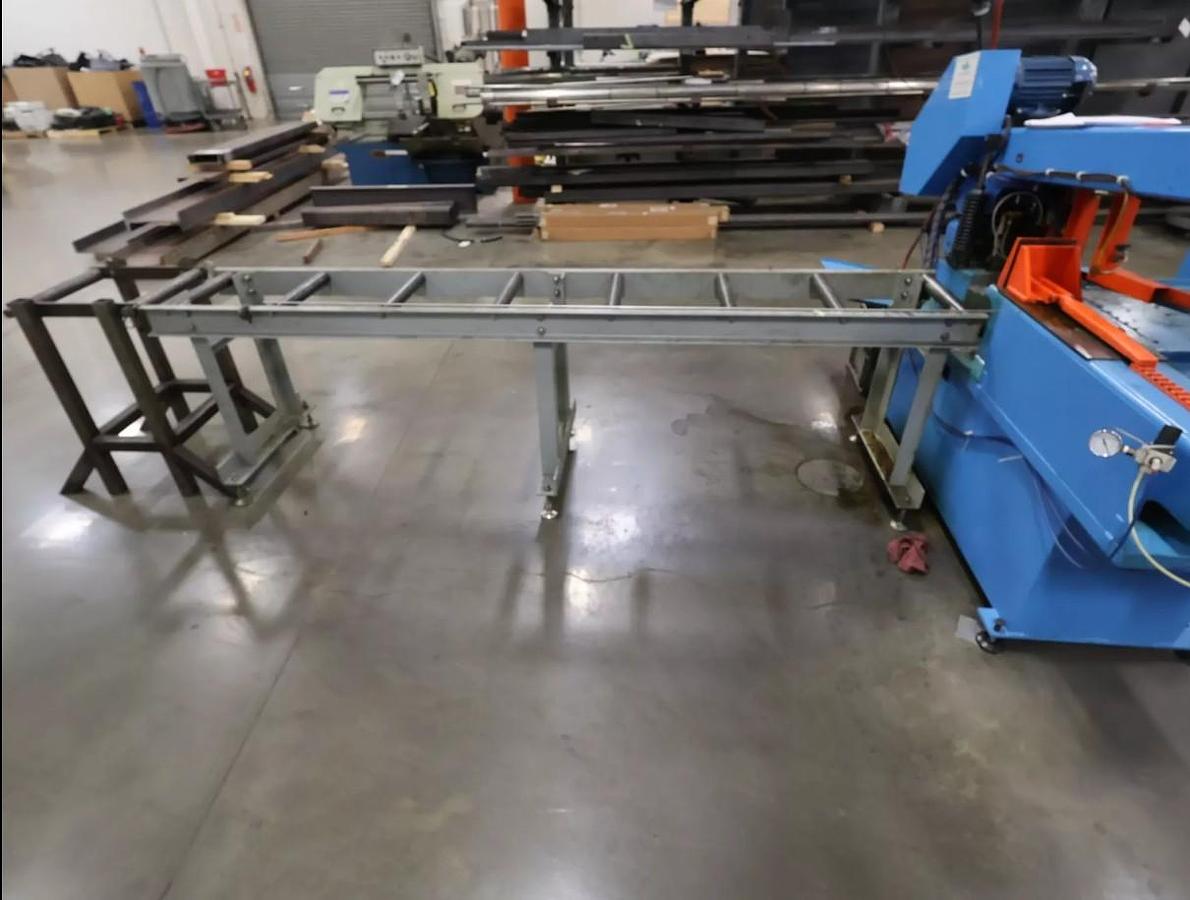

10' Conveyor
