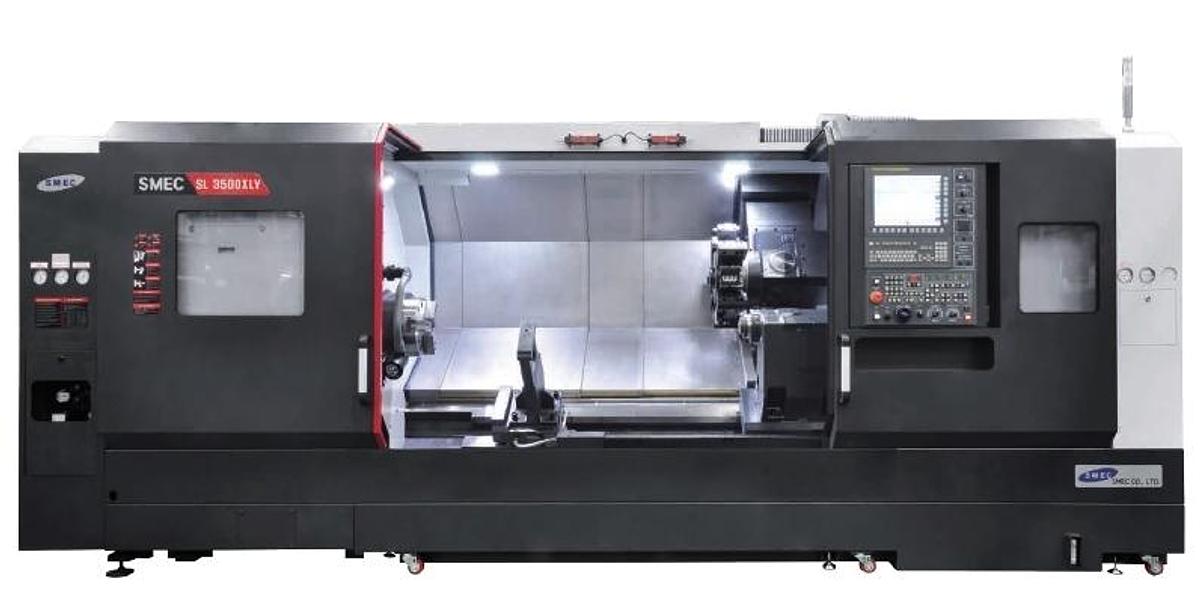

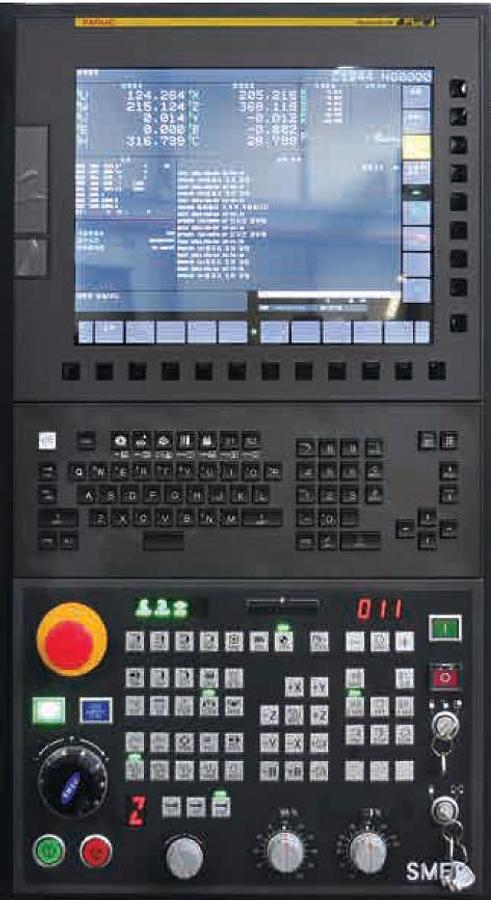

SMEC SL 3500ALY/2200 CNC Turning Center with Y-Axis

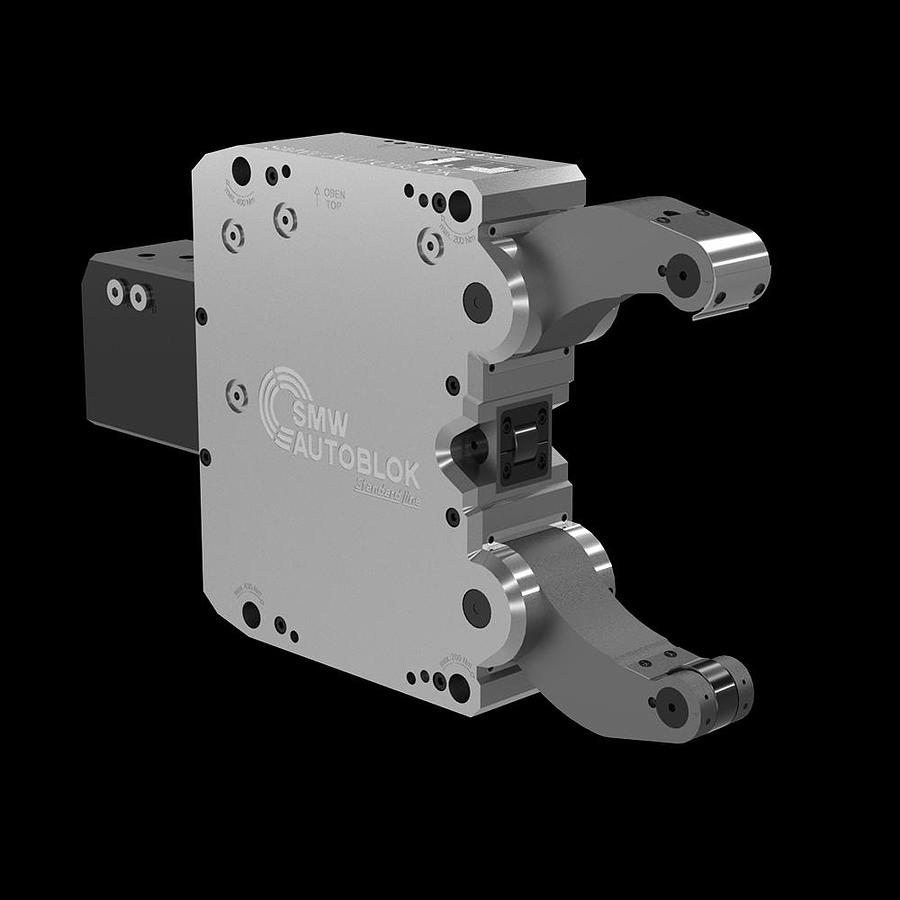

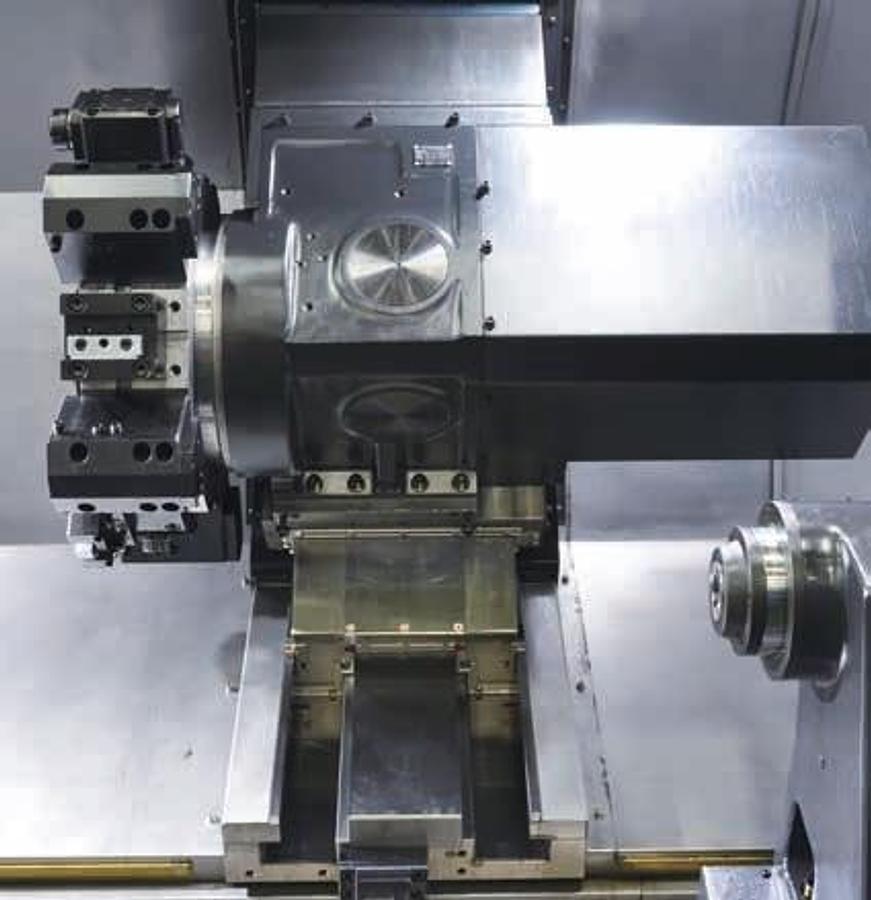

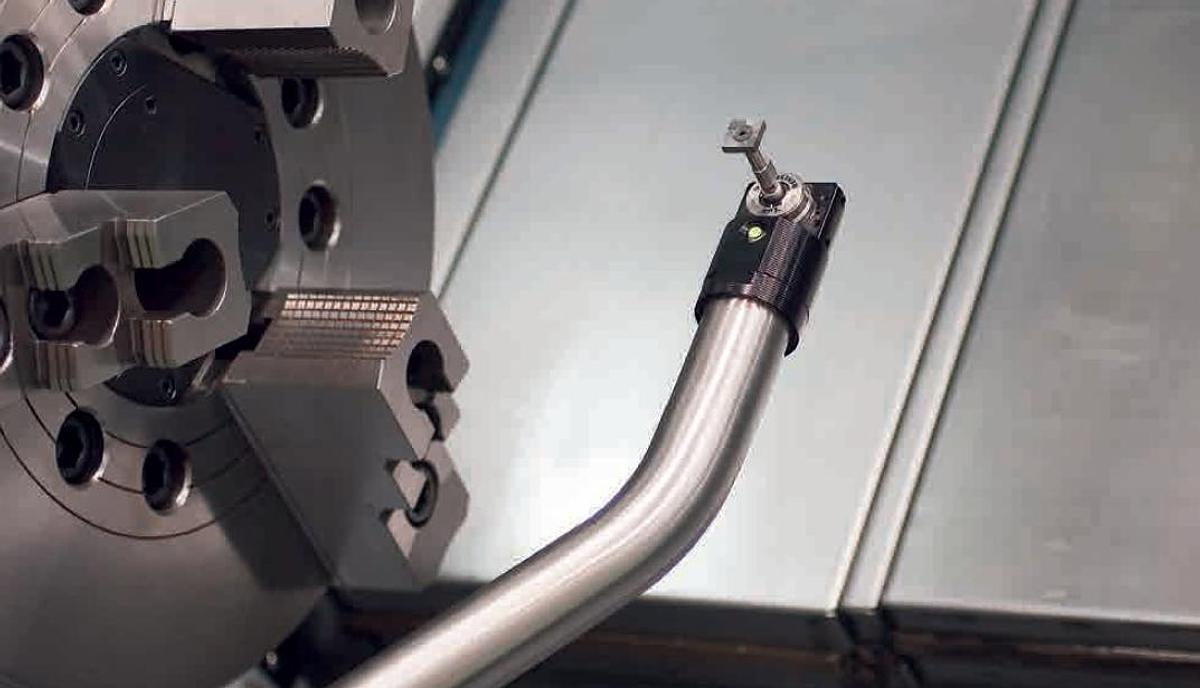

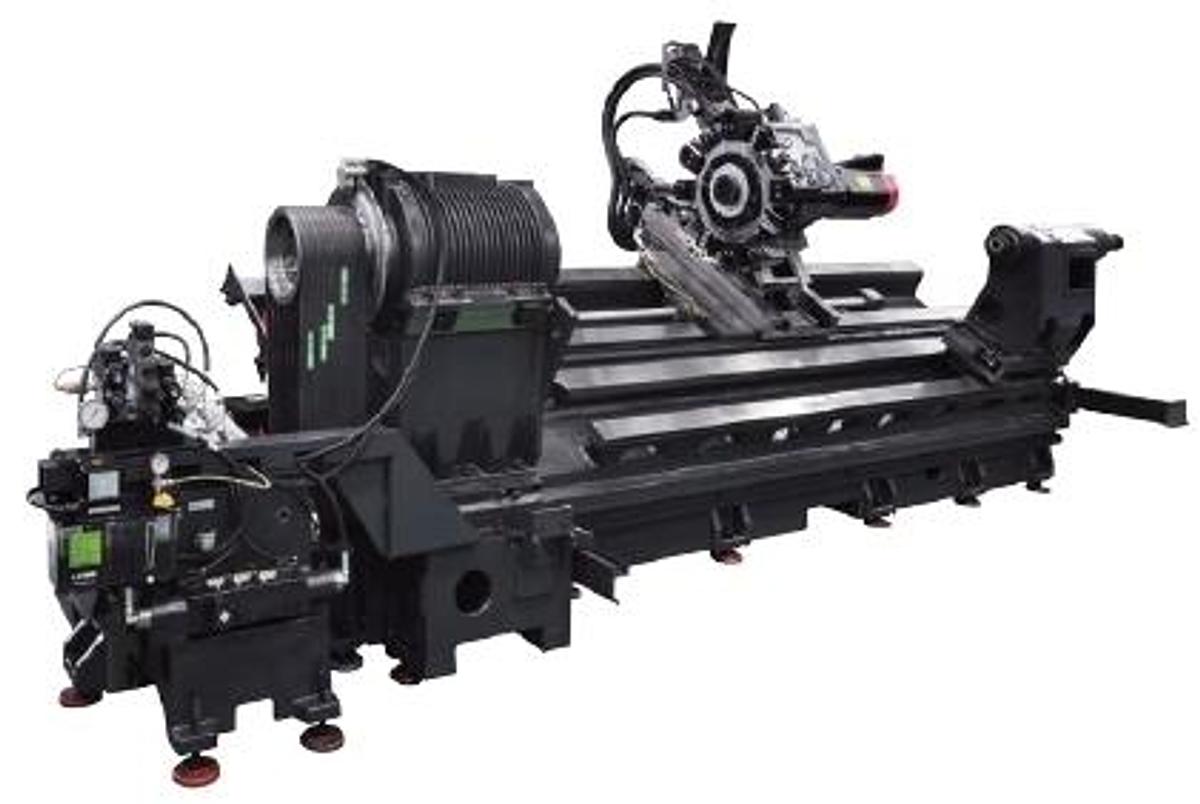

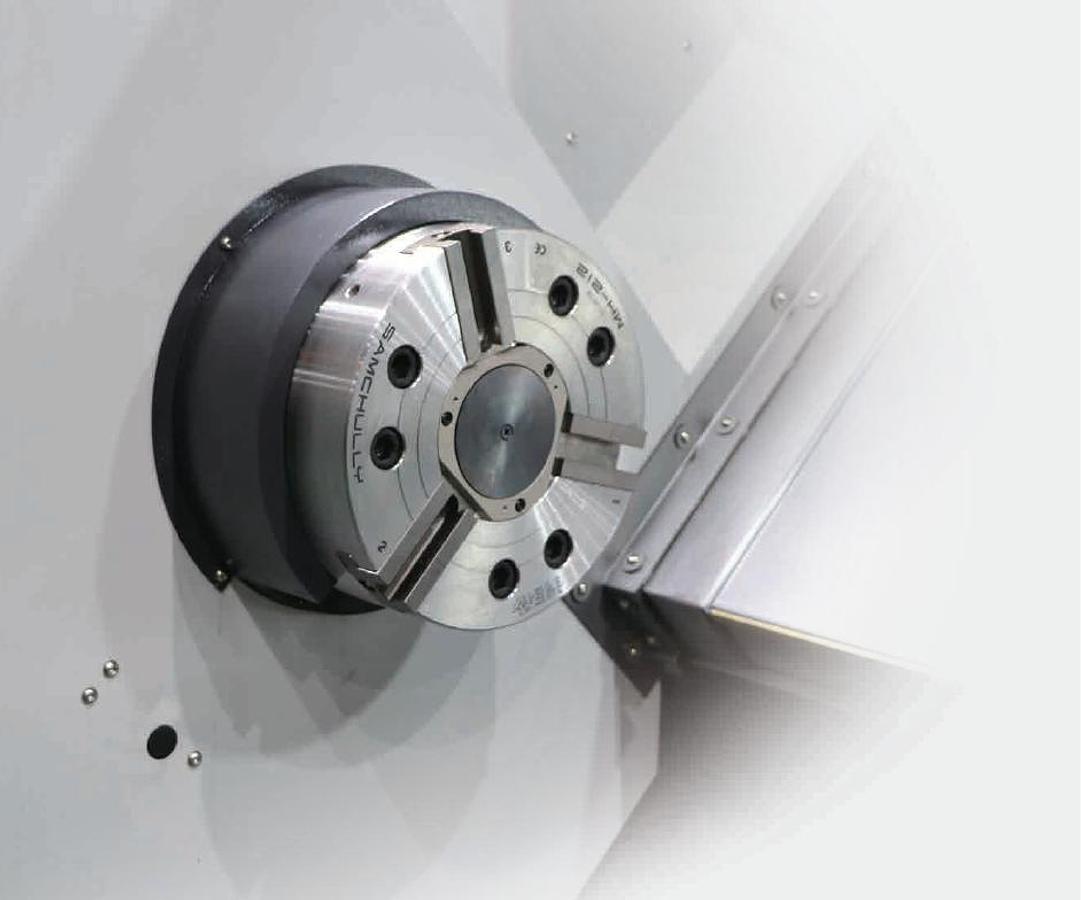

CAPACITY Swing over the bed 33.46" Swing over the cross slide 33.46" Maximum turning diameter 16.93" Maximum turning length 83.66" SPINDLE Chuck size 12" Spindle nose A2-11 (ASA) Main spindle motor (Max / 30min) 35 / 25 hp Spindle speed 2,500 rpm Bore diameter 4.53" Draw tube ID 4.06" Spindle torque (Max) 1,518.9 ft.-lbs. Spindle drive method 2 Speed gear box C axis minimum programmable angle 0.001 deg C axis position accuracy 0.0167 deg C-axis repeatabiliy �0.0056 deg BED, SLIDE & CARRIAGE X axis travel 11.02" Y axis travel 5.12" (� 2.56") Z axis travel 86.61" Rapid traverse (X/Y/Z) 1,181 ipm / 394 ipm / 1,181 ipm Guide ways (X/Y/Z) Box Way Bed structure 30deg Slant bed Ballscrew diameter (X/Y/Z) 1.57" / 1.57" / 1.97" Axis feed thrust, Continuous (X/Y/Z) 2,542 lbs/ 2,548 lbs/ 3,300 lbs Repeatability (X / Y-Z) �0.00008" / �0.00012" TURRET Number of tool stations 12 (24) Tools (BMT65) Turret indexing speed (1 station) 0.15 Seconds Curvic coupling 3 Piece hydraulic clamp/Servo Coupling diameter / Clamp force 9.84" / 15,803 lbs. Tool size (turning and facing) 1" - Wedge clamp Tool size (boring bar max dia) 2" Rotating tool rpm 4,000 rpm Rotating tool spindle motor 10 hp Rotating tool spindle torque 44.0 ft-lbs. Turret index repeatability �0.00020" TAILSTOCK Tailstock center (taper) MT #4 (Built In) Quill diameter 4.33" Quill travel (by hydraulic) 3.94" Maximum thrust of quill 2,433 lbs. COOLANT SYSTEM Coolant pump motor 1.2 hp (65 psi) Coolant tank capacity 105.67 gal System type Removable / Independent HYDRAULIC / LUBRICATION Hydraulic tank capacity 6.34 gal Hydraulic oil required (or equivalent) ISO VG32 Way lubrication tank capacity 0.79 gal Way lubrication oil required ISO VG68 MACHINE SIZE Floor Space Requirements (L x W) 257" x 85" Machine Weight 23,150 lbs. Power Consumption 50 kVA Voltage 220V �10%, 60 Hz, 3 phase CNC CNC Model Fanuc 0iTF PLUS Display Unit 15" TFT LCD Color Monitor SHIPPING DIMENSIONS (L x W x H) 282 x 91 x 100 / 25,353 lbs. Equipped With:SMEC OPTION PACKAGE: -Tool Presetter -Oil Skimmer -Programmable Tailstock (Body & Quill) -Built-in Tailstock Bearings MT #4 -Barfeeder Interface -Air Blow for Main Spindle -Manual Guide i -Z-Axis HP Upgrade with 3,300 lbs. Continuous Thrust -Hydraulic Steady Rest Preparation Kit - Includes Bracket, Hydraulic Connections, Fully Programmable along Z-Axis Fits Model: SMW / Autoblok SLU-X-4-Z Steady Rest -Chip Conveyor - Side Discharge -145 PSI Coolant Pump -1 Set of Hard Jaws -3 Sets of Soft Jaws -3 Color Tower Available Options: SLU-X-4-Z - SMW Autoblok Self-Centering Steady Rest - 1.18" - 9.64" - $ 15,630.00 Steady Rest Hydraulic Control Kit - $4,160.00 Steady Rest Installation - $1,650.00 Available FANUC Options: Arbitrary Speed Threading function: $975.00 Spindle Speed Variation function: $400.00
