SMEC SL 6500CL (3200) with 14.37 Thru-Hole

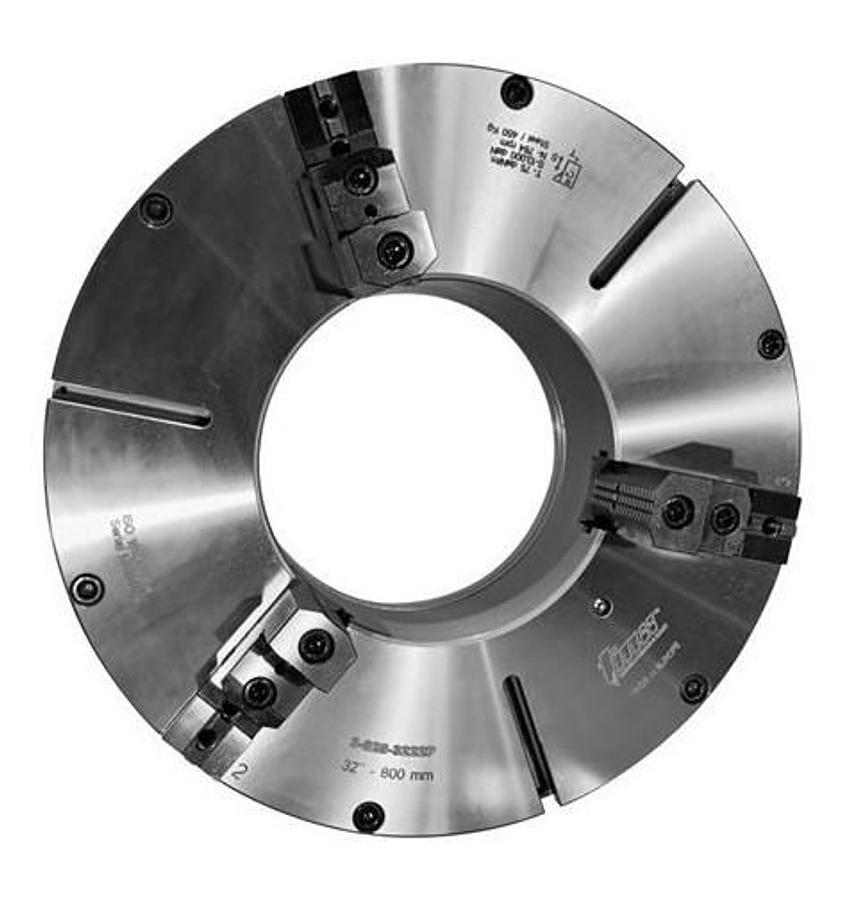

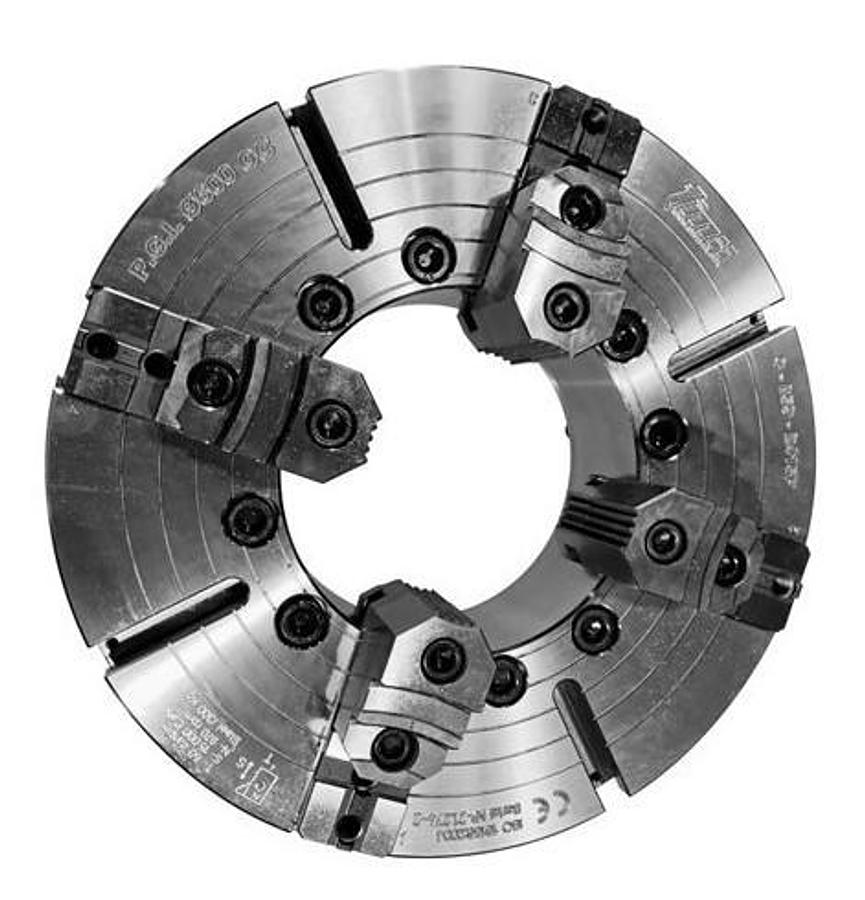

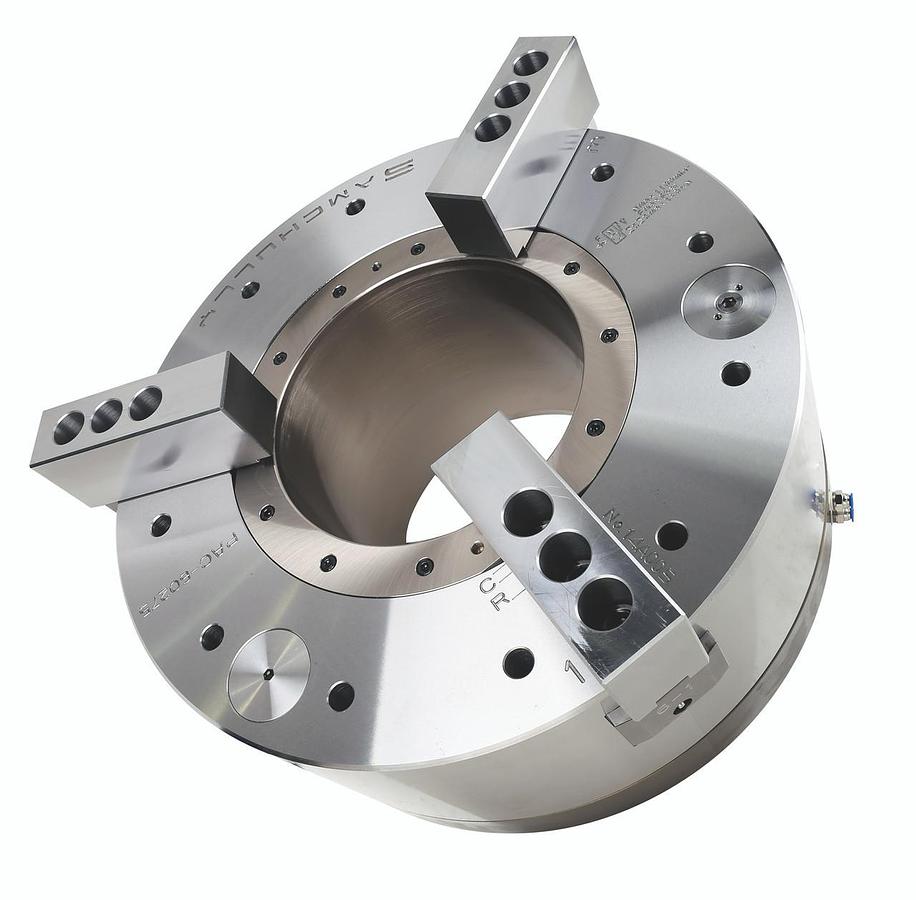

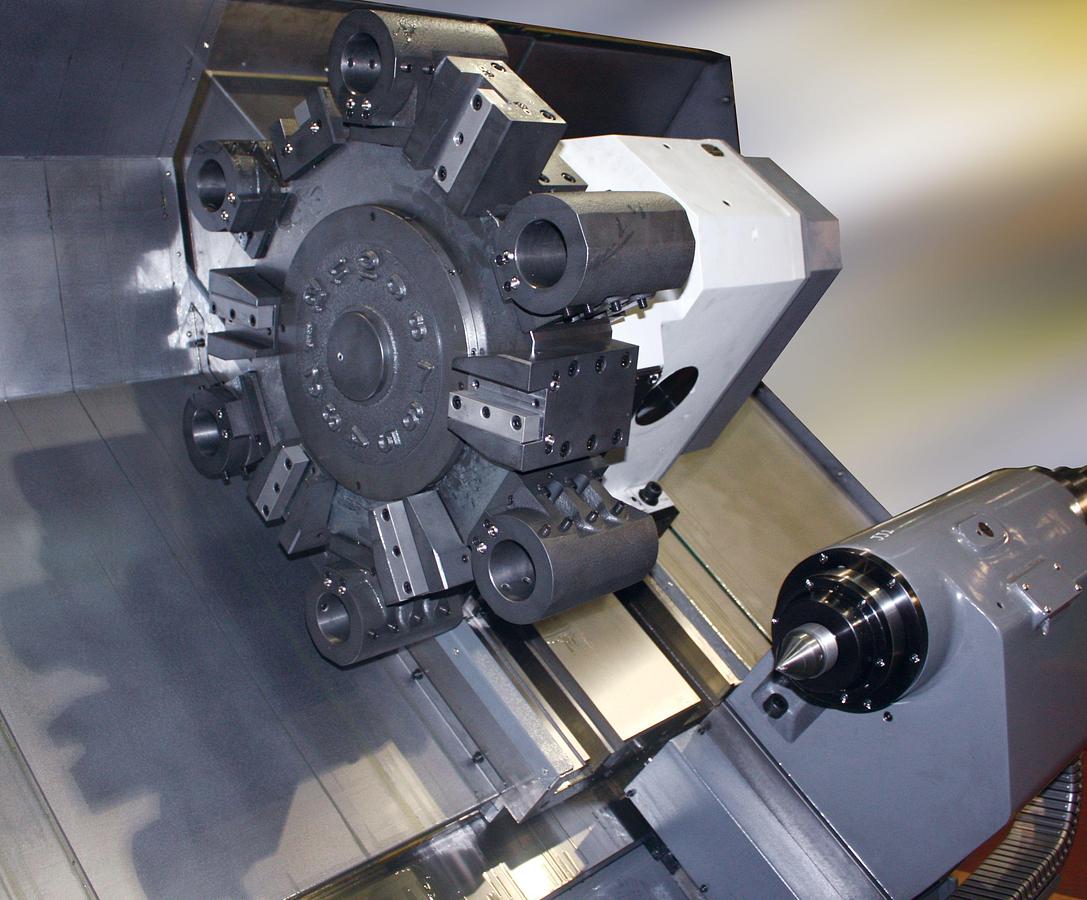

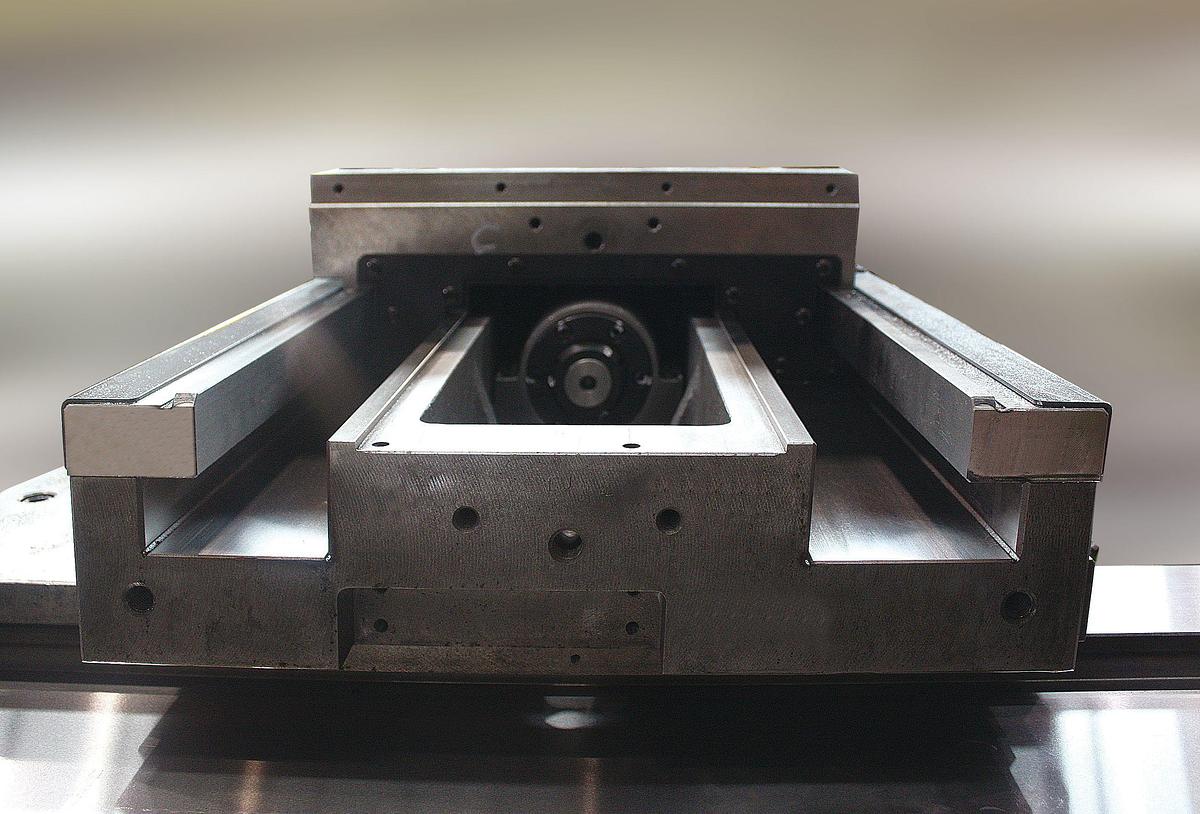

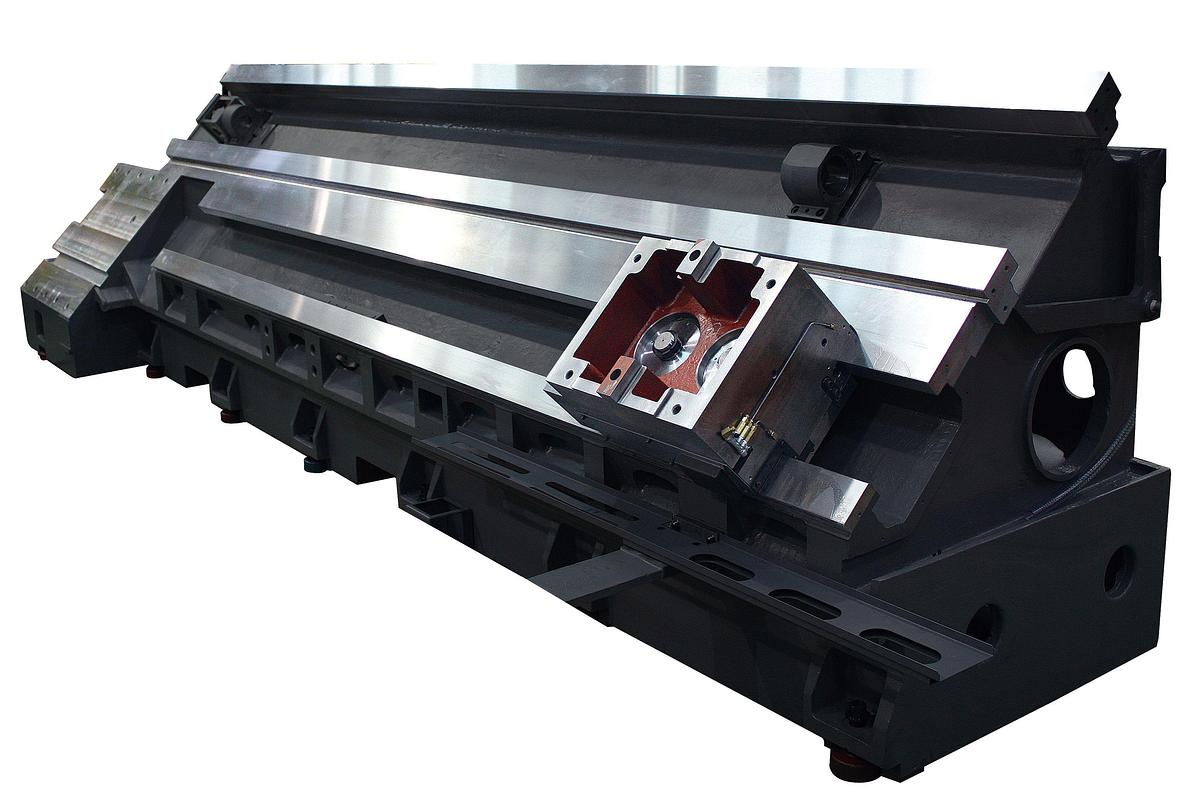

CAPACITY Swing over the bed 40.55" Swing over the cross slide 31.50" Maximum turning diameter 35.43" Maximum turning length 125.98" SPINDLE Chuck size No Chuck [32" (option)] Spindle nose A2-20 Main spindle motor (Max / 30min.) 60 / 50 hp Spindle speed 300 rpm (w/32" chuck) Bore diameter (BB) 14.37" Spindle torque (Max) 5,965.7 ft.-lbs. Spindle drive method 2 Step gear box Maximum spindle indexing angle 0.001� BED, SLIDE & CARRIAGE X axis travel 18.50" Z axis travel 128.74" Rapid traverse (X) 472 ipm Rapid traverse (Z) 393 ipm Guide ways (X / Z) Box Ways Bed Structure 45� Slant bed Ballscrew diameter (X / Z) 1.97" / 2.48" Axis feed thrust, Max. (X / Z) 10,550 lbs. / 13,771 lbs. Repeatability (X / Z) �0.00008" / �0.00012" TURRET Number of tool stations 12 Tools Turret indexing speed (1 station) 0.25 seconds Turret driving 3 Piece hyd clamp / Servo index Curvic coupling diameter / Clamp force 12.64"/ 40,156 lbs. Tool size (turning and facing) 1.25" �� Wedge clamp Tool size (boring bar max) 3" Turret index repeatability �0.00039" TAILSTOCK Tailstock center (taper) MT #6 (Built-in) Quill diameter 7.09" Quill travel (by hydraulic) 5.91" Tailstock travel 128.74" Maximum thrust of quill 14,397 lbs. MACHINE SIZE Floor space for 2000 331" x 109" x 102" Machine weight 2000 50,706 lbs. Power consumption 65 kVA Voltage 220V�10%, 60 Hz, 3 phase CNC CNC model Fanuc 0i-TF PLUS Display Unit 15" TFT LCD Color Monitor Equipped With:STANDARD EQUIPMENT Tool presetting system (tool presetter) - Tool set-up / Tool wear compensation Machine work light Chip and coolant splash guarding (full coverage) Programmable tailstock (programmable tow-along tail body and programmable quill) 12 Station turret. Lubrication system Rigid tapping on main spindle Chuck foot switch Front door interlock Hydraulic pressure interlock from main hydraulic line Foundation kit (plates only) One (1) set of adjusting tools Machine Manuals: One (1) each (Electric, Diagram, Maintenance, Parts List, Operation / Maintenance) Fanuc Manuals: One (1) each (Manual Guide i, Operations, Parameter, Maintenance, Operators volumes 1 and 2) in USB 145 PSI Coolant Pump Programmable Tailstock (MT #6) Chip Conveyor - Side Discharge Air Chuck Prep Package Manual Guide i AVAILABLE CHUCKS: TMX 3-859-3222P - 4 Jaw, 32" Diameter, A2-20, Forged Steel, Extra Heavy Duty, Oil County, Manual Independent Lathe Chuck, 14.75" Through Hole - $18,800.00 TMX 3-825-3222 - 3 Jaw 32" Diameter, A2-20, Forged Steel, Extra Heavy Duty, Oil County, Self Centering, Manual Scroll Lathe Chuck, 14.76" Through Hole - $29,400.00 SMW AUTOBLOK AIR CHUCKS (33" with 14.7" Hole, 1" Stroke): -BB-N-ES 850-375 3J PB Z700 $93,000 x2 = $186,000.00 Through Hole: 375mm Jaw Stroke: 25.4mm Rapid Stroke: 13.4mm Clamping Stroke: 12mm Min/Max Op Pressure: 2/10 bar Grip Force at 6 Bar: 200kn Max Speed: 750rpm -Front Chuck Adapter $8,960.00 (Includes Spacer if required $1,500.00 - No Charge) -Rear Chuck Adapter $8,700.00 -Front DRMB $10,000.00 -Rear DRMB $12,500.00 -Air Control BBN Chucks $4,880.00 Air /Oil Lubrication Regulator Timer Solenoid Electrical Wiring Pneumatic Air Lines and Couplers Mounted on a Panel Machine Requirements: Machine must be fully installed Auxiliary Air Line with 100 PSI Must have OEM chucking interface that supports two chucks 2 Sets of Foot Pedal or Push Buttons to operate the chuck QTY 4 M-codes open/close -Double Chuck Install $4,200.00 Fixed Installation Charge Includes: All Labor, Transportation, Car Rental, Lodging, and Meal Expenses TOTAL FOR CHUCKS: $235,240.00
