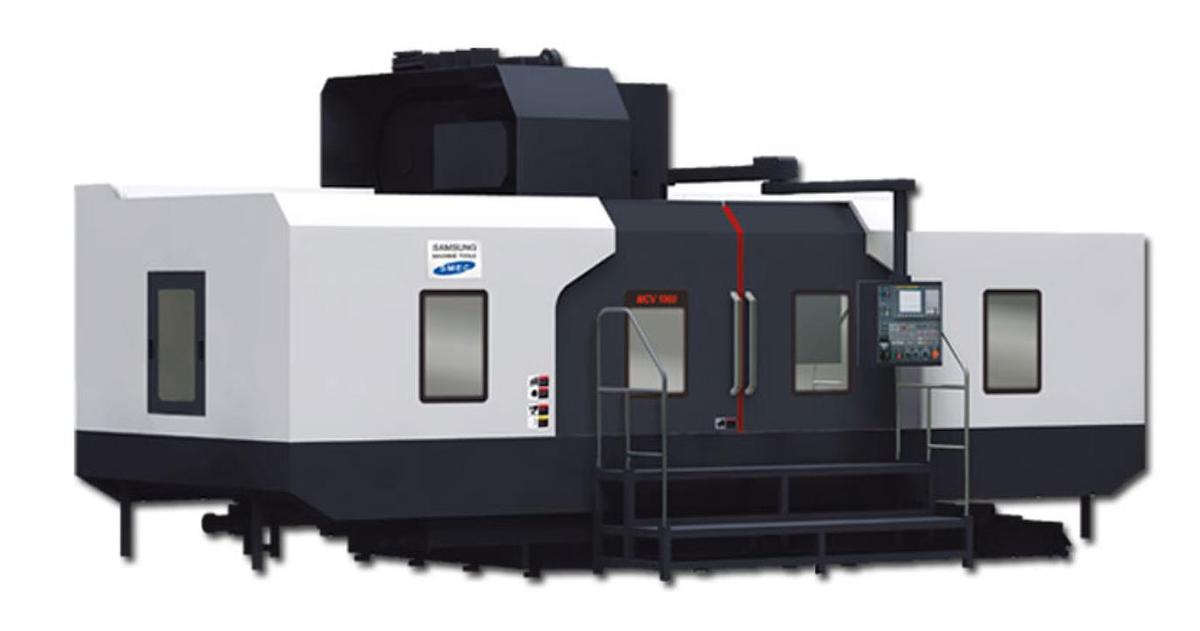

2024 SMEC LCV 1060 50-Taper Box Guide Type Machining Center

CAPACITY X axis travel 98.43" Y axis travel 41.73" Z axis travel 35.43" Table size 41.73" x 110.24" Table loading capacity 11,023 lbs. Table T-slot spacing x width (7)- 5.91" x 0.87" SPINDLE Distance from tabletop to spindle nose 7.87"~ 43.31" Distance from column to spindle center 43.31" Spindle taper CAT50 Spindle speed 6,000 rpm AC spindle motor (30 min) 25 hp Maximum spindle torque (Max) 565.7 ft.-lbs. Spindle Drive Method 2 Speed Gearbox AUTO TOOL CHANGER Magazine capacity 40 Tool shank CAT50 Pull stud type 90� type Maximum tool diameter [adjacent empty] 4.33" [7.87"] Maximum tool length 13.78" Maximum tool weight 33.1 lbs. Tool selection method Random Tool changing time (T-T) 2.5 seconds FEED RATE Rapid traverse (X / Y / Z) 630 ipm / 630 ipm / 630 ipm Cutting feed rate ipm 394 ipm SERVO DRIVE SYSTEM Feed motor (X / Y / Z) 8.1 hp / 8.1 hp / 8.1 hp Ballscrew diameter (X / Y / Z) 2.17" / 2.48" / 2.48" Axis feed thrust, Continuous (X / Y / Z) 4,789 lbs/ 5,980 lbs/ 6,160 lbs Slide ways (X / Y / Z) Box Way Slide Way Span (X / Y / Z) 31.50" / 114.17" / 27.17" Slide Way Width (X / Y / Z) 6.69" / 7.87" / 8.27" Position accuracy �0.0001" Repeatability �0.00008" GENERAL Floor space (L x W x H) 264" x 201" x 144" Machine weight 55,116 lbs. Power required 48 kVA Voltage 220V + 10% / 3 Phase CNC system Fanuc 0i-MF PLUS (15" LCD) Equipped With:SMEC "A" OPTION PACKAGE: 6,000 rpm with Spindle Cooling Unit 40 Tools Double Arm ATC 290 psi (Max) Through-Spindle-Coolant System Oil Skimmer Enclosed Splash Guard 4th Axis Interface Prep Kit Renishaw Probe Ready Kit (OMI-2T) Rigid Tapping Manual Guide i AI Contour Control II Z-Axis HP Upgrade with 6,160 lbs. Continuous Thrust SMEC "A" VALUE PACKAGE: Lift Up Chip Conveyor Spindle Air Blow, External Coolant Gun 3 Color Tower Light ADDITIONAL OPTIONS: FANUC-4th IF 4th Axis Interface $ 5,520.00 RENISHAW-PR Renishaw OMP60 (AA) Spindle Probe $ 4,880.00 RENISHAW-TS Renishaw OTS (AA) Tool Setter $ 2,540.00 ESTIMATED FREIGHT CHARGE (Not included in total): $15,600.00 ESTIMATED RIGGING CHARGE (Not Included in total): $7,500.00 -(3) Pieces...LCV 1060 / Chip Conveyor / Sheet Metal.
