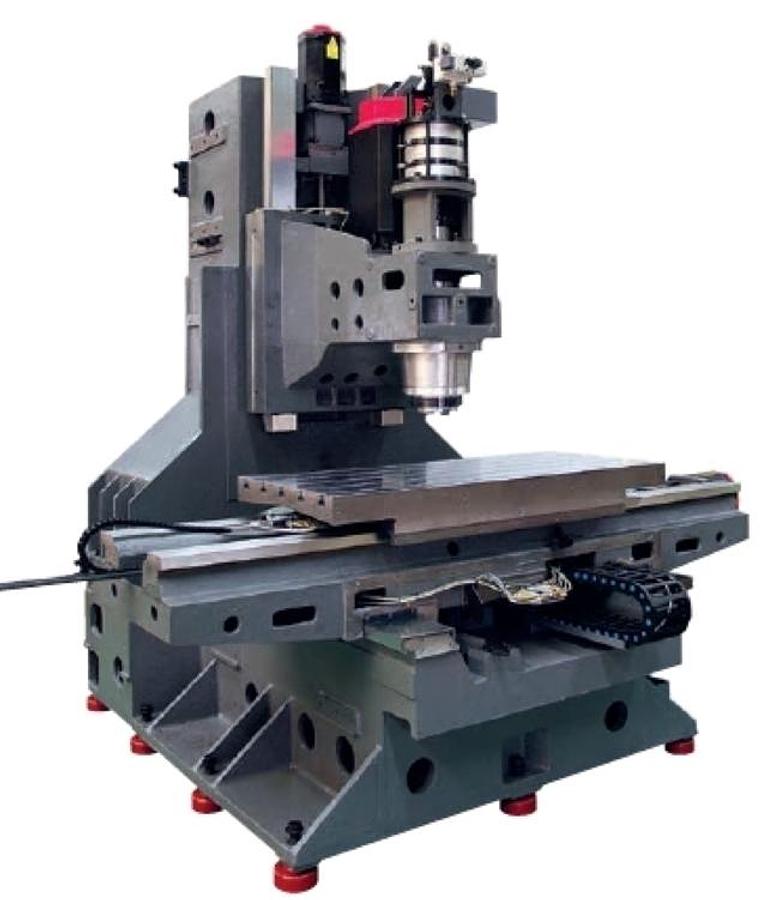

SMEC LCV 6700 6K CT50 GEAR TYPE VMC

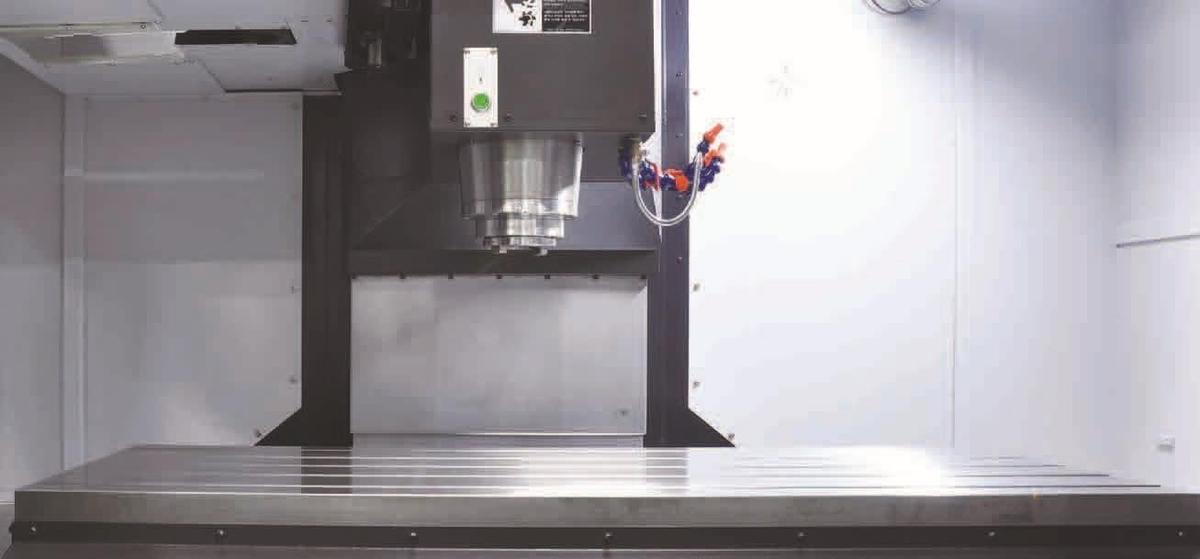

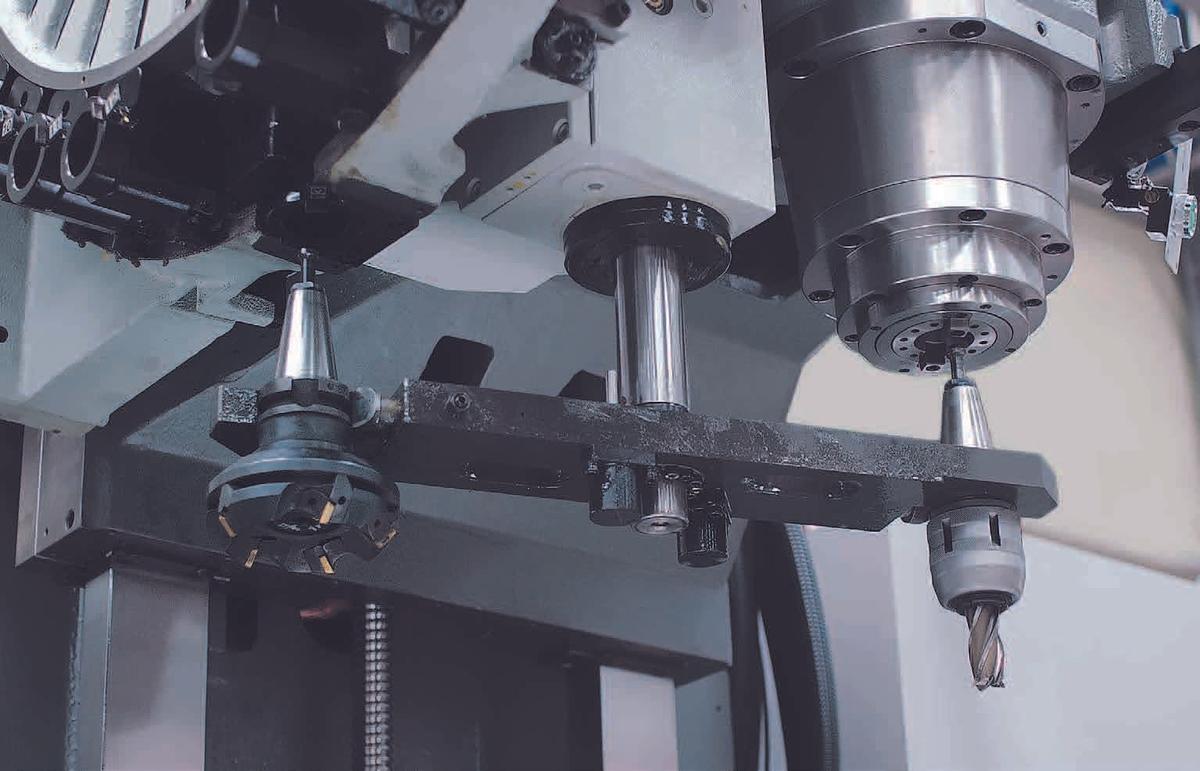

CAPACITY X axis travel 53.15 in Y axis travel 26.38 in Z axis travel 25.59 in Table Size 61.02 x 25.59 in Table loading capacity 2,204 lbs Table T-slot spacing x width (5) - 4.92" x 0.71" SPINDLE Distance from tabletop to spindle nose 7.87 ~ 32.87 in Distance from spindle center to column 28.15 in Spindle taper CAT50 Spindle speed 6,000 rpm (2 Speed Gear Box) Spindle motor 25 hp Maximum spindle torque 575.3 ft-lbs AUTO TOOL CHANGER Magazine capacity 30 Tool shank CAT50 Pull stud type 90� Type Maximum tool diameter [adjacent empty] 3.94 in [7.67 in] Maximum tool length 11.81 in Maximum tool weight 33.1 lbs Tool selection method Random Tool changing time (T-T) 2.5 sec FEED RATE Rapid traverse (X / Y / Z) 1181 / 1417 / 994 ipm Cutting feed rate 393.7 ipm SERVO DRIVE SYSTEM Feed motor (X / Y / Z) 5 / 5 / 5 hp Ballscrew diameter (X / Y / Z) 1.57 / 1.57 / 1.57 in Axis feed thrust, Continuous (X / Y / Z) 3498 / 3419 x 4862 lbs. Slide ways Box Way Slide way span (X / Y / Z) 16.53�� / 39.37" x 16.92" Slide way width (X / Y / Z) 3.54" / 5.90" / 4.72" Position accuracy �0.0001 in Repeatability �0.00008 GENERAL Floor space (L x W x H) 133" x 107" x 124" Machine weight 25,251 lbs Power required 38 kVA Voltage 220V + 10% / 3 Phase CNC system Fanuc 0i-MF PLUS (15" Screen) SHIPPING DIMENSIONS (L x W x H, Weight) Crate #1 (Machine) 150" x 118" x 136" (25,353 lbs.) Crate #2 (Chip Conveyor) 181" x 37" x 63" ( 4,850 lbs.) Crate #3 (Oil Cooler) 46" x 32" x 62" ( 1,323 lbs.) Equipped With:30 Tools double arm ATC Built-in X-Axis (internal) screw conveyor Thru the spindle coolant at 290 psi Oil skimmer 4th Axis interface prep kit Renishaw probe ready kit (OMI-2T) Rigid tapping Programmable and data protection key switch Machine work light: LED LAMP Coolant system with separate coolant tank Telescopic way covers Table enclosure splash guard Spindle load meter Lubrication system Portable manual pulse generator Leveling tools Transportation parts Machine Manuals: one (1) each (Instruction, Operating, Part List, Electric Circuit Diagrams) Fanuc Manuals: one (1) each (Manual Guide i, Operations, Parameter, Maintenance, Operators volumes 1 and 2) in USB SMEC PACKAGE: 6,000 rpm with Spindle Cooling Unit 30 Tools Double Arm ATC 290 psi (Max) Through-Spindle Coolant System Full Enclosed Splash Guard 4th Axis Interface Prep Kit Renishaw Probe Ready Kit (OMI-2T) Rigid Tapping Manual Guide i AI Contour Control II SMEC VALUE PACKAGE: Chip Conveyor Spindle Air Blow, External Coolant Gun 3 Color Tower Light
