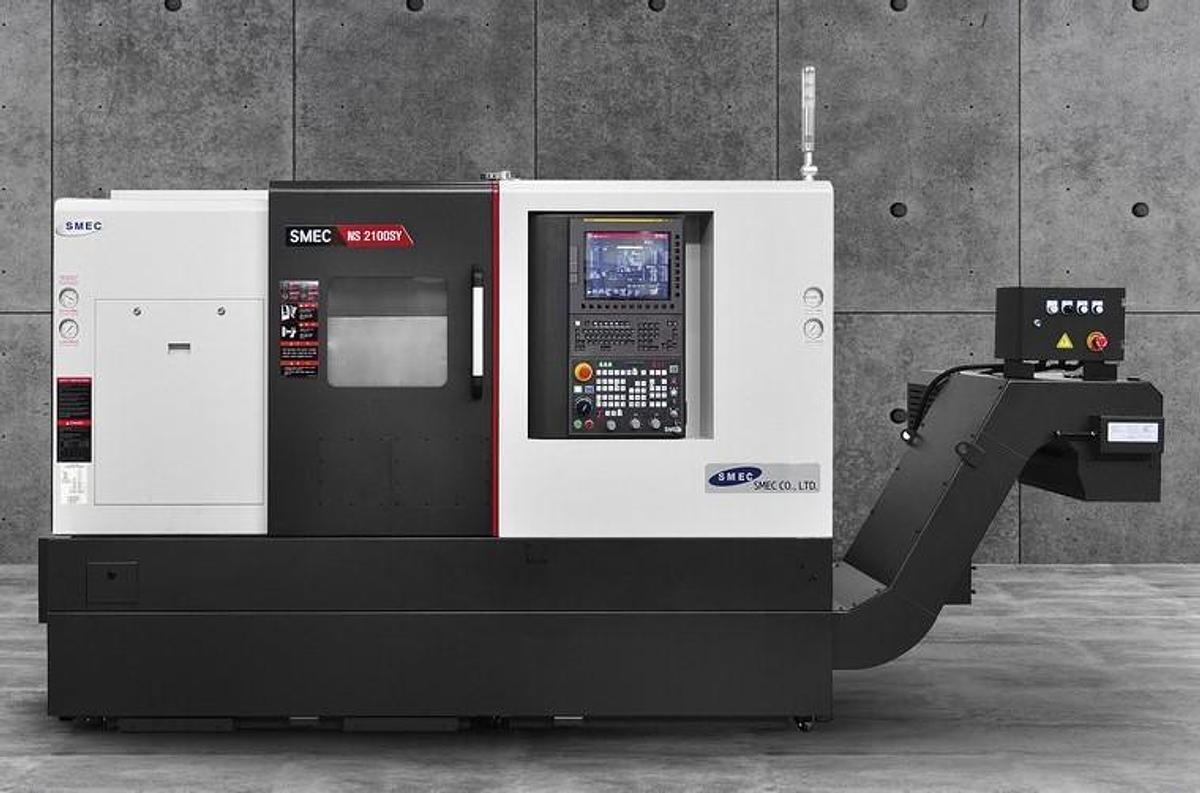

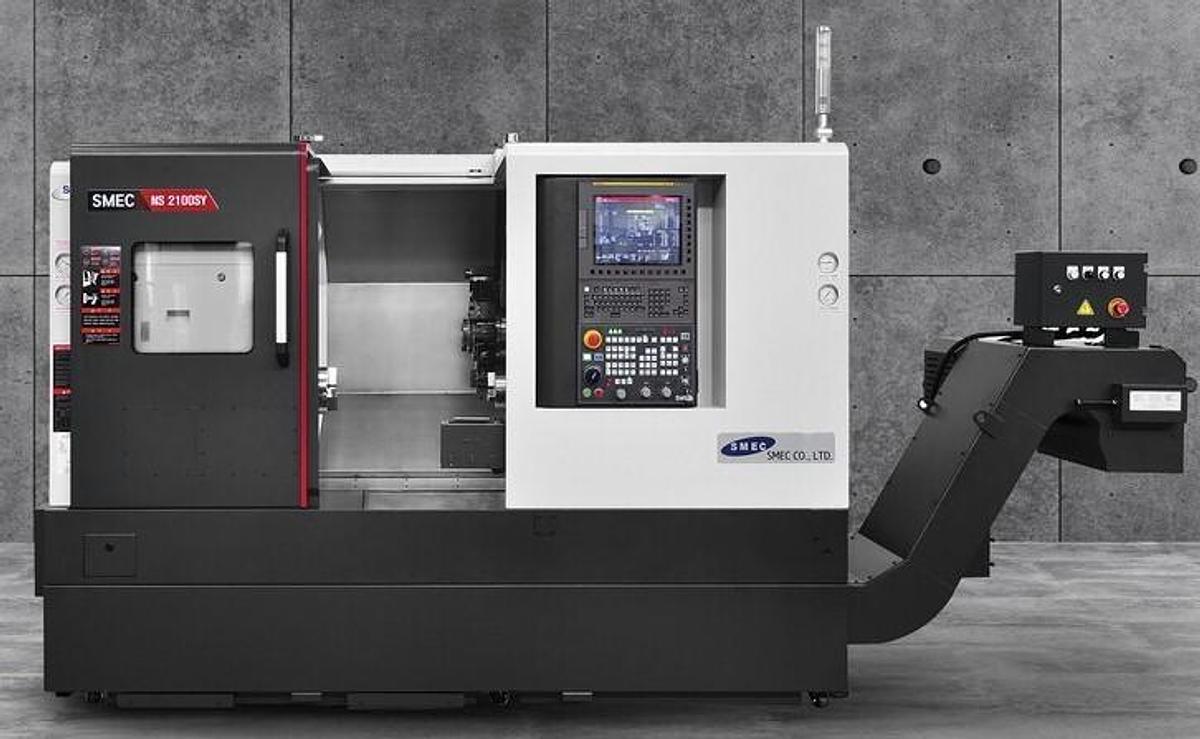

2023 SMEC NS 2100BSY

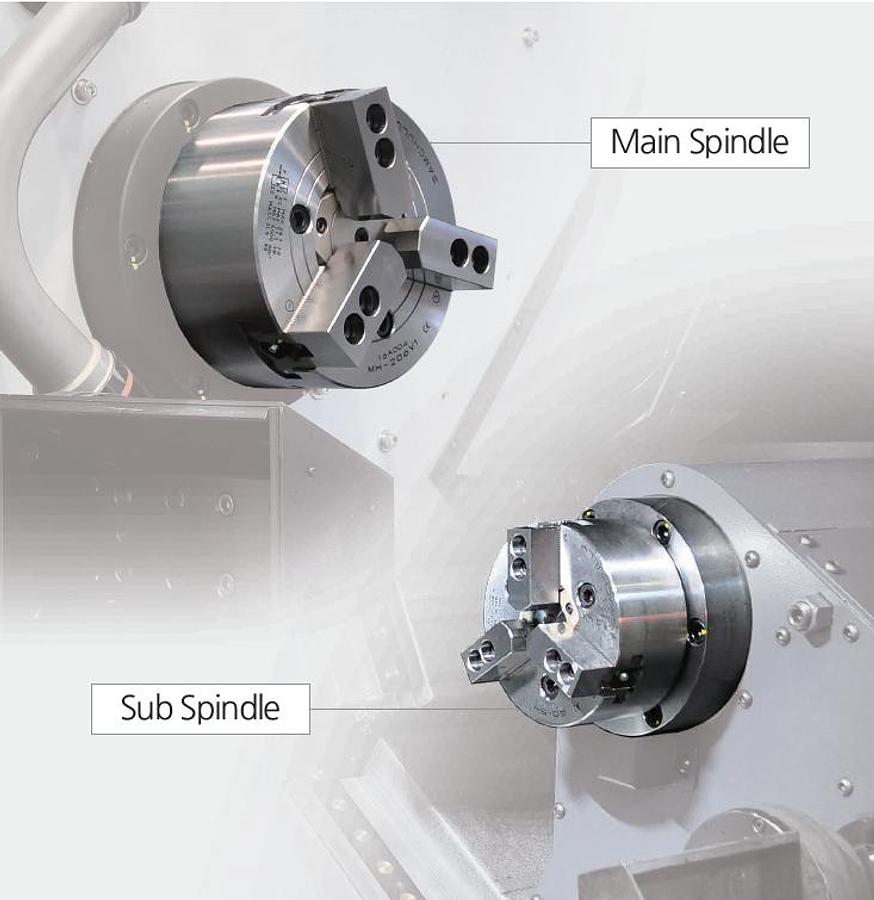

MAIN SPINDLE Chuck Size 8" Main Spindle Motor 25/15 hp Spindle Speed 4500 rpm Bore Diameter 2.99" Draw Tube ID 2.67" SUB SPINDLE Chuck Size 5" Main Spindle Motor 15/11 hp Spindle Speed 6000 rpm Bore Diameter 1.69" Draw Tube ID 1.41" Equipped With:NS 2100BSY -Tool Presetter -Oil Skimmer -Bar feeder Interface -Parts Ejector-Pneumatic -Air Blow for Main/Sub Spindle -Coolant Flush Thru Sub-Spindle -Manual Guide i -Helical Interpolation -Chip Conveyor - Side Discharge -Internal Parts Catcher / Parts Conveyor -145 PSI Coolant Pump -2 Sets of Hard Jaws -6 Sets of Soft Jaws -Machine work light, LED type -Chip and coolant splash guarding (full coverage) -12 (24) Station turret (24 Position tool holders are options) + (Capable & ready for 1,000psi through-turret coolant) -Lubrication system -Rigid tapping on main spindle -Chuck foot switch -Front door interlock -Hydraulic pressure interlock from main hydraulic line -Foundation kit (plates only) -One (1) set of adjusting tools -Machine Manuals: one (1) each (Electric Diagram, Maintenance, Parts List, Operation / Maintenance -Fanuc Manuals: one (1) each (Manual Guide i, Operations, Parameter, Maintenance, Operators volumes 1 and 2) in USB
