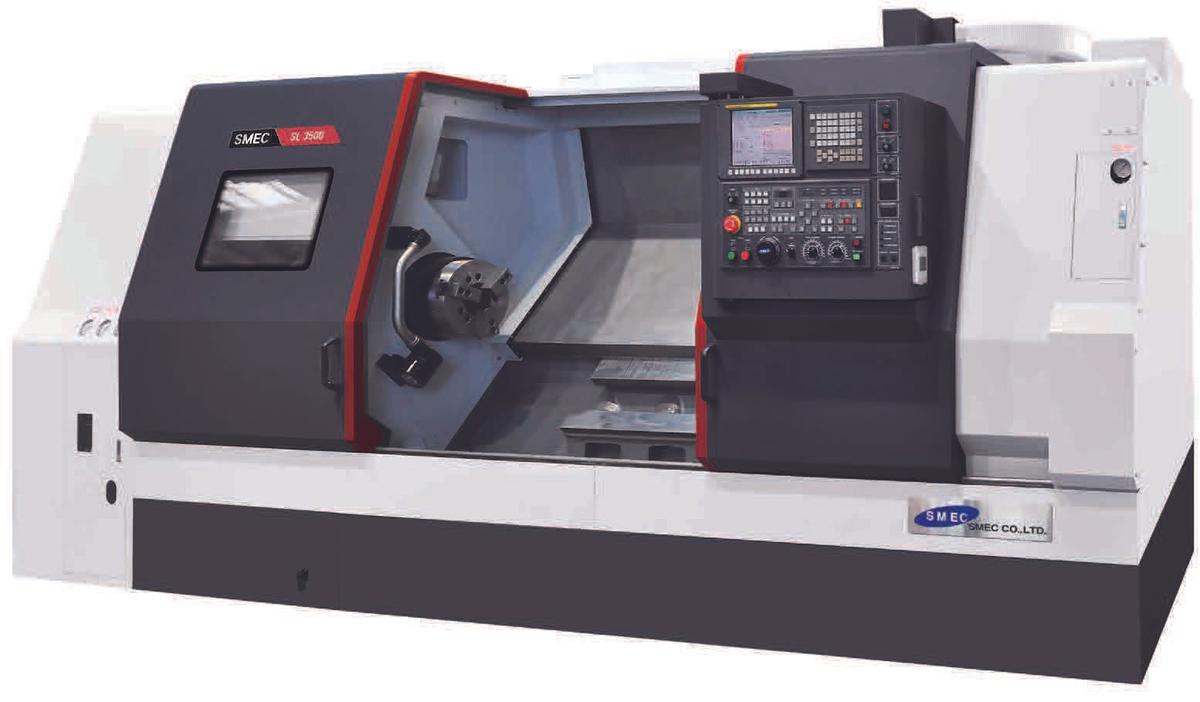

SMEC SL 3500BL CNC Turning Center w/ 15" Chuck

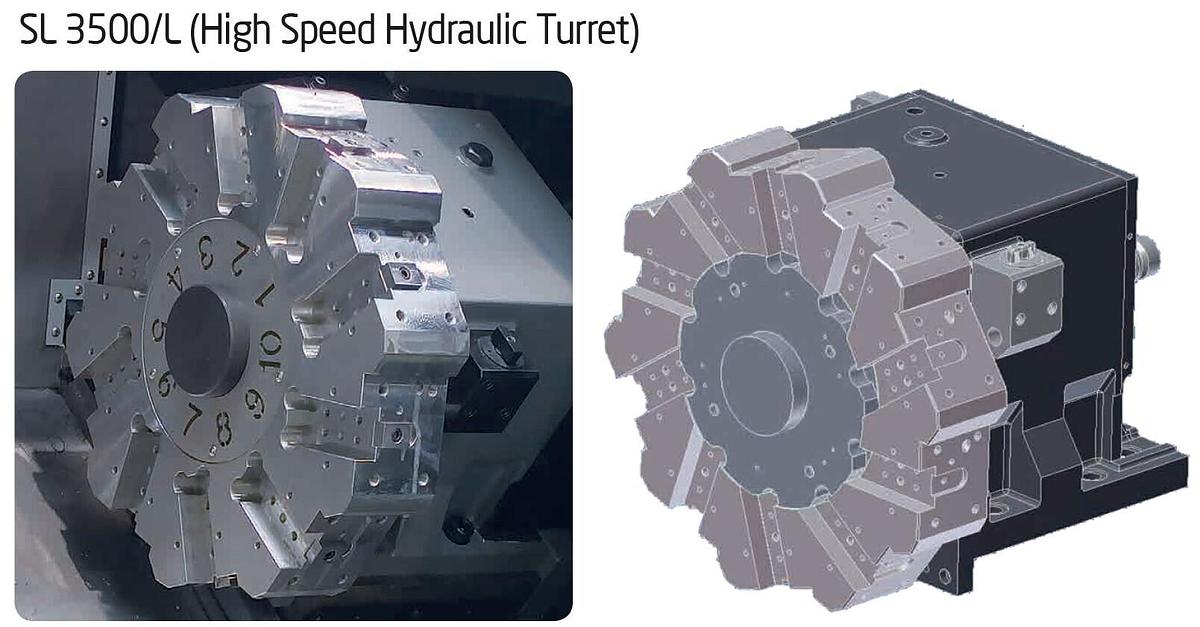

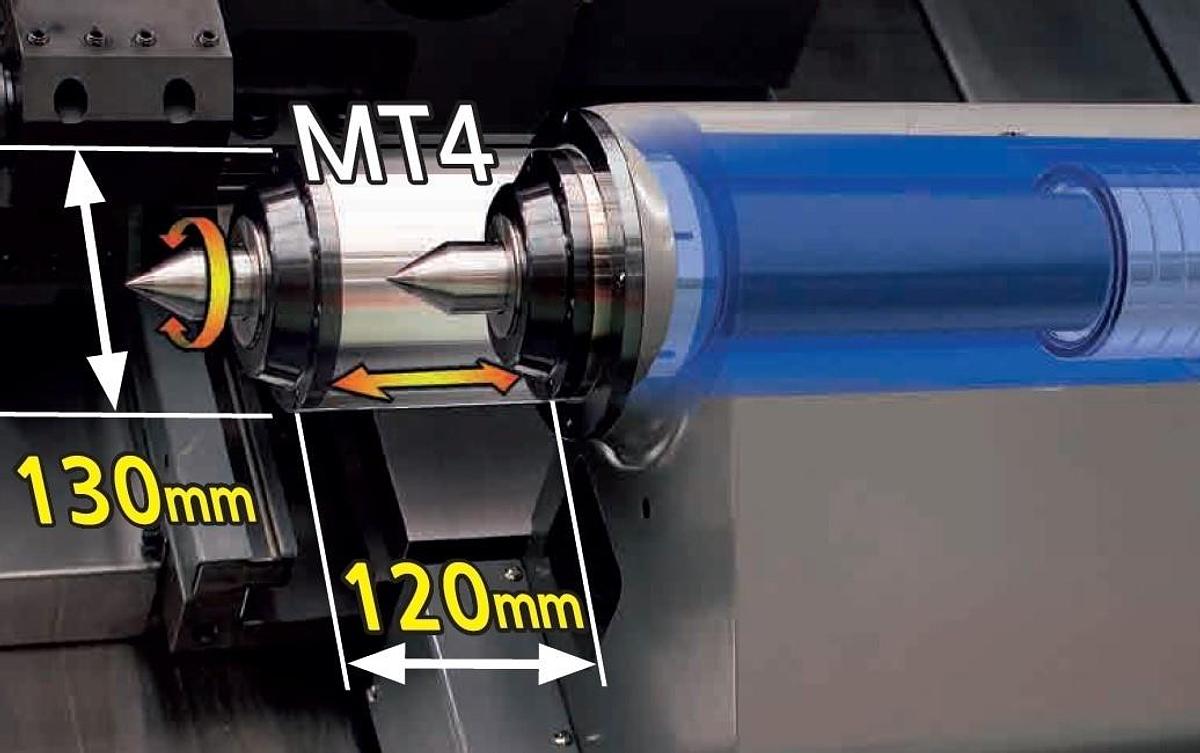

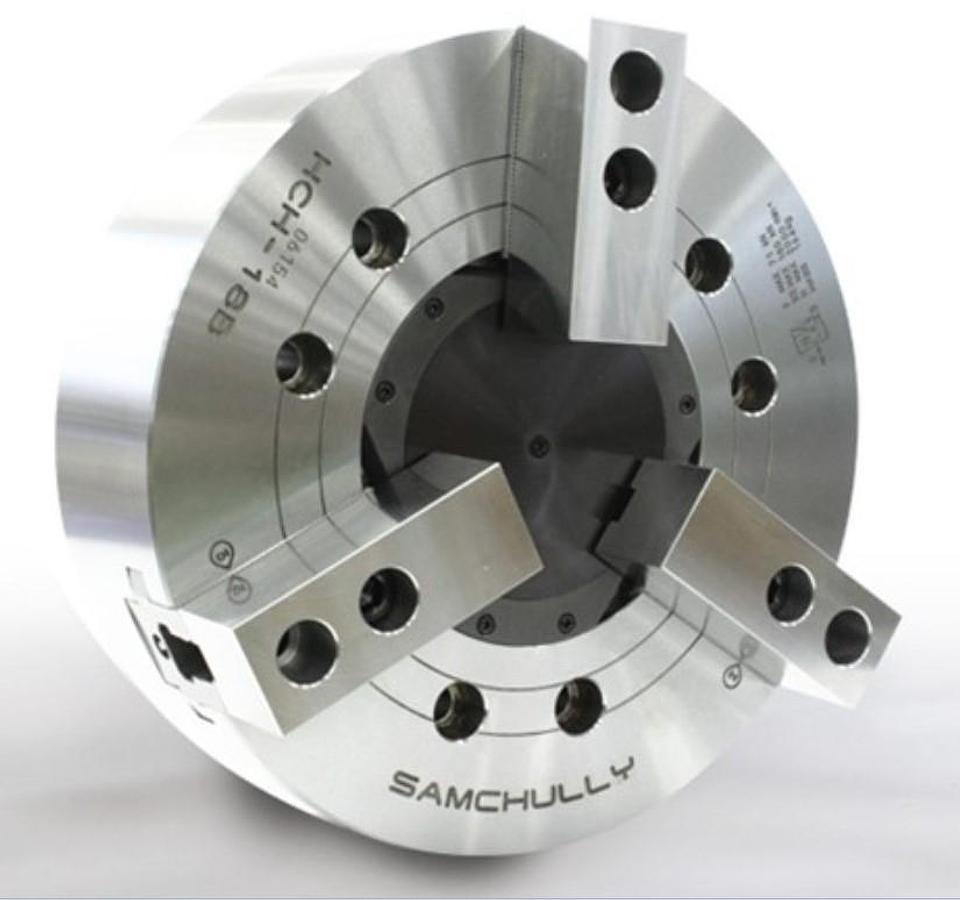

CAPACITY Swing over the bed 26.78" Swing over the cross slide 19.89" Maximum turning diameter 19.69" Maximum turning length 60.24" SPINDLE Chuck size 15" Spindle nose A2-11 (ASA) Main spindle motor (Cont/Duty/Max) 25/29/35 Spindle speed 2,000 rpm Bore diameter 5.20" Draw tube ID 4.63" Spindle torque (Max) 1,708.8 ft-lbs Spindle drive method 2 Speed gear box BED, SLIDE & CARRIAGE X axis travel 11.03" Z axis travel 63.19" Rapid traverse (X / Z) 472 ipm / 590 ipm Guide ways (X / Z) Box Way Bed structure 45-deg Slant bed Ballscrew diameter (X / Z) 1.42"/1.97" Max. Axis feed thrust (X / Z) 2,797 lbs / 3,814 lbs Repeatability (X / Z) �0.00008" / �0.00012" TURRET Number of tool stations 12 Turret indexing speed (1 station) 0.25 seconds Curvic coupling 2 Piece hyd clamp/index Curvic coupling dia / Clamp force 9.84" / 10,492lbs. Tool size (turning and facing) 1" �� Wedge clamp Tool size (boring bar maximum dia) 2" Turret index repeatability �0.00020" TAILSTOCK Tailstock center (taper) MT #4 Built-in Quill diameter 5.12" Quill travel (by hydraulic) 4.72" Maximum thrust of quill 4379lbs (at 45bar) COOLANT SYSTEM Coolant pump motor 3hp (145 psi) Coolant tank capacity 79 gal. System type Removable / Independent HYDRAULIC / LUBRICATION Hydraulic tank capacity 5.28 gal. Hydraulic oil required (or equal) ISO VG32 Way lubrication tank capacity 0.48 gal. Way lubrication oil required (or =) ISO VG68 MACHINE SIZE Floor space requirements (L x W) 231" x 74.8" Machine weight 19,841 lbs. Power consumption 42 kVA Voltage 220V �10%, 60 Hz, 3 phase CNC CONTROL CNC model Fanuc 0i-TF PLUS Display unit 15" TFT LCD Color Monitor SHIPPING DIMENSIONS 213 x 88 x 96 in, 22,487 lbs Equipped With:SMEC OPTION PACKAGE: Tool Presetter Oil Skimmer Programmable Tailstock (Body & Quill) Barfeeder Interface Manual Guide i Z-Axis HP Upgrade with 3,814 lbs. Continuous Thrust Chip Conveyor - Side Discharge 145 PSI Coolant Pump 1 Set of Hard Jaws 3 Sets of Soft Jaws 3 Color Tower Light
