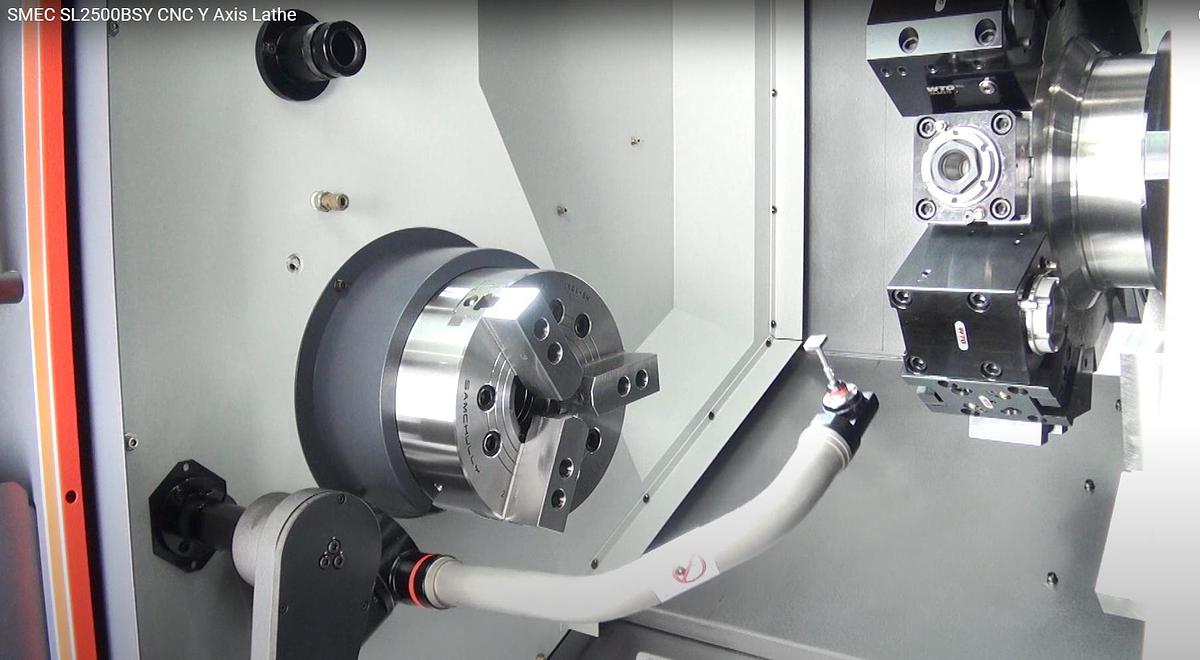

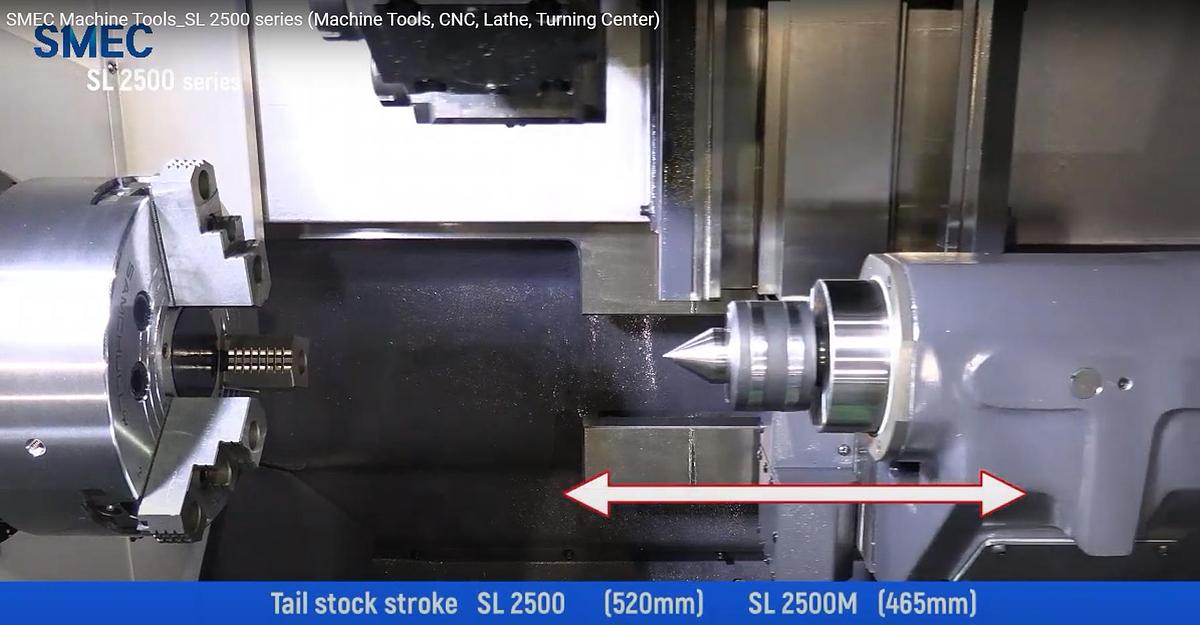

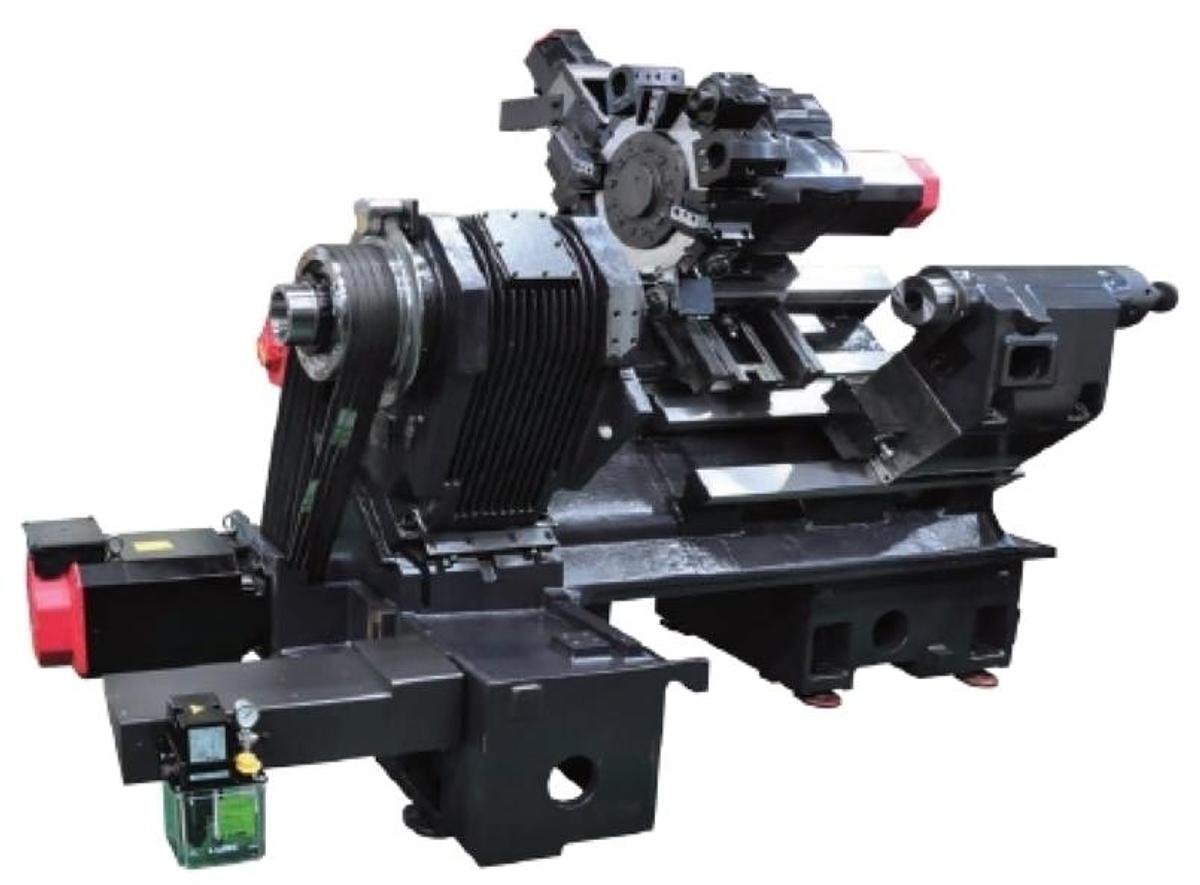

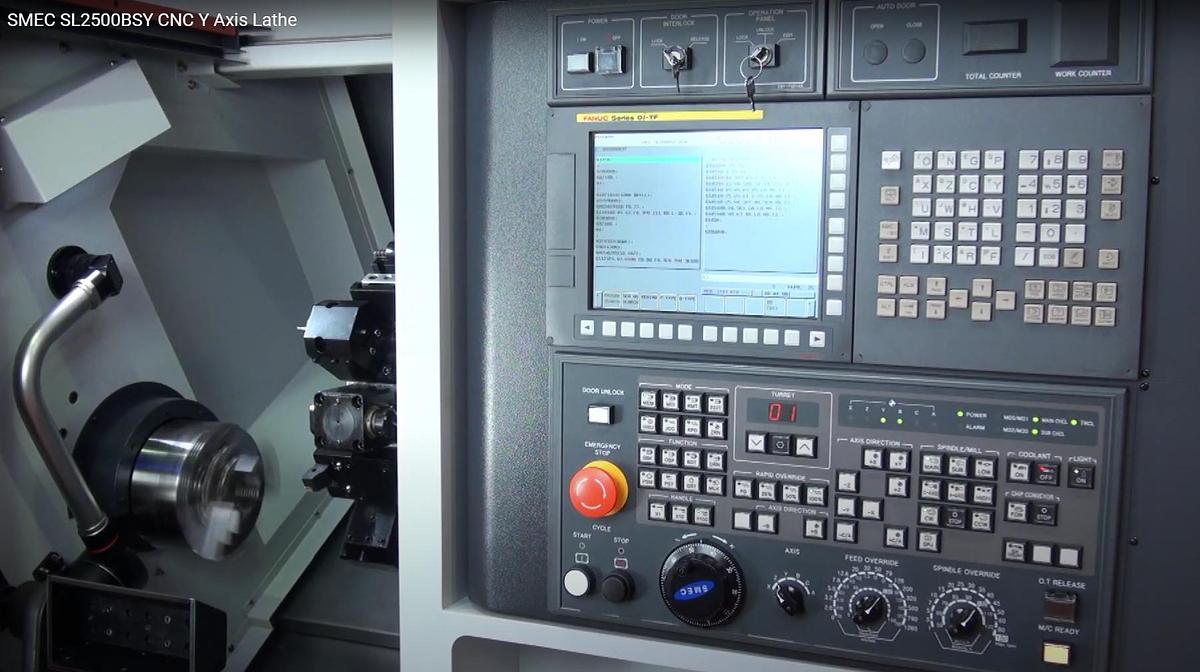

2023 SMEC SL 2500BY

CAPACITY Swing over the bed 25.59" Swing over the cross slide 21.26" Maximum turning diameter 14.17" Maximum turning length 21.06" MAIN SPINDLE Chuck size 10" Spindle nose A2-8 (ASA) Main spindle motor (Max/Duty/Cont.) 35 / 30 / 25 hp Spindle speed 3,500 rpm Bore diameter 3.39" Draw tube ID 3.03" Spindle torque (Max) 542.0 ft-lbs Spindle drive method Belt C axis minimum programmable angle 0.001 deg C axis position accuracy 0.0015 deg C-axis repeatability �0.0056 deg BED, SLIDE & CARRIAGE X/Y/Z axis travel 9.25"/ 3.94"/ 22.83" Rapid traverse (X/Y/Z) 709 ipm/ 472 ipm/ 945 ipm Guide ways Box Way Bed structure 30 deg Slant bed Ballscrew diameter (X/Y/Z) 1.42"/1.42"/1.57" Axis Feed Thrust (Continuous (XYZ) 1525 lbs/3051 lbs/2650 lbs Repeatability (X / Y-Z) �0.00008" / �0.00012" TURRET Number of tool stations 12 (24) Tools (BMT55) Turret indexing speed (1 station) 0.2 seconds Curvic coupling 3 Piece hydraulic clamp/Servo index Coupling diameter / Clamp force 7.05" / 10,431 lbs. Tool size (turning and facing) 1" �� Wedge clamp Tool size (boring bar max dia.) 2" Rotating tool rpm 5,000 rpm Rotating tool spindle motor 7.5 hp Rotating tool spindle torque 27.7 ft-lbs. Turret index repeatability �0.00012" TAILSTOCK Tailstock Center MT #5 Tailstock Type Servo Driven COOLANT SYSTEM Coolant pump motor 1.5 hp (65 psi) Coolant tank capacity 45.7 gal System type Removable / Independent HYDRAULIC / LUBRICATION Hydraulic tank capacity 3.7 gal. Hydraulic oil required (or equiv) ISO VG32 Way lubrication tank capacity 0.79 gal Way lubrication oil required SO VG68 MACHINE SIZE Floor Space Requirements (L x W) 183.7" x 76" Machine Weight 12,787 lbs. Power Consumption 49 kVA Voltage 220V�10 / 60 Hz, 3 phase CNC Model Fanuc 0i-TF PLUS Display Unit 15" TFT LCD Equipped With:STANDARD EQUIPMENT 10" diameter hydraulic thru-hole chuck package: Tool presetting system (tool presetter) Tool set-up / Tool wear compensation Auto parts catcher Oil skimmer Air blow for main spindle Machine work light, LED type Chip and coolant splash guarding (full coverage) 12 (24) Station turret (24 Position tool holders are options) + Capable & ready for 1,000psi through-turret coolant). Full contouring on main spindle C-axis Lubrication system Rigid tapping on main spindle Chuck foot switch Front door interlock Hydraulic pressure interlock from main hydraulic line Foundation kit (plates only) One (1) set of adjusting tools Machine Manuals: one (1) each (Electric Diagram, Maintenance, Parts List, Operation / Maintenance) Fanuc Manuals: one (1) each (Manual Guide i, Operations, Parameter, Maintenance, Operators SMEC VALUE PACKAGE: Tool Presetter Auto Parts Catcher (2.8" diameter, 5.9" length, 6.6lbs weight capacity) Oil Skimmer Barfeeder Interface Air Blow for Main Spindle Manual Guide i Helical Interpolation Chip Conveyor - Side Discharge 145 PSI Coolant Pimp 1 Set of Hard Jaws 3 Sets of Soft Jaws 3 Color Tower Light FANUC OPTIONS: (Installed by Quan Le) Arbitrary Speed Threading function: $1275.00 Spindle Speed Variation function: $700.00
