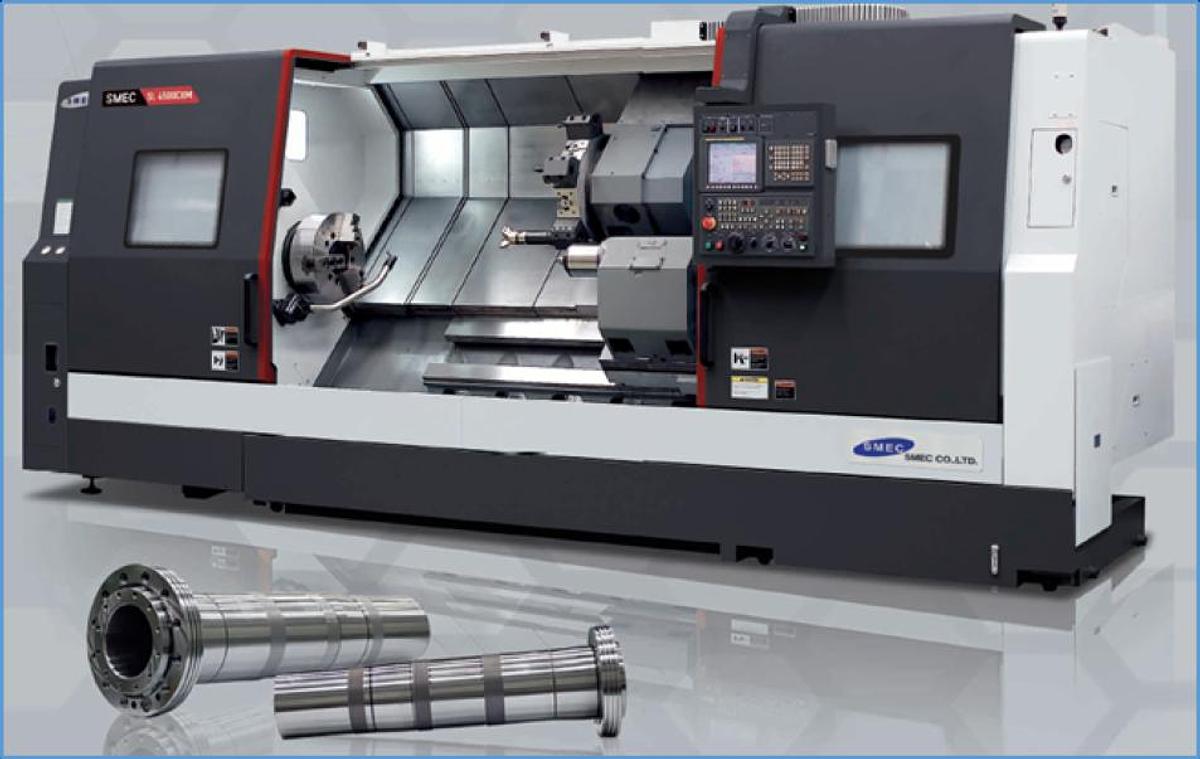

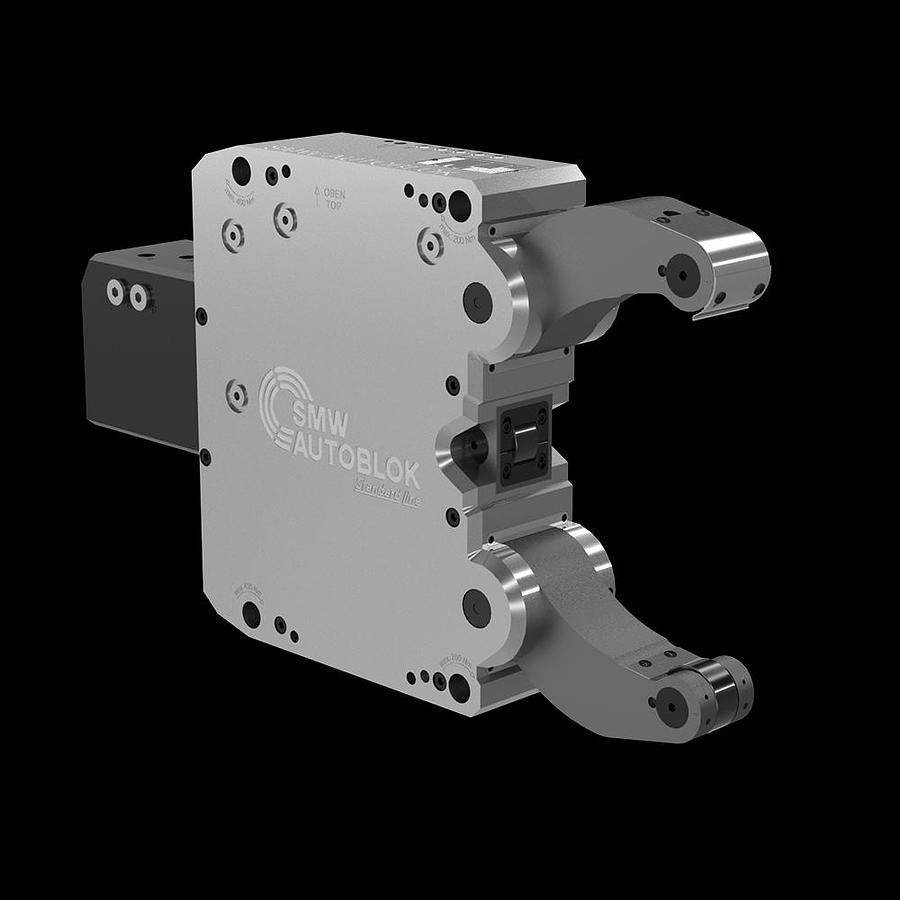

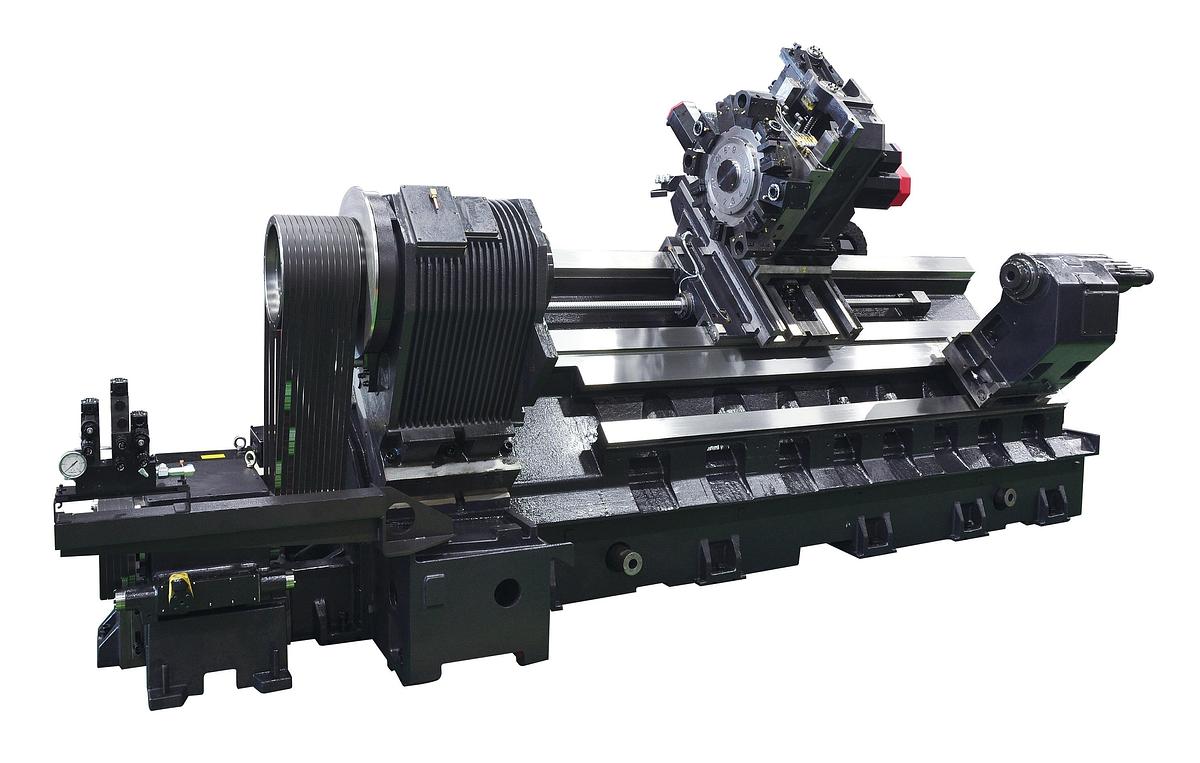

SMEC SL 4500CXM with Milling (2200)

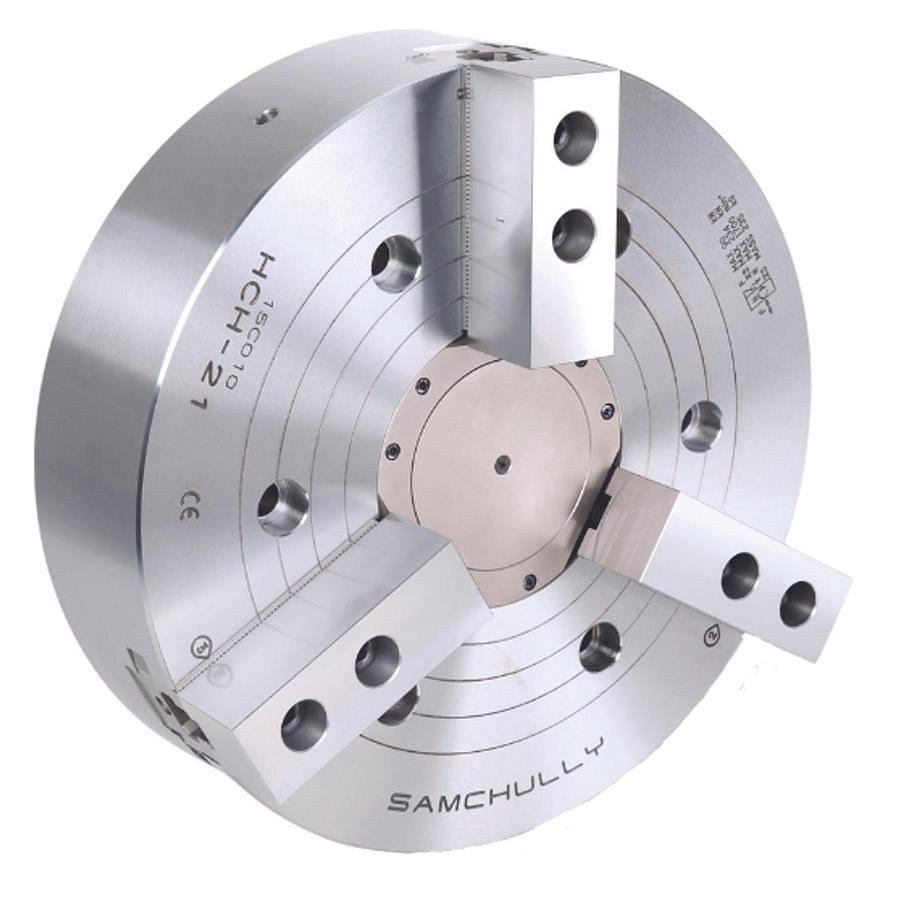

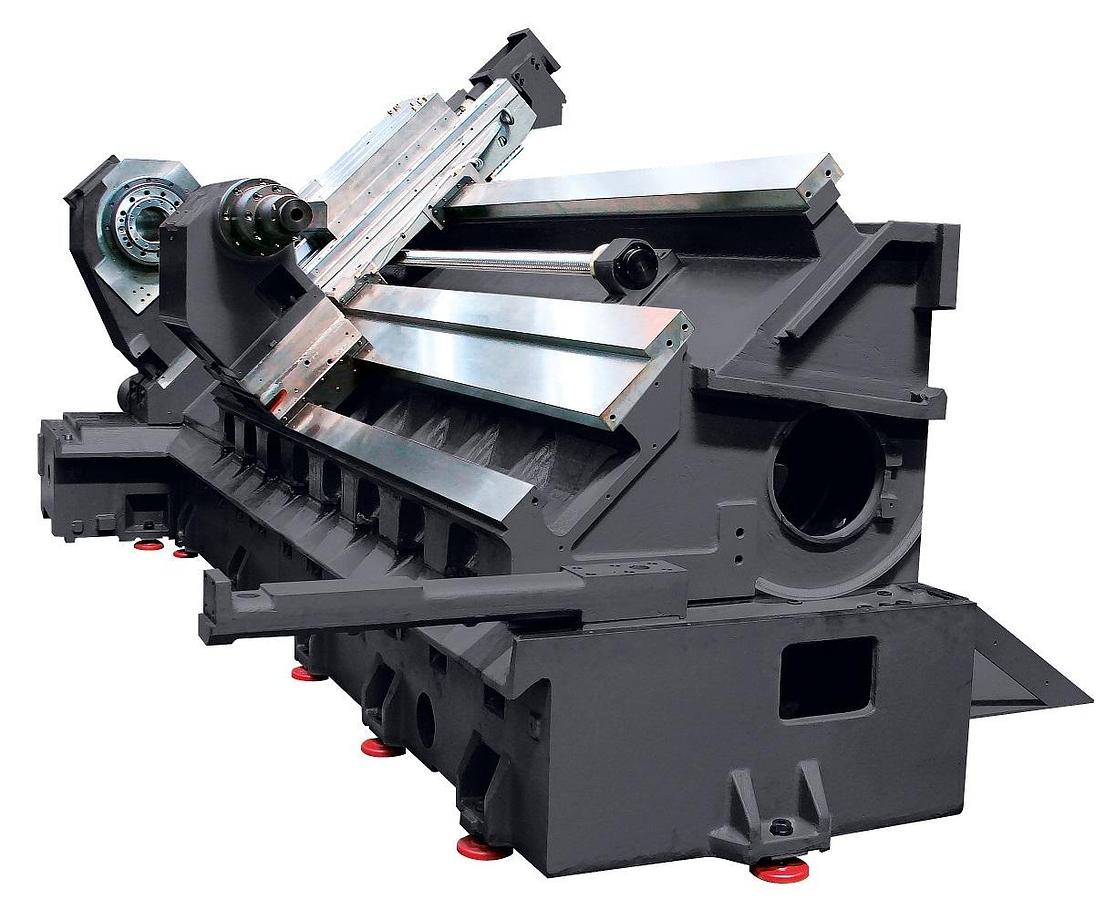

CAPACITY Swing over the bed 30.51" Swing over cross slide 24.90" Maximum turning diameter 24.41" Maximum milling diameter 28.03" Maximum turning length 88.78" MAIN SPINDLE Chuck size 24" Spindle nose A2-15 Main spindle motor (Max/Cont) 60 / 40 hp Spindle speed 1,200rpm Bore diameter 7.125" Draw tube ID 6.555" Spindle torque (Max.) 3,103.5 ft.-lbs. Spindle drive method 2 Speed gear box C axis minimum programmable angle 0.001 deg C axis position accuracy 0.0167 deg C axis repeatability �0.0056 deg BED, SLIDE & CARRIAGE X axis travel 13.78" Z axis travel 91.73" Rapid traverse (X/Z) 787 ipm / 709 ipm Guide ways (X/Y/Z) Box Way Bed Structure 45 deg slant bed Ballscrew diameter (X/Y/Z) 1.57" / 1.41" / 1.97" Axis feed thrust, Continuous (X/Z) 10,550 lbs. / 13,771 Repeatability (X / Z) �0.00008" / �0.00012" TURRET Number of tool stations 12 Tools (BMT75) Turret indexing speed (1 station) 0.2 Seconds Curvic coupling 3 Piece hyd clamp/Servo index Coupling diameter / Clamp force 9.96" / 18,524 lbs. Tool size (turning and facing) 1-1/4" Wedge clamp Tool size (boring bar max dia) 2-1/2" Rotating tool rpm 4,000 rpm Rotating tool spindle motor 10 hp Rotating tool spindle torque 35.5 ft-lbs. Turret index repeatability �0.00020" TAILSTOCK Tailstock center (taper) MT #5 (Built In) Dead Center Quill diameter 6.30" Quill travel (by hydraulic) 5.91" Maximum thrust of quill 7,062 lbs. COOLANT SYSTEM Coolant pump motor (Max 290 psi) 3 hp (145 psi) Coolant tank capacity 105 gal. System type Removable / Independent HYDRAULIC / LUBRICATION Hydraulic tank capacity 6.34 gal. Hydraulic oil required (or equal) ISO VG32 Way lubrication tank capacity 0.79 gal. Way lubrication oil required (or =) ISO VG68 MACHINE SIZE Floor Space Requirements (LxWxH) 257" x 85" x 93" Machine Weight 28,660 lbs. Power Consumption 60 kVA Voltage 220V�10%, 60 Hz, 3 phase CNC CNC Model Fanuc 0i-TF PLUS Display unit 15" TFT LCD Color Monitor 15" TFT LCD Color Monitor Equipped With:SMEC OPTION PACKAGE: Tool Presetter Programmable Tailstock (Body & Quill) Built-in Tailstock Bearings MT #5 Barfeeder Interface Manual Guide i Chip Conveyor - Side Discharge (2200) 145 PSI Coolant Pump* 1 Set of Hard Jaws 3 Sets of Soft Jaws 3 Color Tower Light CONTROL OPTIONS ADDED UPON INSTALLATION BY QUAN LE: Fanuc option - Arbitrary speed threading - A02B-0339-R672 - List Price : $ 975.00 Fanuc option - Spindle Speed Variation (requires modifaction to the Ladder) - $500 SMW Autoblok - SLU-X-4-Z STEADY REST CENTRAL LUBE.................$15,630.00 Self Centering Steady Rest - Centering Range without Chip Guard: U1 30MM U2 245MM - Maximum Axial Clearance Dia.: U3 253MM - Centering Range with Chip Guard 3-Piece U1 30MM U2 245MM - Maximum Clamping Force/Roller: daN 1500 SMW Autoblok Steady Rest Hydraulic Control Kit.................$4,160.00 SMW Autoblok Auto Oil Lube Unit...................$5,720.00 SMW Autoblok Installation (SMW Technician).................$2,500.00 FREIGHT: Freight on stock SL 4500CXM located in Harrison, NJ Warehouse...........$4,900.00
