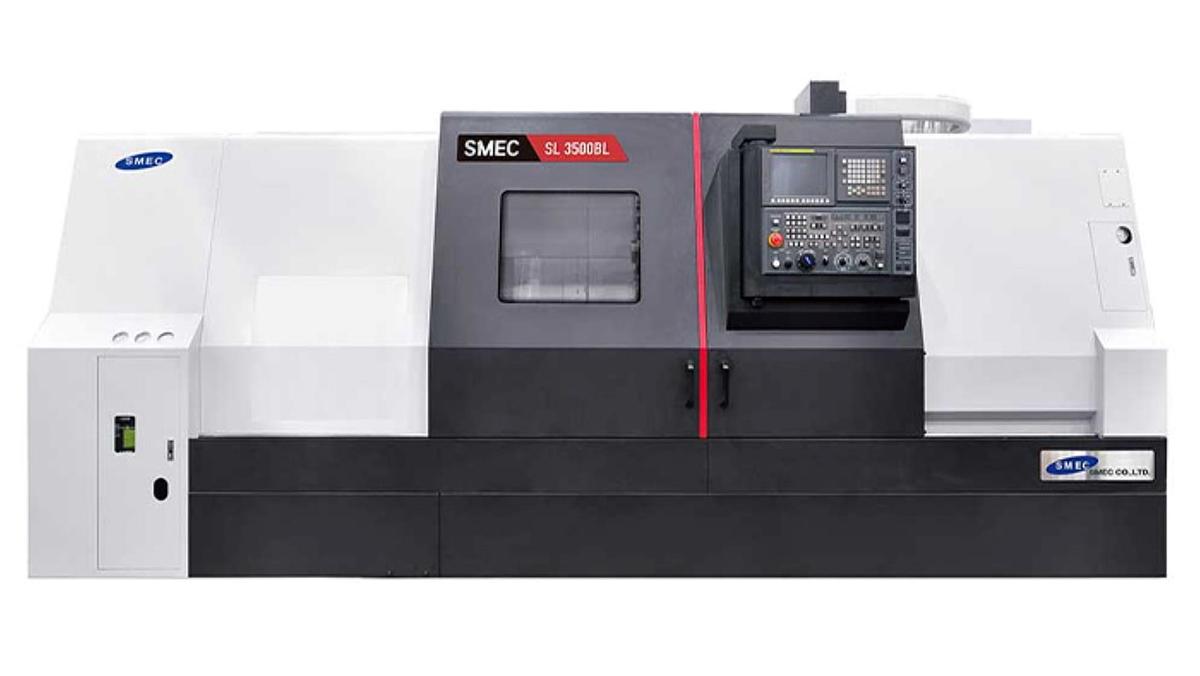

SMEC SL 3500BLM (15" Chuck with Live Tooling)

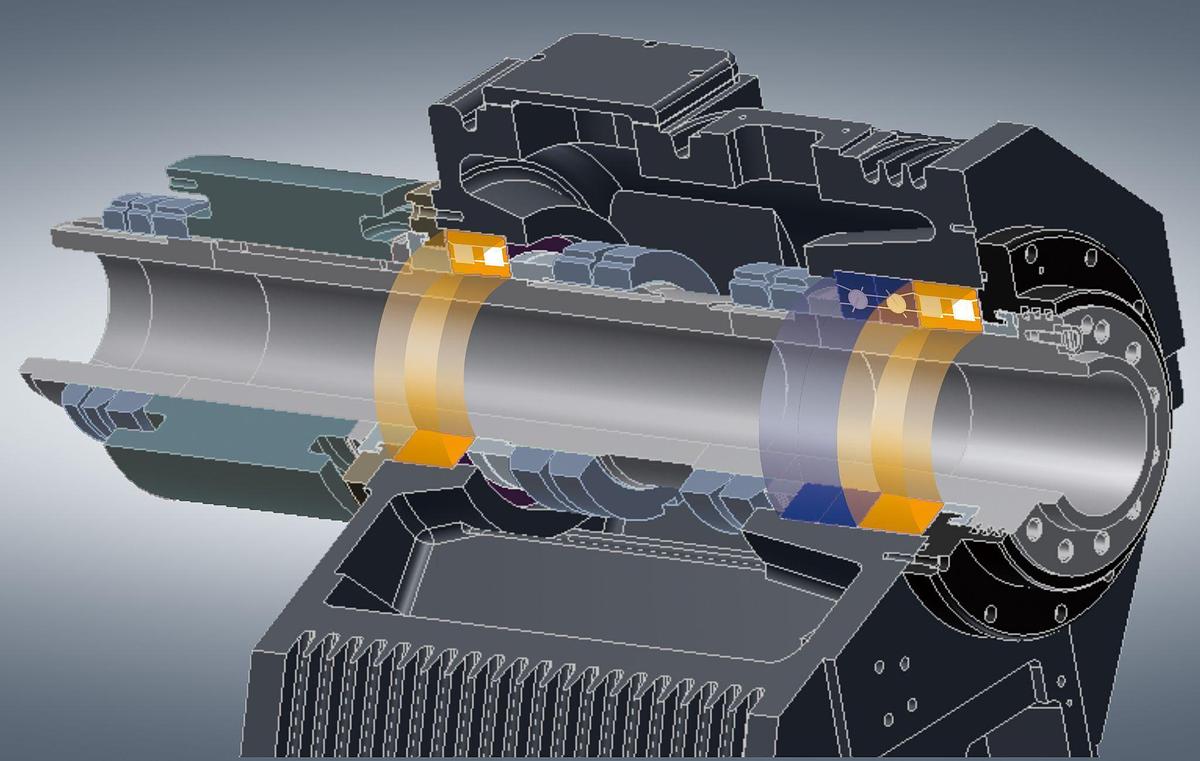

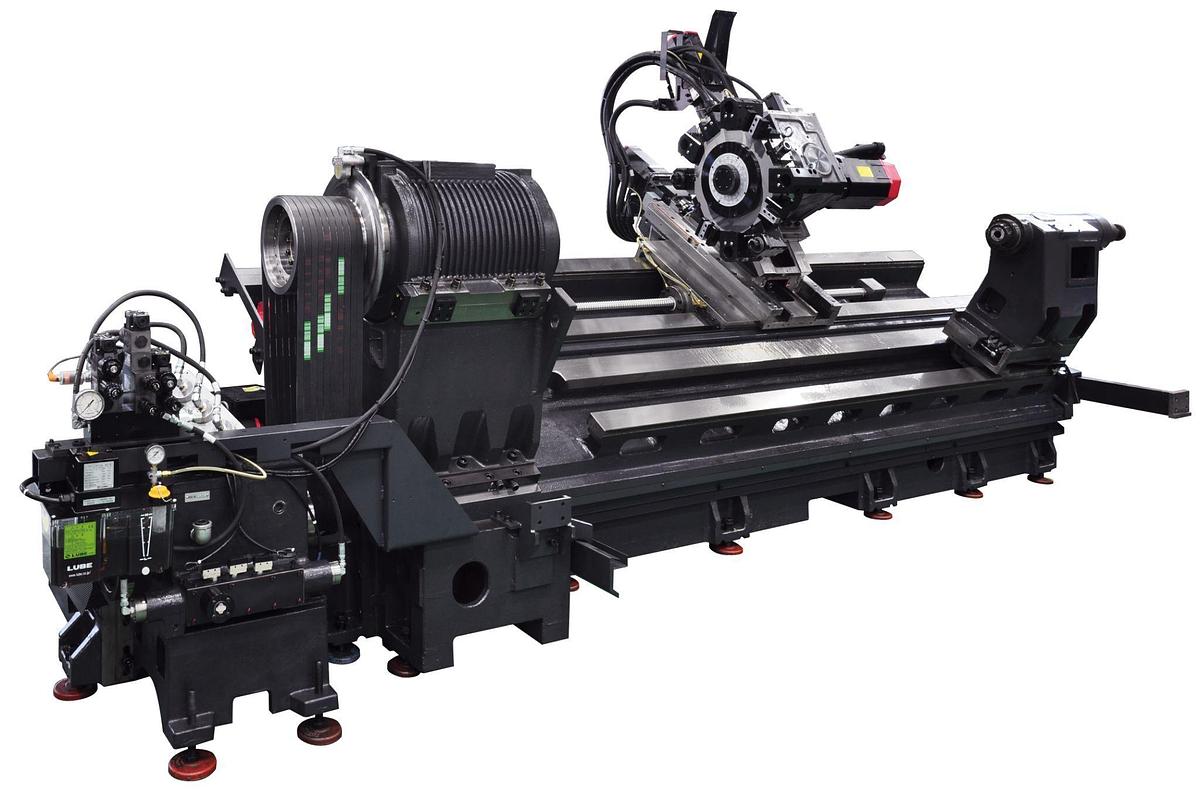

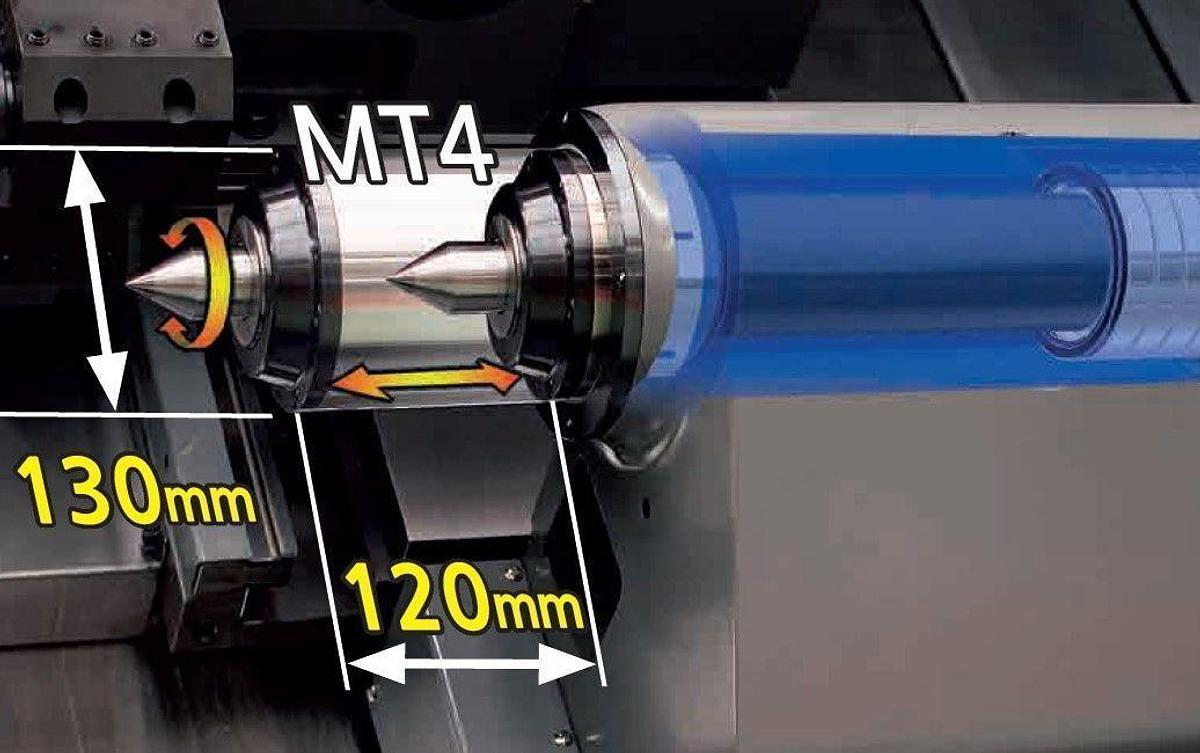

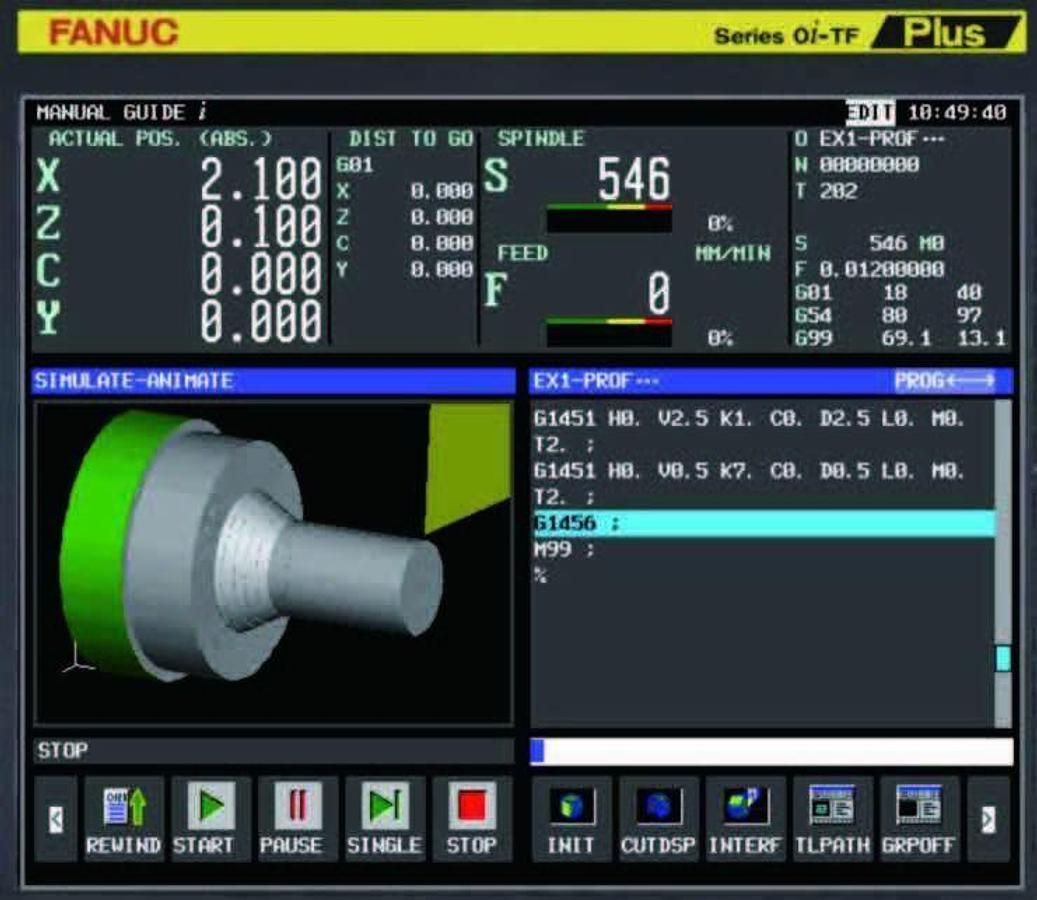

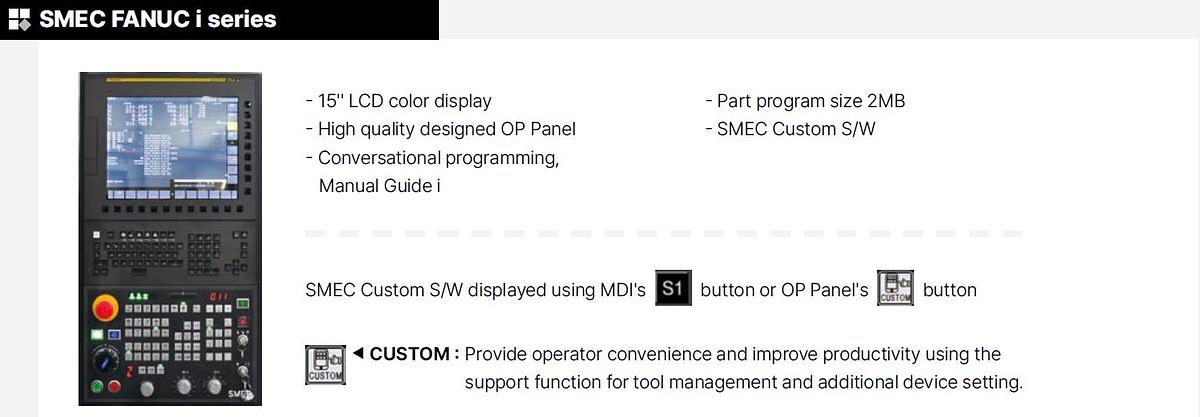

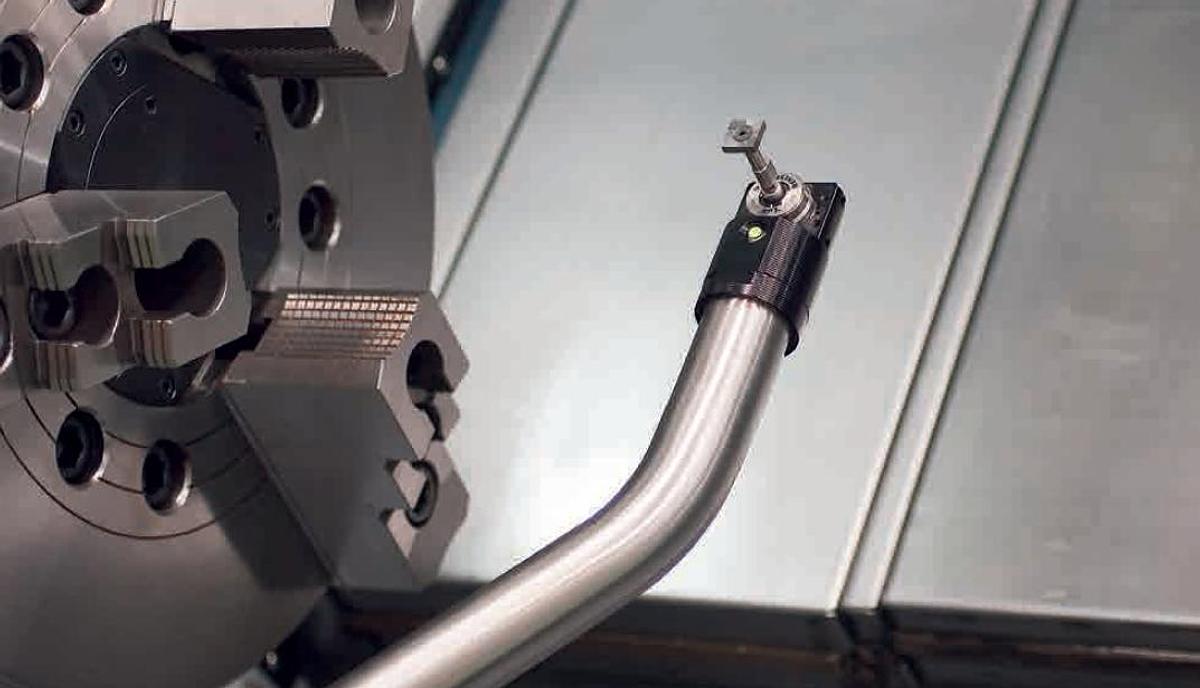

CAPACITY Swing over the bed 26.77" Swing over the cross slide 19.88" Maximum turning diameter 19.69" Maximum milling diameter 20.71" Maximum turning length 59.06" SPINDLE Chuck size 15" Spindle nose A2-11 (ASA) Main spindle motor (Max / Cont) 35/25 hp Spindle speed 2,000 rpm Bore diameter 5.20" Draw tube ID 4.63" Spindle torque (Max) 1,708.8 ft-lbs Spindle drive method 2 Speed gear box C axis minimum programmable angle 0.001 deg C axis position accuracy 0.0167 deg C-axis repeatability �0.0056 deg BED, SLIDE & CARRIAGE X axis travel 11.02" Z axis travel 62.01" Rapid traverse (X / Z) 787 ipm / 945 ipm Guide ways (X / Z) Box Way Bed structure 45-deg Slant bed Ballscrew diameter (X / Z) 1.42"/1.97" Max. Axis feed thrust (X / Z) 2,797 lbs / 3,814 lbs Repeatability (X / Z) �0.00008" / �0.00012" TURRET Number of tool stations 12 Turret indexing speed (1 station) 0.25 seconds Curvic coupling 3 Piece hyd clamp/index Curvic coupling dia / Clamp force 7.83" / 10,492lbs. Tool size (turning and facing) 1" �� Wedge clamp Tool size (boring bar maximum dia) 2" Rotating tool rpm 4,500 rpm Rotating tool spindle motor 7.5 hp Rotating tool spindle torque 27.7 ft-lbs. Turret index repeatability �0.00012" TAILSTOCK Tailstock center (taper) MT #4 Built-in Quill diameter 5.12" Quill travel (by hydraulic) 4.72" Maximum thrust of quill 4379lbs (at 45bar) COOLANT SYSTEM Coolant pump motor 3hp (145 psi) Coolant tank capacity 79 gal. System type Removable / Independent HYDRAULIC / LUBRICATION Hydraulic tank capacity 5.28 gal. Hydraulic oil required (or equal) ISO VG32 Way lubrication tank capacity 0.48 gal. Way lubrication oil required (or =) ISO VG68 MACHINE SIZE Floor space requirements (L x W) 233" x 74.8" Machine weight 20,944 lbs. Power consumption 45 kVA Voltage 220V �10%, 60 Hz, 3 phase CNC CONTROL CNC model Fanuc 0i-TF PLUS Display unit 15" TFT LCD Color Monitor SHIPPING DIMENSIONS 213 x 88 x 96 in, 22,487 lbs Equipped With:STANDARD Tool presetting system (tool presetter) - Tool set-up / Tool wear compensation Chip and coolant splash guarding (full coverage) Machine work light Chip and coolant splash guarding (full coverage) 15 Inch diameter hydraulic thru-hole chuck package: 12 Station turret Full Contouring C-Axis Lubrication system Rigid tapping on main spindle Chuck foot switch Front door interlock Hydraulic pressure interlock from main hydraulic line Foundation kit (plates only) One (1) set of adjusting tools Machine Manuals: one (1) each (Electric Diagram, Maintenance, Parts List, Operation / Maintenance) Fanuc Manuals: one (1) each (Manual Guide i, Operations, Parameter, Maintenance, Operators volumes 1 and 2) in USB SMEC A PACKAGE: Oil Skimmer Programmable Tailstock (Body & Quill) Built-in Tailstock Bearings MT #4 Barfeeder Interface Manual Guide i Z-Axis HP Upgrade with 3,814 lbs. Continuous Thrust Chip Conveyor - Side Discharge 145 PSI Coolant Pump* 1 Set of Hard Jaws 3 Sets of Soft Jaws 3 Color Tower Light
