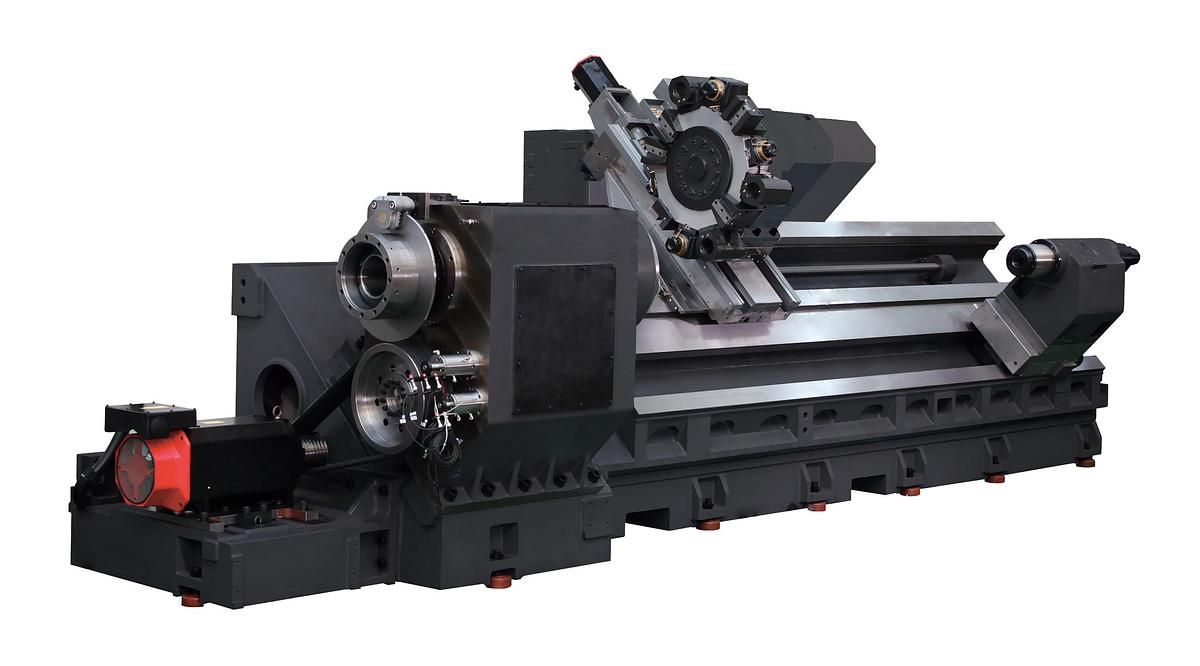

SMEC SL 6500CX (14.37" Thru-Hole)

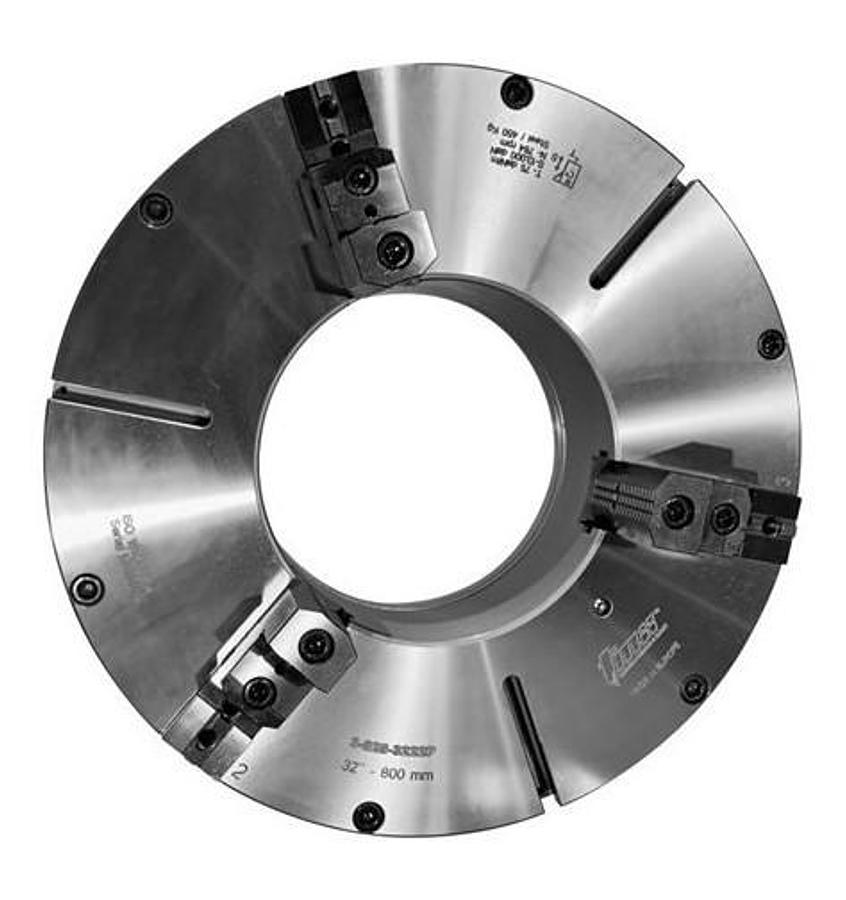

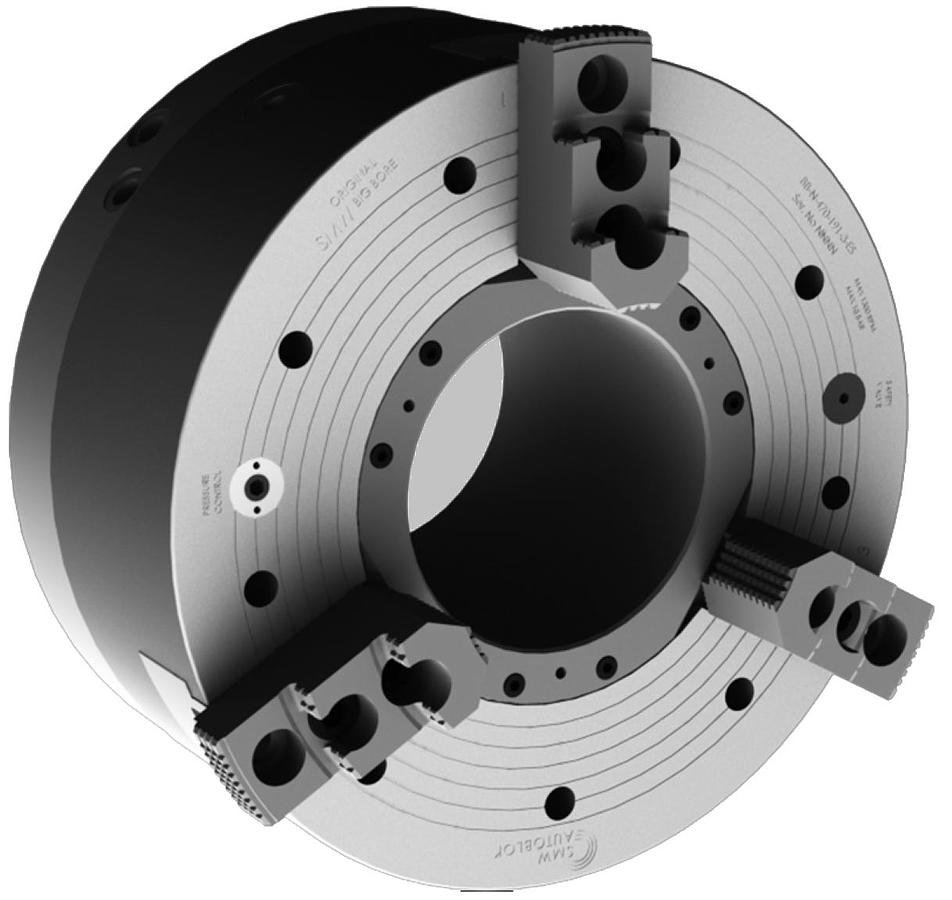

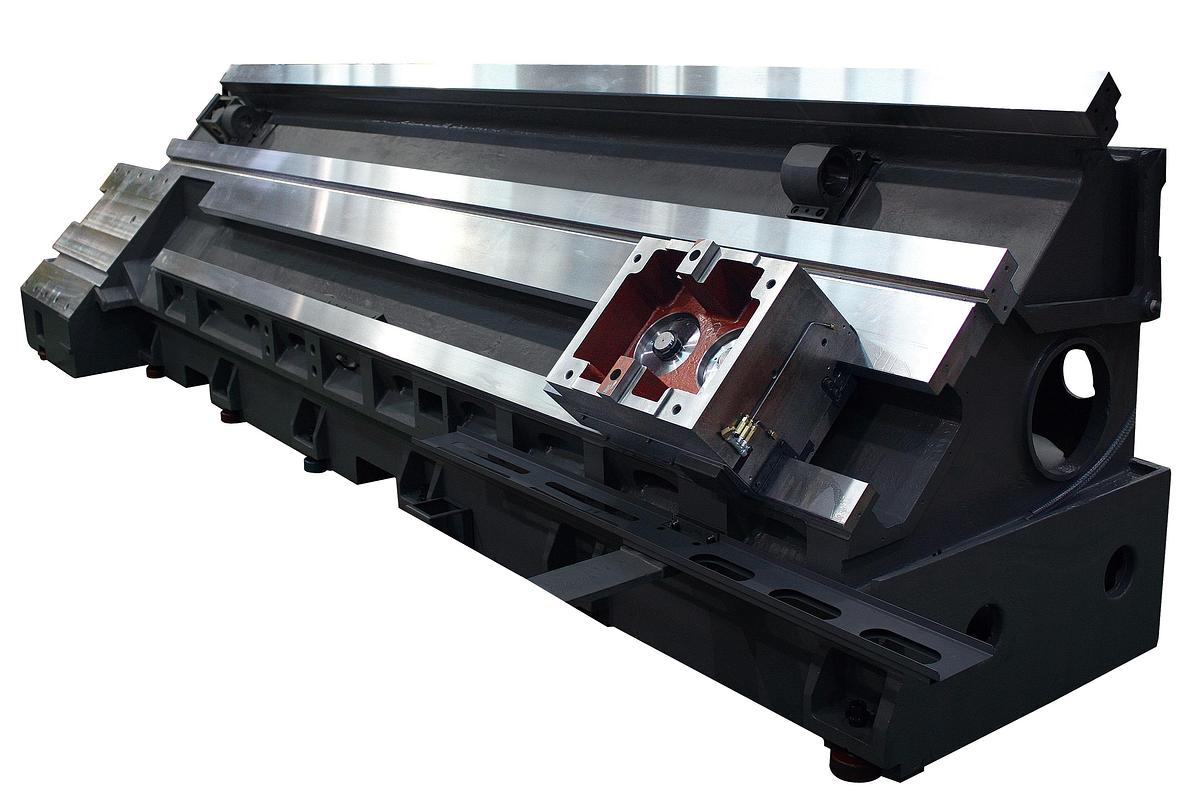

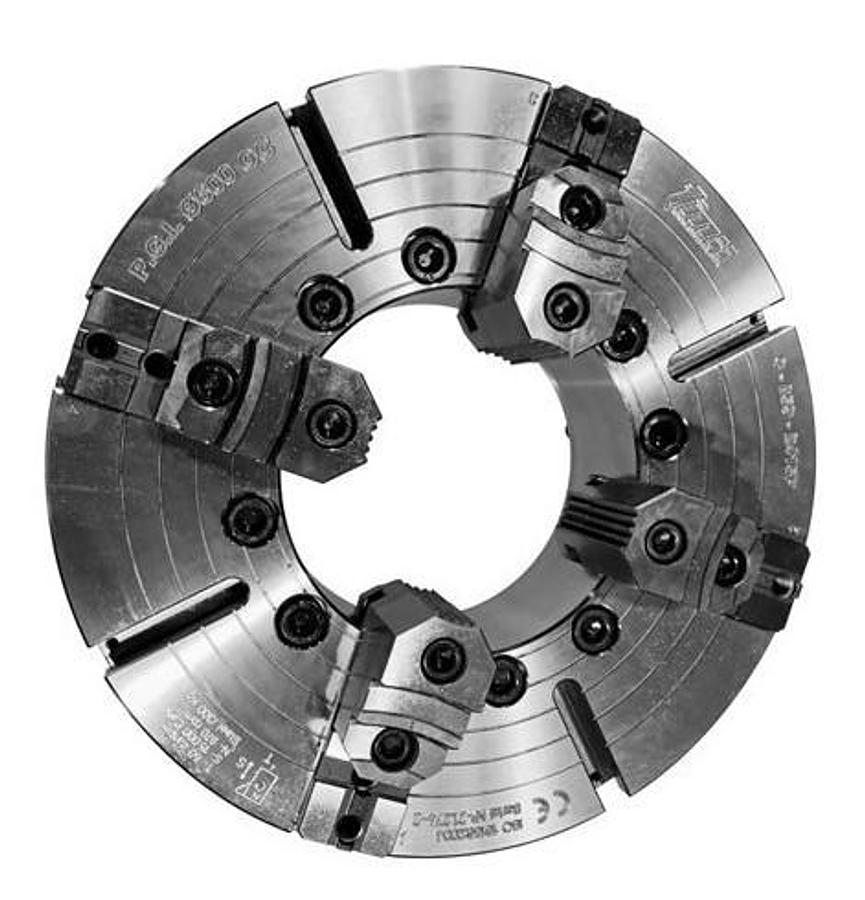

CAPACITY Swing over the bed 40.55" Swing over the cross slide 31.50" Maximum turning diameter 35.43" Maximum turning length 76.77" SPINDLE Chuck size No Chuck [32" (option)] Spindle nose A2-20 Main spindle motor (Max / 30min.) 60 / 50 hp Spindle speed 300 rpm (w/32" chuck) Bore diameter (BB) 14.37" Spindle torque (Max) 5,965.7 ft.-lbs. Spindle drive method 2 Step gear box Maximum spindle indexing angle 0.001� BED, SLIDE & CARRIAGE X axis travel 18.50" Z axis travel 80.71" Rapid traverse (X) 472 ipm Rapid traverse (Z) 590.55 ipm Guide ways (X / Z) Box Ways Bed Structure 45� Slant bed Ballscrew diameter (X / Z) 1.97" / 2.48" Axis feed thrust, Max. (X / Z) 10,550 lbs. / 13,771 lbs. Repeatability (X / Z) �0.00008" / �0.00012" TURRET Number of tool stations 12 Tools Turret indexing speed (1 station) 0.25 seconds Turret driving 3 Piece hyd clamp / Servo index Tool size (turning and facing) 1.25" �� Wedge clamp Tool size (boring bar max) 3" Turret index repeatability �0.00039" TAILSTOCK Tailstock center (taper) MT #6 (Built-in) Quill diameter 7.09" Quill travel (by hydraulic) 5.91" Tailstock travel 41.34" Maximum thrust of quill 14,397 lbs. MACHINE SIZE Floor space for 2000 284" x 109" x 102" Machine weight 2000 44,092 lbs. Power consumption 65 kVA Voltage 220V�10%, 60 Hz, 3 phase CNC CNC model Fanuc 0i-TF PLUS Display Unit 15" TFT LCD Color Monitor Equipped With:STANDARD EQUIPMENT Tool presetting system (tool presetter) - Tool set-up / Tool wear compensation Machine work light Chip and coolant splash guarding (full coverage) Programmable tailstock (programmable tow-along tail body and programmable quill) 12 Station turret. Lubrication system Rigid tapping on main spindle Chuck foot switch Front door interlock Hydraulic pressure interlock from main hydraulic line Foundation kit (plates only) One (1) set of adjusting tools Machine Manuals: One (1) each (Electric, Diagram, Maintenance, Parts List, Operation / Maintenance) Fanuc Manuals: One (1) each (Manual Guide i, Operations, Parameter, Maintenance, Operators volumes 1 and 2) in USB 145 PSI Coolant Pump Programmable Tailstock (MT #6) Chip Conveyor - Side Discharge Air Chuck Prep Package Manual Guide i
