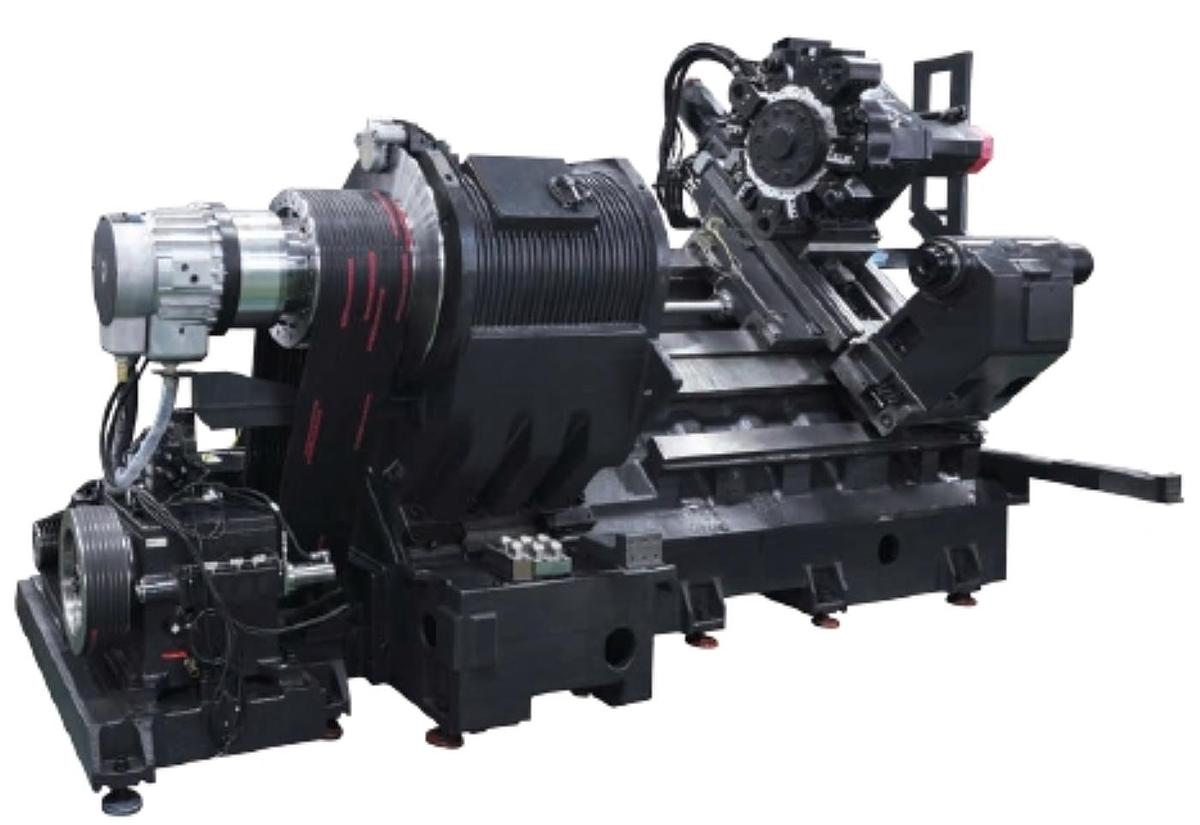

SMEC SL 5500C CNC Lathe (10.8" Thru Hole)

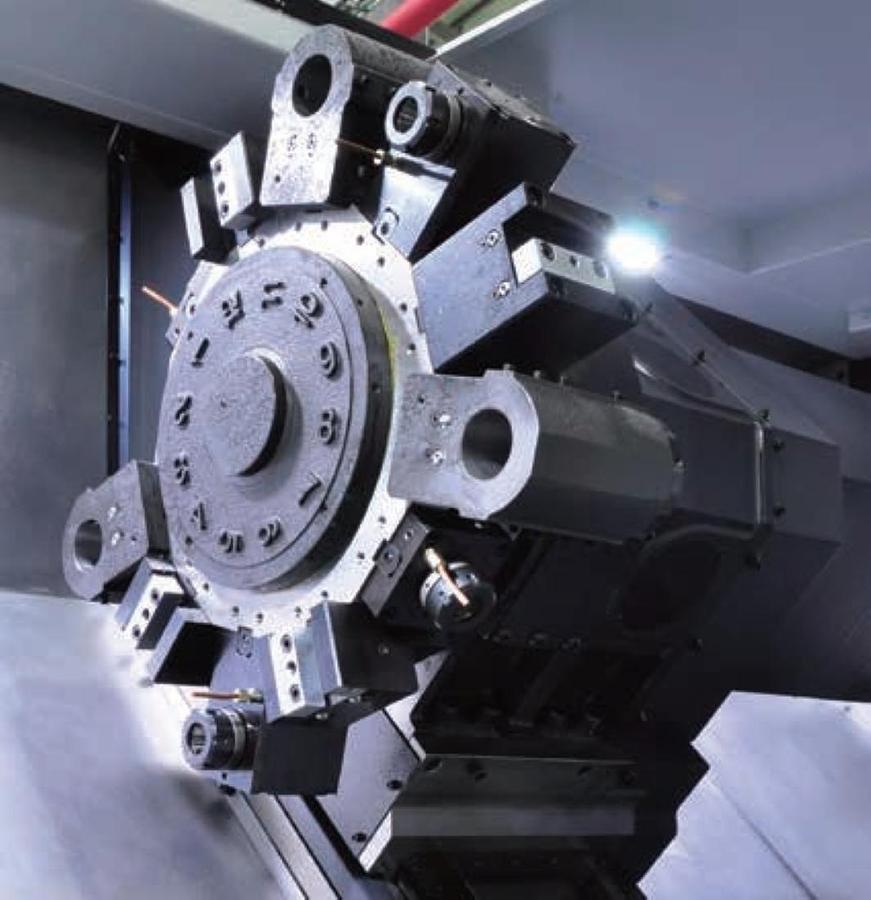

CAPACITY Swing over the bed 35.43" Swing over the cross slide 31.49" Maximum turning diameter 27.17" Maximum turning length 43.19" SPINDLE Chuck size Up to 32" (No Chucks Included) Spindle nose A2-20 Main spindle motor (Max / 30min.) 74 / 50 hp Spindle speed 1,000 rpm Bore diameter 10.83" Draw tube ID No Draw Tube Spindle torque (Max) 4,081 ft-lbs. Spindle drive method 2-Speed gear BED, SLIDE & CARRIAGE X axis travel 14.57" Z axis travel (1000) 44.49" Rapid traverse ipm (X / Z) 787 / 787 Guide ways (X / Z) Box Way Bed structure 45-deg Slant bed Ballscrew diameter (X / Z) 1.57" / 1.97" Axis feed thrust, Continuous (X / Z) 4,767 lbs. / 4,831 lbs. Repeatability (X / Z) +0.00008" / +0.00012" TURRET Number of tool stations 12 Tools (12) OD (12) ID Turret indexing speed (1 station) 0.25 seconds Curvic coupling 3 Piece hydraulic clamp / Servo index Curvic coupling diameter / Clamp force 12.60" / 35,812 lbs. Tool size (turning and facing) 1.25" - Wedge clamp Tool size (boring bar maximum diameter) 3" TAILSTOCK Tailstock center (taper) MT#5 (Built-in) Quill diameter 6.30" Quill travel (by hydraulic) 5.91" Maximum thrust of quill 3,924 lbs. COOLANT SYSTEM Coolant pump motor (1.2 hp / 65 psi) 3 hp (145 psi) [value package]* Coolant tank capacity 97.74 gal. System type Removable / Independent HYDRAULIC / LUBRICATION Hydraulic tank capacity 7.93 gal. Hydraulic oil required (or equivalent) ISO VG32 Way lubrication tank capacity 0.79 gal. Way lubrication oil required (or equivalent) ISO VG68 MACHINE SIZE Floor space requirements (L x W x H) 238" x 86" x 92" Machine weight 34,171 lbs. Power consumption 62 kVA / 71 kVA Voltage 220V�10%, 60 Hz, 3 phase CNC CNC model Fanuc 0i-TF PLUS Display unit 15" TFT LCD Color Monitor SL5500C SHIPPING DIMENSIONS (L x W x H, Weight) Crate #1 (Machine) 217" x 91" x 101" (38,581 lbs.) Equipped With:STANDARD EQUIPMENT Tool presetting system (tool presetter) - Tool set-up / Tool wear compensation Machine work light Chip and coolant splash guarding (full coverage) Programmable tailstock (programmable tow-along tail body and programmable quill) Big Bore (C): No chuck, no hydraulic cylinder 12 Station turret + (Capable & ready for 1,000psi through-turret coolant) Lubrication system Rigid tapping on main spindle Chuck foot switch Front door interlock Hydraulic pressure interlock from main hydraulic line Foundation kit (plates only) One (1) set of adjusting tools Machine Manuals: one (1) each (Electric Diagram, Maintenance, Parts List, Operation / Maintenance) Fanuc Manuals: one (1) each (Manual Guide i, Operations, Parameter, Maintenance, Operators volumes 1 and 2) in USB SMEC SL 5500C / 1000 (No Hydraulic chuck or cylinder) Coolant Collector for rear Chuck prep. SMEC A PACKAGE: Tool Presetter Oil Skimmer Programmable Tailstock (Body & Quill) Built-in Tailstock Bearings MT #5 Manual Guide i Chip Conveyor - Side Discharge 145 PSI Coolant Pump SMW AutoBlok Pneumatic Chucks: (24" with 10.8" hole...Extended Stroke) -BB-N-ES 600-275 3J PBZ450 $44,400.00 x2 = $88,800.00 Through Hole: 275mm (10.82") Jaw Stroke: 25.4mm (1") Rapid Stroke: 16.9mm Clamping Stroke: 8.5mm Min/Max Op Pressure: 2/10 bar Grip Force at 6 Bar: 185kn Max Speed: 1100rpm -Front Chuck Adapter - $6,380.00 -Front Chuck DRMB 600 - $7,100.00 -Engineered Spacer (if required) - $1,500.00 -Rear Chuck Adapter - $8,700.00 (Includes all necessary mounting hardware) -Rear Chuck DRMB - $9,000.00 -Air Control BBN Chucks $4,880.00 Includes: Air /Oil Lubrication Regulator Timer Solenoid Electrical Wiring Pneumatic Air Lines and Couplers Mounted on a Panel Machine Requirements: Machine must be fully installed Auxiliary Air Line with 100 PSI Must have OEM chucking interface that supports two chucks 2 Sets of Foot Pedal or Push Buttons to operate the chuck QTY 4 M-codes open/close Note: If your application requires chuck open/close confirmation signal and or pneumatic pressure confirmation signal to be integrated into the chuck control please request the ACU-2000 Air control section of this quote. -Double Chuck Install $5,200.00 Fixed Installation Charge Includes: All Labor, Transportation, Car Rental, Lodging, and Meal Expenses (Distance Calculated for Houston, TX) TOTAL FOR CHUCKS: $129,360.00 **DELIVERY: 10-12 WEEKS OR SOONER AFTER PLACING ORDER.** (Alternative Manual Chucks) (1) TMX 3-825-2520P - 3 Jaw, 25" Diameter, A2-20, Forged Steel, Extra Heavy Duty, Oil County, Self Centering, Manual Scroll Lathe Chuck, 12.59" Through Hole (Bore), Max Gripping Force 12500 (daN), American Standard Tongue and Grove 2-Piece Hard Jaws, M24x3x150mm Mounting Bolts, 970 RPM ($24,444.00) (1) TMX 3-859-2420P - 4 Jaw, 24" Diameter, A2-20, Forged Steel, Extra Heavy Duty, Oil County, Manual Independent Lathe Chuck, 12.6" Through Hole (Bore), Max Gripping Force 3750 (daN), American Standard Tongue and Grove 2-Piece Hard Jaws, M24x3.0x170mm Mounting Bolts, 1019 RPM ($12,825.00)
