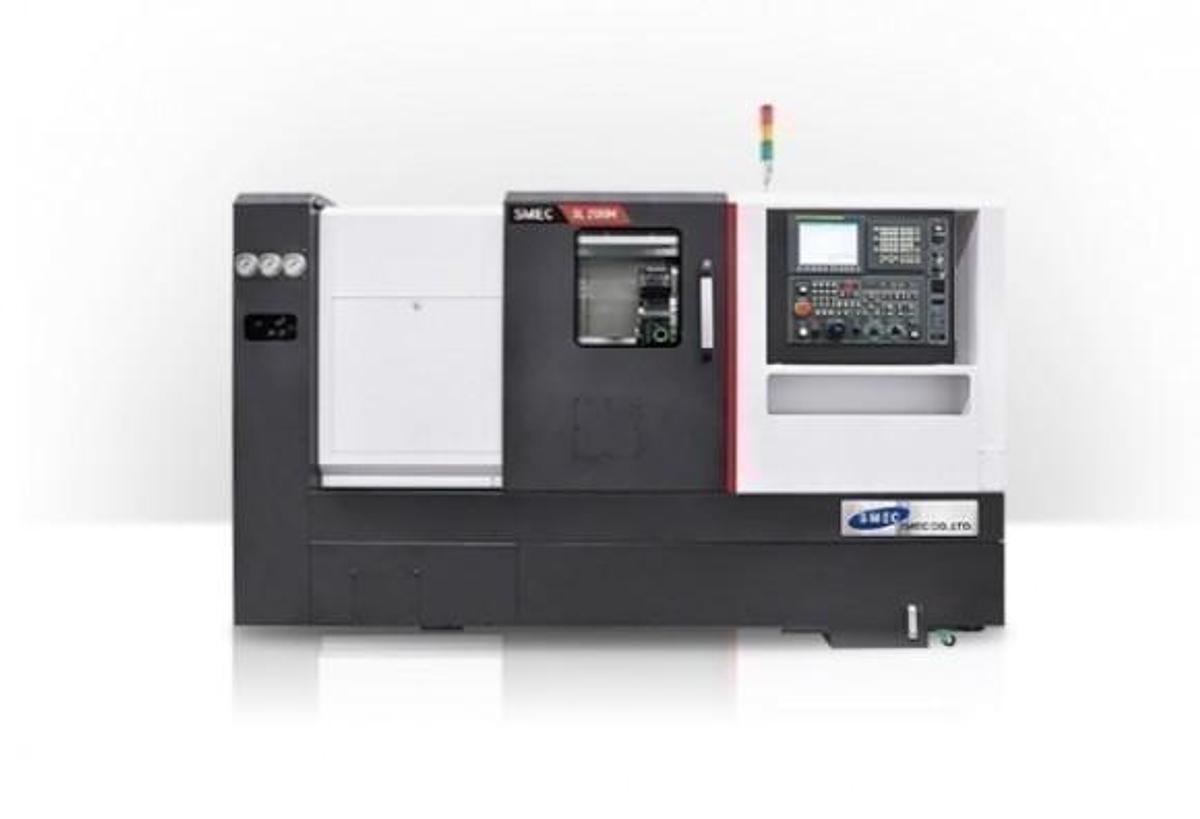

2023 SMEC SL 3000X[M]B Box Guide Type Turning Center

2023 SMEC SL 3000X[M]B Box Guide Type Turning Center

or
Call 213-393-6196

Description

Capacity Chuck size (inch) 12 Max Turing Dia. (mm) 430 [405] Max bar working Dia. (mm) 90 Max Turning Length (mm) 808 [736] Swing Over Bed(mm) 650 Travel Travels (mm) X: 245 / Y: / Z: 880 [820] Rapid Travels Rate (X/Y/Z) X: 24 / Y: / Z: 30 Spindle Spindle Speed (RPM) 3000 Spindle Motor (Cont./Max.) (KW) 18.5 / 26 Draw Tube ID (mm) 91 Turret Number of Tool 12 (24) [BMT65] Machine Size Length (mm) 3430 Height (mm) 1610 Width (mm) 1937 Weight (kgf) 5900 (): Option / []: Mill type Equipped With:

Specifications

ManufacturerSMEC
ModelSL 3000X[M]B
Year2023
ConditionNew
