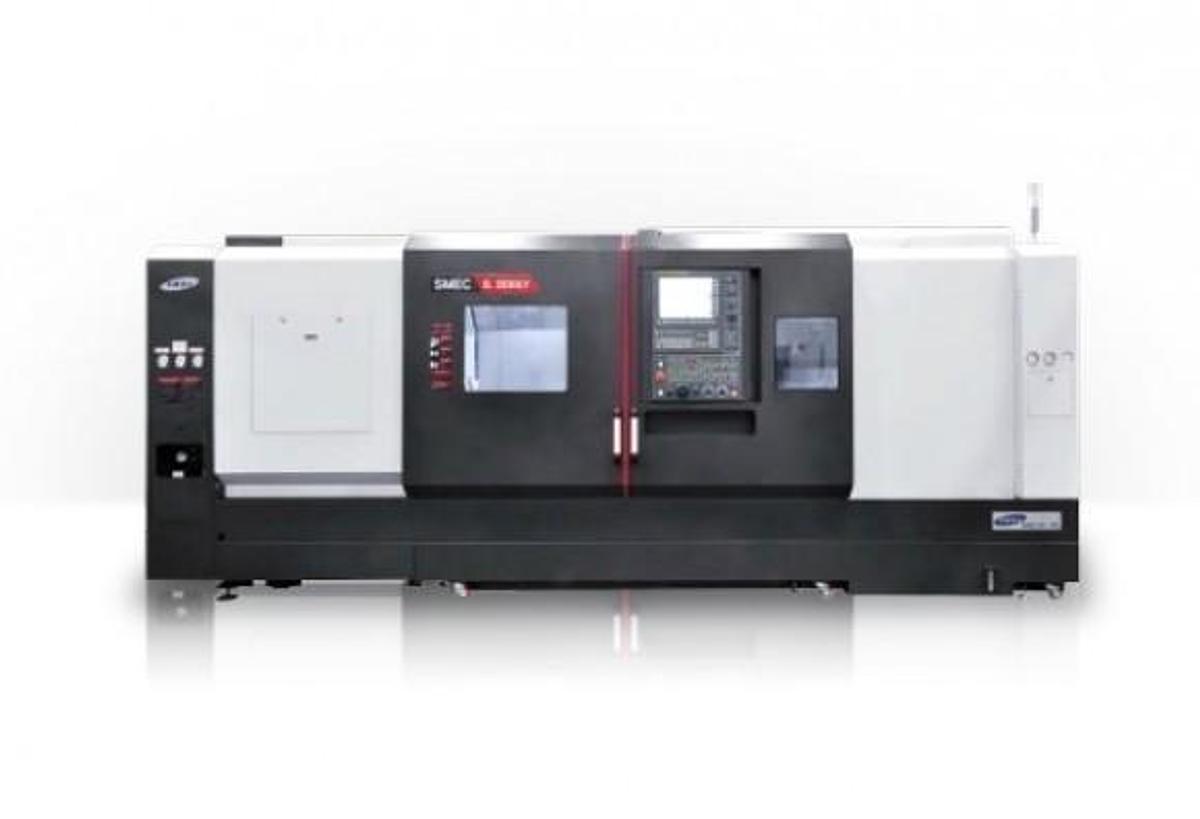

2023 SMEC SL 3500L[M]B Box Guide Type Turning Center

2023 SMEC SL 3500L[M]B Box Guide Type Turning Center

or
Call 213-393-6196

Description

Capacity Chuck size (inch) 15 Max Turing Dia. (mm) 500 Max bar working Dia. (mm) 116.5 Max Turning Length (mm) 1530 [1500] Swing Over Bed(mm) 680 Travel Travels (mm) X: 280 / Y: / Z: 1605 [1575] Rapid Travels Rate (X/Y/Z) X: 20 / Y: / Z: 24 Spindle Spindle Speed (RPM) 2000 Spindle Motor (Cont./Max.) (KW) 18.5 / 26 Draw Tube ID (mm) 117.5 Turret Number of Tool 10 (12) [BMT65] Machine Size Length (mm) 5079 Height (mm) 1885 Width (mm) 2130 Weight (kgf) 9400 (): Option / []: Mill type Equipped With:

Specifications

ManufacturerSMEC
ModelSL 3500L[M]B
Year2023
ConditionNew
