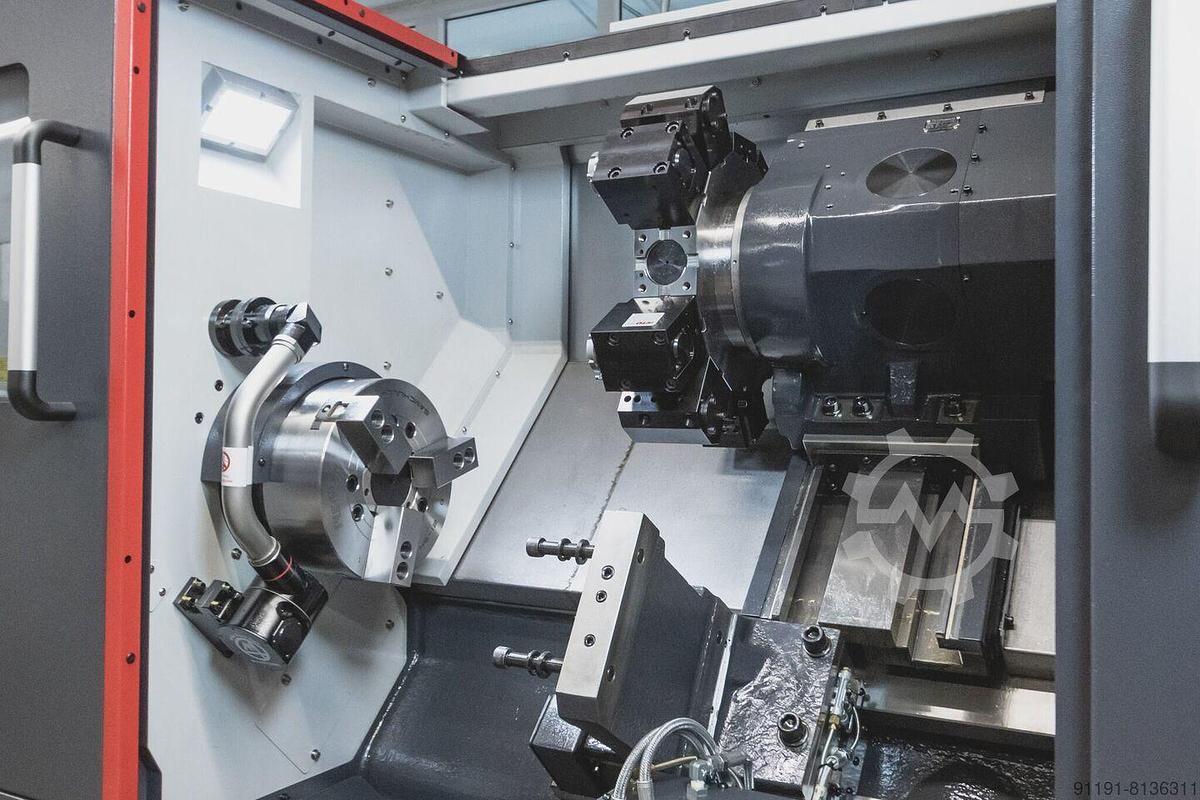

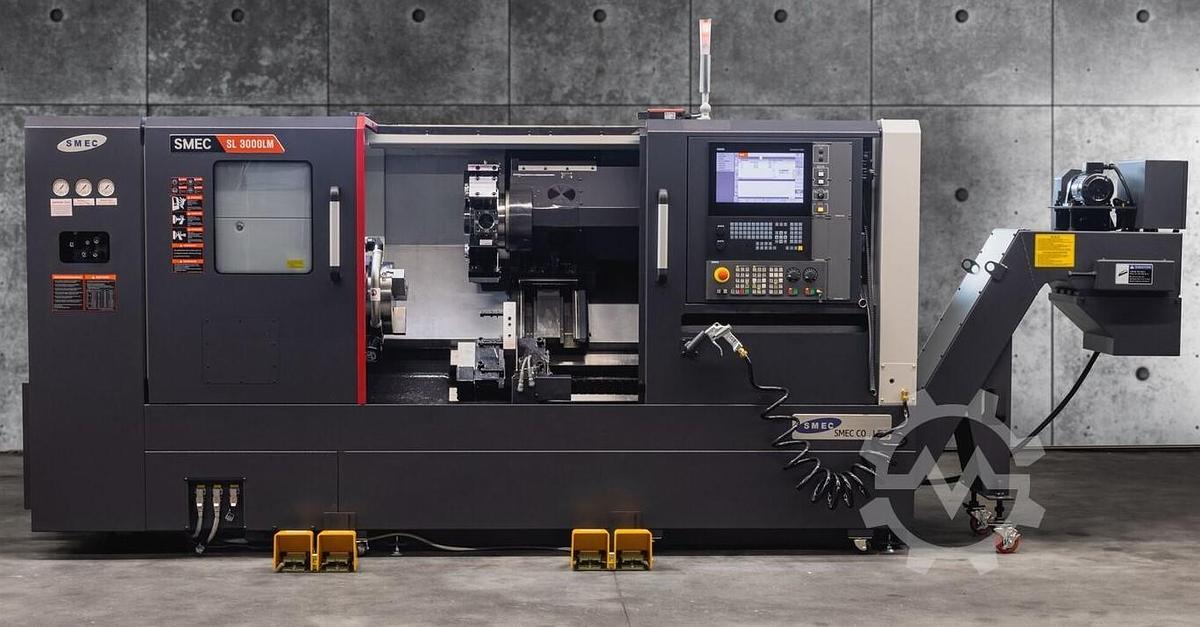

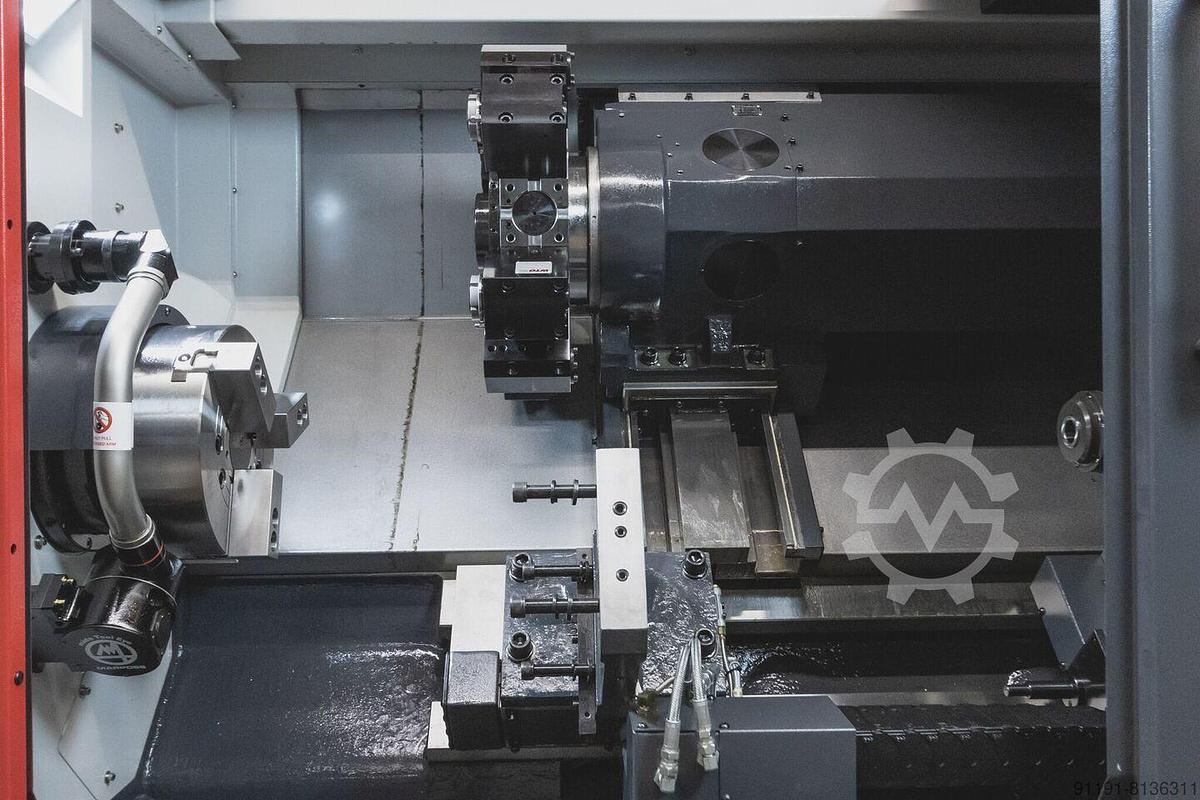

SMEC SL 3000BLM CNC Turning Center with Live Tooling

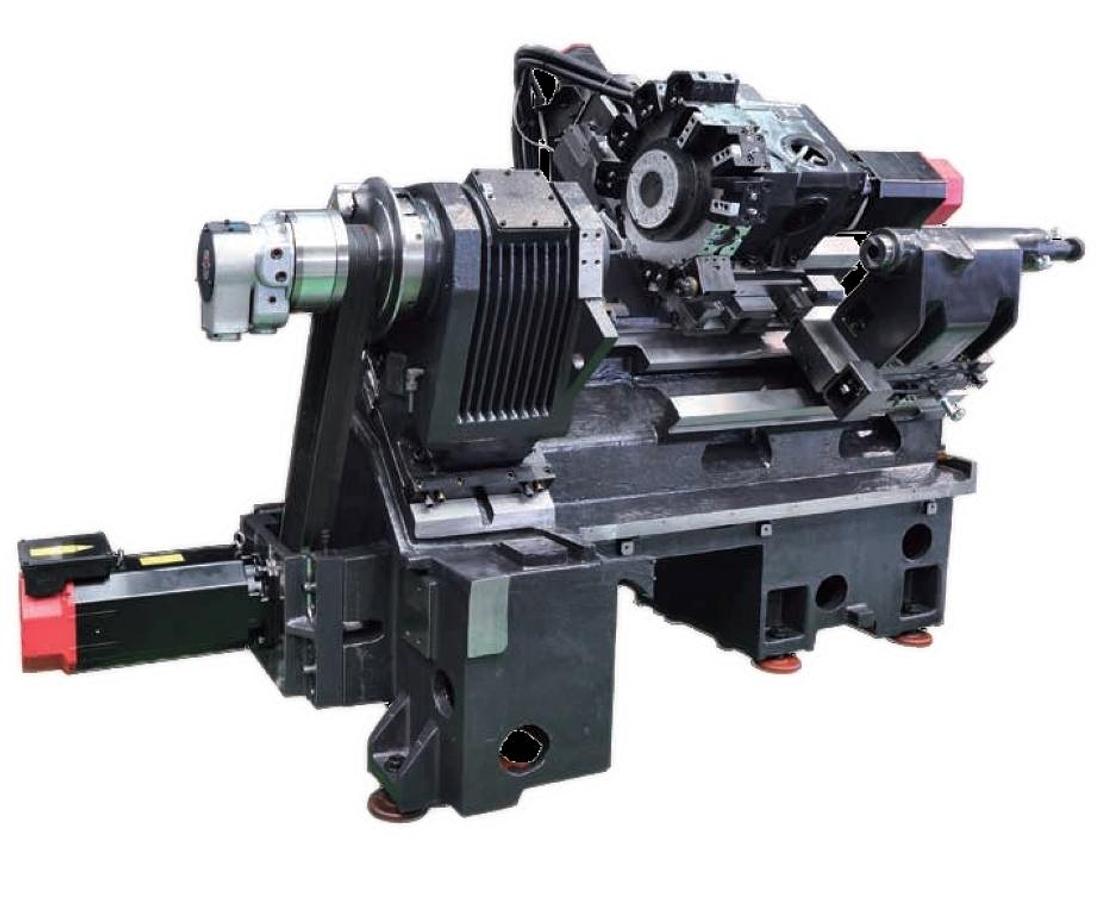

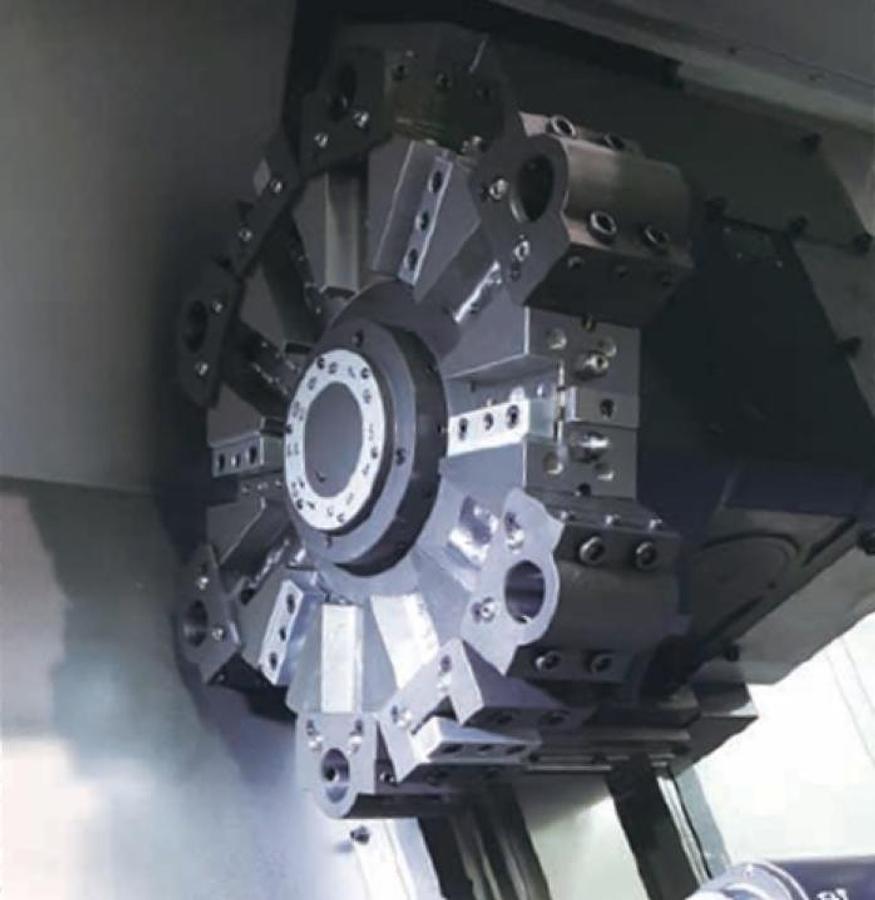

CAPACITY Swing over the bed 25.59" Swing over the cross slide 18.89" Maximum turning diameter 15.94" Maximum turning length 37.63" Maximum milling diameter 17.05" MAIN SPINDLE Chuck size 12" Spindle nose A2-8 (ASA) Main spindle motor (Max / 30min) 35 / 25 hp Spindle speed 3,000 rpm Bore diameter 4.13" Draw tube ID 3.58" Spindle torque (Max) 632 ft-lbs Spindle drive method Belt C axis minimum programmable angle 0.001 deg C axis position accuracy 0.0167 deg C-axis repeatability �0.0056 deg BED, SLIDE & CARRIAGE X axis travel 9.64" Z axis travel 40.94" Rapid traverse (X / Z) 945 ipm / 1181 ipm Guide ways (X / Z) Box Way Bed structure 45-deg Slant bed Ballscrew diameter (X / Z) 1.10" / 1.57" Axis feed thrust, Continuous (X / Z) 2,797 lbs. / 2,331 lbs. Repeatability (X / Z) �0.00008" / �0.00012" TURRET Number of tool stations 12 (24) Tools (BMT65) Turret indexing speed (1 station) 0.2 Seconds Curvic coupling 3 Piece hyd clamp /Servo index Coupling diameter / Clamp force 7.05" / 10,438 lbs. Tool size (turning and facing) 1" �� wedge clamp Tool size (boring bar maximum diameter) 1.96" Rotating tool rpm 5,000 rpm Rotating tool spindle motor 7.5 hp Rotating tool spindle torque 25.8 ft-lbs. Turret index repeatability �0.00012" TAILSTOCK Tailstock center (taper) MT #4 (Built In) Quill diameter 4.33" Quill travel (by hydraulic) 3.93" Maximum thrust of quill 2,220 lbs. COOLANT SYSTEM Coolant pump motor (145 psi) Coolant tank capacity 58.1 gal System type Removable / Independent HYDRAULIC / LUBRICATION Hydraulic tank capacity 3.7 gal Hydraulic oil required (or equivalent) ISO VG32 Way lubrication tank capacity 0.48 gal Way lubrication oil required (or equal) ISO VG68 MACHINE SIZE Floor Space Requirements (L x W x H) 192" x 63" x 77" Machine Weight 14,200 lbs. Power Consumption 41 kVA Voltage 220V�10%, 60 Hz, 3 phase CNC Model Fanuc 0i-TF PLUS Display Unit 10.4" TFT LCD Color Monitor SHIPPING DIMENSIONS 195" x 91" x 88" ; 14,330 lbs. Equipped With:STANDARD EQUIPMENT Tool presetting system (tool presetter) - Tool set-up / Tool wear compensation Oil skimmer Programmable tailstock (tow-along tail body and programmable quill) Machine work light, LED type Chip and coolant splash guarding (full coverage) 12" diameter hydraulic thru-hole chuck package for main spindle: 12 (24) Station turret [24 Position Tool Holder are options] (Capable & ready for 1,000psi through-turret coolant) Full contouring C-axis Lubrication system Rigid tapping on main spindle Chuck foot switch Front door interlock Hydraulic pressure interlock from main hydraulic line Foundation kit (plates only) One (1) set of adjusting tools Machine Manuals: one (1) each (Electric Diagram, Maintenance, Parts List, Operation / Maintenance) Fanuc Manuals: one (1) each (Manual Guide i, Operations, Parameter, Maintenance, Operators volumes 1 and 2) in USB SMEC A PACKAGE: Programmable Tailstock (Body and Quill) Built-in Tailstock Bearings MT #4 Barfeeder Interface Manual Guide i Chip Conveyor - Side Discharge 145 PSI Coolant Pump* 1 Set of Hard Jaws 3 Sets of Soft Jaws 3 Color Tower Light FANUC OPTIONS: (Installed by Quan Le) Arbitrary Speed Threading function: $1275.00 Spindle Speed Variation function: $700.00
