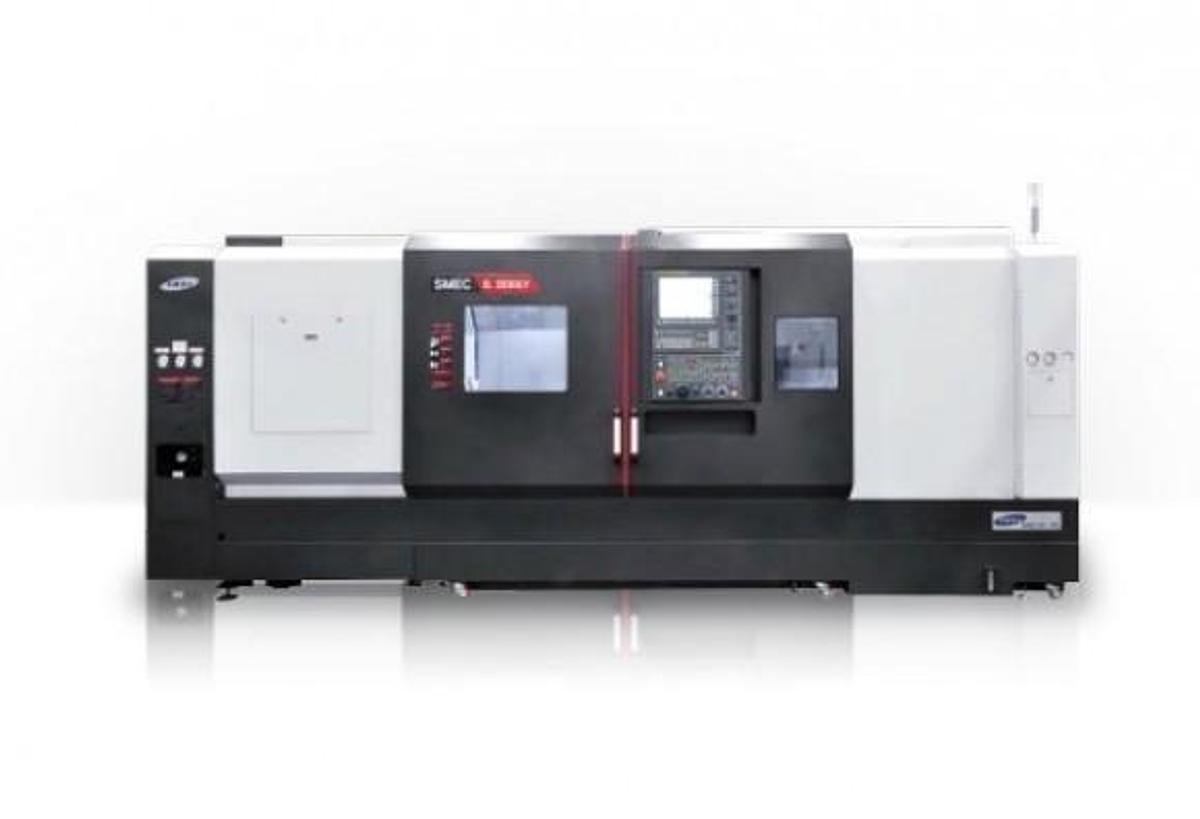

2023 SMEC SL 4000L[M]A Box Guide Type Turning Center

2023 SMEC SL 4000L[M]A Box Guide Type Turning Center

or
Call 213-393-6196

Description

Capacity Chuck size (inch) 12 Max Turing Dia. (mm) 650 Max bar working Dia. (mm) 102 Max Turning Length (mm) 3128 [3084] Swing Over Bed(mm) 770 Travel Travels (mm) X: 340 / Y: / Z: 3170 [3170] Rapid Travels Rate (X/Y/Z) X: 16 / Y: / Z: 20 Spindle Spindle Speed (RPM) 2500 Spindle Motor (Cont./Max.) (KW) 18.5 / 26 Draw Tube ID (mm) 103 Turret Number of Tool 12 [BMT65] Machine Size Length (mm) 6360 Height (mm) 2267 Width (mm) 2212 Weight (kgf) 11500 (): Option / []: Mill type Equipped With:

Specifications

ManufacturerSMEC
ModelSL 4000L[M]A
Year2023
ConditionNew
