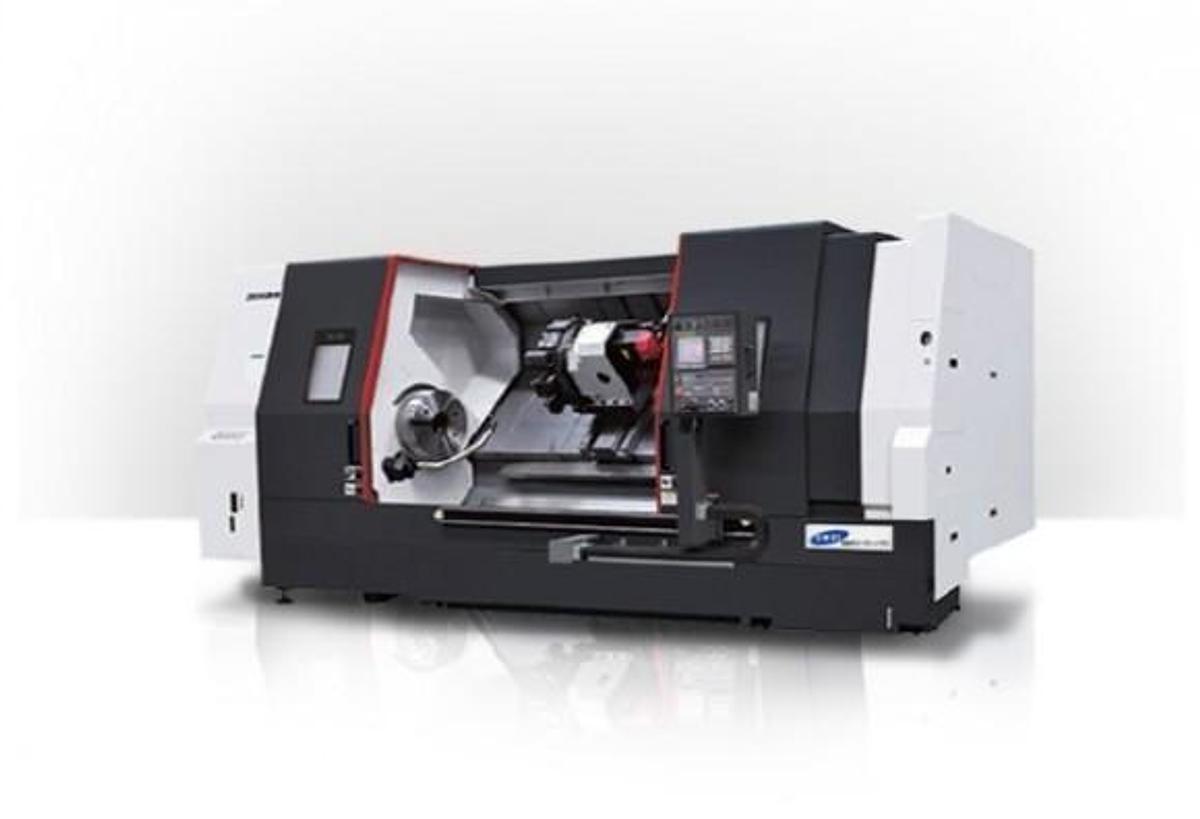

2025 SMEC SL 5500[M]A Box Guide Type Turning Center
2025 SMEC SL 5500[M]A Box Guide Type Turning Center
or
Call 213-393-6196
Description
Capacity
Chuck size (inch) 21
Max Turing Dia. (mm) 690
Max bar working Dia. (mm) 165.5
Max Turning Length (mm) 1097
Swing Over Bed(mm) 1079
Travel
Travels (mm) X: 370 / Y: / Z: 1130
Rapid Travels Rate (X/Y/Z) X: 20 / Y: / Z: 20
Spindle
Spindle Speed (RPM) 1500
Spindle Motor (Cont./Max.) (KW) 30 / 45
Draw Tube ID (mm) 166.5
Turret
Number of Tool 12 [BMT75]
Machine Size
Length (mm) 5159
Height (mm) 2173
Width (mm) 2344
Weight (kgf) 15000
(): Option / []: Mill type
Equipped With:
Specifications
| Manufacturer | SMEC |
| Model | SL 5500[M]A |
| Year | 2025 |
| Condition | New |
