SMEC MCV 5500 (12K) VMC

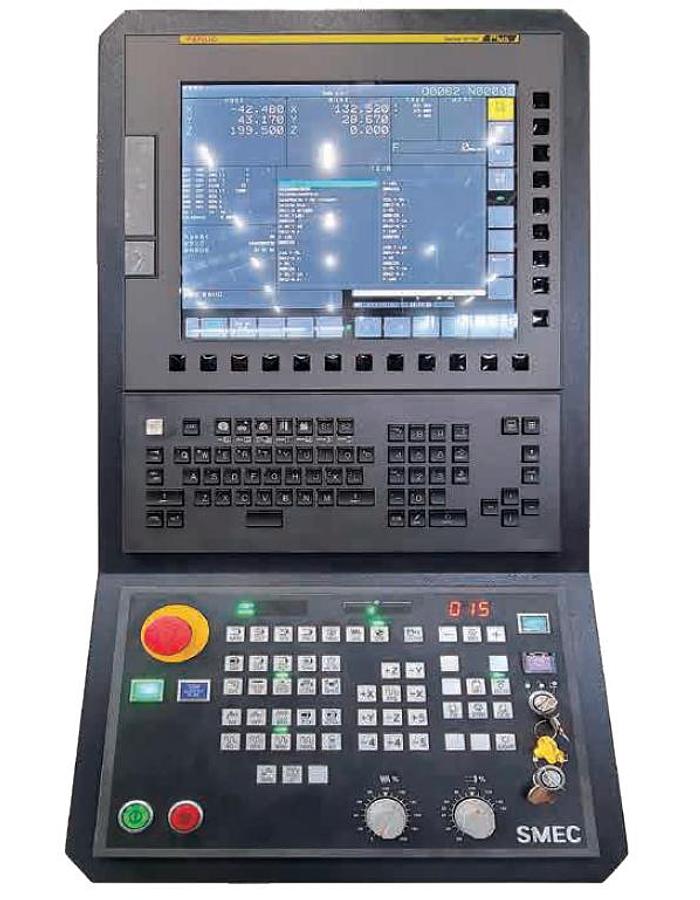

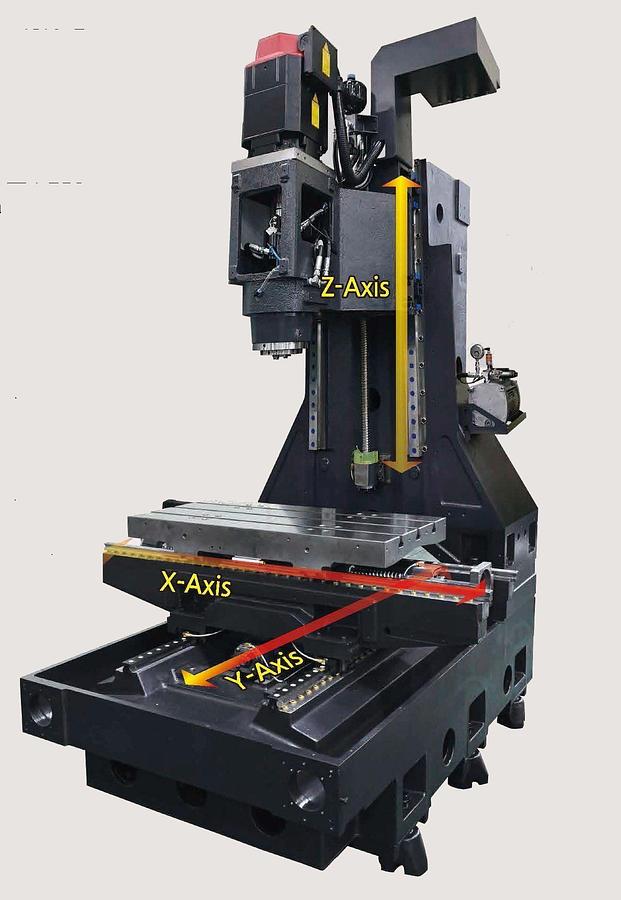

CAPACITY X axis travel 41.33" Y axis travel 21.65" Z axis travel 20.47" Table Size 21.26" x 47.24" Table loading capacity 1,763 lbs. Table T-slot spacing x width 0.71H8 x p4.92 x 4ea SPINDLE Distance from tabletop to spindle nose 5.12" - 25.59" Distance from column to spindle center 23.90" Spindle taper CAT40 (Big Plus) Spindle speed 12,000 rpm (Direct Drive) AC Spindle motor (Max / Duty / Cont.) 25 / 20 / 15 hp Maximum spindle torque (Max) 87.0 ft.-lbs. AUTO TOOL CHANGER Magazine capacity 30 Tools Tool shank CAT40 Pull stud type 45� Type Maximum tool diameter [adjacent empty] 3.15" [4.92"] Maximum tool length 11.81" Maximum tool weight 17.6 lbs. Tool selection method Random Tool changing time (T-T) 1.3 sec. FEED RATE Rapid traverse (X / Y / Z) 1417 /1417 /1181 ipm Cutting Feed rate ipm 590 ipm SERVO DRIVE SYSTEM Feed motor (X / Y / Z) 4.02 hp / 4.02 hp / 4.02 hp Ballscrew diameter (X / Y / Z) 1.57" / 1.57" / 1.57" Axis feed thrust, Continuous (X / Y / Z) 2,691 /2,641 /4,000 lbs., Slide ways Cross Roller Slide way span (X / Y / Z) 14.6" / 34.4" / 19.7" Slide way width (X / Y / Z) 1.34" / 1.77" / 1.77" Position accuracy �0.00012" Repeatability �0.00008" GENERAL Floor space (L x W x H) (without CC) 155" (115") x 132" x 109" Machine weight 14,771 lbs. Power required 34 kVA Voltage 220V + 10% / 3 Phase CNC system Fanuc 0i-MF PLUS Equipped With:STANDARD EQUIPMENT 1,000 psi coolant (prep) Programmable and data protection key switch Machine work light: fluorescent lamp Coolant system with separate coolant tank (tank capacity: 96 gal.) Telescopic way covers Full enclosure splash guard Spindle load meter Lubrication system Portable manual pulse generator Leveling tools Transportation parts Machine Manuals: one (1) each (Electric Diagram, Maintenance, Parts List, Operation /Maintenance) Fanuc Manuals: one (1) each (Manual Guide i, Operations, Parameter, Maintenance, Operators volumes 1 and 2) in USB SMEC PACKAGE: 12,000 rpm Spindle 30 Tools Double Arm ATC 290 psi Through-Spindle Coolant System Oil Skimmer Full Enclosed Splash Guard Built-in Dual (Internal) Screw Conveyors Coolant Bed Flush 4th Axis Prep Kit (wiring for connector box for cable only; no amplifier) Renishaw Probe Ready Kit (OMI-2T) Rigid Tapping Big Plus Spindle Manual Guide i AI Contour Control II Z-Axis HP Upgrade with 4,000 lbs. Continuous Thrust Chip Conveyor - Side Discharge Spindle Air Blow, External Thru Spindle Air Coolant Gun 3 Color Tower Light SMEC KIT (special discount available) $7,410 �� RENISHAW -PR (1 each) �� 1-OMP40-2 PROBE KIT (MOD TX/OPT-OFF) $4,230.00 �� 1-M4 STY D6R L50 EWL33.4 D4.5CE (Ceramic Stylus) $110.00 �� 1-M4 STY D6R L100 EWL88.5 D4.5CE (Ceramic Stylus) $130.00 �� 1-CAT40 SHANK O/RMP40 (Retention knob not included) $410.00 �� RENISHAW -TS �� 1-OTS OPTICAL TOOL SETTER $2,530.00 �� Included as a SMEC-Renishaw Kit �� SMEC MCV & LCV (Not applicable with PCV) series VMC is equipped with; �� Renishaw Optical receiver (USA standard) with wiring, no more hardware or wiring required �� SMEC
